Review

,

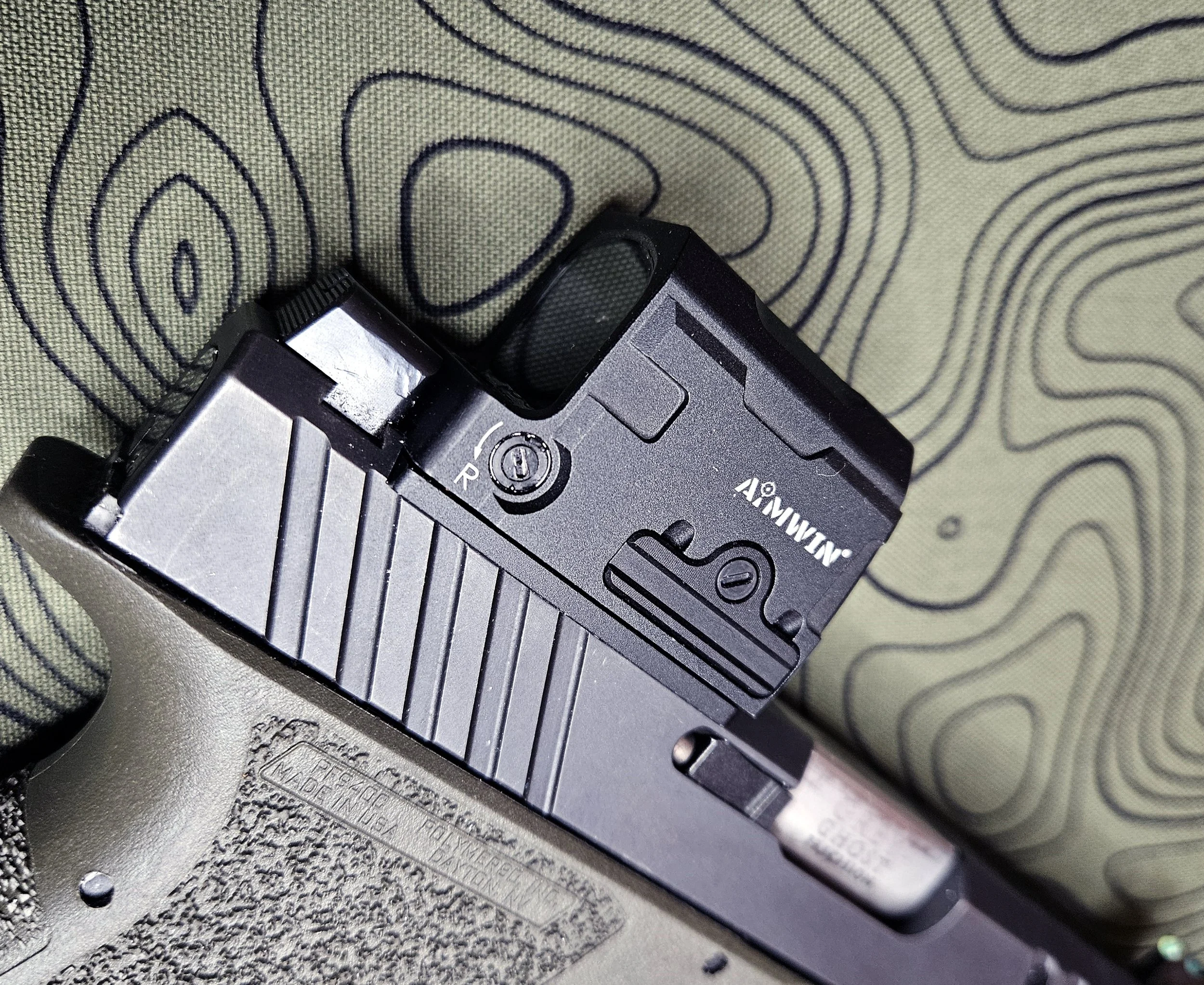

Aimwin PE330

,

Aimwin PE330

Review

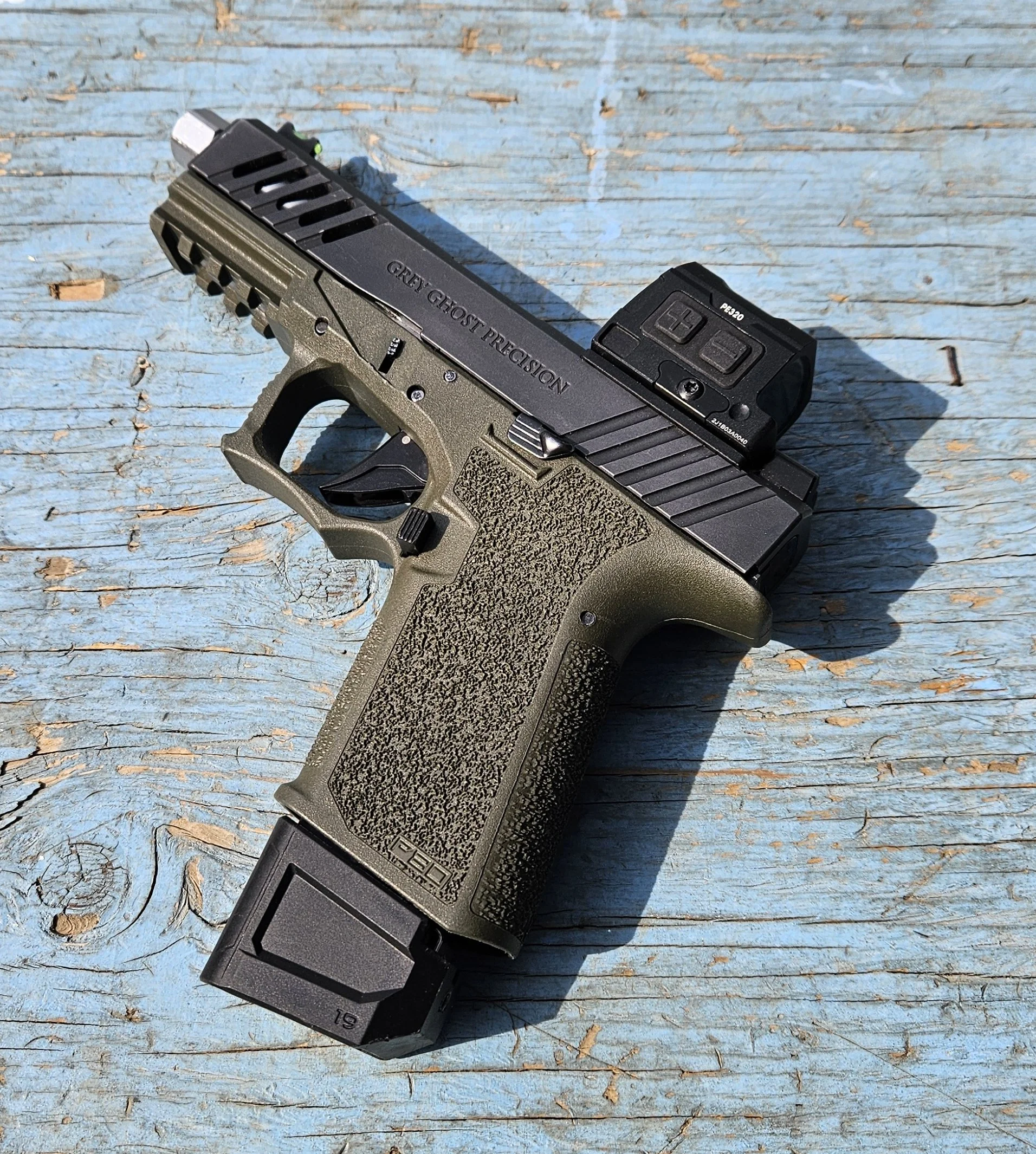

  Enclosed micro red dots are not a new thing. However, Aimwin is a fairly new company in the optics market. One of their newest editions is the PE330 enclosed red dot. The PE330 red dot comes with an enhanced feature set and mounts directly to RMSc style footprints.

  As mentioned, the Aimwin PE330 is an enclosed emitter style red dot optic. This gives the PE330 some advantages over open emitter style red dots. It protects the internals from dust, water, and any other debris. It also makes the lenses easier to clean. Living where I live, having an enclosed red dot is a big advantage because of the rain we get in Oregon. The water doesn’t get trapped inside the lens like on an open emitter style. So if you need to wipe the water off, it is just a simple wipe, not a scrub and soak.

  The exterior of the Aimwin PE330 is 6061 aluminum. 6061 style aluminum seems fine for this type of optic. The hard anodized aluminum exterior helps to make the PE330 pretty durable. The PE330 also is water resistant, nothing is water proof. Aimwin specs it out as IPX7, which is submerged at 1 meter for a 30 minute time frame. This is pretty standard on these styles of red dots. It didn’t leak on me, but I also didn’t swim with it on.

  When dealing with micro red dots, the mounting footprint is super important. The Aimwin PE330 uses an industry standard RMSc footprint. This footprint is what a lot of micro compact pistols use for direct mounting to the slide. Oddly enough, the RMSc footprint is also used on some 1911 and 2011 full size pistols. Having that industry standard footprint really makes the PE330 standout for mounting on various styles of pistols. Included with the optic is a bunch of various size mounting screws. So finding the correct screw for your mounting surface is super easy. I always like it when companies put in those extra mounting screws, that way I don’t have to hunt some down in my screw bin.

  When it comes to powering the PE330, Aimwin uses a CR1620 battery. This is a slightly thinner battery than the CR1632, which is used in a lot of RMSc footprint red dots. Aimwin states a 20,000 hour battery life. So even though it isn’t as long as others, it is still plenty. Aimwin also designed the PE330 with a side load battery. So when you do change that battery, it is super easy to do and will not affect your zero. Something I haven’t seen with other red dots is that Aimwin includes extra battery tray screws. I will probably lose the extra screws before I actually need to replace one, but they are there just in case.

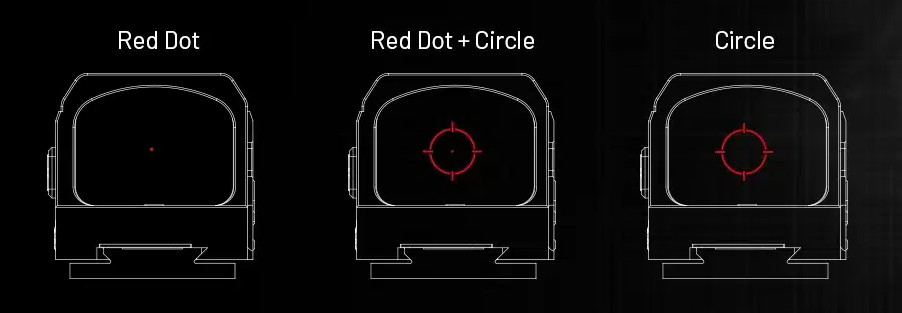

  The PE330 isn’t just a red dot, it is a multi-reticle system. It includes a 3 MOA dot and a 40 MOA circle. You can combine these into a dot only, circle dot, or just a circle. To do this all you have to do is hold down the brightness up button for a few seconds. For brightness adjustment, there is a soft touch pad on the left side of the optic with + and - labels. The PE330 has 11 brightness levels. The lowest 2 are night vision compatible, while the other 9 are daylight bright. To adjust the position of the reticle, the PE330 uses a small standard screwdriver. It also has actual clicks for adjustment, not just the turn and guess style. Each click is 1.5 MOA.

  Aimwin has their auto on feature called “AIM Awake”. As one can guess, this is Aimwin’s shake awake feature. After a few minutes of not being moved, the PE330 will go into a standby mode. When movement is detected, the dot automatically turns back on at the same brightness level it was adjusted to. This feature gives more battery life to the optic. In today's red dot market, every optic should have this if it uses a battery. I am glad Aimwin includes the Aim Awake feature.

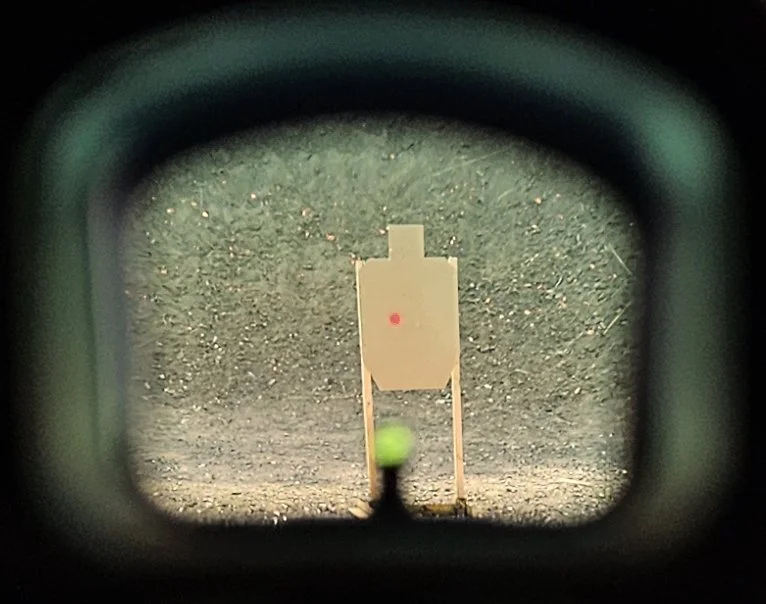

  For the review, I mounted the Aimwin PE330 on a Tisas 1911 Double Stack. The window size of 23 x 16 mm worked well on this pistol. It is not the largest window, but it was very useful. I also noticed that the dot is very clear. Some of that is probably due to the glass used on the optic. I was pleasantly surprised at how clear the glass was. I couldn’t notice any color change or tint to it. Because the PE330 is a little wider than smaller RMSc red dots, it does hang over the sides of the slide. It is definitely noticeable, but does not hurt anything at all. That is a price you have to pay for a larger’ish size micro red dot on a thin 1911 slide. I don’t really care for the 1.5 MOA adjustment range. Yes it works, but I would like a finer adjustment, maybe something like a 1 MOA adjustment. With that said, I didn’t have any problems sighting in the pistol. I also haven’t had any problems with the sight itself, even with a ton of rounds being shot for the Tisas review itself.

  Anyone looking for a reasonably priced, enclosed, micro red dot should go take a look at the Aimwin PE330. It uses that industry standard RMSc footprint for mounting and has a side load battery. The red dot is very clear on whatever reticle option you choose, may it be a dot or a circle. Plus it is priced right for anyone. From beginners just getting into the red dot market, or experts just needing another dot, the Aimwin PE330 might be the one you're looking for.

Firearms Insider Reviews - Key Points

Claim to Fame:

Enclosed RMSc footprint red dot with multi reticles

Target Market:

Those wanting an enclosed red dot for their pistols

Features, Benefits, and Specifications of this product:

  • Weight: 1.16 ounces

  • Dimensions: 1.61 × 1.2 × 0.98 in (40.8x30.6x25mm)

  • Dot Size: 3 MOA - 40 MOA

  • Adjustment per Click: 1.5 MOA

  • Windage & Elevation Travel Range: ±40 MOA, (total range 80 MOA)

  • Battery: CR1620

  • Battery Life: Medium brightness level - 20000h

  • Brightness Settings: 9 Daylight Levels, 2 Night Vision Levels

  • Window Size: 23 x 16mm(0.91" x 0.63")

  • Housing Material: A6061-T6

  • Hard-anodized

  • Operating Temperature: -30°C~60°C（-22°F to 140°F）

  • Water Resistance: IPX7

  • Footprint: RMS-C

  • Aim Awake auto on/off

  • Side load battery

What other aesthetic options or finishes are available?

None

What others are saying?:

5 out of 5 stars on Amazon

Great deal

I’ve tried a fair number of pistol red dots over the years, and I picked up the PE330 mainly to see how it would hold up as an enclosed optic. After putting some rounds through it, it’s been solid and predictable, which is really what I want from a handgun optic.

The enclosed emitter definitely helps when conditions aren’t perfect. Dust and debris haven’t been an issue, and the sight picture stays usable without needing constant attention. The glass looks good overall, with no distracting distortion, and once it’s zeroed, parallax hasn’t been noticeable in real shooting.

The reticle setup makes sense. The larger circle helps you find the dot faster, especially when drawing or moving between targets, while the center dot still gives you enough precision for slower, more deliberate shots. Under recoil, the dot is easy to track and comes back into view naturally, which makes follow-up shots smoother.

Battery life hasn’t been a concern thanks to the motion-activated wake feature, and I haven’t run into any random shutoffs. Mounting it on an RMSc-cut slide was quick and straightforward, and it stayed tight and held zero through multiple range sessions.

All things considered, the PE330 is an easy optic to live with. It does what it’s supposed to do, feels intuitive behind the gun, and works well for regular range use or for shooters getting comfortable with enclosed pistol optics.

Link to other reviews:

Chris from the 740 on YouTube

Price point:

MSRP = $229.95

Retail = $169.95

I need it now! Availability:

Aimwin Optics or Amazon

Our Rating:

Pros:

  • Window size

  • Aim Awake

  • Side load battery

  • Enclosed

  • Reticle options

Cons:

  • Battery Type

  • Battery life

Score: 8.00 Great

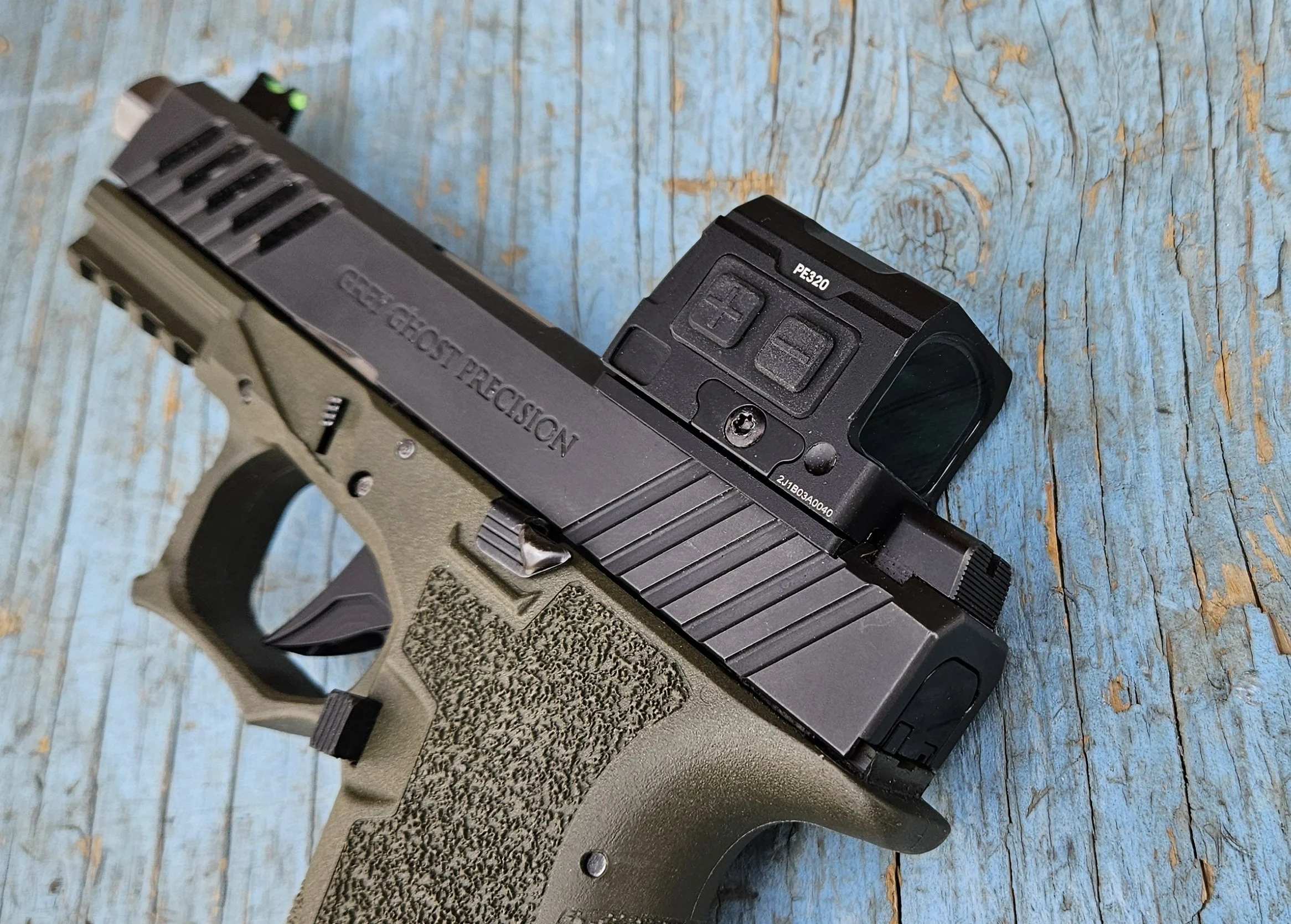

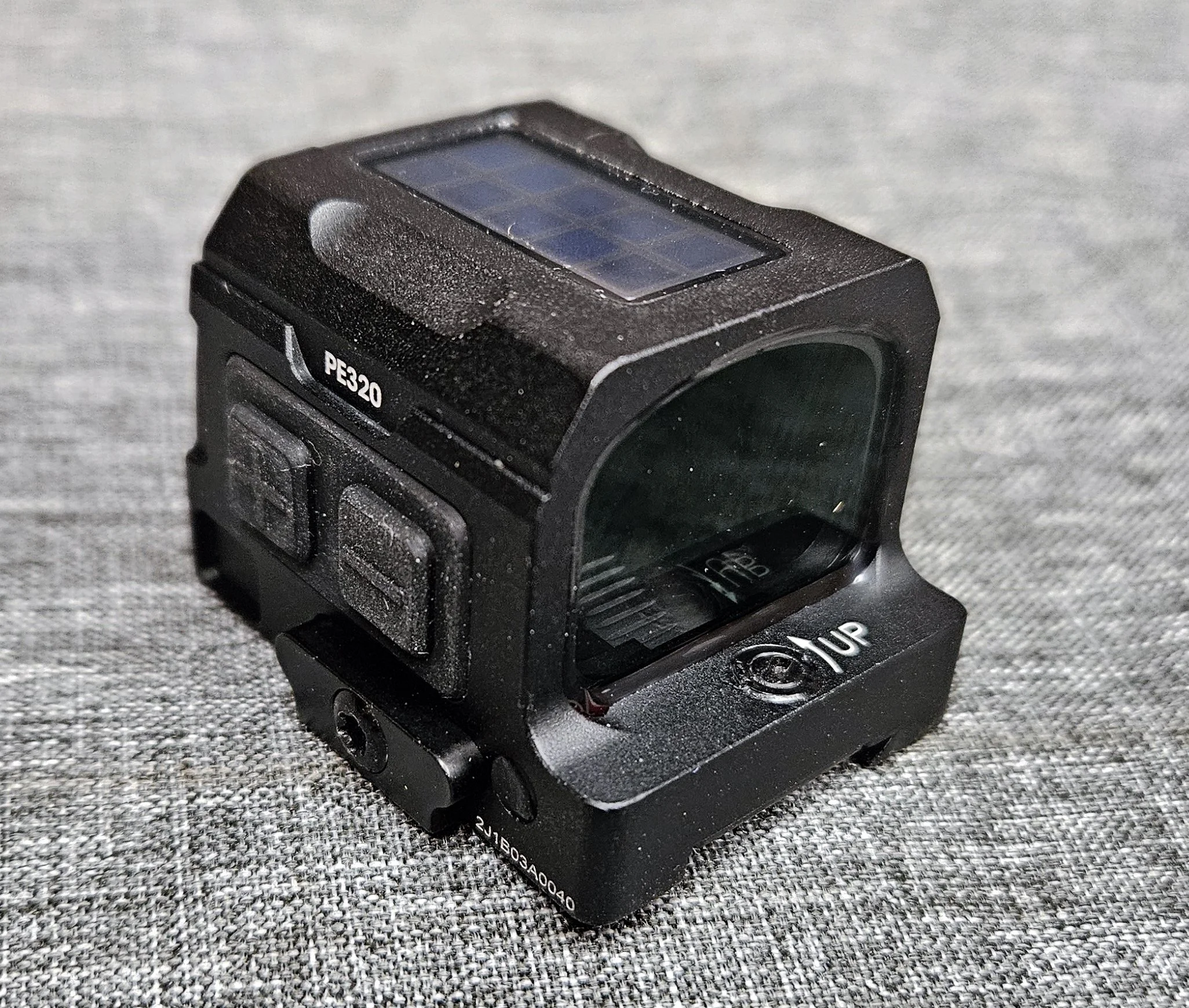

Favorite Link: Aimwin PE320 Review

,

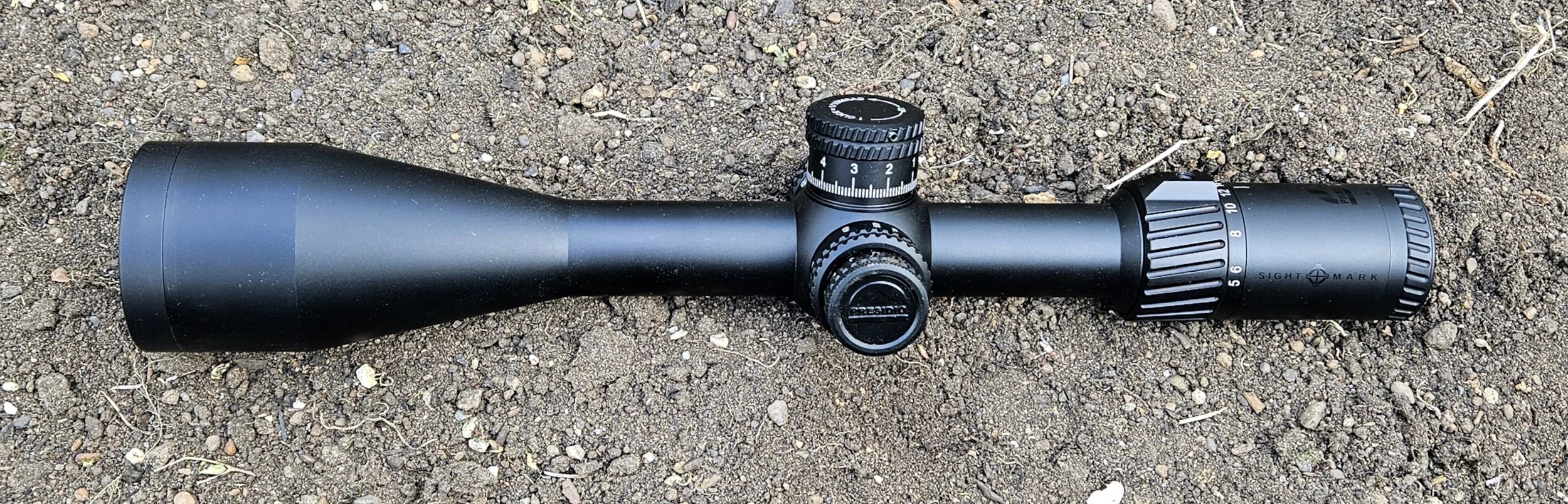

Primary Arms SLx 4.5-27x56

,

Primary Arms

SLx 4.5-27x56 FFP Review

  Inexpensive, high quality long range optics are starting to become more prevalent in today's market. Primary Arms Optics recently released their SLx 4.5-27x56 first focal plane scope. This thing is a beast, in a good way. It is available with two different ACSS reticles: the Athena BPR MIL Reticle and the Deka G2 Reticle. I received the Deka reticle, which was the one I would have chosen anyways.

  The SLx line of optics from Primary Arms is what I call their “value” line. What that means for the customer is that you get a ton of features for a reasonable price. For instance on this SLx 4.5-27x56 you get an illuminated first focal plane reticle, 34mm tube, finger adjustable turrets, fast focus eye piece, a throw lever, and a zero stop. This line also has some good glass. Because the 4.5-27 is in the SLx line, you do get a scope that might weigh a little more than Primary Arms’ GLx or PLx line, but I expect that in a value line product.

  Primary Arms Optics SLX 4.5-27x56 is loaded with options. I mentioned a few before, but let us get into them more. The 34 mm tube and 56 mm objective lens help to allow more light through the lenses. At lower power, this is not really a problem, but as the magnification increases, light going through the scope to your eye can diminish. So you get a brighter picture than say a 30mm scope with a 50mm objective lens. Another advantage of the 34mm tube is that it allows more elevation and windage adjustments. In the SLx’s case, it allows for 32 MIL’s of adjustment at 100 meters, or about 115 inches.

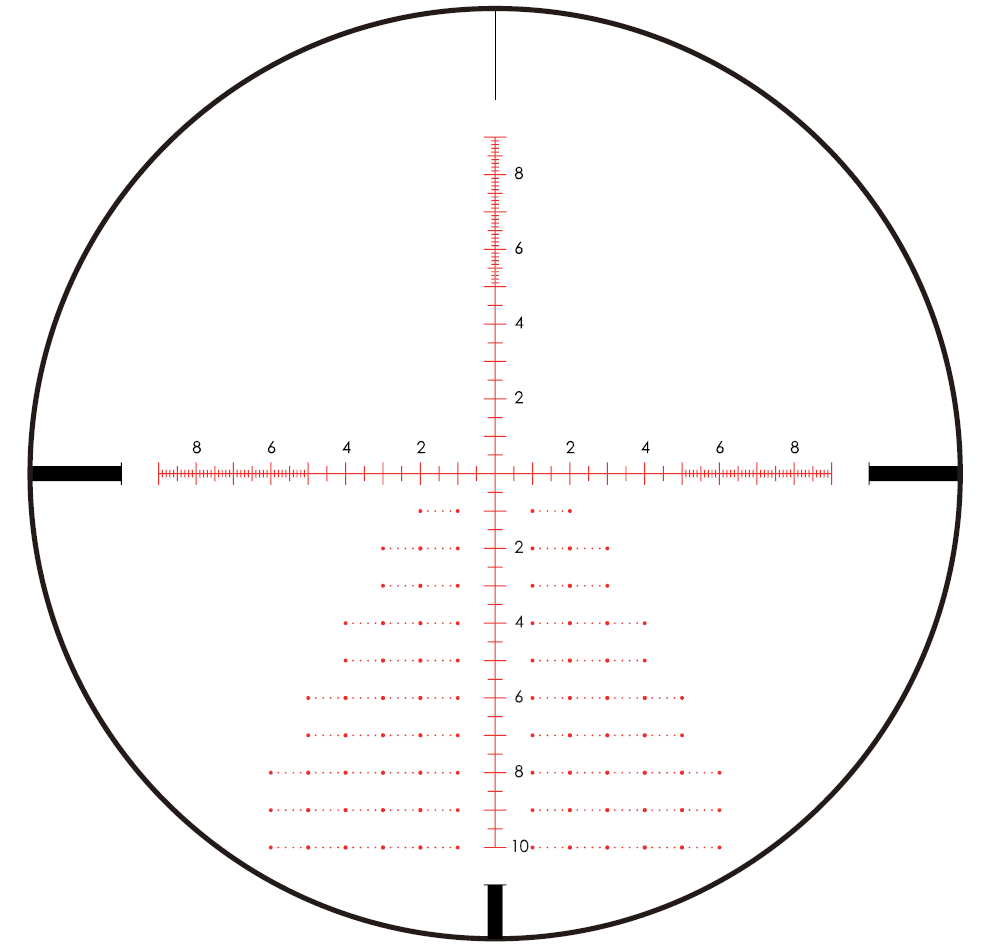

  The ACSS DEKA G2 reticle is nice. The Deka is a MIL reticle that has a bunch of features, including ranging. First, it is a crosshair style reticle, no “Christmas tree” style here. I really like this style of reticle because it doesn’t clutter up the viewing space, allowing one to see their target more clearly. The inner part of the reticle has tiny marks every 0.1 MIL. Slightly larger ones at 0.5 MIL’s, and bracketed “T” marks every MIL. Then every 2 MIL mark has a number out to 10 MIL’s. So 2,4,6,8, and 10 are marked with those numbers. This applies to both windage and elevation. This marked portion of the reticle is the illuminated section, including the center 0.1 MIL aiming dot. The center dot gives you a really accurate aiming point. If you want to only see the illuminated part of the reticle, you are limited to about 15x magnification. At the full 27x, you see about 14 MIL’s of the reticle, 7 on each side of the aiming dot. After the 10 MIL mark, you get a solid line with 20, 30, and 40 MIL marks. This outer portion is not illuminated. The top portion of the reticle has some ranging lines, which are also illuminated. These are used to determine the approximate range of a 5 foot 7 inch tall, and/or a 19 inch wide target. The ranging marks start at 300 meters and go out to 1000 meters. I have one minor complaint about the reticle, I would like the stadia line, that has the marks on it, to be smaller than 0.1 MIL. Maybe something like 0.05 MILs. Mainly because this line just holds the markings, which are 0.1 MIL wide. Other than that, I really do like the configuration of the ACSS DEKA reticle.

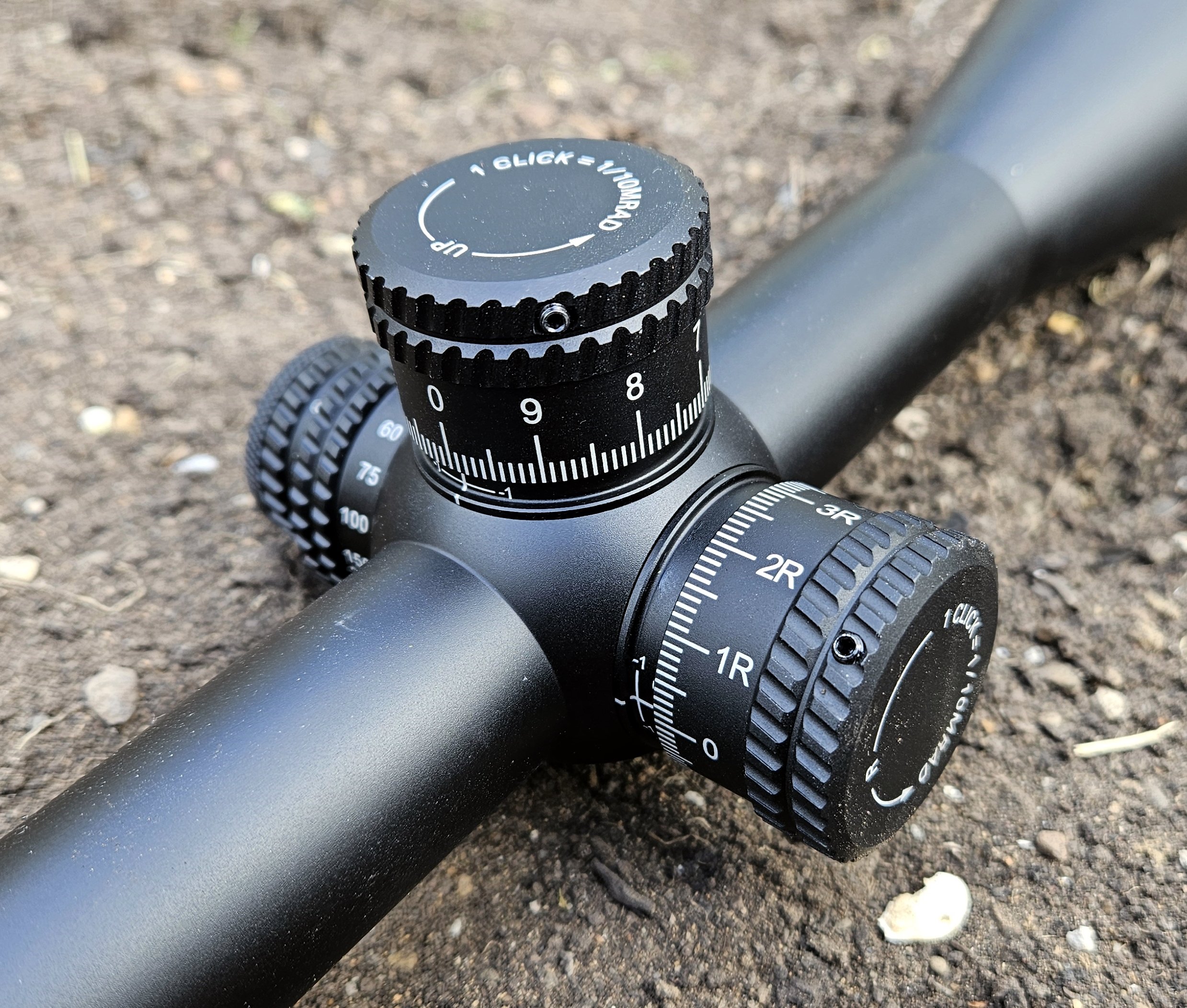

  Since the reticle just was explained, now maybe we should adjust it to our rifle. The turrets on the SLx 4.5-27 are fairly large and nicely textured. This makes them easy to adjust with or without gloves. The clicks are quite good for being in the SLx line. They are positive with very little “mush” to them. These turrets also adjust the optic in 0.1 MIL increments. The windage turret is capped, but it can be set to a zero after sighting in the rifle. This windage turret also has right and left markings on it. So once you set the zero, if you need the bullet to go left 1 MIL’s, you just turn it to “1L”, or “1R” if needing to move the impact to the right. The elevation turret is one place the SLx really shines. It is a large target style with an adjustable zero stop. Having that zero stop makes it super easy to adjust the optic back to its base zero. One revolution on the elevation knob is also 10 MIL’s of adjustment, making range adjustments easier to calculate. If you don’t like the target style elevation turret, Primary Arms also supplies a standard height turret. Both of these turrets have markings on them, neither one is capped. On the left side of the optic are the parallax and brightness knobs. Both have decent texturing. The parallax knob turns easily, even if it is harder to get clear at longer ranges. The brightness knob turns harder, but has positive detents for the 6 brightness settings. It also has “off” positions in between each numbered “on” position. Brightness is really good, but it is not daylight bright illumination. Unless it was a really dark day, I didn’t really use the illumination.

  I was impressed with the SLx 4.5-27’s clarity. At lower power levels, up to about 20x, it is super clear and bright. Okay, it is pretty bright all through the magnification range. When you get up to about 25x, the clarity seems to drop a tiny bit. It is still usable at 27x, you just notice it. I was still able to see, and hit targets at 1000 yards without any problems. Okay, seeing them yes, hitting them was more of a challenge. But that was not the optics fault. Part of the reason the clarity drops off at long range is due to the touchy parallax adjustment. It adjusts fine at 100-500 yards, but as the magnification and range increases, it is harder to adjust to get a clear picture. It can be adjusted for a clear picture, it just takes very small movements. Don’t let these complaints scare you off, the SLx 4.5-27 is still a very capable optic out to 1000 yards and beyond.

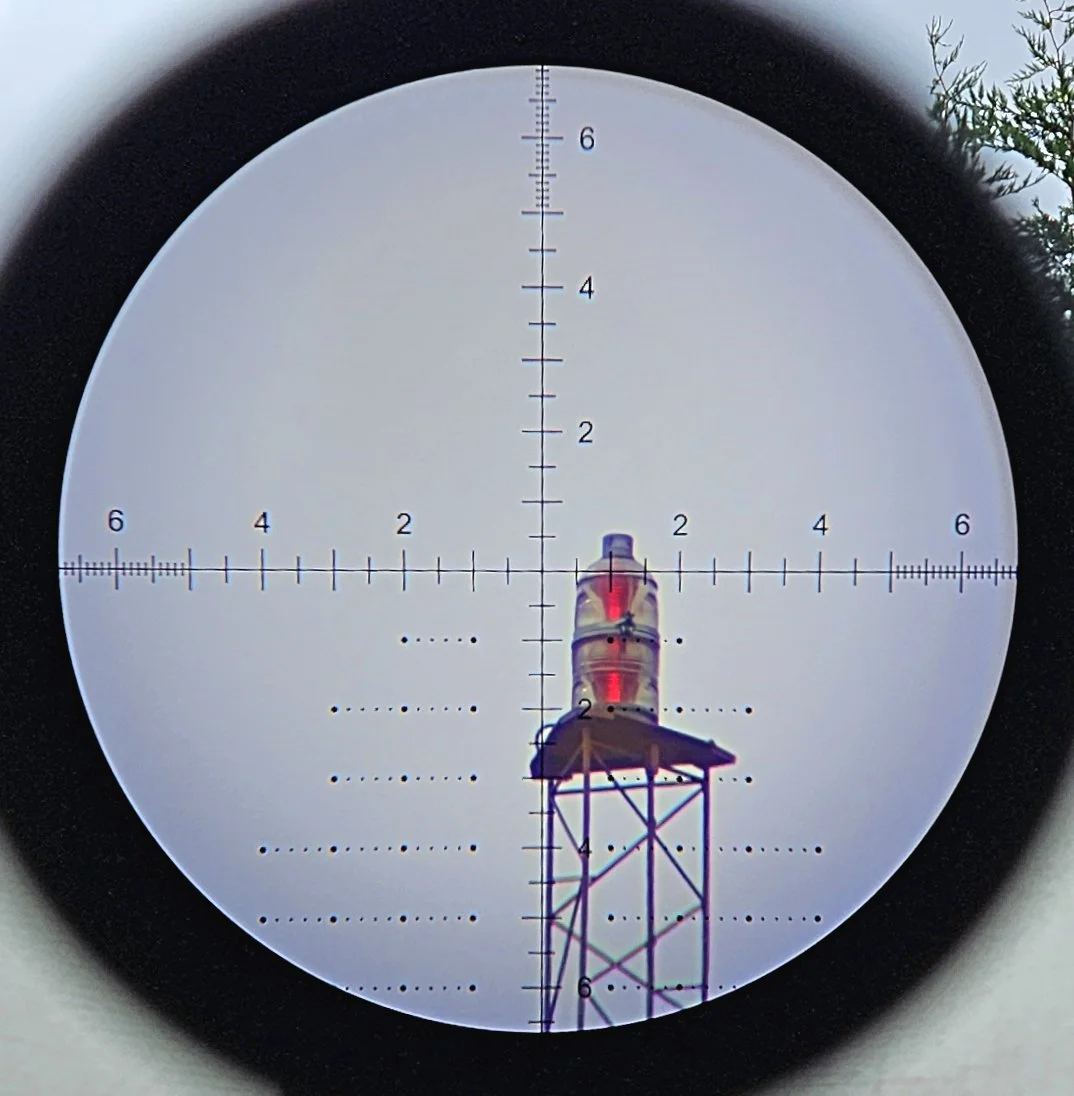

Stump is approximately 1100 yards, Optic is at maximum power (27x)

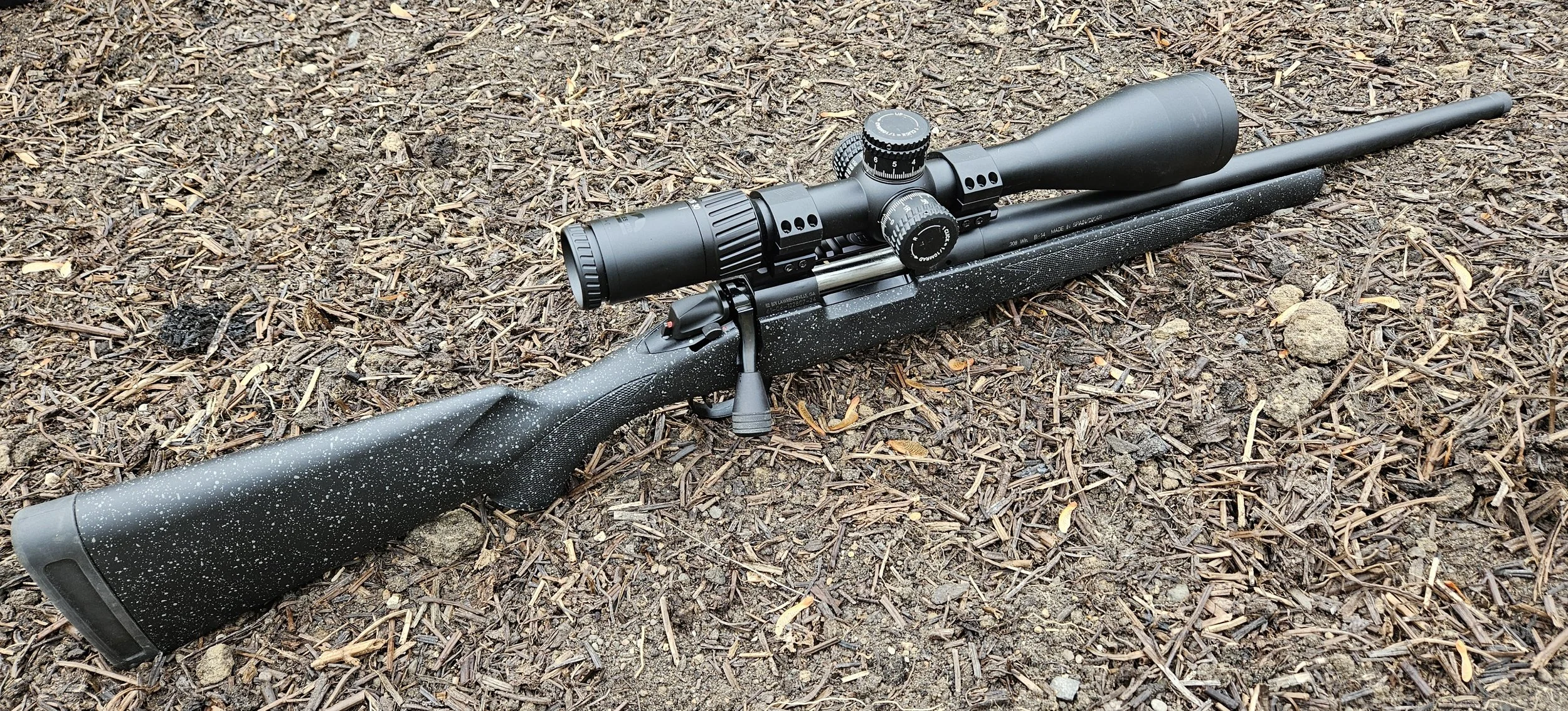

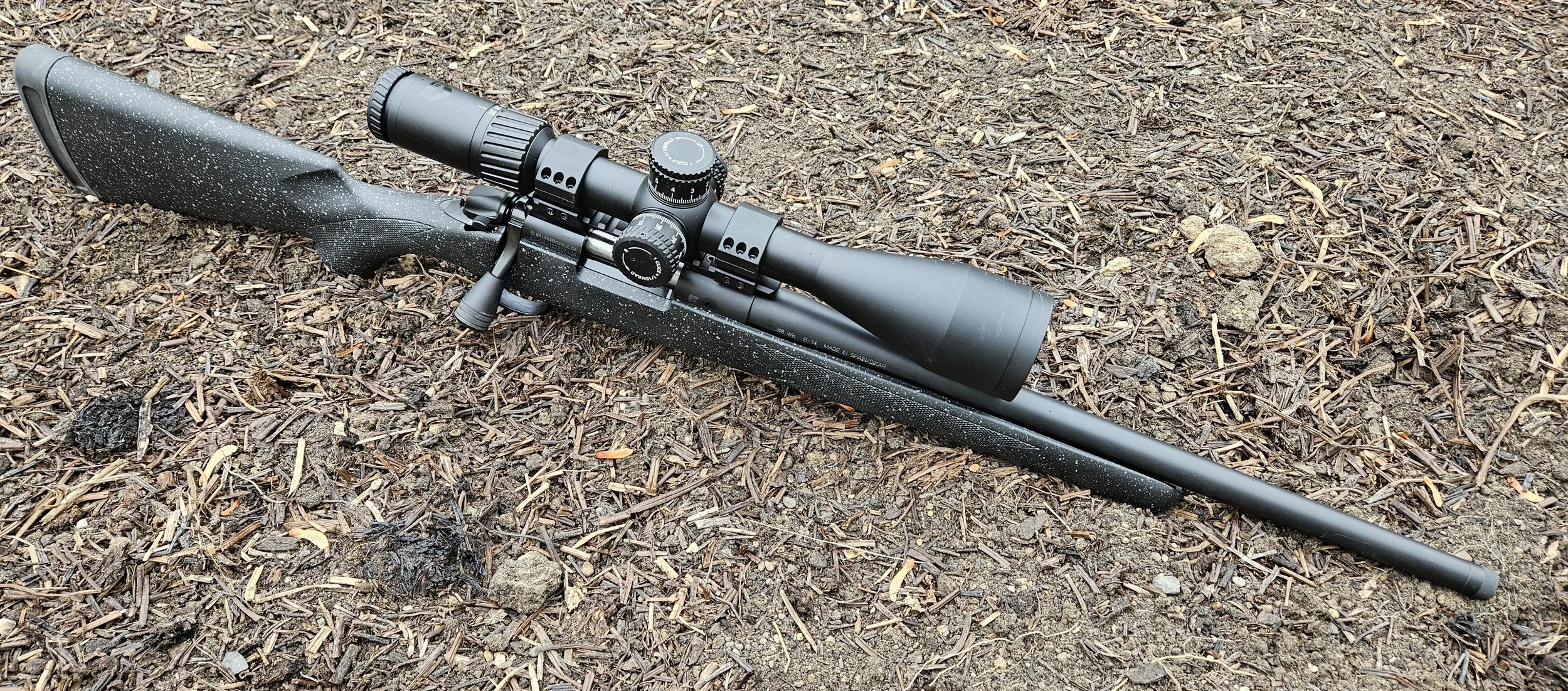

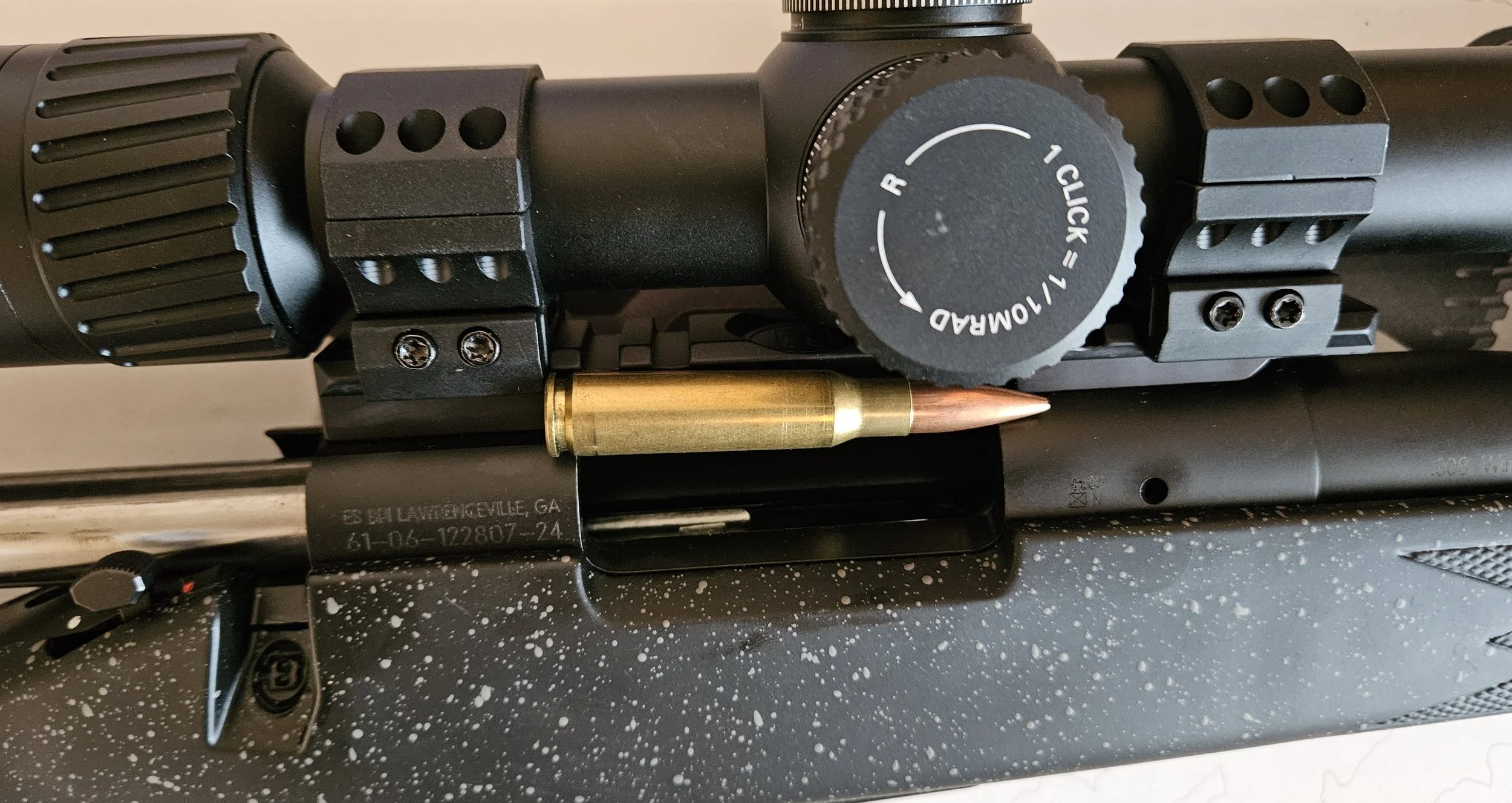

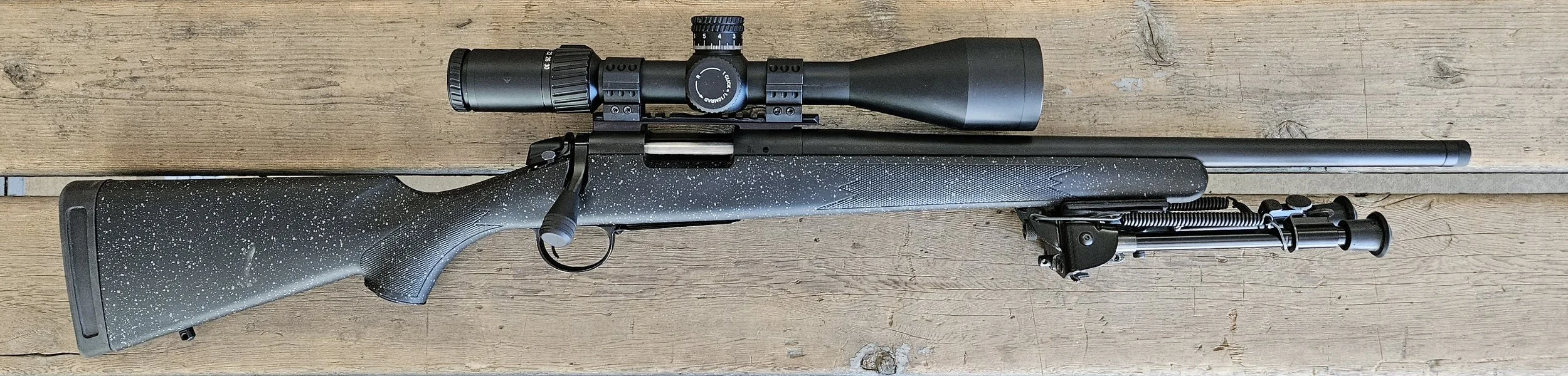

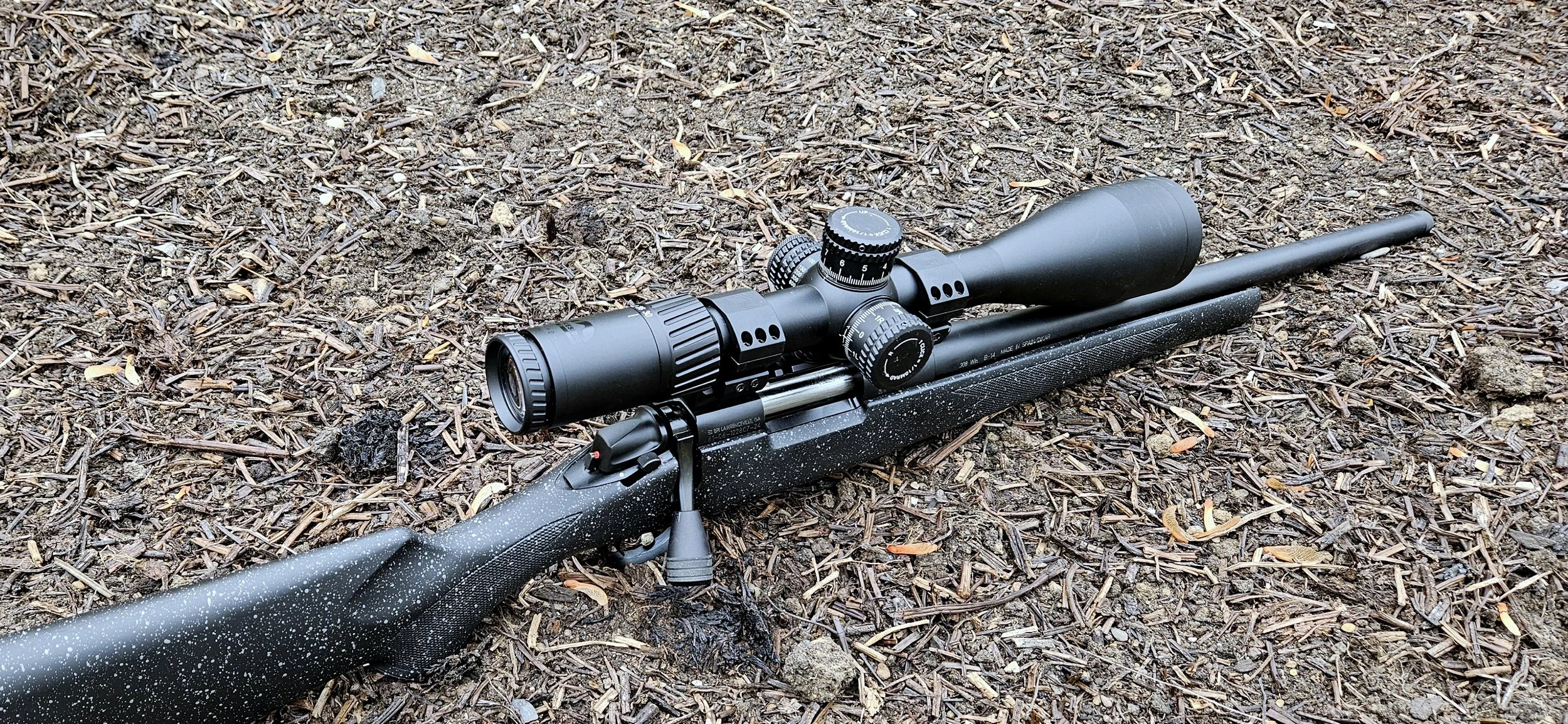

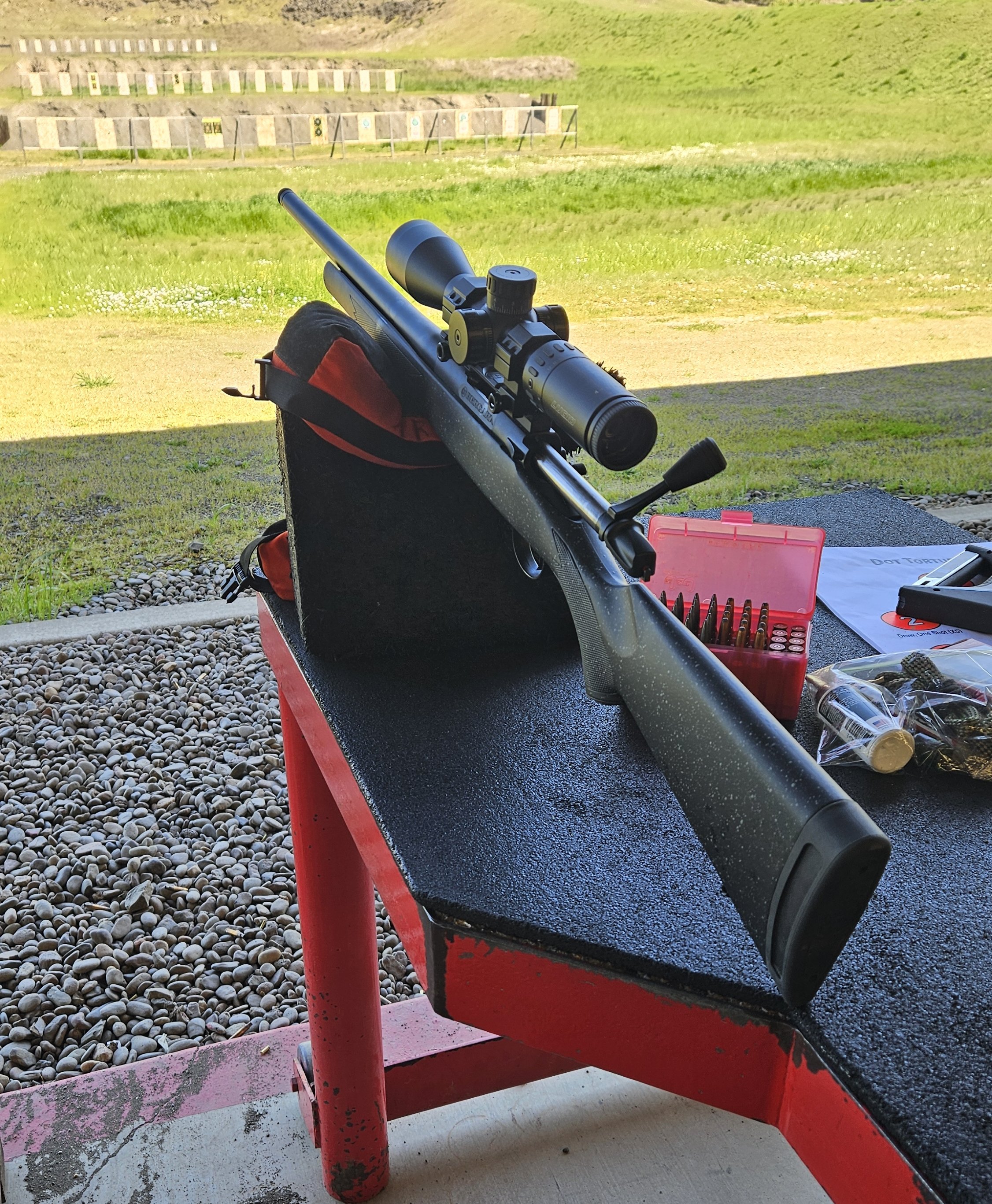

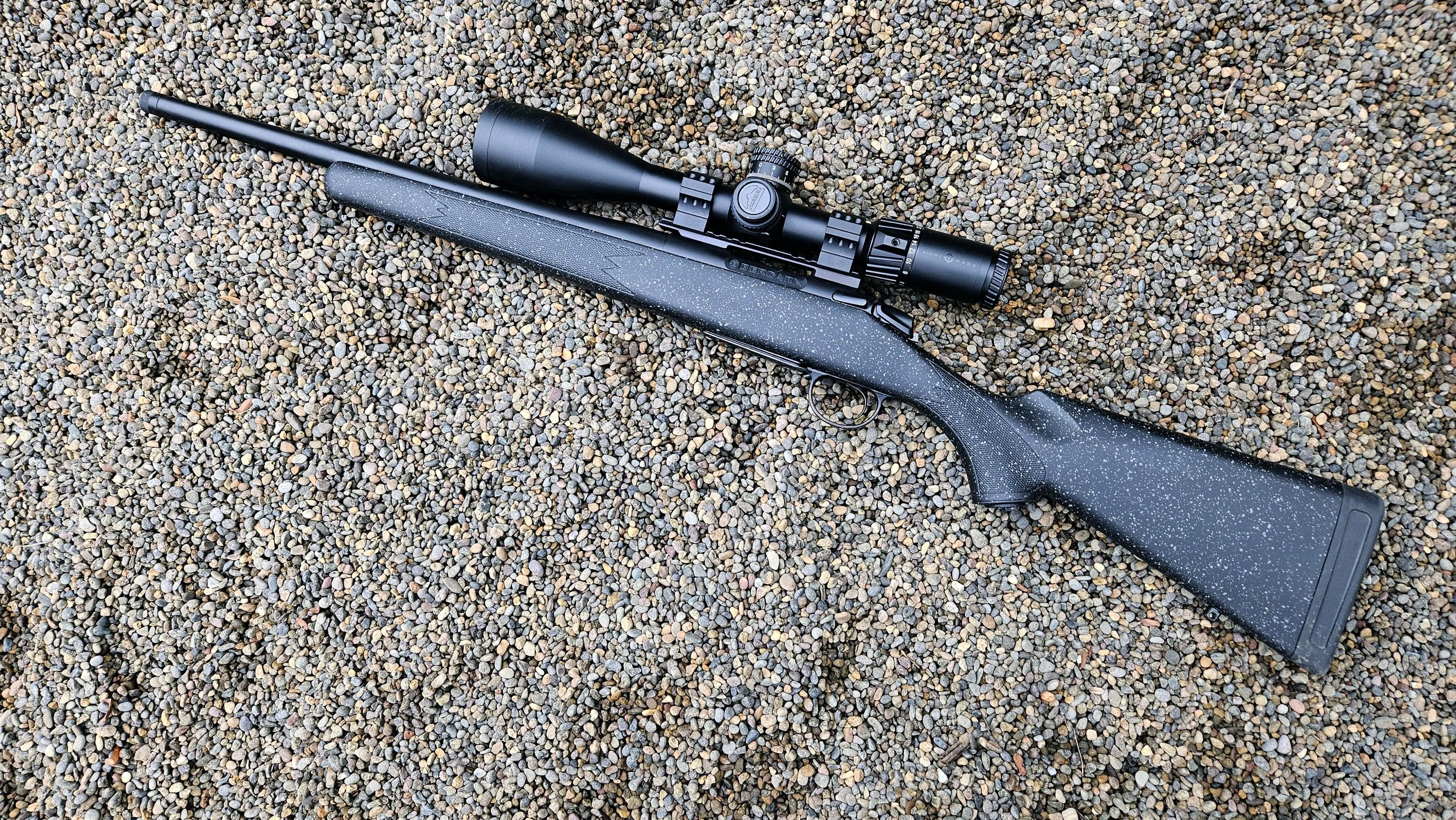

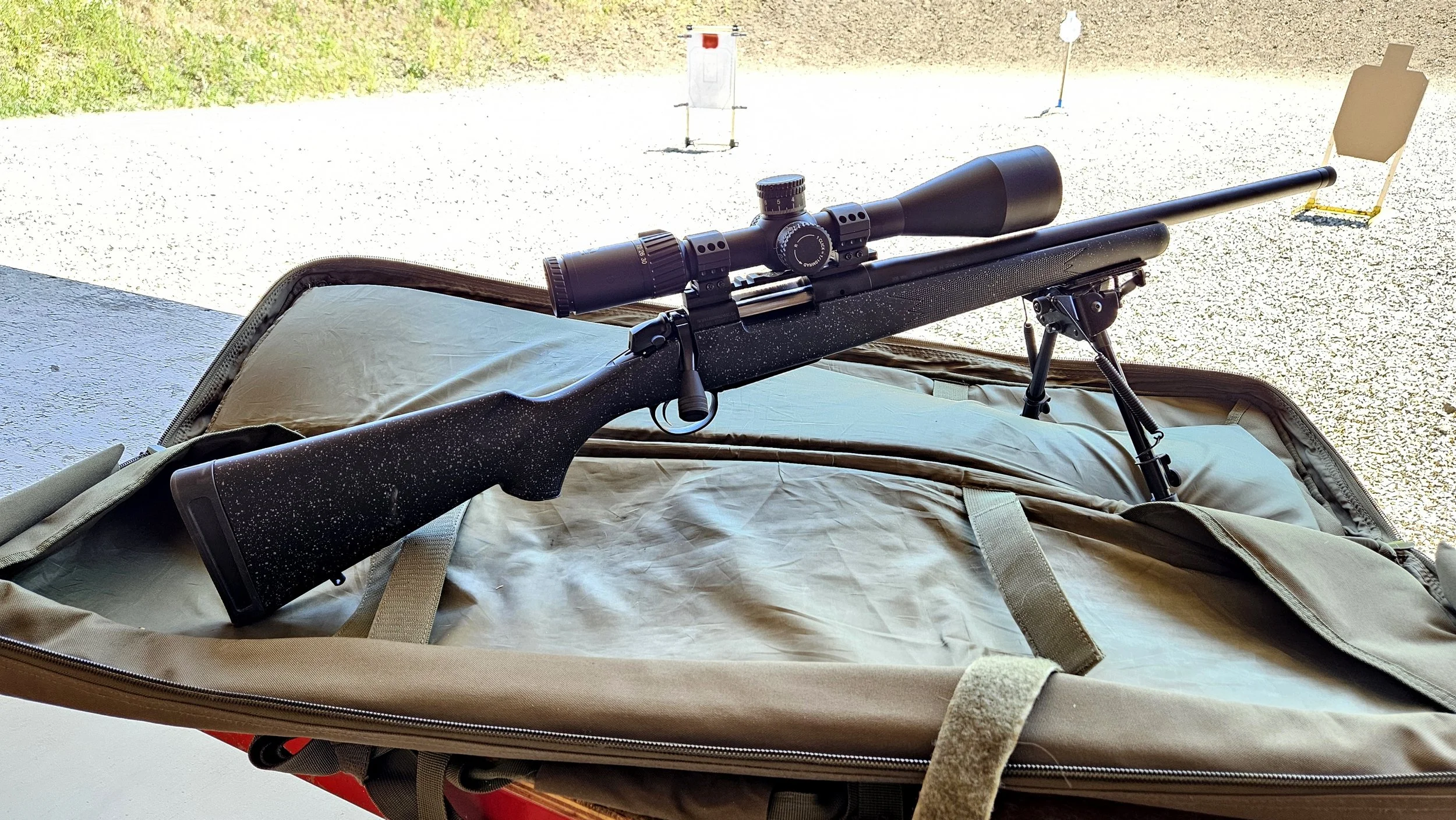

  I ended up mounting the SLx 4.5-27x56 on my Bergara .308, which sits in an MDT chassis. The rifle already has a 20 MOA rail to mount an optic on. This gives me extra adjustment to use. Because of this, with the SLx 4.5-27, I get a full 20 MILs of “up” elevation adjustment. This lets me dial out to a range of about 1400 yards, which is about 200 more than I will ever shoot this rifle. I shot this optic out to 1100 yards. That is how I know that the parallax adjustment gets really touchy. It takes a bit to get a clear picture at that range, but it is doable. The turret adjustments are nice and make it easy to adjust to whatever range you are shooting at. The SLx 4.5-27 would make a great entry level PRS or long range scope. It did everything I needed it to and more.

  If you are looking for that affordable, quality, long range optic, the Primary Arms SLx-4.5-27x56 would be a good choice. It has decent clarity and exceptional brightness. Once it is adjusted, it can easily see targets at 1000 yards and beyond. It also has 2 different reticle options, a Christmas tree style and the DEKA reviewed here, so you can get the style you want. If you are looking at getting into long range shooting, or just need a good high power magnified optic, go check out the SLx 4.5-27x56.

Firearms Insider Reviews - Key Points

Claim to Fame:

Quality long range optic at value price

Target Market:

Those wanting a long range, clear optic that doesn’t beat you up on price. Also entry level long range shooters

Features, Benefits, and Specifications of this product:

  • Battery Type: CR2032 3V Lithium Coin

  • Click Value: 0.1 Mil

  • Focal Plane: First Focal Plane

  • Illuminated: Partial Red Illumination

  • Magnification: 4.5X - 27X

  • Mount Compatibility: 34mm

  • Reticle: ACSS DEKA G2 Mil

  • Total Elevation Adjustment: 32 MIL

  • Turret Features: Tactical / Target Profile, Finger Adjustable

  • Lifetime Warranty

  • Reticle stop

  • Field Of View @ 100yds: Low: 26.69 ft. / High: 4.46 ft.

  • Length: 13.78 in

  • Eye Relief: 4 in

  • Weight: 32.6 oz.

What other aesthetic options or finishes are available?

Athena BPR Mil Reticle

What others are saying?:

5 out 5 star from Texan at OpticsPlanet.com

Scope is super clear. A great value for the money. My second scope of this line.

Link to other reviews:

Nothing found as of publishing

Price point:

MSRP = $549.99

Retail = Same

I need it now! Availability:

Primary Arms, Optics Planet, or your local gun store

Our Rating:

Pros:

  • Reticle choice

  • Clear and bright glass

  • Target turrets

  • Illuminated reticle

  • Zero stop

  • Price

Cons:

  • Parallax adjustment is touchy

  • Heavy

Score: 8.00 Great

Favorite Link:  Primary Arms GLx MD-21 Review

,

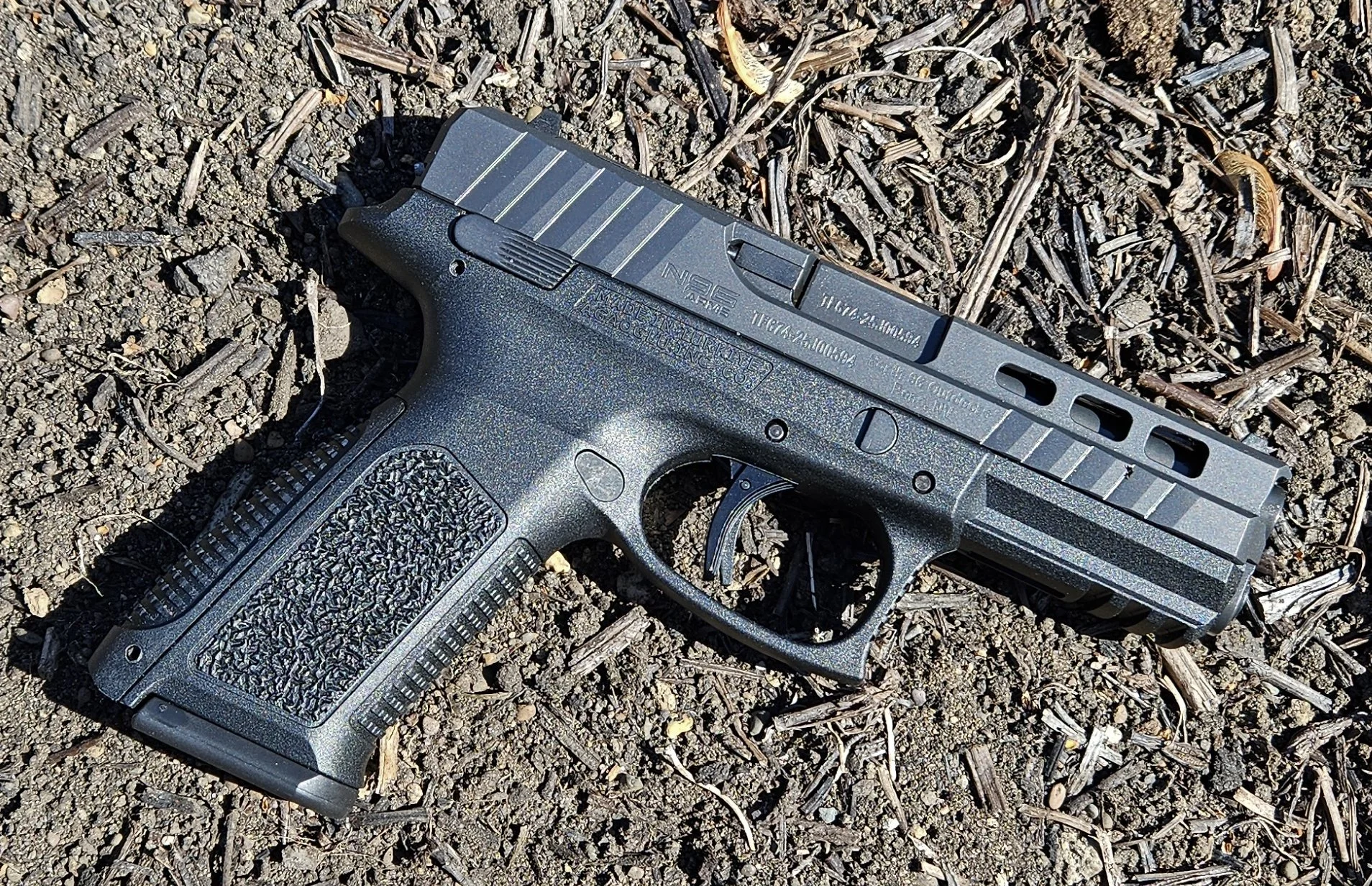

Derya DY9 Island

,

Derya DY9 Island

Review

  Derya Arms established manufacturing operations in Jacksonville, Florida. While the company has its origins in Turkey, the DY9 models are now produced in the U.S. to support the American market, though some components or older versions are still made in the home country. The Jacksonville facility has been dedicated for manufacturing of the DY9 and DY9 Island.

  Now that we have where the Derya is made, let’s talk about what it is. The DY9 is a Glock Gen 3 clone of the G19. Before we all say it’s just another clone, let’s take a look at some of its features.

  • It is a striker fired 9mm

  • Factory 10 or 15 round magazines

  • 1.81 pounds

  • Barrel length 3.86”

  • Overall length 6.9”

  • Height 4.56”

  • Width 1.16”

  • Direct mount optic for RMR footprint

  • Truglo green sights

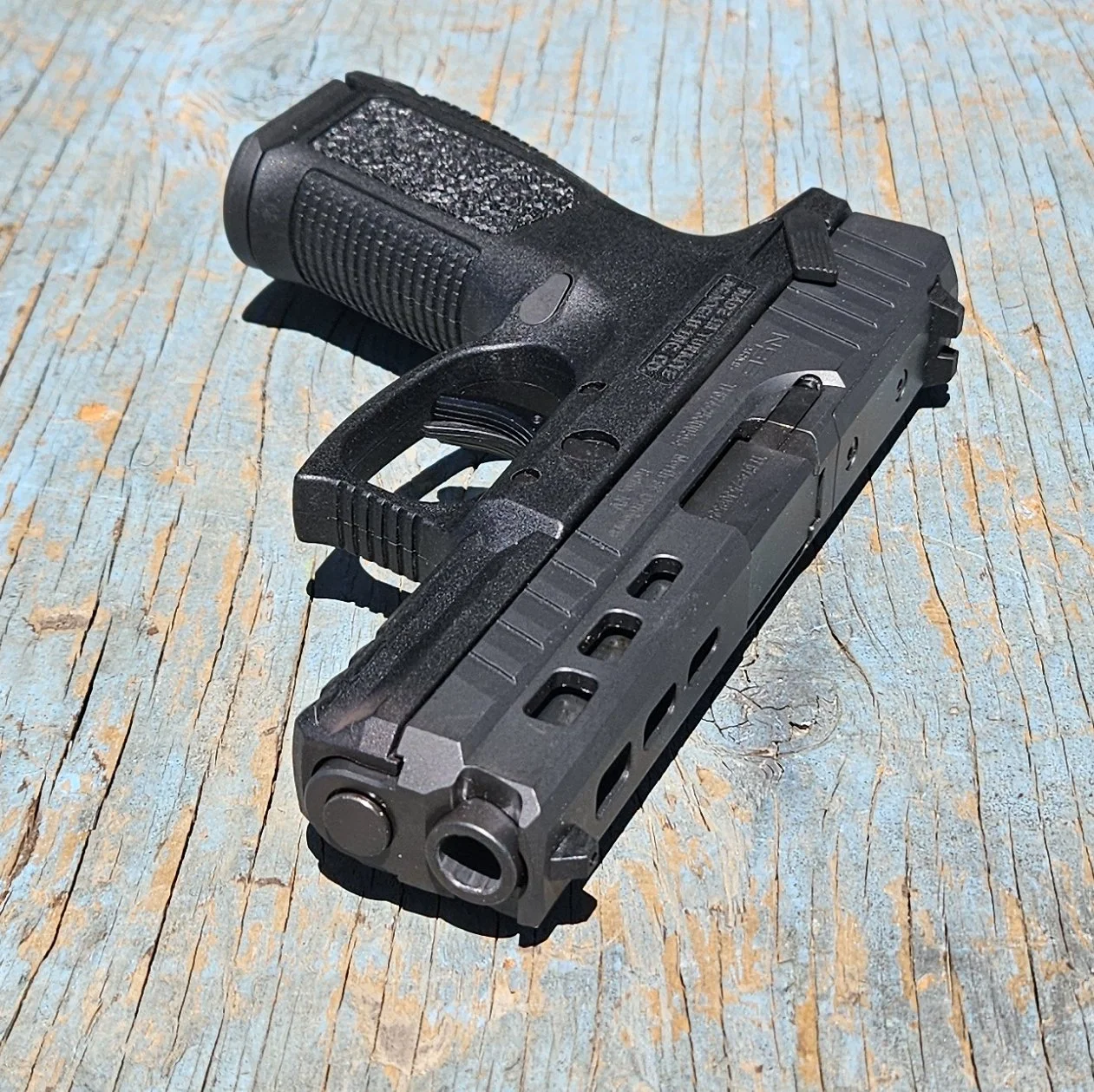

  Now that the specs are out of the way, we see it is a Gen 3 Glock clone with a few features right off the bat that are better. This includes the optic mounting and better sights than a standard Glock. It has numerous deep cut outs on the sides of the slide that make gripping it very easy, with bare hands or gloves. It has straight horizontal lines with some angled lines on the grip that appear to be part of the Derya logo on the grip panels. The backstrap and the front strap are basically the same way. It makes for a good feel in the hand. The grip angle is not listed anywhere on the internet as I could find. From shooting it myself it seems to have a unique angle that is not a Glock. It does come with 3 backstraps and 2 magazines that are Glock type but with their baseplate on it. It all came in a nice soft side carry case stuffed into an ammo can. I thought this was a nice touch.

  Let's talk about how it shot, it shot like a Glock. Well that would definitely be a lie. The grip angle and texture makes shooting it second nature. It has the undercut already on the trigger guard so no Glock knuckle. I mounted a Primary Arms RS-10R red dot on it. Mounting was easy with supplied hardware. After sighting it at around the 7 yard mark, I started shooting for accuracy after getting used to the trigger. It is like a normal striker fired trigger. The weight was around 5lbs. This is where it all fell in place. The recoil was not like a 9mm at all. It was a lot milder, it did not have the flip or muzzle rise of a normal firearm of the size. So what kind of witchcraft are they using?

  It's an island barrel system. This is seen mainly on high end 2011’s or competition guns. It is a raised central section on the barrel that creates an island. Hence the name. The slide gets to move on more of the barrel’s surface. The barrel has ports in it that help with recoil and muzzle rise. It is meant to give faster recoil and faster cycling time, which improves accuracy.

  I can’t tell you the exact percentage that it helped, but it was enough that it is noticeable. The slide runs smooth, the firearm sets nicely in the hand and it is a natural pointer. I do have two complaints about the pistol. One is that it is a bit wider than a Glock, so trying to find a holster to fit was not happening. I didn't want to take a heat gun to one of my good holsters just yet. I did find a paddle holster for it on Amazon. It is ok but I am not a paddle holster fan. The second is the mag well. It is stylish and the factory mags have an angled base pad on them to go with the angle of the well. Factory Glock mags and Magpul mags fit, but they will stick out some taking away from the lines of the pistol. Other than that I can not give it a bad review. If you are looking for an American made Glock Clone, that has all the bells and Whistles on it, then the Derya DY9 Island might be your gun. They do have the standard version that is not an island barrel system. You can buy it on the cheap and add the island system later on if you want.

Firearms Insider Reviews - Key Points

Claim to Fame:

An affordable American made 9 mm pistol that has its roots in Turkey, it blends Glock 19 style ergonomics with an island compensated barrel for flatter shooting and less recoil.

Parts compatibility from other clones

A standard 1913 pic rail.

Target Market:

Those looking for a reliable and budget friendly compensated firearm.

Features, Benefits, and Specifications of this product:

  • Island Comp Barrel system

  • Caliber: 9MM

  • Sights: Truglo Green

  • Capacity: 10 or 15 rds

  • Grip Type: Polymer with changeable back straps

  • Weight: 1.81 lbs

  • Action Type: Striker Fired

  • Barrel Length: 3.86"

  • Finish: Black Melonite

  • Overall Length: 6.9"

  • Overall Width: 1.16"

  • MD Compliant: Yes

  • Overall Height: 4.56”

  • RMR direct mounting system

  • Smooth operation

  • Flat shooting

What other aesthetic options or finishes are available?

Many different colors and finishes.

Link to other reviews:

Athlon Outdoors

Price point:

MSRP = $599

Retail = $499

I need it now! Availability:

BattleHawk Armory,  Classic firearms, or your local gun store

Our Rating:

Pros:

  • Great shooting

  • Simple operation

  • Glock like

Cons:

  • Holsters are hard to find

  • Angle of the mag well

Score: 8.00 Great

,

Tisas 1911 Duty B9R DS

,

Tisas 1911 Double Stack (2011)

Review

  In the world of double stack 1911 style pistols, or 2011’s as some people call them, there are a ton to choose from. Their prices range anywhere from about $500 up to the $5000'nds. Tisas started making their 1911 double stacks a few years ago. These are value priced, 9mm 2011 style pistols that punch above their price range. Tisas has both a carry and full size version. Since I am not carrying a 2011 style pistol, I opted for the Tisas 1911 Duty B9R Double Stack, which is their full size 5” version.

  The first thing you notice, when you pull the Tisas 1911 DS out of the box, is all the upgrades it has. To start with, the B9R uses a standard style 2011 polymer grip frame with a rail. This means that it is compatible with most aftermarket grip frames available for 2011 style pistols, including metal frames. This frame has a built-in magazine well and some texture around the grip, as do most of these style frames. Being a 1911 style pistol, there is also a high ride, extended beavertail grip safety with a memory bump. Then there is the slightly extended, ambidextrous, thumb safety. This safety has fine lines on it for better grip. The hammer is a commander-ish style. Then there is an extended magazine release. But somehow, the mag release is not checkered or lined, which I did not care for. All of that is followed by a bull barrel and one piece guide rod. The B9R is also cut for a RMSc footprint optic. So as you can see, this pistol has a ton of upgrades already on it.

  Now that we have the base features out of the way, I will get into them a little deeper starting with the slide. The slide on the Tisas B9R resembles any 1911 slide. It has a curved top reminiscent of old school 1911’s. But that is where it stops. Everything else is new school. Tisas put front and rear, angled, cocking serrations on it. These serrations are really nice and grippy so you will have no problems racking the slide. The muzzle end is cut slightly narrower, mainly for looks, because I can’t see any other reason for it. Sitting on top of the slide is a nice set of iron sights. The front is fiber optic and the rear is blackout serrated. The sight picture is nice. Then Tisas cuts the slide for an RMSc style optic. This cut is deep, so much so that the factory iron sights will co-witness with the optic of your choice.

  The Tisas’ 2011 style frame is nice. Yes, it has a few minor setbacks, but not everything can be perfect in a $800 2011 ish pistol. The only real setback I found is the smoothness of the grip. The texture Tisas uses is a little lacking. I’m not carrying the B9R next to my skin, so give me some more texture. Even the front and rear checkering needs to be deeper. Tisas does offer a “Coarse” grip module, which I may be checking out. The only other disappointment in the B9R’s frame is the non textured magazine release. Please add some texture. The grip also has a small magazine well built into it. It works well enough, but if you are using the B9R for competition, you may want to add a larger one. Everything else on the grip is great. The Tisas has a rail for lights. Both safeties, the grip and the ambidextrous thumb safety, are nice. The grip safety has a memory bump to help always depress it. The thumb safety has a nice texture and size to it. The B9R also has a squared trigger guard similar to most 2011 style frames.

  Since the Tisas B9R is a 1911 style pistol, we have to talk about the trigger. Tisas uses a flat style trigger on the B9R. It appears to be around “medium” length which works well for this pistol. The trigger broke around 5.5 pounds when I first received the B9R. It has a little take up, maybe 0.100 inch maximum. Then it breaks clean with a little bit of over-travel. It is definitely everything a typical 1911 trigger is. After some use, the trigger breaks about 5 pounds now. The trigger is non-adjustable. For a base model 2011 style pistol, the trigger is better than I expected.

  The Tisas Duty B9R DS uses industry standard magazines. Any 2011 pattern magazine will work. Anything from the cheaper $25 magazines, up to the elite $100 ones, they all work. The B9R comes with 2 high quality, flush fit, 17 round magazines. I have used a bunch of different magazines, including some 26 round ones. All have run flawlessly in the B9R.

  I found the Tisas 1911 DS to be quite accurate. Okay, I didn’t put it in a rest at 25 yards, but I can consistently hit the headbox of a USPSA target at that range. At 7 yards I can get a 1”, 10 shot, round ragged hole. This accuracy has to be from the fact that Tisas uses a bushingless bull barrel in the B9R. They also use a 1 piece guide rod. Of course, the guide rod does make disassembly of the B9R a little more complicated, but nothing terrible. I was pleasantly surprised at how accurate the Tisas was out of the box.

  Here are some of my thoughts on the Tisas B9R. It is great for the price point it is at. I got great accuracy from the factory bull barrel. It uses standard 2011 pattern magazines, which all worked flawlessly. I have had zero malfunctions in the 956 rounds I have shot through it. That was using about 7 different brands and weights of 9mm ammunition. Are there things that bother me? Yes. The iron sight cuts use 2 different styles. The rear is a Glock style dovetail, but the front is a Tisas dovetail. So good luck getting aftermarket iron sights that work together. But since I expect that most people will put an optic on it, and it is cut for a Holosun K / RMSc footprint, this doesn’t matter too much. I did like the iron sight picture, it gave me light on both sides of the post as opposed to other sight pictures that basically give you no light on the sides of the post. I ended up mounting an Aimwin PE330 red dot on it. Originally I had one of the Primary Arms Classic series on it, but the PE330 came in and has a larger window. Speaking of optics, I was informed, by a friend, that if you use one of the super large window optics like the Gideon Judge XL, you will need a small riser plate so that the optics window doesn’t hit the top of the slide. SDS Arms has this spacer, but it is not listed on their website. I was impressed with how well the B9R felt while shooting it. It is not as smooth as a $2500 2011. But, after about the first 200 rounds, the slide smoothed up nicely and still has a fairly tight slide to frame fit. Probably my most favorite aspect of the Tisas B9R is that it has aftermarket parts compatibility with most 2011 style pistols. So if you want to upgrade the trigger, or that non-textured mag release, you can.

  The Tisas B9R has proved itself to be a fantastic pistol. With all its extras and the way it performs, you can’t go wrong. If you are looking at getting into the double stack 1911 game, I don’t think you can go wrong with the Tisas Duty B9R DS. It performed fantastic for me, with great accuracy and function, all at a great price. Definitely go look at the Tisas firearms and see what you think. They used to be imported by SDS Arms and Tisas’ are made in Turkey, but don’t let that scare you away from a great pistol.

Firearms Insider Reviews - Key Points

Claim to Fame:

Value priced 2011 style firearm that uses machined parts, 2011 style magazines, has a bull barrel, and is optics ready

Target Market:

Those wanting a 1911 double stack that doesn’t cost a fortune, but still has tons of features

Features, Benefits, and Specifications of this product:

  • Forged Steel Frame & Slide

  • Polymer grip

  • 70 Series + Colt/STI® 2011 Compatible

  • Target‑Crowned Bull Barrel

  • Skeletonized Hammer & Trigger

  • Optic‑Ready Co‑Witness Sights

  • Caliber: 9MM

  • Frame/Receiver - Slide Finish: Cerakote

  • Sights: Fixed - Black Rear - White Dot Front

  • Optics Ready/Cut: Holosun K - RMSc

  • Capacity (2 Included Mags): 17 + 1

  • Barrel Length: 5"

  • Barrel Finish: QPQ Tenifer

  • OAL: 8.6"

  • Height: 5.7"

  • Width: 1.5"

  • Weight: 32.5 oz unloaded

  • Safety: Ambidextrous thumb & grip safeties

What other aesthetic options or finishes are available?

Carry Version

What others are saying?:

5 out of 5 Stars at Battle Hawk Armory

Benjamin A.

Fantastic Budget "2011" So far this has been a great purchase for the price. Currently at 750 rounds 100% flawless

Link to other reviews:

The Truth About Guns

Price point:

MSRP = $879.88

Retail = $650 - $750

I need it now! Availability:

Battle Hawk Armory, Guns.com, Primary Arms, or your local dealer

Our Rating:

Pros:

  • Price

  • Uses 2011 parts and magazines

  • Shoots fantastic

  • Optics ready

  • Bull barrel

  • Light rail

  • Decent trigger

  • Ambi safety

Cons:

  • Grip needs more texture

  • Smooth magazine release

  • Hard to disassemble

Score: 8.50 Great

Favorite Link:  AimWin PE320 Review

,

Frytech Magnetic Buffer

,

Pamax Tactical - Frytech

Magnetic Buffer Review

  When it comes to AR parts, everyone makes something similar. That is what I thought until I heard of the magnetic recoil reducing buffer from Frytech. This is a mil-spec buffer tube that uses magnets to dampen recoil instead of the standard AR buffer weight. This system is currently available through Pamax Tactical.

  I am almost always hesitant about products that claim to reduce recoil. At least if they aren’t a standard muzzle device. But since I had been watching Frytech experiment with these for some time, I thought I would give it a try. I understand the concept of using magnets, as do most 5th graders. When the magnetic fields oppose each other, the magnets push away from one another. This field is progressive, so the closer the magnets are pushed together, the more force they resist. This is used to dampen the recoil in the Frytech Pamax buffer. It also allows the buffer to work with various calibers and barrel lengths.

  The Frytech buffer system includes a few parts. As it arrives, you get a mil-spec 6 position buffer tube, castle nut, and end plate. Inside the buffer tube is a short spring, more on that later, and the magnetic buffer weights. There is a cotter key installed though the front of the tube. It has a tag on it that says something like “remove before flight”, but really it says “Warning, Magnetic, Do Not Remove Pin.” So do not remove this pin until the Frytech buffer tube is installed on an AR type firearm. Then you can remove the pin. The pin keeps the spring and the magnets in the proper orientation. If the parts go flying, you can install the magnets wrong and then the buffer will not function correctly. So, install the buffer tube, then remove the pin, and then head out to the range.

  Now that we are at the range, I will give you my first impressions. The first time I had the Frytech magnetic buffer out at the range, I took 3 different upper receivers along with a standard lower to compare it to the Frytech one. So shoot 10 rounds, install the same upper on Frytech buffered lower, shoot 10 more, etc. You could definitely tell the difference. It was more noticeable when going from the Frytech buffer and then back to a normal one. I then tried the other 2 uppers I had at the range. Same scenario and the same outcome, less felt recoil. Two of these were 5.56 and one was a 300 blackout.

  The Frytech buffer ran without any flaws until I tried a piston upper with it. The next time at the range I took my VKTR 10.5 inch piston upper and the Frytech magnetic buffer. The Frytech buffer did not like this, it would short stroke sometimes. Since the VKTR piston upper is finely tuned to run with VKTR’s setup, this did not surprise me. I only note it because it is the only upper that did not work well. I fully believe that if the VKTR were adjustable, or had an adjustable gas system, I could have made it work with the Frytech buffer. So if you are installing the Frytech buffer on a finely tuned firearm, you may have to make some gas system adjustments. But after that, you will get the benefits of those magnets in the Frytech system.

  Since I wanted some real data on the Frytech buffer, I found my Mantis X10 and used it. When it comes to stuff like the Frytech buffer and claims of reduced recoil, I needed some actual data. So again, off to the range with an upper, two lowers, and the Mantis. I was able to get the data I was looking for. As you can see in the photos, all 4 of the metrics were reduced. Some by a pretty good margin. I now have data to show you, the reader, that the Frytech magnetic buffer is the real deal.

Standard AR buffer system

Frytech Magnetic Buffer System

  Because of all the testing, I ran the Frytech magnetic buffer with a bunch of different uppers. I definitely could tell that “magnetic” difference. I like this thing. I did notice a small, non-important hitch with it though. When cycling the bolt manually and slowly, the bolt wouldn’t always close on a new round. So I finally got to use that forward assist thingy to push the first round into battery. If you let the bolt release like you are supposed to, this doesn’t happen. Just thought I would remind people to let the bolt slam down instead of easy. This is also the reason the Frytech system has a short flat wound recoil spring in it. It is to help drive the bolt that little extra distance into battery. So did I mention the buffer uses magnets? Because of this, it likes to pick up allen wrenches off of my desk. They stick to the buffer tube. This could be a benefit, as you won’t lose the wrench for adjusting your optic. I know these things are minor, but I figured they needed mentioning. Speaking of annoyances, that buffer spring twang you sometimes get in a normal AR system is essentially non-existent in the Frytech system. Imagine that, magnetic waves are quieter than springs. Hmmmm, it is almost like they don’t make contact with anything. As I mentioned earlier, the Frytech magnetic buffer works. I really like the reduced recoil impulse, and it is softer feeling because of the way the magnets progressively slow the recoil down. The tube is also not some cheap imported tube, it is of nice quality and has the Frytech/Pamax logo etched onto it.

  If you are looking for something to reduce felt recoil and have a softer shooting firearm, the Frytech Magnetic Buffer might be it. It definitely does what it says it will, it reduces recoil, as the data shows. Is it for everyone? No, but maybe it should be. It is especially good for people that are recoil adverse or those wanting to get the best performance out of their firearm. Head over to Pamax Tactical and check out the Frytech Magnetic Buffer System. I’m sure there are more magnetic things to come from these guys.

Firearms Insider Reviews - Key Points

Claim to Fame:

Recoil reducing buffer system

Target Market:

Those wanting a smoother cycling AR with less felt recoil

Features, Benefits, and Specifications of this product:

  • 6-Position 7075-T6 Aluminum CNC-Milled Buffer Tube

  • Integrated Frytech Magnetic Technology — Built into the tube for seamless operation

  • Fits all mil-spec AR15 & AR-9 lowers

  • Tuned for 5.56/.223 & 9mm Calibers

  • Compatible with FRT Triggers

  • Compatible with Super Safety (may require modification to detent spring.)

  • Works with all mil-spec stock systems

  • Compatible with buffer retainers

  • Replaces buffer tube, buffer, and spring

  • Uses standard or included castle nut & end plate

  • Maintains normal AR15 receiver takedown

  • Zero Lubrication Required

  • Springless Magnetic Stack

What other aesthetic options or finishes are available?

.308 caliber

What others are saying?:

5 out of 5 stars at Pamax Tactical

Smooth

Amazing. I was skeptical of there being much difference. I was one of the first to order one since I know Fry's been working really hard on this. I am really impressed by how smooth and light the recoil impulse is . I highly recommend giving it a shot if you have the resources to put into it .

Link to other reviews:

Nothing found as of publishing

Price point:

MSRP = $149.95

Retail = Same

I need it now! Availability:

Pamax Tactical

Our Rating:

Pros:

  • Reduces felt recoil

  • Works on a variety of calibers

  • No modifications needed

  • Easy Installation

  • Doesn't take extra force to operate manually

Cons:

  • Tuned systems may need re-tuned

  • Bolt doesn’t always lock forward on initial loading

Score: 7.50 Good

Favorite Link:  Mantis X10 Elite Review

,

SecureIt Fast Box 36D

,

SecureIt Gun Storage -

Fast Box 36D Review

  There are numerous different styles of safes out there to protect your firearms. They come in sizes from pretty small to extremely large. I was in need of a vehicle style safe, since the State in which I reside passed laws on vehicle storage, as well as limiting where you can carry a firearm. I wanted something large enough to hold a “large” style pistol, as well as my carry gun. SecureIt Gun Storage had exactly what I was looking for in their Fast Box 36D safe.

  SecureIt makes a bunch of different safes that will work nicely in a vehicle. However, SecureIt only makes one safe smaller than the Fast Box 36D. All of their other safes are larger in physical size. The 36D is not small like a single handgun safe would be. The exterior size is 6.5 inches tall x 35.75 inches wide x 13 inches deep, or 14.25 inches if you measure it with the handle. You can see where the model number comes from now, it’s approximately 36 inches wide. The “D” in the model stands for “Drawer”, so this version has a drawer that slides out as opposed to just a door that opens.

  When you start looking at safes like the Fast Box 36D, you look at its features. The features of the 36D are what make it stand out. It has all the features anyone would want. It is made from 16 gauge steel, and has a metal 3 point locking mechanism. Most of us know that safes are designed to mitigate entry risk. The better the construction, lock types, etc., the longer it takes for someone to breach the package and get into it. Besides the manual lock, you have to turn it to lock and unlock the drawer, the 36D also has biometrics, a number keypad, and a key backup. Here is what SecureIt says about the Fast Box: “High-Stress Fast-Access (HSFA) locking system, engineered for lightning-fast, reliable access in high-pressure situations. The customizable 4-digit push-button keypad, backlit for low-light visibility, is paired with a capacitive fingerprint scanner for seamless entry and a manual key override for redundancy. With no third-party backdoors, your gear remains fully secure.”

  Large number buttons make entry into the SecureIt Fast Box 36D super easy. Button entry is by far my favorite way to unlock the 36D. It has 4 large buttons, numbered 1-4. These buttons are backlit the first time you push one of them. There is an option to turn off the backlight, if you so choose. The code to unlock the 36D is user programmable. You can choose anywhere between a 3 digit code and a 12 digit code. Once the code is entered, you will hear a beep for about 5 seconds. During the beep is when you can turn the locking knob and unlock the safe. Once the beep stops, it resets the keypad locking feature. This particular beep can not be turned off. If you enter the wrong code 5 times, the safe beeps every second, for 60 seconds. Once it stops beeping, you can try again. It is not a loud beep, but it is annoying. All of this is powered by an internal 9 volt battery.

  The next way to open the SecureIt 36D is using biometrics. Right below the keypad, on the same panel, is a small fingerprint scanner. The scanner works pretty good. But I don’t rely on biometric scanners, as they are not full proof. They do however offer a convenient way to open things, if you are not in a life or death situation. With the 36D, since it has a drawer, remember to program your fingerprints with that in mind. If it’s mounted on a floor, or something similar, using your finger straight on the scanner probably won’t work. Try programming your print with your finger sideways, or even upside down. The scanner feature can be completely turned off. So if you don’t want to mess with it at all, just turn it off. The same 60 second lockout feature also applies to the fingerprint scanner. If you mess up 5 times, you will have to wait 60 seconds until you can try again.

  Every safe needs some kind of mounting system, otherwise criminals would just pick it up and take it with them. The Fast Box 36D has a ton of pre-drilled holes for mounting. These are drilled for ¼ inch bolts. Remember, it is about how long it takes to enter the safe, or actually take it. Bolting it down makes physically taking the box way harder. To get to most of these mounting holes, you must first remove the drawer. Because of the physical size of the safe, some of the mounting screws can be difficult to install. Which also makes them harder to take out. I bolted it down and ran a cable through some of the mounting holes. Why not add just a little bit more security to it? To go along with mounting, SecureIt also has an option to plug the electronic keypad and biometric reader into a USB-C connection for power. Something maybe worth thinking about when mounting the Fast Box 36D somewhere.

  Having a drawer on the Fast Box 36D is a nice option over just a flip open door. This drawer allows you to easily slide out whatever is inside. And yes, the drawer slides super easy in and out. SecureIt includes a couple of straps and a padded insert for the drawer. This allows you to lay your valuables on something soft, not just metal. Then the adjustable straps hold whatever it is, in place. The size of the drawer is slightly smaller than the external dimensions of the safe, as one would expect. The drawer size is 4 inches high by 33.25 inches wide by 10 inches deep. You lose a ¼ inch in height using the pad. But you will want the pad.

  The SecureIt Fast Box 36D fit my needs perfectly. It has the features most people would want. Entry into the 36D is super easy with the keypad. However, I would like a few more number options. Maybe 1 to 6, so six actual buttons. I don’t use the biometric reader because it is small and a little awkward to get to when the safe is mounted on a floor. But it is there if you want it. The depth of the drawer was just a teeny bit to narrow. When I tried to mount a large style AR pistol in the drawer, with a loaded 30 round magazine inserted into it, it would not fit.This pistol also has a 1X primary Arms prism mounted on it. So with the height of the optic and the magazine, it was just too much. So I just took the magazine out and sat it next to the pistol. In my use-case, this is not an immediate response safe, so not having the magazine inserted is not a make or break deal for me. There is also enough space inside the Fast Box 36D to set my carry pistol alongside the AR pistol. So if I have to go into one of those non permissive environments, I can lock up my carry gun too. In the end, I had some extra safe style carpet from another project. I laid a piece of this carpet over the safe. It hides it from view nicely. If someone happens to see it, it just looks similar to a subwoofer box that all the kids have these days. If someone happens to ask, that is what I would tell them, because it can “hit” pretty hard.

  If you are in the market for a fast opening safe, with all the features, the SecureIt Fast Box 36D might work for you. This drawer safe had all the features I was looking for: Size, Ease of opening, USB power, and plenty of mounting options. So if you are looking for something larger than the normal handgun safe, check out the SecureIt Fast Box Series.

Firearms Insider Reviews - Key Points

Claim to Fame:

Compact, secure, vehicle ready safe

Target Market:

Those wanting safe storage in a vehicle or home

Features, Benefits, and Specifications of this product:

  • Weight: 49 lbs

  • External Dimensions: H 6.5″ x W 35.75″ x D 13″ (or 14.25″ with the handle)

  • Internal Dimensions: H 4″ x W 33.25″ x D 10″

  • Rapid Access

  • Advanced Keypad Design

  • Keyed backup

  • Optional USB-C power

  • Pre-drilled mounting holes

  • Foam insert

  • Interior mounting straps

  • 3 point locking system

  • Construction: 16 gauge steel

  • Fits up to 33” length rifle or pistol

What other aesthetic options or finishes are available?

20, 40, and 47 inch versions

What others are saying?:

5 out 5 stars at SecureIt Gun Storage

Mike C.

I love my Fast Box so far. The reason I opted for the 36D is because I wanted something that would fit between the legs of my bed and anything longer would not have fit. The first one I ordered had a broken rail when I went to pull the drawer out but I reached out to customer support and they sent out a new one super quick! Really great customer service! My only "complaint" is that I think it is a little overpriced but it is good to know that they stand behind their product and their customer service is top notch so that makes it worth it to me. It does fit my AR, a couple boxes of ammo and a small handgun. I had to take the optic off of my AR to make it fit but I think it would fit better if I had a smaller mag on it.

Link to other reviews:

Best I could find

Price point:

MSRP = $409.00

Retail = $339.00

I need it now! Availability:

SecureIt Gun Storage or your local dealer

Our Rating:

Pros:

  • Size

  • Pre-Drilled mounting holes

  • USB power

  • Biometric use

  • Large Keypad

  • Padded insert and straps

Cons:

  • Fingerprint reader is small

  • Drawer width could be wider to fit loaded rifle

Score: 8.00 Great

Favorite Link:  Primary Arms GLx 1x prism review

,

TriStar KR22

,

Tristar KR22

Review

  In my opinion, everyone should have a 22lr rifle. You can go mild to wild when it comes to 22’s. The Tristar KR.22 would be considered mild. Mild enough to make it an inexpensive entry level 22 rifle. The KR22 has some good features, as well as a few that don’t quite hit home.

  I had asked to get one of the TriStar KR22’s after talking about it on the Gun & Gear Review Podcast. The KR22 comes with a lot of features. Most important is that it will accept standard, available everywhere, Ruger 10/22 magazines. This is the reason I wanted to review it. I was also curious if more parts were compatible with the 10/22. They are not. The only parts compatible are those magazines. However, that does not stop the KR22 from having some good features.

  The KR22 uses a synthetic stock. This stock comes with built in swivel studs. I like this because it not only gives you the ability to easily mount a sling, it also gives you the ability to mount a bi-pod. A bi-pod can help young shooters to use the rifle easier. There is also a nice rubber buttpad . But more important is that the KR22 has an adjustable cheek riser. So if you are mounting up some optics, you can adjust it to get just the right position to look through those optics. To adjust it, you just loosen a set screw, adjust the riser up or down, and then tighten the screw back up. I really liked having the adjustable cheek riser since I ran the KR22 with a Primary Arms GLx MD-21 red dot. I also readjusted the riser when I mounted a Primary Arms 4-16x44 for doing accuracy work. Also on the stock is a really nice textured pistol grip. It is grippier than most and I really liked it.

  One of the nice features on the KR22 is the ability to move the bolt handle. You can swap it from the right side to the left. Just unscrew it and then screw it in the other side of the bolt. If you are left handed, or just like the bolt on the left side of the rifle, this feature just makes sense. The push button safety of the KR22 is not reversible though, sorry lefties. I would also like to mention that there is no feature to lock the bolt back. This doesn’t really matter to me, but if you are at certain ranges, or teaching a child, you will need a chamber flag to see if the chamber is empty and safe.

  TriStar uses a fiber optic front sight on the KR22. The front fiber and standard style rear notch give the KR22 a decent sight picture. Windage is adjusted on the rear notch sight with an allen wrench and set screw set up. The front sight adjusts elevation , also with an allen wrench. These sights are tall enough to clear a suppressor, if you choose to mount one onto the threaded muzzle. All of this works okay, until you notice that the rear sight can move side to side a little. There is no way to tighten this down. So with iron sights, you can’t get very precise shot placement. Luckily, red dots are cheap and you can mount one on the built in pic rail.

  I was pleasantly surprised with the KR22’s trigger. It is a flat style trigger with a flipper safety in it. The flipper safety just adds a little bit of extra safety and it isn’t noticeable when using the KR22. Of course there is a normal push button safety at the front of the trigger guard. Trigger pull came out at 4.5 pounds. There is essentially no pretravel, a decent wall, and then some over travel. But for a stock 22 trigger, it is better than I expected. The magazine release is located in front of the trigger guard. It is a flat style paddle that you push forward to drop the magazine. The size of the mag release is large enough to make it easy to reach and use.

 Accuracy of the little KR22 was, what I would consider, normal. Using bulk box, cheap, 22LR ammunition I would get 3-4 inch groups at 50 yds. That was with about 5 different types of 22LR. The KR22 is not a match rifle, and that is about what I get with other 22’s. In this case, it is the ammo’s fault, as bulk 22LR ammo is not very consistent. I was able to get a few 2-2.25 inch groups with CCI MiniMags. This also did not surprise me as the CCI stuff is usually more consistent. For reliability in the KR22, I found the Winchester 36gr bulk packs and the CCI MiniMags functioned the most reliable. Some standard velocity 22LR didn’t always cycle the bolt all the way back to pick up a new round. So I would stick with hi-velocity 22LR ammunition in the KR22.

  I do like the TriStar KR22 rifle. Once I figured out which ammo it liked, it functioned quite well. This is however the 2nd KR22 I was sent. The first KR22 had a burr in the chamber where the extractor slides next to it. I contacted TriStar and they immediately sent me a call tag. Within a week or so, the new KR22 had arrived. So if you do have a problem with anything TriStar, their customer service is top notch, and will have you up and running again in no time. Besides this minor setback, I did find an inconvenience with the KR22. Both rifles I received had slop in the rear iron sight. Even with the adjustment tightened down. These sights would move a little back and forth where they sit inside the picatinny rail. Enough that if I moved it to one side, and then the other, it would change the point of impact by an inch or so at 25 yards. As mentioned, just install a red dot on it and you won’t have to worry about that. Even with these minor problems, I think the KR22 has a lot of good features. The trigger is nice. It has that adjustable cheek riser for when you mount a scope or red dot. It also has a threaded barrel which allows you to install a muzzle brake or suppressor. The KR22 is a fun little 22 rifle.

  The TriStar KR22 isn’t bad for what it is. It has a lot of nice features previously mentioned. Probably its biggest pro is the ability to use 10/22 magazines. Followed by its built in optics rail, because you will want to use it. The trigger is also pretty decent for a $250 22 rifle. So if you are looking for a lightweight 22 plinking rifle, the TriStar KR22 might fit the bill.

Firearms Insider Reviews - Key Points

Claim to Fame:

Inexpensive 22 rifle

Target Market:

Anyone wanting a 22lr rifle that is suppressor ready

Features, Benefits, and Specifications of this product:

  • Threaded Barrel (1/2 x 28 right hand thread)

  • Blow back semi-automatic operation

  • Push button & trigger safety

  • Reversible Bolt Handle

  • Adjustable Comb

  • Swivel Studs

  • Picatinny Rail integrated on receiver

  • Adjustable Front Fiber Optic Sight

  • 2 -10 rd. Rotary Magazines

  • Accepts 10/22® Magazines

  • Barrel: 18.6”

  • Weight: 4.9 lbs

  • Overall Length: 38″

What other aesthetic options or finishes are available?

ODG/Black and FDE/Black

What others are saying?:

Nothing found as of publishing

Link to other reviews:

Shooting News Weekly on YouTube

Price point:

MSRP = $289.00

Retail = $234.00 at MidwayUSA

I need it now! Availability:

Tristar, MidwayUSA, or your local dealer

Our Rating:

Pros:

  • Lightweight

  • Threaded barrel

  • Built in picatinny rail for optics

  • Reversible charging handle

  • Adjustable cheek riser

  • Uses 10/22 magazines

Cons:

  • Rear sight moves side to side

  • No way to lock bolt back

Score: 6.50 Okay

Favorite Link:  Primary Arms GLx MD-21 Review

,

Gritr Tactical Range Bag

,

Gritr Gear

Tactical Range Bag

Review

  Everyone needs a good range bag. Some people want smaller ones, and some people want larger ones. Gritr Gear has their Tactical Range Bag that falls somewhere in between the two sizes. So you get a medium sized range bag, with features that can turn it into a larger or smaller range bag.

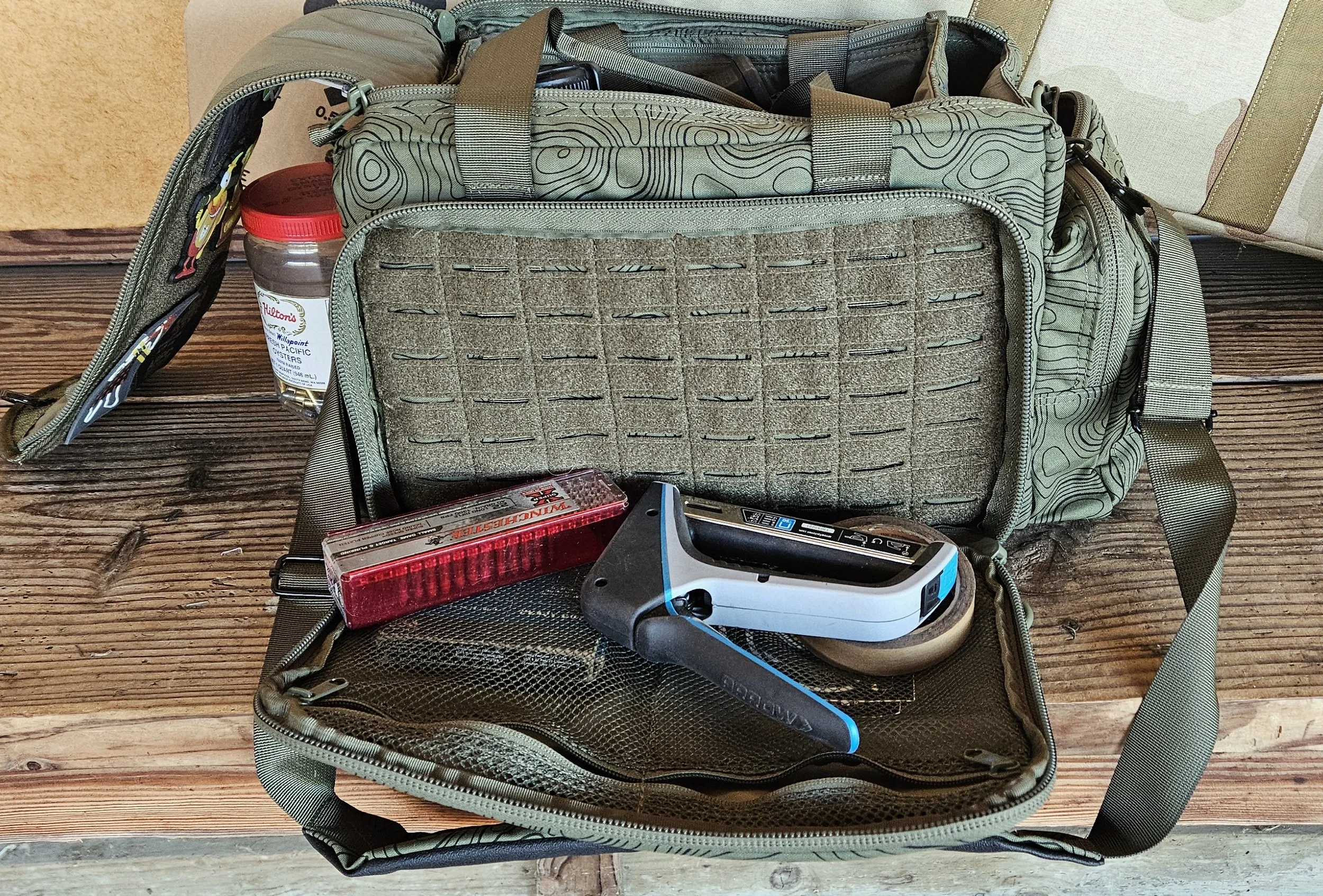

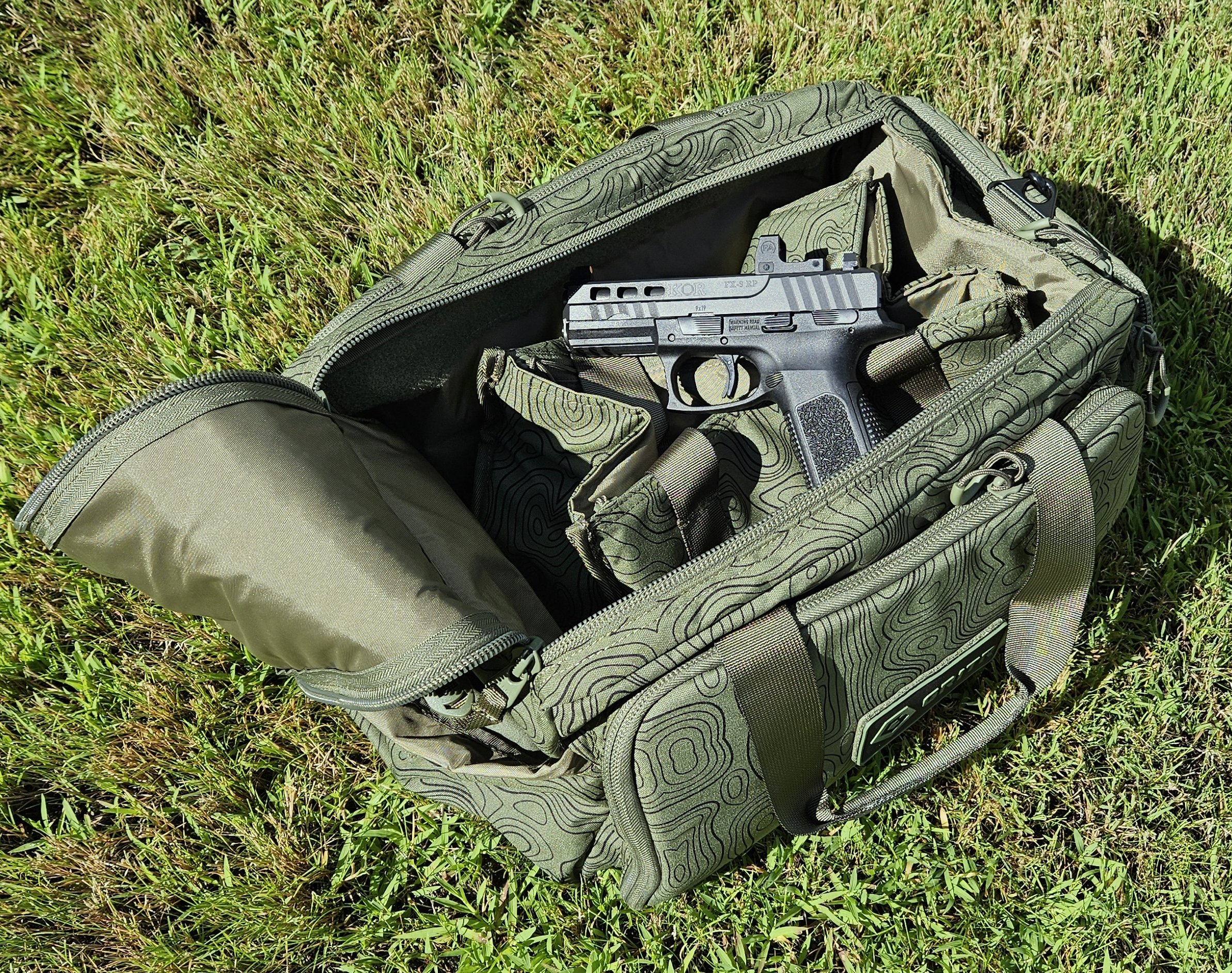

  The Gritr Tactical Range Bag is really a do all bag. In general, it starts as a 18 inch x 12 inch x 10 inch exterior size. Inside the main compartment is a removable tote, a removable mat, and a medical pouch. On each side are large zipper compartments. On one end is another zipper compartment. On the other end is an open pouch. The main compartment is then covered by a highly velcroed dual zipper flap. Gritr offers the bag in a multitude of colors and patterns. I chose the Green Topo pattern, even though I was torn between it and Splatter.

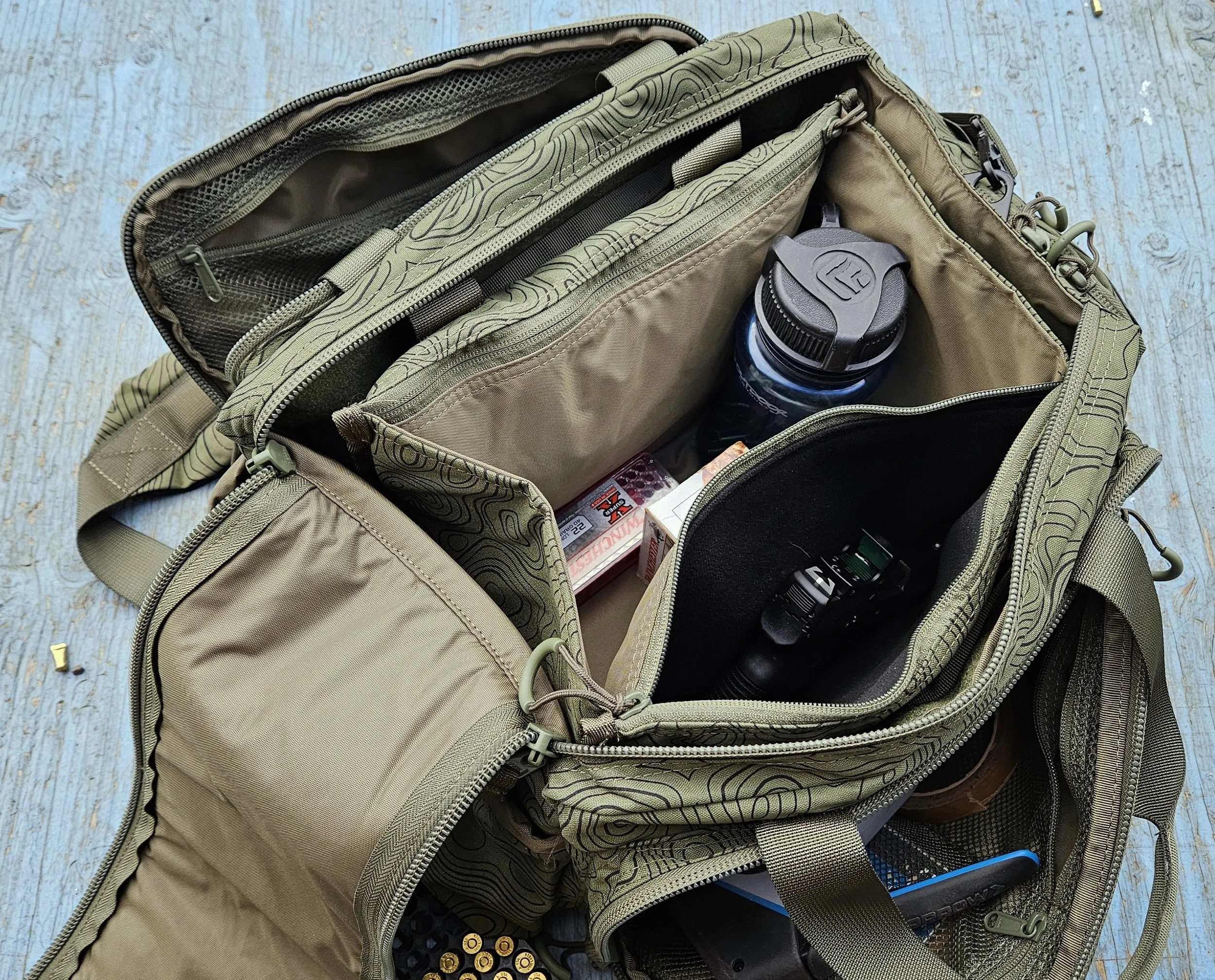

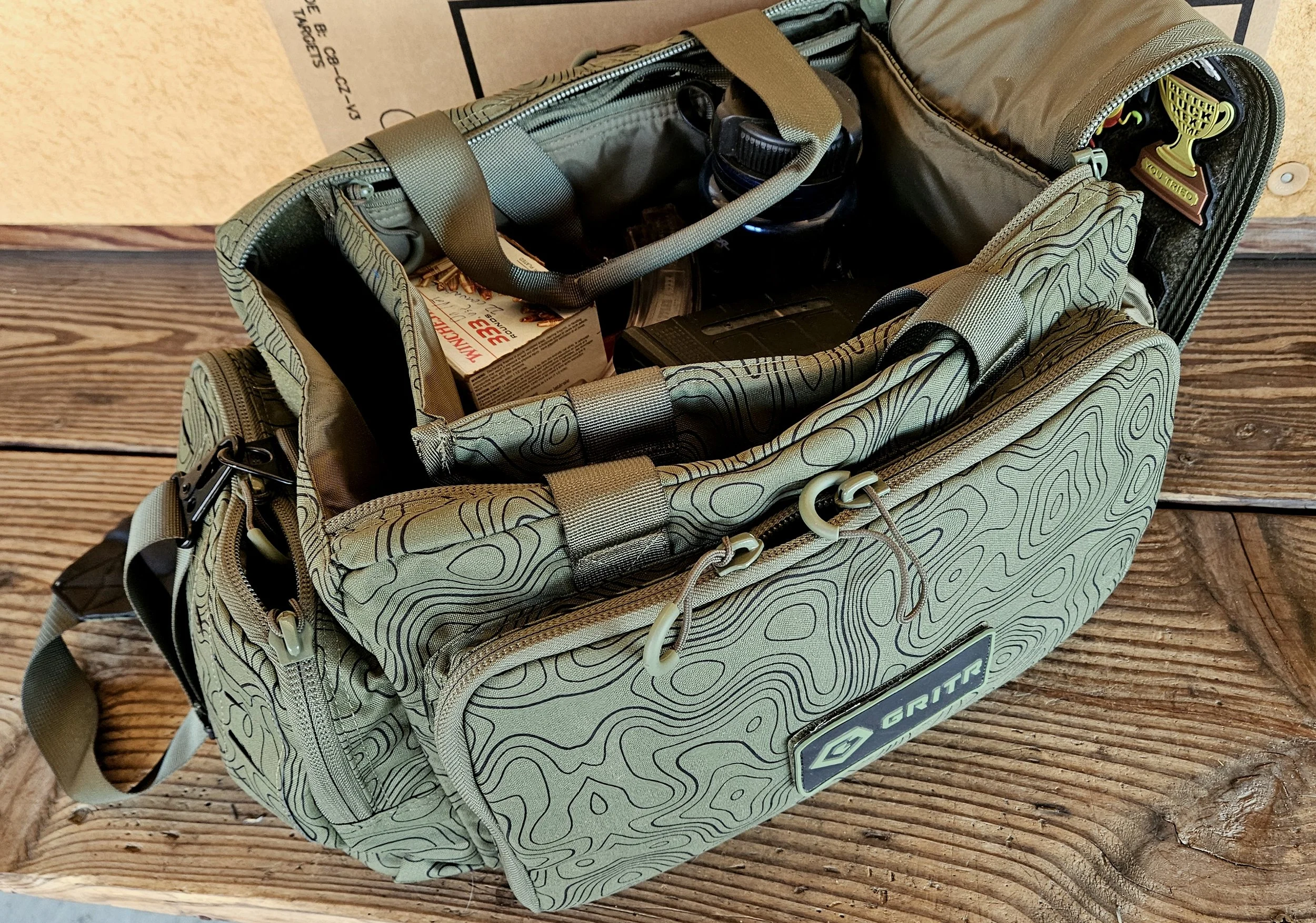

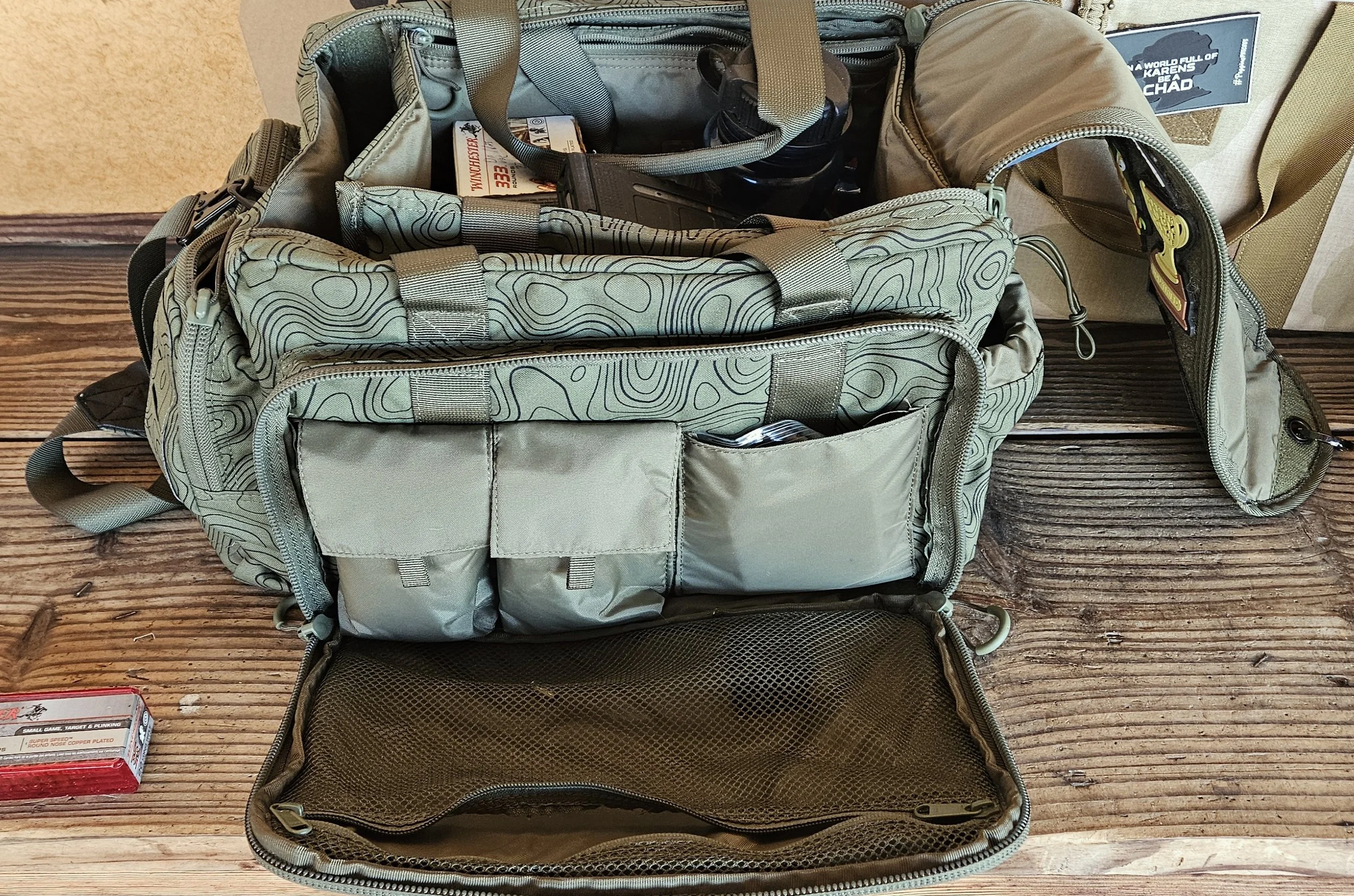

 I will explain the main compartment of the Tactical Range Bag first. Especially since it is where you end up throwing everything into. The size of the main compartment is approximately 14 x 9 x 9 inches. It sounds small, but you can fit a lot of stuff in there. On the bottom of the main compartment is a hard floor mat. This mat gives the bag a hard bottom but is also removable. Once removed, the floor mat can then be unfolded to a 28 x 14.25 inch size. Because it unfolds, you now have a nice place to set pistols and gear on a shooting bench. You could also use it as an interim cleaning mat. I like it for taking pictures of pistols and gear that I am doing reviews on. The mat has the same topo pattern as the exterior of the range bag. The dual zippered flap that covers the main compartment has hook and loop all over it, for your patches of course. This feature gives you quick access to whatever is in the main compartment. The dual zippers are also tied together with a handle strap, making opening and closing it fairly easy with one hand. This main compartment is very useful for anything you want to throw in it.

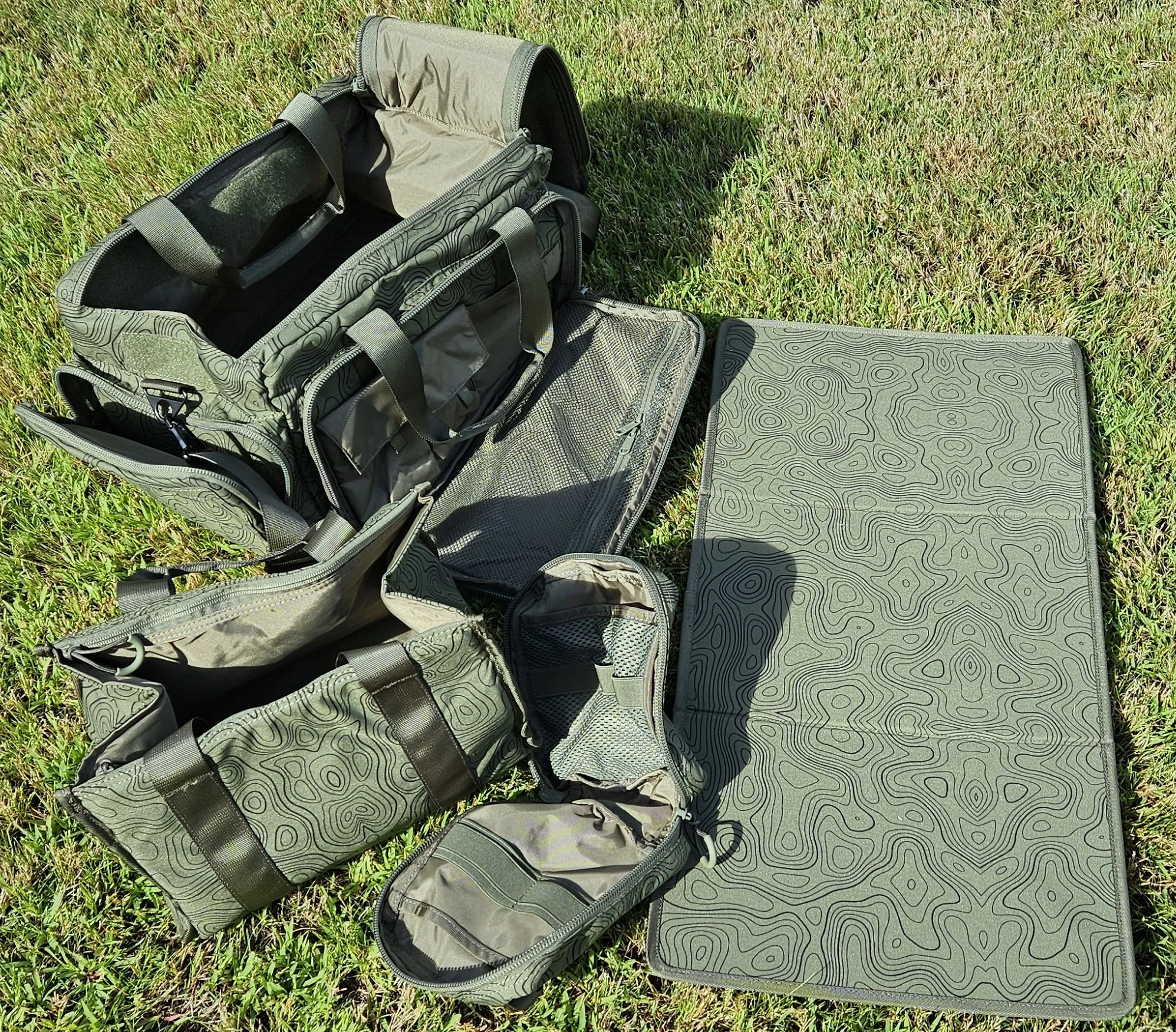

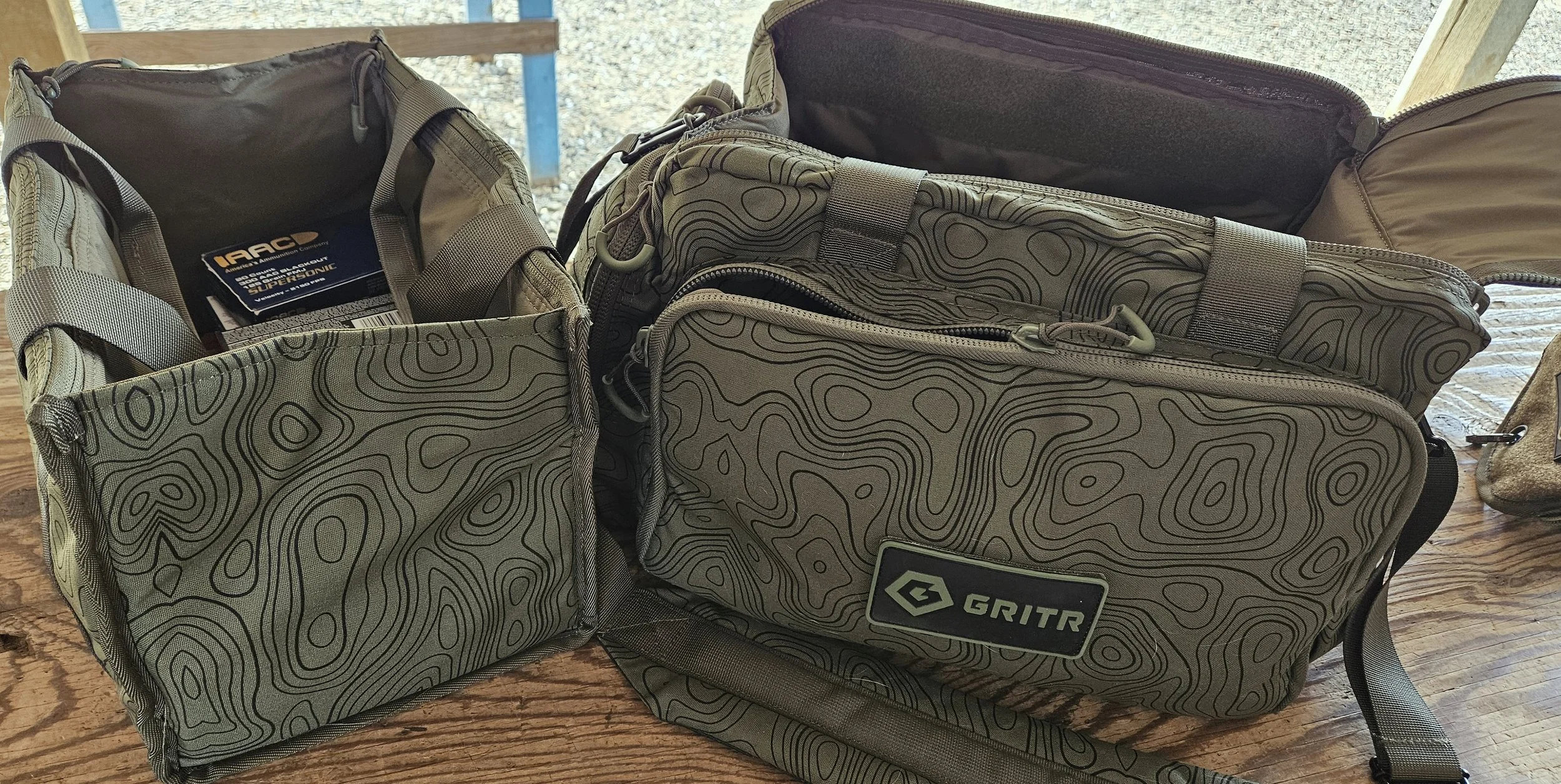

  Inside that main compartment is something even more useful. That item is a removable Tote bag. It is made to just rest inside the main compartment. Yes, it does take up most of the main compartment, but you won’t care because it is so useful. It measures 12 x 7 x 8 inches and has some decent, soft style, carry handles. The tote is open top with a hard floor. Built into the sides of the tote bag are 2 padded pistol bags. Just unzip either of them and you can drop a full size pistol into them. Throw some ammo boxes inside the tote and you are ready to go. Because of the tote, you can just grab it instead of the whole range bag. So if you are at a match, or anywhere else, and don’t want to carry the whole bag, you can just grab the tote and go. Put the pistol on one side, and mags in the other, and your ammo resting on the bottom. The only down side to the tote is that it does take up space in the main compartment. I usually just put the tote in the main compartment and nothing else. Having the built in pistol bags is super useful.

  Gritr throws in a medical pouch with the Tactical range bag. It is a fairly decent med pouch having pockets and straps where you need them. The dual zippers unzip to let you open the pouch up flat and quickly. I do wish that Gritr had an option to have the med pouch filled with a trauma kit. Even without it being stocked, I think including a med pouch is pretty cool, especially since any range trip should be accompanied with a good med kit. On a basic level, you could always fill it with something like THIS. I do wish the med pouch had some MOLLE to attach it to the outside of the range bag. But hey, good on Gritr for including it and getting people thinking.

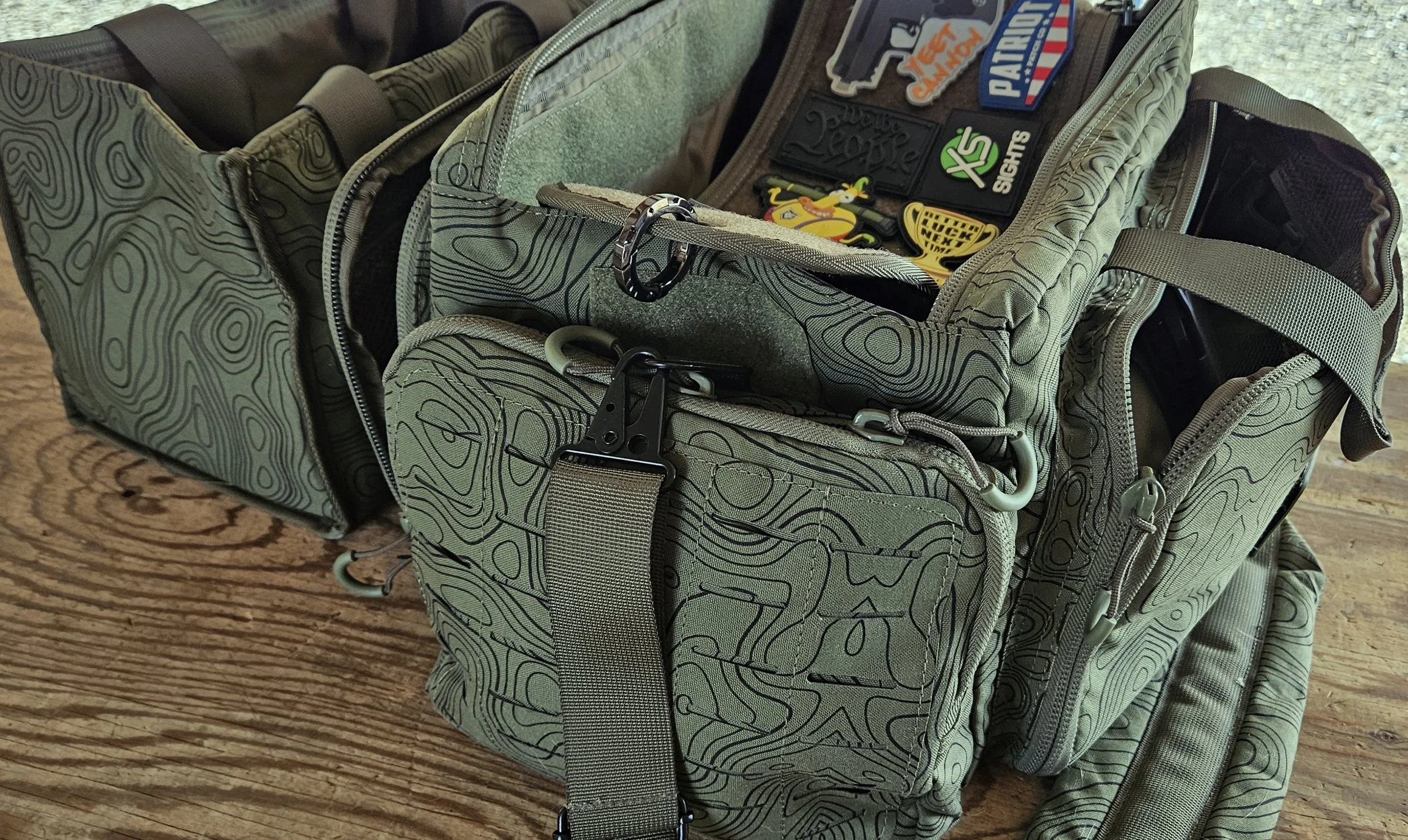

  Back to the outside of the Tactical Range Bag. On each side of the range bag are 2 large zippered compartments, both can fold down flat when open. Inside one of these pockets, there is hook and loop MOLLE up against the bag side. I like that you can attach extra stuff with multiple attachment methods. On the fold down side of this compartment are 2 zippered mesh pockets. I have my stapler in this compartment, with staples in one of the mesh pockets and target tape in the other pocket. The other compartment has one large zippered mesh pocket on the fold down flap side. Then on the side against the bag, there are 3 little pockets. 2 of these have a hook and loop cover flap. The other one is open. I usually put miscellaneous tools, a timer, and rifle mags in this compartment. These side compartments are large enough to fit a ton of extra stuff.

  The Gritr Range Bag has end pockets also. Okay, one is a compartment and one is a literal pouch. The pouch is just an open top pocket with an elastic pull string. I would prefer some way of closing it completely, but maybe I am wrong here. Either way, I use it for my over the ear hearing protection. It does give me easy access to just grab the shooting muffs and slip them on quickly. On the other end is an actual zippered compartment. On the outside of this end compartment is more MOLLE in the bag's color pattern. Inside it is just a compartment, no pockets or anything. I usually have extra hearing protection and eye protection in this compartment.

  I have been very pleased with the overall size of the Gritr Tactical Range Bag. It has been working out great for me. It is smaller than my old super large one, but big enough that I can fit all my stuff in it. So far the stitching on the seams has held up and looks as good as new. I tend to overload my bags, so this says a lot about the quality of the Gritr bag. The carry handles on the bag work nice, even if they flop into the main compartment when closing it up, but most bags tend to do this. The bag also comes with a removable wide, padded, carry strap. This carry strap is 3.5 inches wide. So it really disperses the weight on your shoulder. Especially if you load the range bag up like I tend to do. Yes, it is adjustable for length too. The Gritr Range bag seems to be the perfect size. If you need only a small bag, just use the Tote by itself. If you need something larger, just attach some stuff to the MOLLE.

  So, you are looking for a range bag. You don’t want to spend a ton but want a good bag. Go give the Gritr Tactical Range Bag a look. The bag is a great size for range trips, or anything else. The quality is nice. Plus it has all the features you need or want in a range bag. You can even get it on Amazon. Go check it out over at Gritr Gear, who knows, you might find some other good range stuff while you’re there.

Firearms Insider Reviews - Key Points

Claim to Fame:

Range bag that can used for various other things

Target Market:

Shooters, hunters, or anyone needing a decent shoulder bag

Features, Benefits, and Specifications of this product:

  • Material - 500D Nylon

  • Volume - 35.4 liters

  • Dimensions - 18" x 12" x 10"

  • Weight - 6 lbs

  • Removable Inner Tote (12" x 7" x 8")

  • Removable Mat (28" x 14.25")

  • First Aid Kit Pouch

  • Top Patch panel

  • Laser cut molle

  • Heavy-duty zippers

  • Padded carry strap

  • Lifetime warranty

What other aesthetic options or finishes are available?

Lots of different designs and colors

What others are saying?:

4 out of 5 stars on Amazon

Love it, could use a few tweaks

Overall I think this would be a five-star bag with a few tiny tweaks just to make it easier to fit things.

I love the bag overall.

Pros:

- good fabric

- great layout

- wish more manufacturers/importers opted for more interesting fabric colors

Cons:

- no pocket/opening fits ear pro well, they all crush ear pro except if you want it bouncing around inside the bag

- internal pockets really flat when empty so they're getting strained when you put anything inside, limiting what you can put in the bag. They are only single stitched, I bet this will be a problem too. Common design problem I see. Would be much better if they just added a half inch of fabric to make all the pockets a little loose when empty.

- wish either the gap for the inner bag were larger or oriented the other way

- eye pro pockets are a very tight fit

- wish the top zipper were lockable

Link to other reviews:

The Gear Bunker

Price point:

MSRP = $114.95

Retail = $100

I need it now! Availability:

Gritr Gear or Amazon

Our Rating:

Pros:

  • Great size

  • Molle in good locations

  • Removable inner tote

  • Hard removable floor/mat

  • Available in non-tactical colors

  • Padded carry strap

Cons:

  • Open end pocket

  • Small inner pockets

Score: 8.50 Great

Favorite Link:  Aimwin PE320 review

,

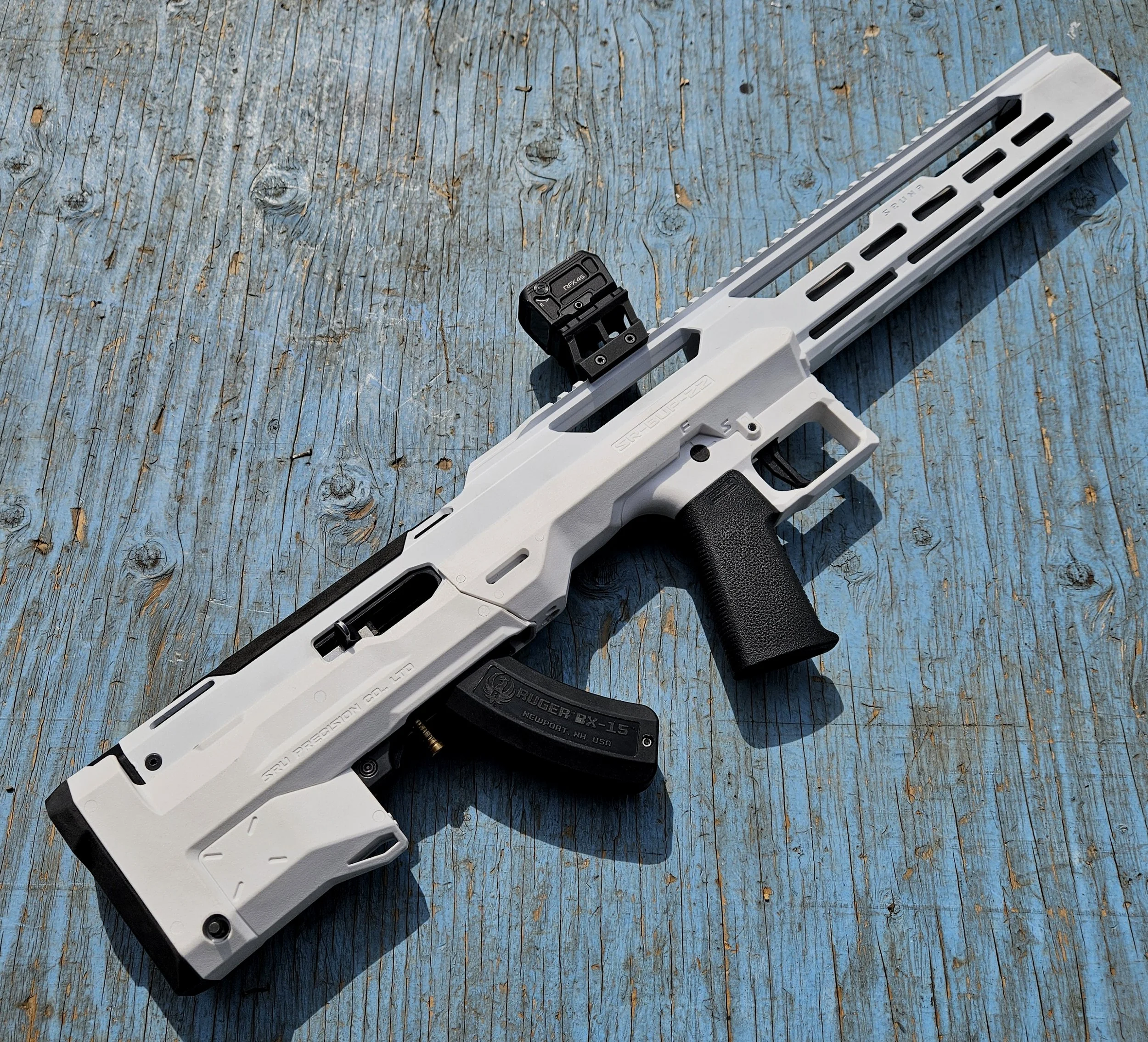

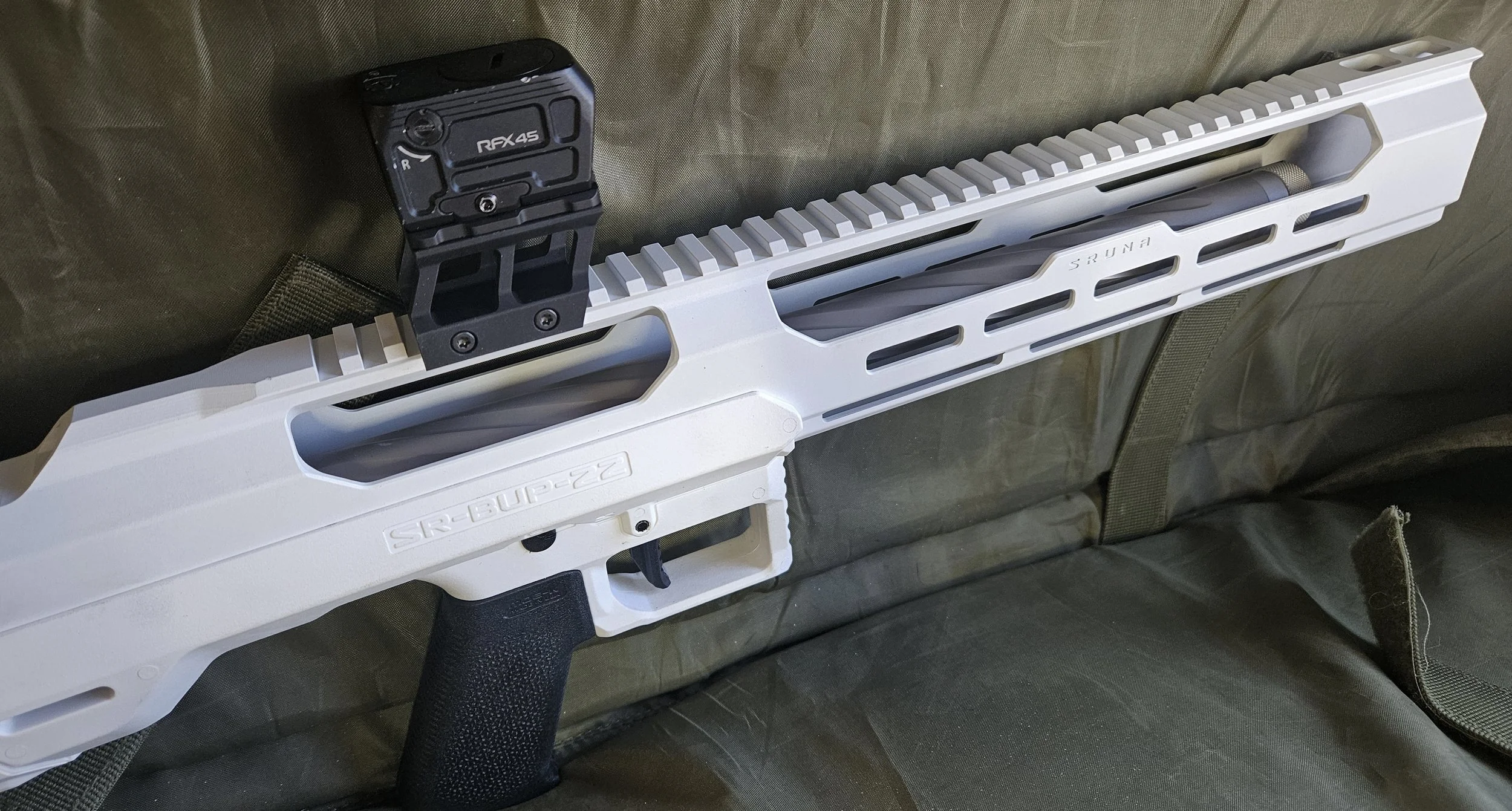

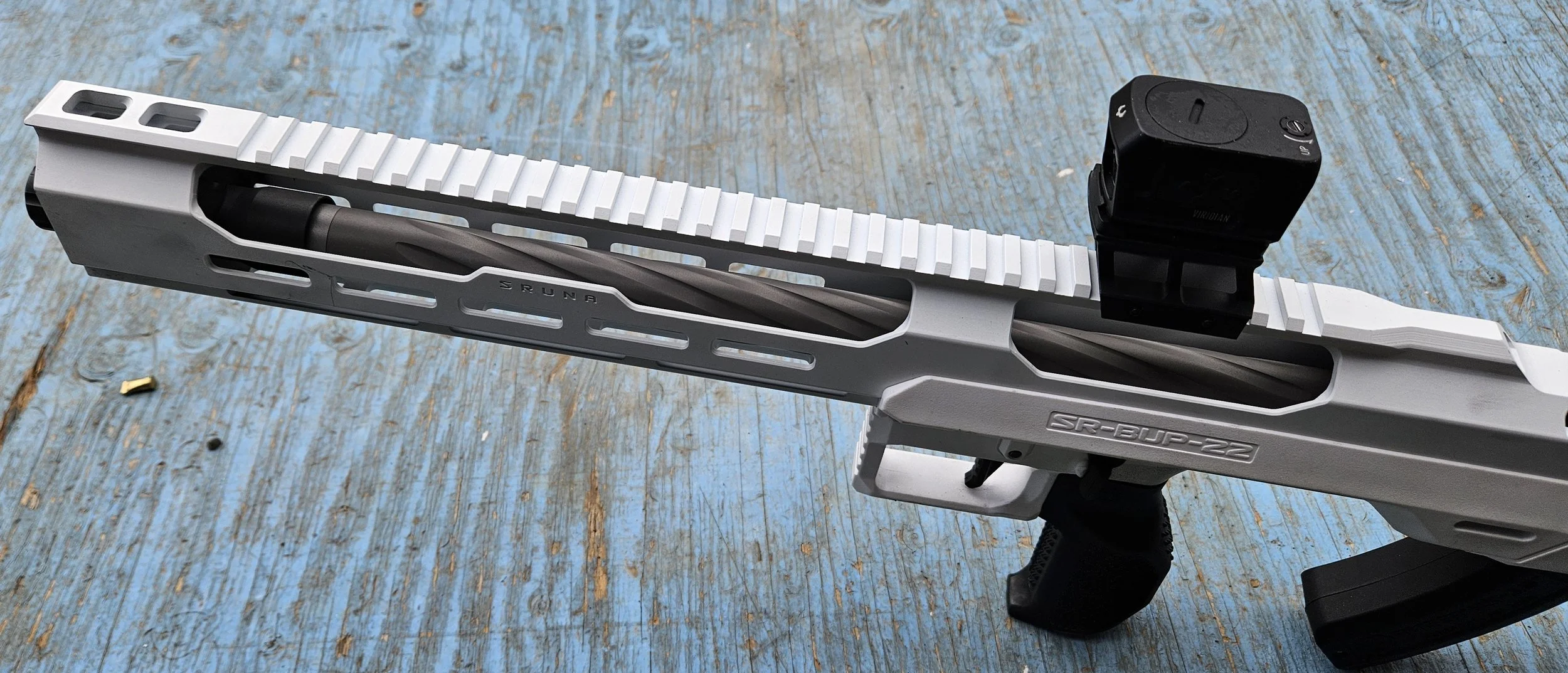

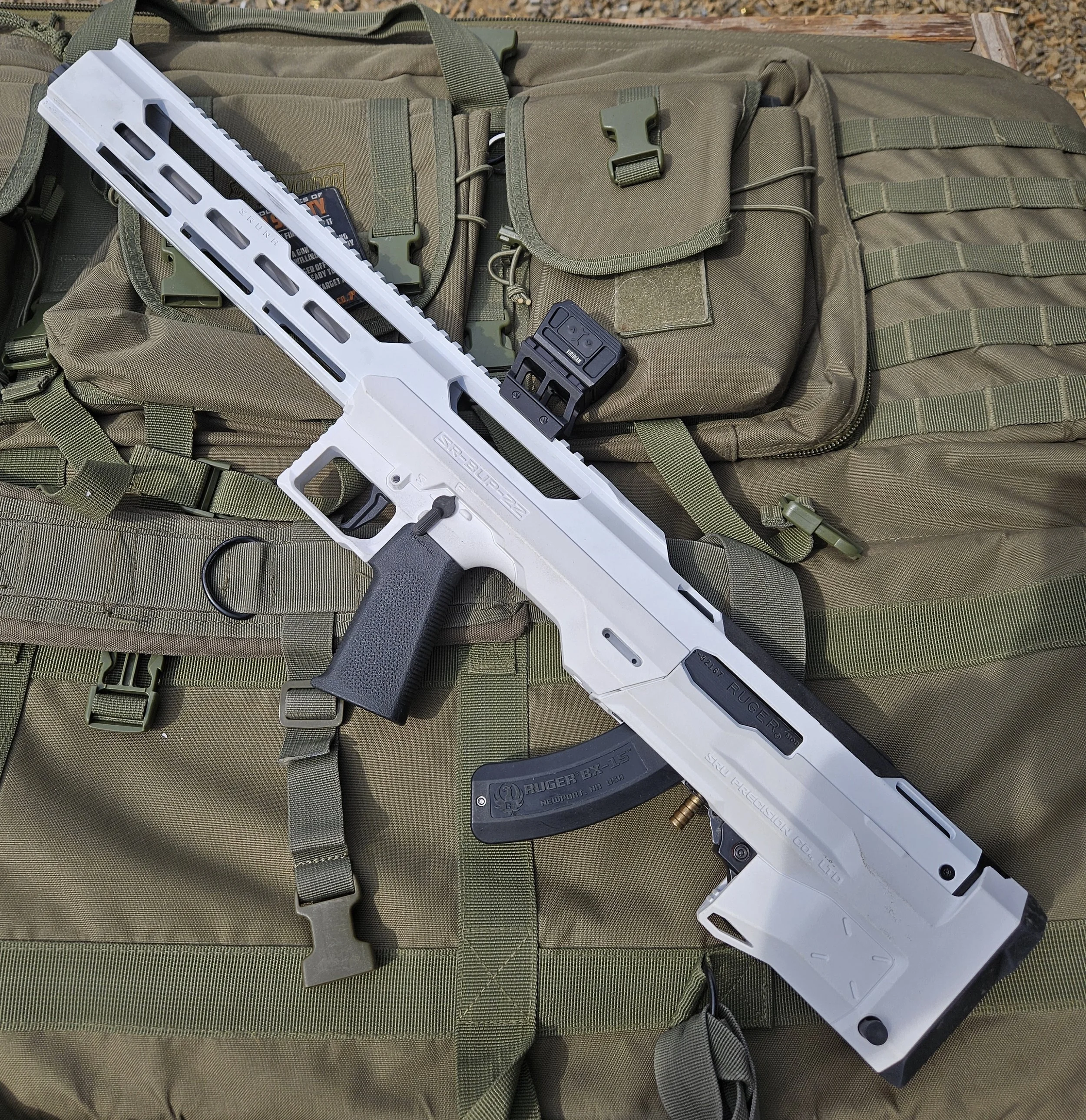

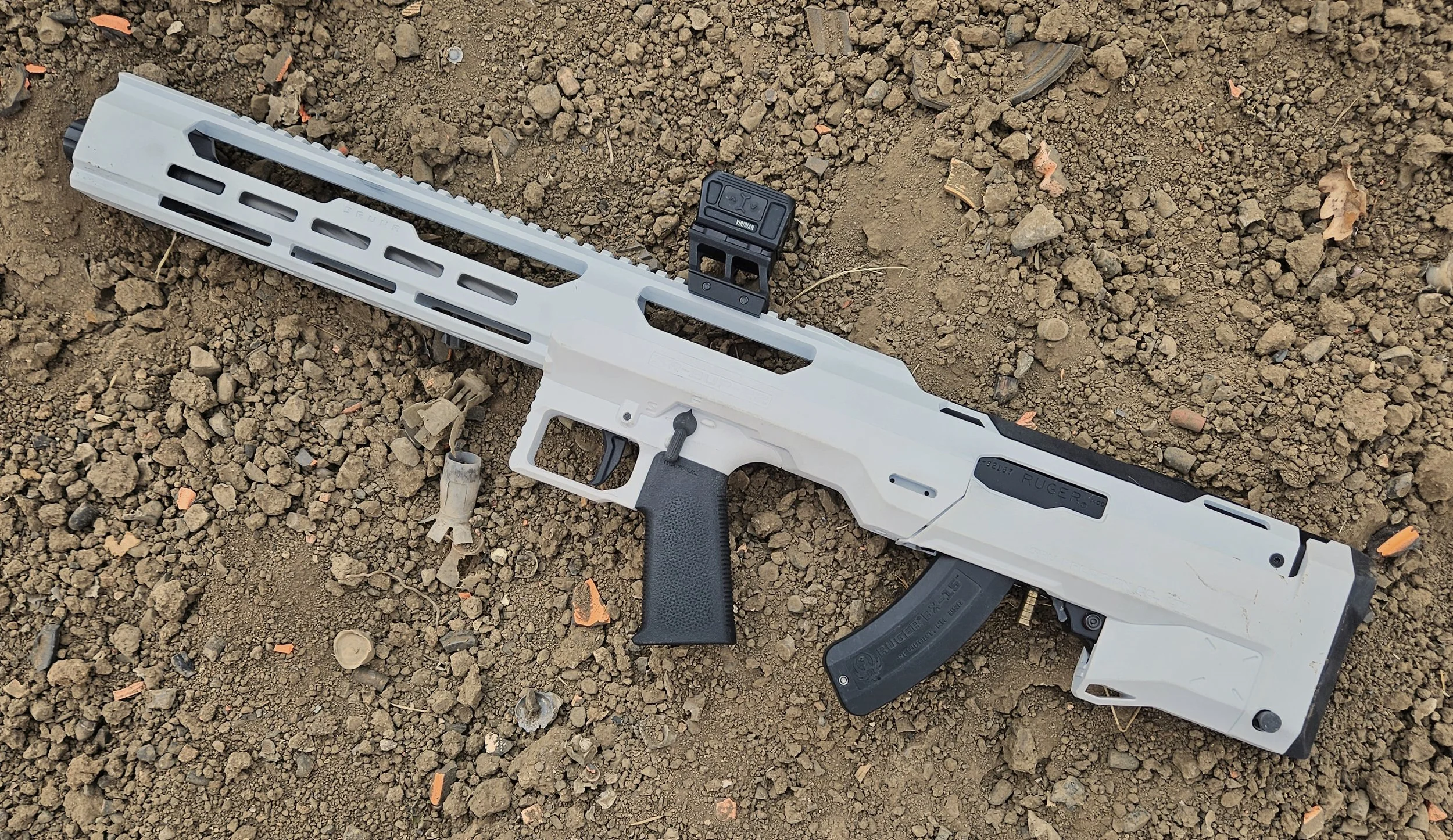

SRU SRUNA-22 Bullpup Chassis

,

SRU Precision Sruna-22

10/22 Bullpup Chassis

Review

  If you are into guns, or maybe even if you aren't, you most likely have a Ruger 10/22. If you are like me, you can't leave anything in factory form. To help with that modification addiction, SRU Precision has their SRUNA-22 Bullpup Chassis for the 10/22 rifles and their clones. The Sruna-22 easily converts those 10/22's into a space age bullpup design.

  I was looking for something different to do with a 10/22 that I had laying around. SRU had asked if I wanted one of the Sruna's to review. After using their SARB-15 AR bullpup kits, and liking it so much, I agreed. The Sruna's come in 3 standard colors: Black, Tan, and OD Green. However they currently have a limited edition White Sruna-22. I decided on the white one because it looks more like a space blaster than the other three. All of the Sruna chassis are the same, except for the color.

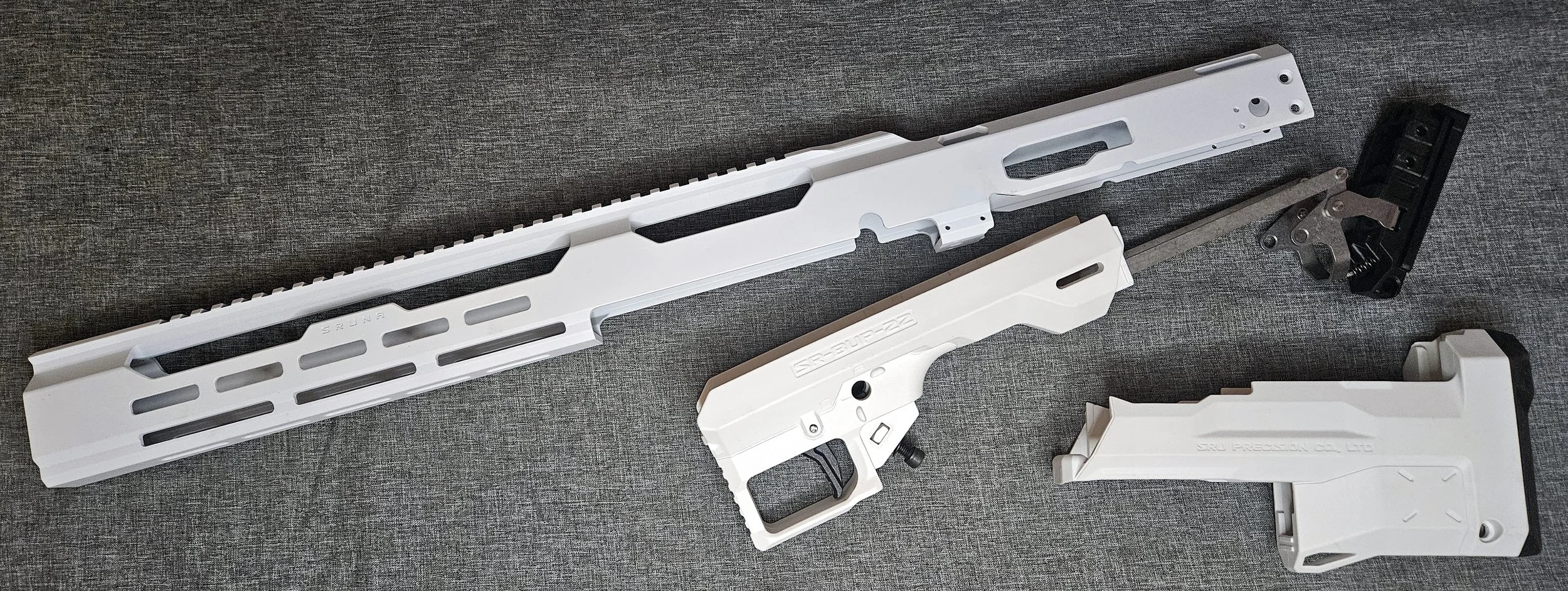

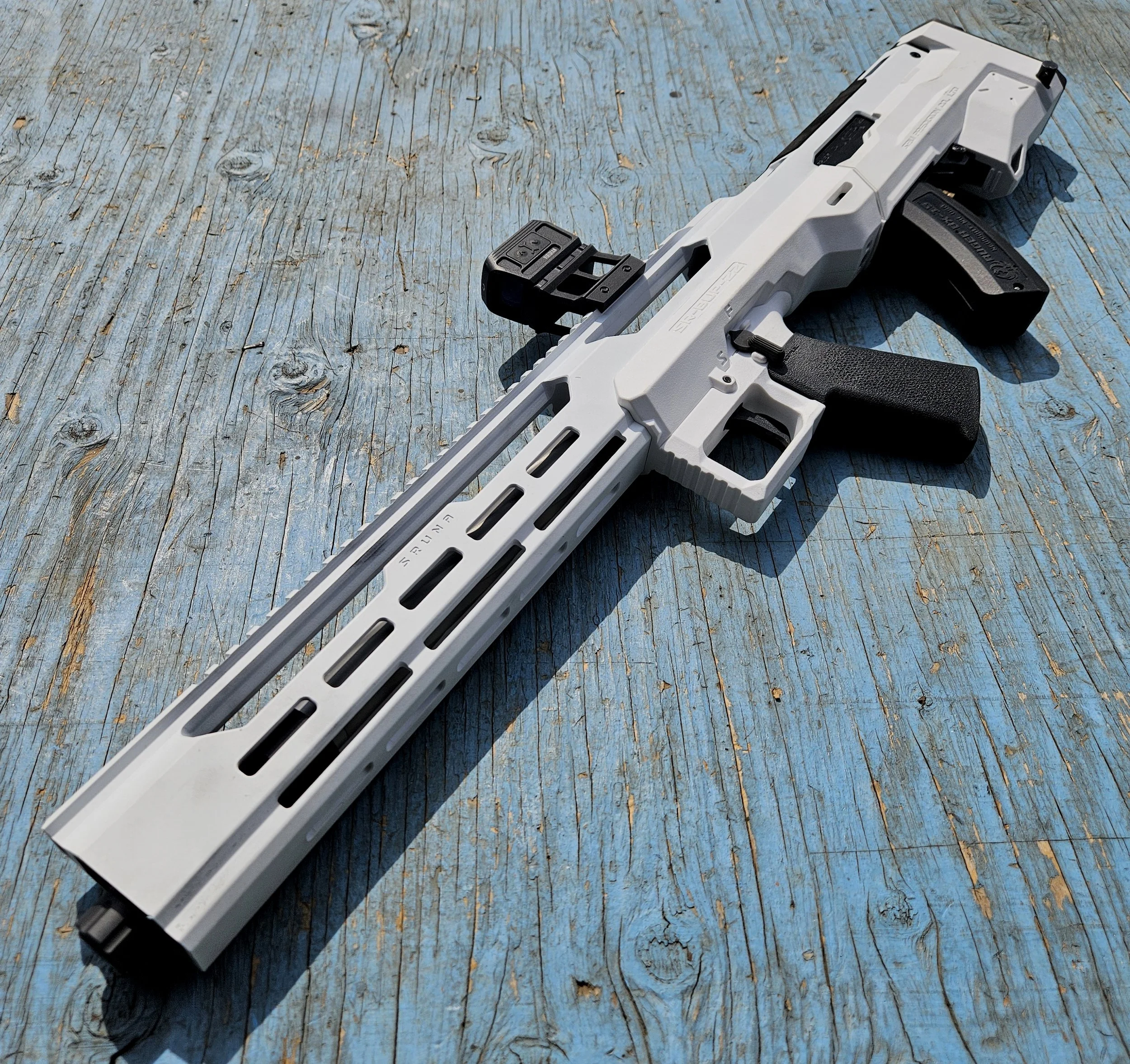

  Now that you have decided on the SRUNA-22, what do you get? To start with, you get a complete exterior chassis that bolts on and around your 10/22. The Sruna separates into, essentially, 3 pieces for assembly and disassembly. You have the main aluminum piece that houses the barrel and receiver. The polymer trigger housing assembly with linkage. Then the rear quick release polymer housing. This rear housing enables you to quickly get to your 10/22’s trigger assembly. Allowing easy access for cleaning and maintenance.

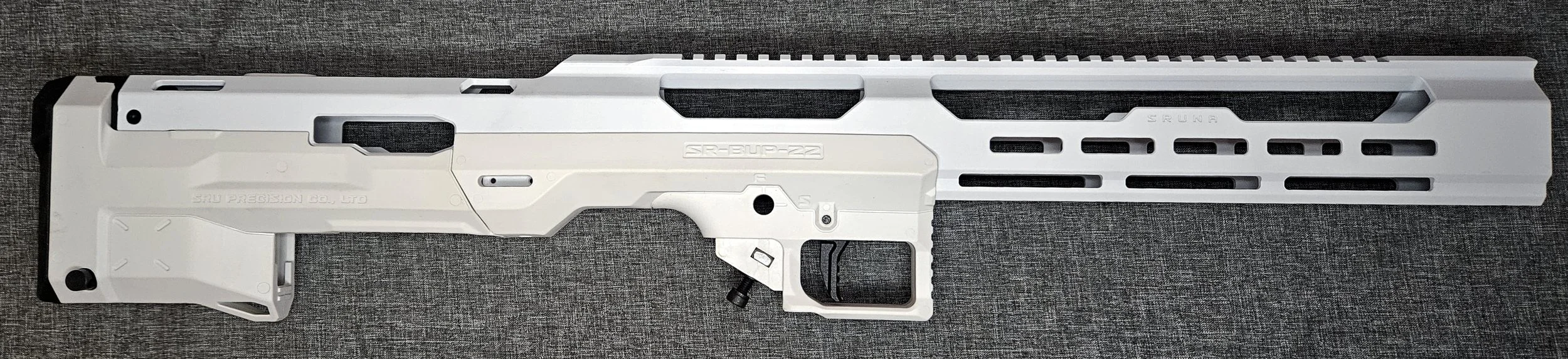

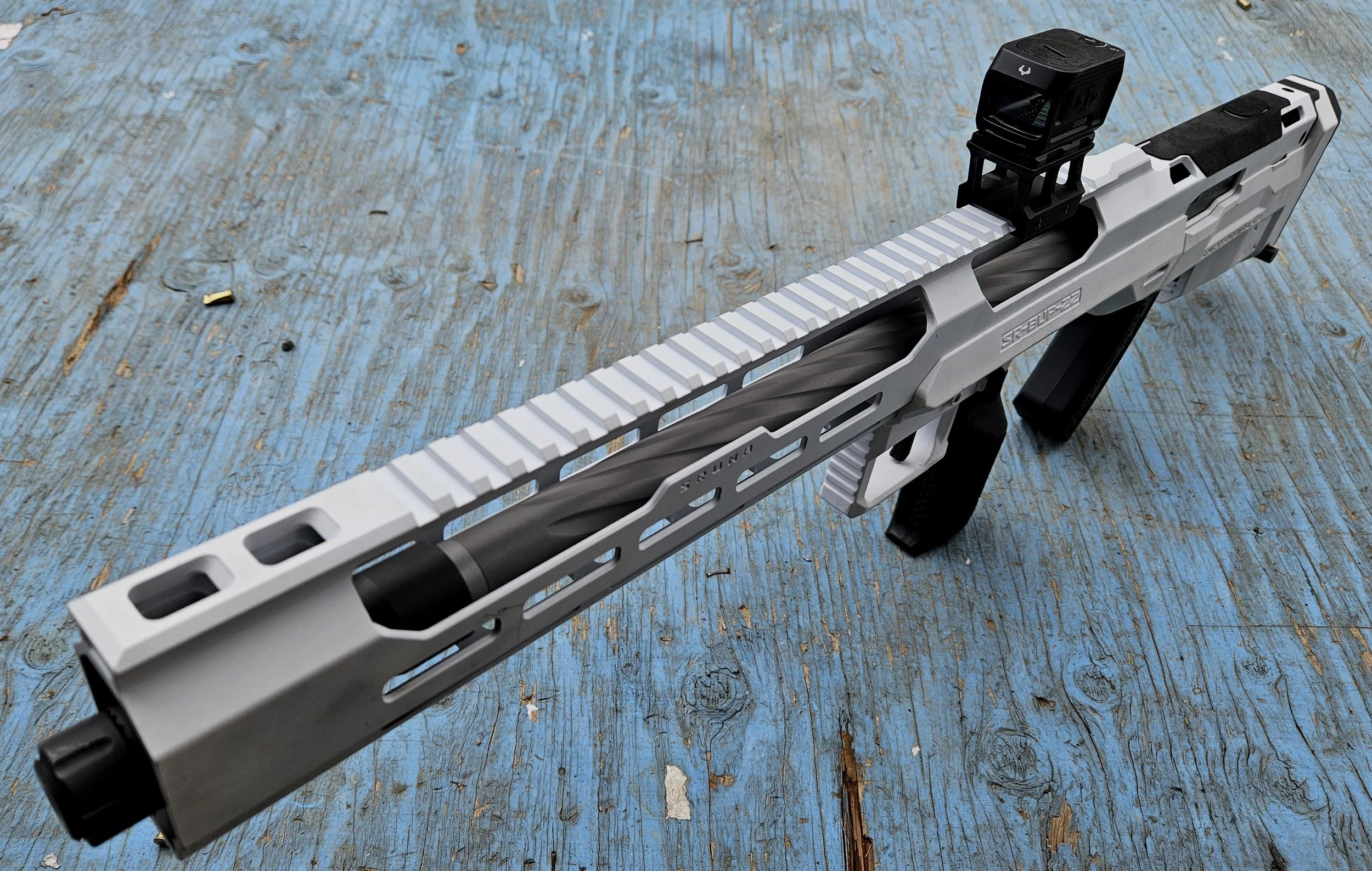

  The main aluminum housing of the SRUNA is where a lot of the utilitarian features come from. This is the section of the chassis that houses the barrel and receiver. One nice feature on the Sruna is that it will work with almost any 10/22 receiver. This includes billet machined as well as standard style 10/22 receivers. This also includes ones with or without a top pic rail. Plus it works with left hand receivers too. This housing also features a full raised top rail for mounting optics or sights on. I found using standard AR 1.5” mounts put an optic at just the right height. The Sruna chassis does drop down a little where your cheek rests. It also has a padded sticker that makes it more comfortable for your cheek. At the front are 5 M-Lok slots located at each of the 3, 6, and 9 o’clock positions. These are useful for mounting whatever. SRU also gave the Sruna 2 M-Lok slots, on 45’s, at the very rear of the chassis. Mainly so one can attach something like a QD sling mount. The top housing also has various cut outs to save weight and make it look “cool”. Warning, if you use any barrel length, or combination of muzzle devices and barrel, shorter than 17 inches, the muzzle will be inside the cut outs and M-Lok slots. I am running a 16” Shaw barrel in this one, and you can see in the pictures that it is just a wee bit short.

  The trigger housing section of the SRUNA-22 is what makes this a really good bullpup chassis. SRU uses a sturdy trigger linkage system. This linkage system doesn’t flex much. That gives the user a really decent feeling trigger. The trigger housing system also includes a new trigger and safety. The safety allows you to keep the 10/22’s original push button safety on “fire”, because the Sruna trigger’s safety keeps the trigger from moving. The trigger housing has an extremely large trigger guard that houses SRU’s designed trigger. It is a flat polymer AR style trigger shoe with texture. I like the SRU trigger. The Sruna also uses an AR style safety. It comes supplied with a polymer one that matches the trigger’s style. I switched it out for a normal AR style one. So yes, the Sruna chassis will take most, if not all, AR style safeties. Including ambidextrous and different lever styles. It will also take a number of different style AR trigger shoes. Not drop in style, but the standard style, and just the trigger. Lastly, the Sruna’s trigger housing needs a grip. You have to supply the grip, but any AR style grip will work. I’ve had 3 different styles on this one. I ended up with a fairly vertical grip from Black Collar Arms. The vertical grip just seems to work better for me.

  On the bottom rear of the SRUNA chassis is the quick release section. This section slides over your 10/22’s trigger housing and the Sruna’s trigger linkage. It has a quick release pin at the bottom rear. Just remove this pin and you can slide this piece down and off. Be careful, because the trigger pin might fall out of the linkage. It also houses the rear buttpad and spacers. When it is off, you have access to the original 10/22’s trigger housing so you can remove the whole thing for cleaning. The quick release housing goes on and off smoothly. It does have a little bit of misalignment with the trigger housing when installed. This doesn’t affect anything, it just looks a tiny bit odd.

  The SRUNA chassis also has a few adjustment screws. I thought I would mention these as they align your barrel and receiver with the chassis. In the Sruna kit are these tiny set-screws. There are places on the chassis to install these. They slightly push on the 10/22’s receiver at the front, back, and bottom for alignment. They also help keep the receiver tight in the chassis. I just snugged them down and everything worked fine, I didn’t see any mis-alignment that needed adjusting on this one.

  The SRUNA-22 bullpup chassis is fun. It shortens up a 10/22 and moves the weight toward the rear. This makes it easier to support because the bulk of the weight is between your hand and your shoulder. It also makes it swing faster between targets. I put a bunch of rounds through it and it does have a few flaws, but they are minor. If you run a larger charging handle on your 10/22, it may interfere with the Sruna chassis’ ejection port cutout. The stock charging handle works fine, but it sits in a little farther, making it harder to use. One with a longer handle, but similar profile should work best. I filed down a larger round handle to fit. The other flaw is that the return spring for the trigger linkage adds close to 1.5 pounds to the trigger pull weight. So it makes a good trigger not quite as good. I also wasn't keen on the chassis pieces not lining up. Now for good stuff. The accuracy out of the Sruna is just as good as your 10/22 was before sticking it in the Sruna. This chassis also takes some AR parts, making it customizable to some extent. I enjoyed my experience shooting the Sruna, plus it looks awesome.

  If you are in the market for something different in the 10/22 world, the SRU SRUNA-22 Bullpup Chassis might be worth looking into. It does everything a bullpup should do, like shortening the overall length while still giving performance. It doesn't add a bunch of weight and it is just something you don't see everyday. Head on over to SRU Precision and check out the SRUNA-22 kit.

Firearms Insider Reviews - Key Points

Claim to Fame:

10/22 bullpup chassis system

Target Market:

Anyone wanting a bullpup style 10/22

Features, Benefits, and Specifications of this product:

  • Compatible with all 10/22 variants except take down version

  • M-Lok slots at 3, 6, & 9 o’clock

  • Full top rail

  • Overall Length: 26.3” - 26.7” (With an additional butt pad, extends to 27.1”)

  • Length of Pull: 14.3” - 14.75” (With an additional butt pad, extends to 15.1”)

  • Chassis Weight: 1090g (38.5oz) (Ruger 10/22 wood chassis is approx. 950g)

  • Handguard Inner Width Compatible with suppressors or muzzle devices up to 1.299” in diameter

  • Upper Handguard: 6061 CNC Aluminum

  • Lower Frame material: PA66 Polymer

  • Trigger Linkage: SUS304 Metal Sheet Stamping

  • Butt Pad material: TPU

  • Cheek Pad material: EVA

  • Quick release chassis system

  • Uses standard AR grips

What other aesthetic options or finishes are available?

Black, Tan, and OD Green

What others are saying?:

Nothing found as of publishing

Link to other reviews:

Nothing found on Real Steel version (10/22 not airsoft)

Price point:

MSRP = $399 - $419

Retail = Same

I need it now! Availability:

SRU Precision

Our Rating:

Pros:

  • Good design

  • Takes standard AR grips

  • Works with left hand eject

  • Works with any 10/22 receiver

  • M-Lok slots

  • Full top pic rail

Cons:

  • Misalignment between two parts

  • Increases trigger pull weight

  • Screw height of top clamping screws

  • Some larger bolt handles may not work

Score: 7.00 Good

Favorite Link:  SARB-15 Bullpup Chassis Review

, ,

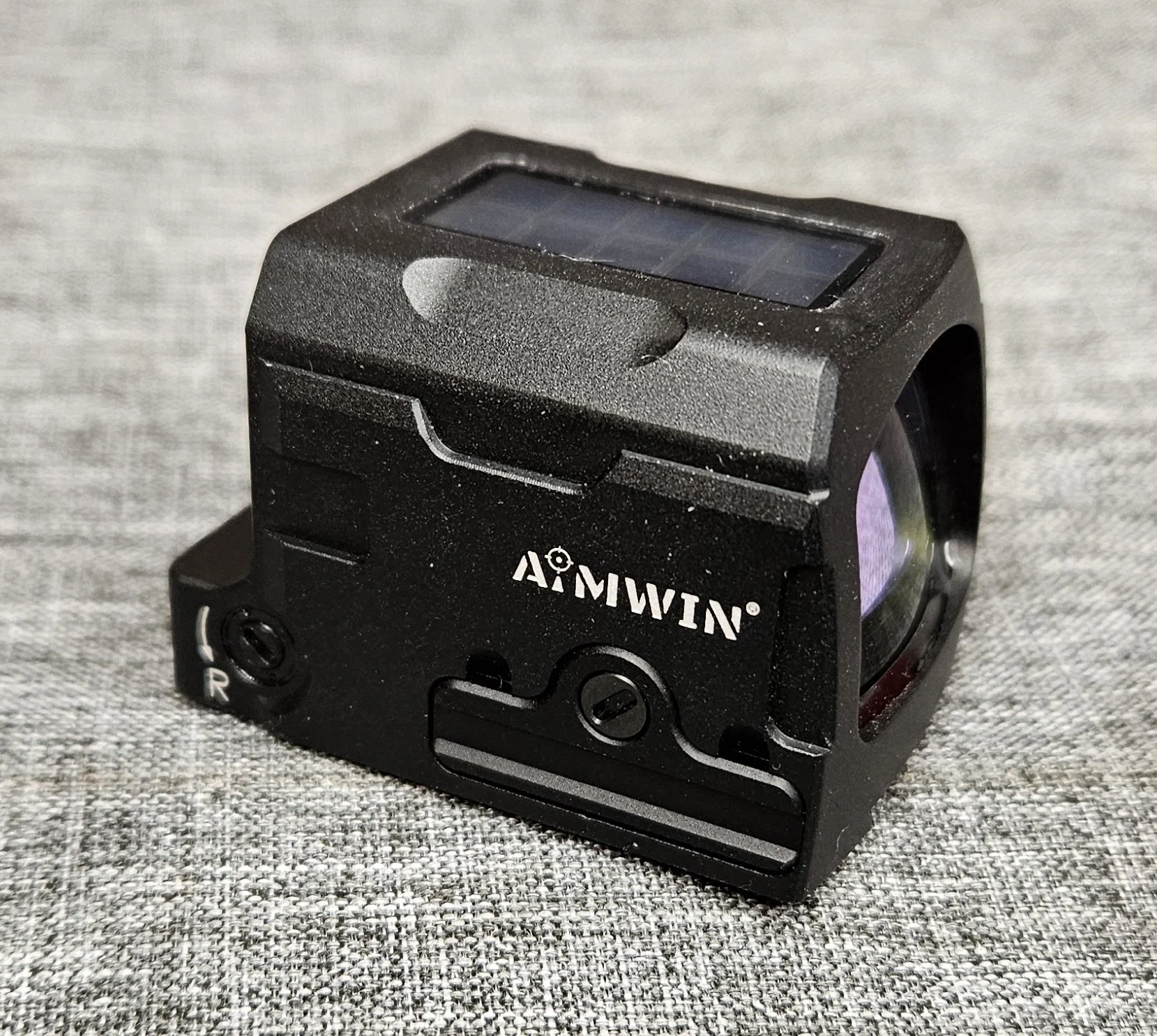

AimWin PE320

, ,

Aimwin PE320

Enclosed Emitter

Red dot Review

  In today's market, there are a bunch of good pistol style red dots. They basically come in two categories: open emitter and closed emitter. Aimwin recently released their PE320. The PE320 is an enclosed emitter red dot with a multi-reticle system and a solar fail safe.

  As with any quality red dot, the Aimwin PE320 comes with everything needed. In the box you get the optic, a battery, extra screws (including one for the battery tray), wrenches, cleaning cloth, etc. Probably the most important included item is the Acro to RMR adapter. This gives you the ability to mount it on anything that uses the RMR mounting footprint. There are lots of pistol options using a direct RMR footprint.

  Mounting the PE320 is pretty straightforward. However, it does come with two options. If you happen to have something with an ACRO mounting footprint, like a riser or a plate adapter, you can mount the PE320 directly to that. If you have a direct mount RMR cut/footprint, you can use the supplied ACRO to RMR adapter. This is what I did. Just screw down the RMR plate onto your slide and then clamp on the PE320. It's really that easy.

  Now that the Aimwin PE320 is mounted, you can take it to the range. To initially turn on the PE320, just click the “+” button. The buttons to control the PE320 are located on the left side of the optic. These are rubberized raised buttons labeled “+” and “-”. They are pretty large and easy to use, even if you are wearing gloves. Of course, tapping on a “+” or “-” button will increase or decrease the brightness of the red dot. There are 11 total brightness settings, the 2 lowest are night vision compatible. Now that the PE320 is on, you can sight it in. A nice feature on the Aimwin is its click adjustable windage and elevation screws. Each click adjusts the point of impact 1 MOA, which is fine for these types of red dots. Now that it is sighted in, and you want to completely turn it off, just hold down the “-” button until the dot disappears.

  The PE320 uses Aimwin's “aim awake” feature. The “aim awake” is their auto on/off feature. Once you turn on the PE320 this feature is enabled. Aim Awake works like any of the other auto on/off systems. After the optic sits idle for a short time, the dot will turn off. Once you barely move the optic, the dot will turn back on. The aim awake feature helps with battery life, giving the PE320 around 50,000 hours of run time. I am a huge fan of these auto on/off features.

  Aimwin's PE320 is not just a red dot. It features a multi-reticle system. So you get the option of either a circle dot, just a circle, or just a red dot. If using one of the options with the circle, the circle also has little hash marks in it that are located every 90 degrees (similar to an Eotech). To cycle through these 3 reticle options, just hold down the “+” button until it changes. The PE320 uses a 36 MOA circle with a 3 MOA dot, or any combination of the three. I like having reticle options and the PE320's are useful for whatever you need or want.

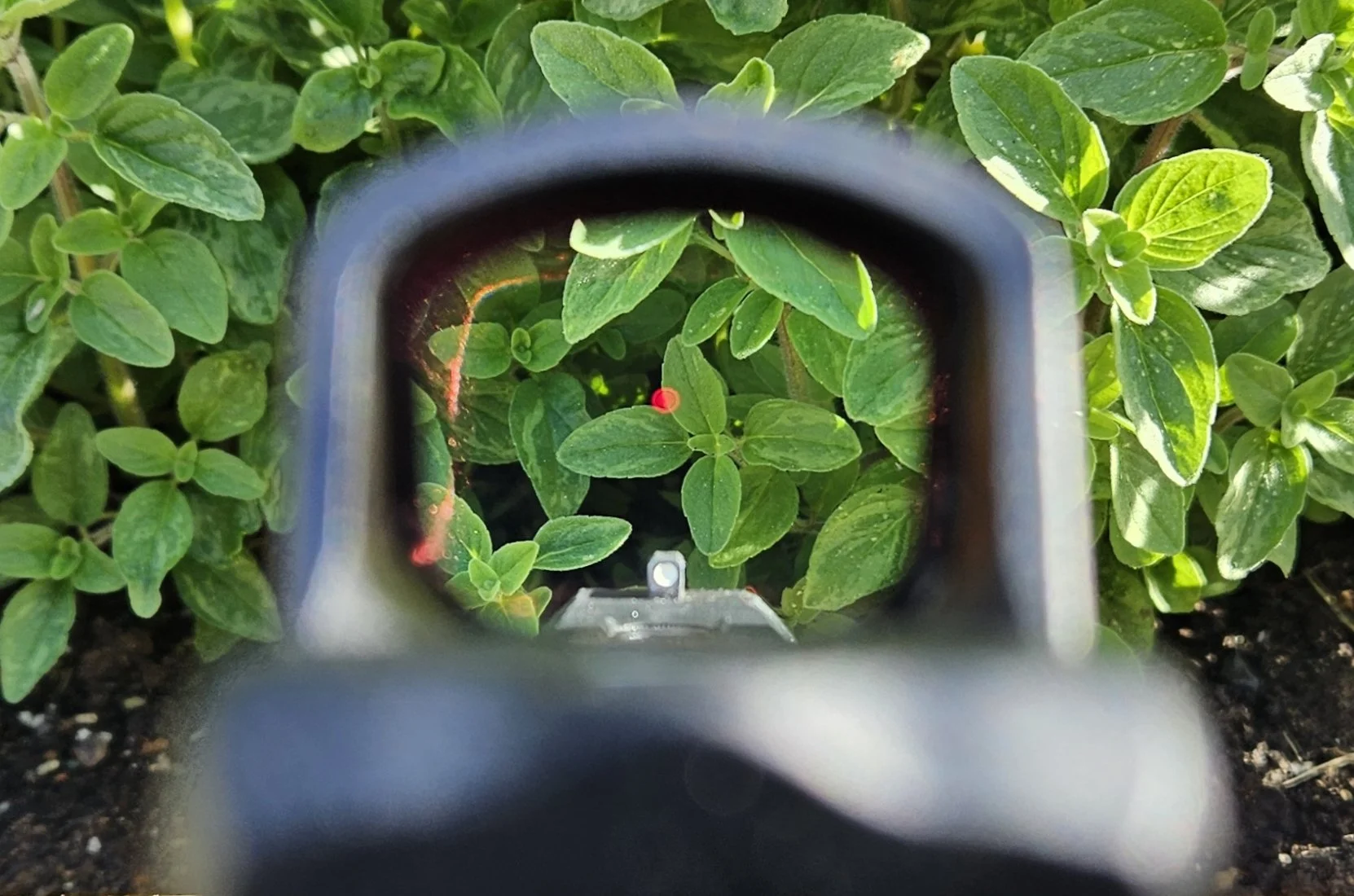

  The multi-reticle system of the PE320 is housed inside a large window. How large is the window? 0.94 inches wide by 0.79 inches high. It's a big window, which is really nice for finding the reticle. However, because of its large window, the PE320 is a little wider than a lot of the enclosed ACRO footprint optics. This isn't bad or good, it really just depends on what trade offs you want.

  The last notable feature of the PE320 is the solar panel on top of the optics housing. This solar panel adds a “solar failsafe” to the optic. So if your battery is low, and there is enough light, you will still see the reticle. The Solar Failsafe also works when the battery is completely dead, as long as there is enough light. I tried it with the battery out, and the reticle still comes on under normal room lighting. Don't expect it to work in a dark room without a battery. The Solar Failsafe is a nice option to have, especially if you forget to change the battery out once a year. When you do need to change that battery, the PE320 uses a side mount battery tray for easy use.

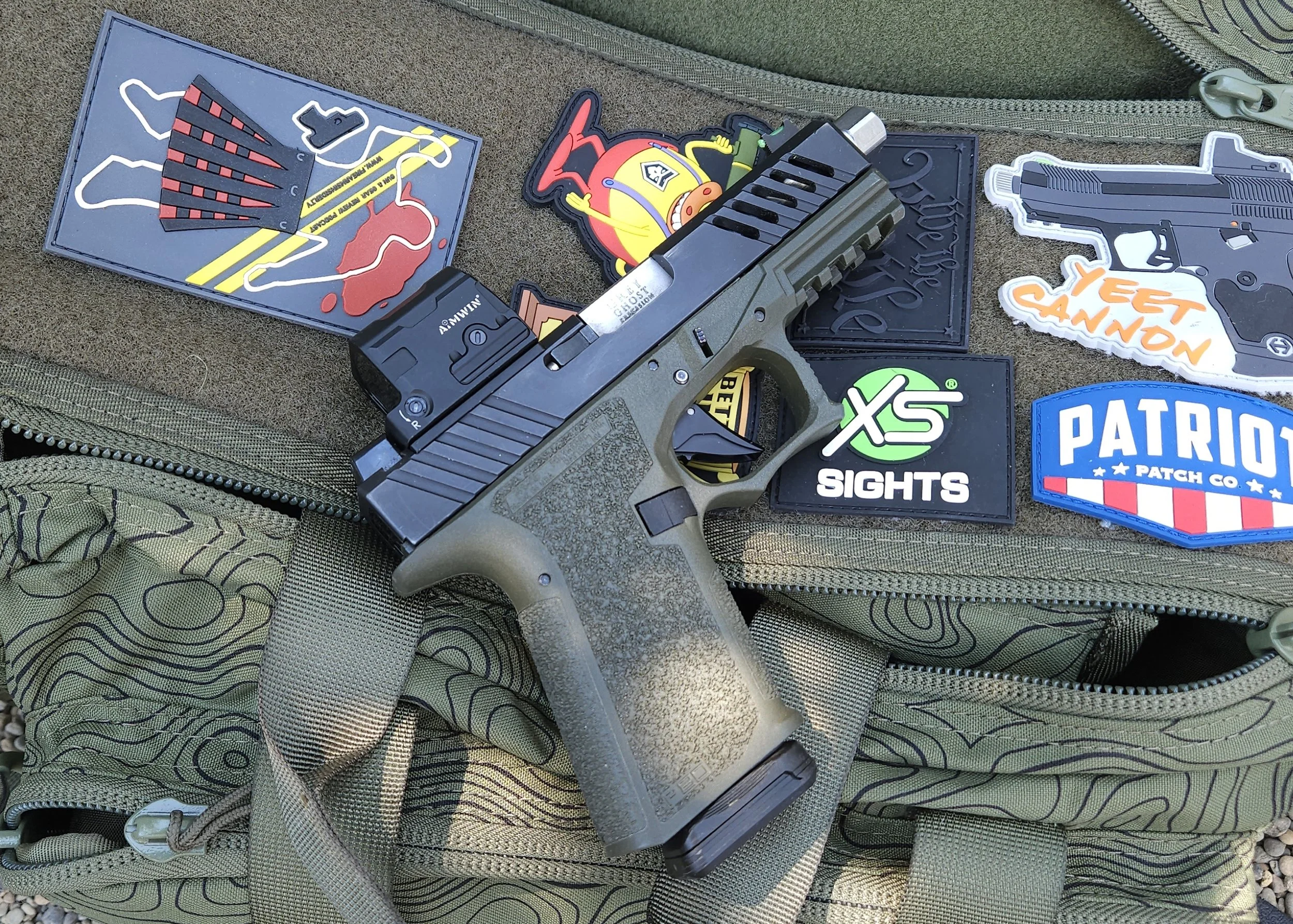

  I mounted the Aimwin PE320 to a Polymer 80 with a Grey Ghost slide. This particular slide is cut to direct mount an RMR footprint. So I ended up using the PE320’s ACRO to RMR plate. I chose this pistol because I use it in various different forms, one of those is using a Recover Tactical 20/80 brace system. This let me try out the PE320 in a chassis style system and as a standard pistol. I put a ton of rounds through it and even beat the crap out of the PE320. No loss of zero and no other problems, even when using the optic as a slide racker off the benches at the range. With the PE320’s adapter plate, the red dot does sit a little higher up on the pistol, but still below the top of the slide. If you want the PE320 to co-witness with iron sights, you will probably have to get some suppressor height ones. Those still might not be tall enough to clear the PE320’s deck height. Speaking of size, the PE320 is large for a pistol style red dot. Not so much height wise, but more width wise. It definitely is wider than a standard Glock slide. I only see this as a problem if you are carrying it inside the waistband. On a rifle, this could be a bonus. Especially since the window size on the PE320 is fantastic. It made finding the dot real easy. I like the 3 MOA dot size, it is a good compromise between speed and accuracy. Since I live in Oregon, it also rains a lot here. Having an enclosed system also makes it way easier to wipe the rain off of the lenses.

  If you are in the market for an enclosed style pistol red dot, the Aimwin PE320 might be worth looking at. It has a decently large window and different reticle options. Being larger in size, it would also make a good rifle dot. If you forget to change your battery, it might still work for you thanks to that solar failsafe. It is also durable and held up to my abuse. So go check it out over at Aimwin.com.

Firearms Insider Reviews - Key Points

Claim to Fame:

Enclosed pistol red dot with large window

Target Market:

Those wanting a large windowed enclosed red dot

Features, Benefits, and Specifications of this product:

  • Weight: 2.19 ounces (62g)

  • Dot Size: 3 MOA with 36 MOA ring (selectable)

  • Window Size: 24.0mm x 20.0mm (0.94" x 0.79")

  • Dimensions: 45.3mm x 35.0mm x 31.2mm (1.78" x 1.38" x 1.2")

  • Housing Material: Hard-anodized 6061-T6 Aluminum

  • Adjustment per Click: 1 MOA

  • Windage & Elevation Range: ±50 MOA, total range 100 MOA

  • Footprint: ACRO, RMR adapter plate included

  • Battery: Side load CR2032

  • Solar Guard Fail Safe

  • Battery Life: 50,000 hours (low brightness)

  • Aim Awake mode

  • Operating Temperature: -30℃ - 60℃ (-22°F - 140°F)

  • Brightness Settings: 9 Daylight / 2 Night Vision Levels

  • Water Resistance: IPX7

  • Vibration: 2000 G’s

What other aesthetic options or finishes are available?

None

What others are saying?:

5 out of 5 stars on Amazon

 Very Nice Enclosed Optic

Just picked this up for my H&K P30L. Had to change the optics plate (Langdon Tactical cut) to an ACRO mount, but it fits perfectly on it and locks down solid. The body appears to be pretty durable and stout without being overly heavy. Controls are nice and large so adjusting brightness and/or choosing dot style is pretty easy. ACRO mounts are probably the easiest installation of any of the footprints since it works like a pic rail. No screws into the plate to worry about getting torqued just right. It does really need a torque spec listed for the clamp screw, though. Never really liked "make it tight, but be careful not to over tighten it" with no spec for what "tight" is. Dots are extremely bright on the max setting and much calmer on the lower settings. Again, it is nice to be able to choose different reticles for different situations. Battery is side loading, which is nice as you don't have to remove the optic for swaps. Only issue I have with the battery compartment is that the tiny screw that holds it in place seems easy to lose as it is not captured. So be careful swapping batteries. We'll see how it does at the range this weekend at holding zero. Adjustments are nice and tactile with just enough resistance to turning to make me think they will stay put pretty good. May wind up being awfully high if you were to use the RMR to ACRO adapter that comes with it on most RMR cut applications. But sits at a nice height on the ACRO specific plate I have installed.

Link to other reviews:

Chris from the 740 on YouTube

Price point:

MSRP = $359.95

Retail = $240

I need it now! Availability:

Aimwin Optics or Amazon

Our Rating:

Pros:

  • Multi reticle

  • Solar fail safe

  • Large window size

  • Acro footprint w/RMR plate

  • Auto on/off (Aim Awake)

Cons:

  • Optic is physically wider

  • Deck height is pretty tall

Score: 8.00 Great

Favorite Link:  Grey Ghost Glock Slide Review

,

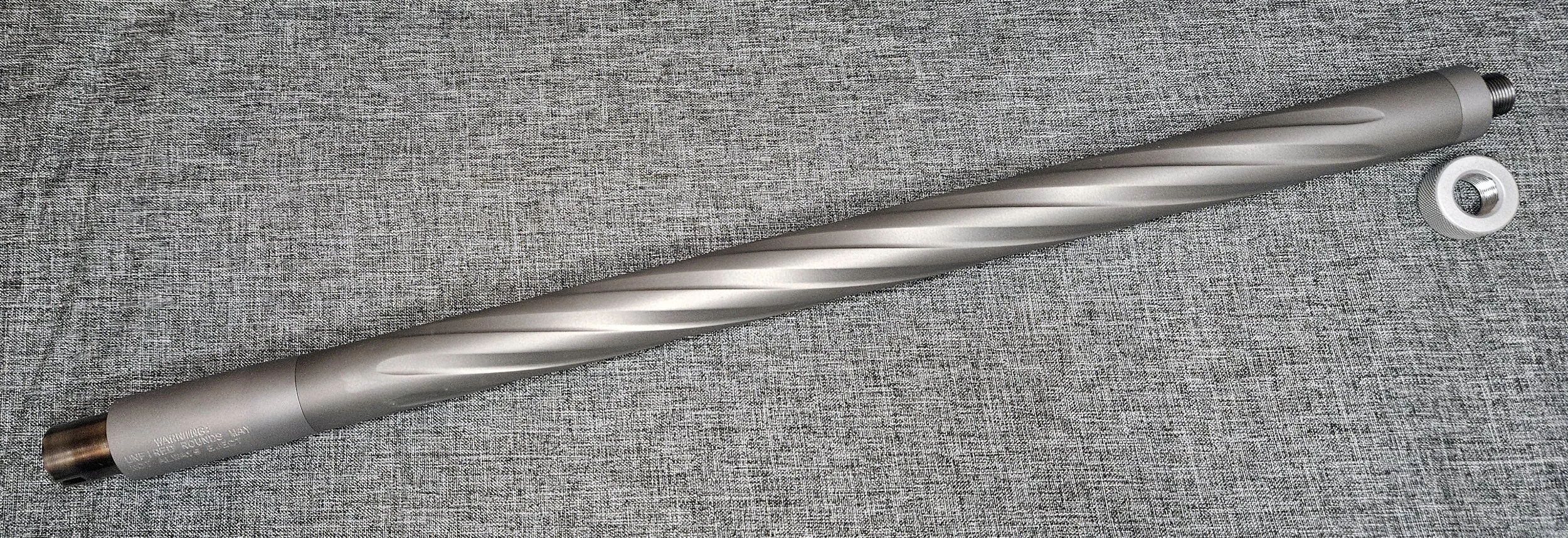

Shaw Titanium 10/22 Barrel

,

Shaw Titanium 10/22

Barrel Review

  22 long rifle firearms seem to exist in everyone's collection, especially the Ruger 10/22. Lots of times we like to modify, or maybe even build, them. Sometimes that is done to make the 10/22 shoot more accurately. To help with that, you need to replace the barrel with a different one. Shaw Barrels has recently come out with a Titanium sleeved barrel for the 10/22 and its clones. With it, you get better accuracy and a lighter weight barrel.

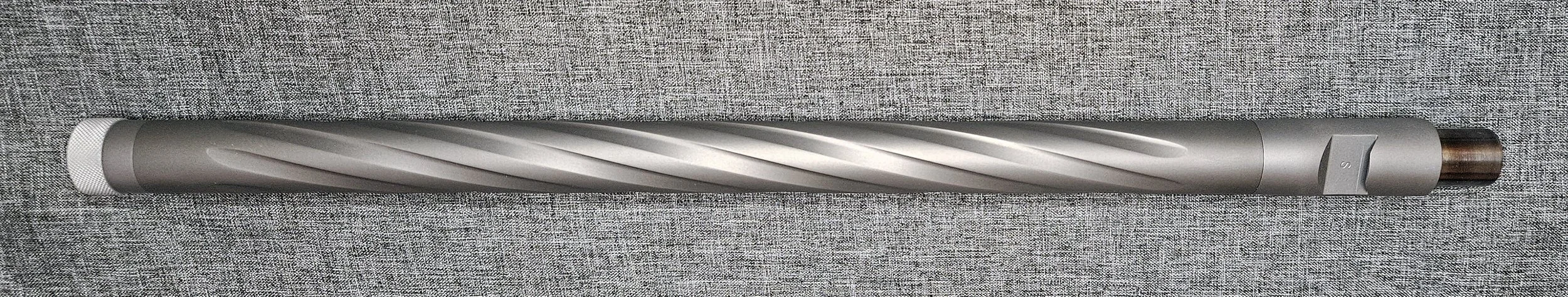

  The Shaw Titanium 10/22 barrel looks a lot like any other 10/22 barrel. There are a few exceptions though. The Shaw Titanium barrel has a straight bull barrel profile, but with spiral flutes. Fluting does two things for a barrel, it helps keep it cooler and it lightens it up. This barrel is also a slightly thinner profile. A standard 10/22 bull barrel usually has a diameter 0.920 inches. The Shaw Titanium barrel has a diameter of 0.875 inches. I opted for a 16.5 inch version in a matte finish. Polished is also available, as is an 18 inch version.

  Shaw’s Titanium barrel is not your father’s 10/22 bull barrel. That fluted titanium is an outer sleeve that is tensioned over a 416R stainless steel core barrel. The core is essentially a very, very lightweight thin barrel. Then a titanium sleeve is installed over that core. Tension is then applied to the core, thus trying to pull it from both ends, making it very rigid. What does this tensioning do for you? It makes the barrel more rigid, reduces overall weight, and can improve accuracy by minimizing barrel vibrations during firing.

  If you did not know, titanium is lightweight. Okay, all jokes aside, the Shaw 10/22 Titanium barrel doesn’t weigh much. In fact, it weighs a whole 1.35 pounds. My factory, tapered, 10/22 barrels weigh in at 1.72 - 1.80 pounds. So the Shaw Titanium barrel is quite a bit lighter. This weight reduction is due to the titanium and it being a tension style barrel. So if you are looking for something lightweight, that has that bull barrel profile, this might be it.

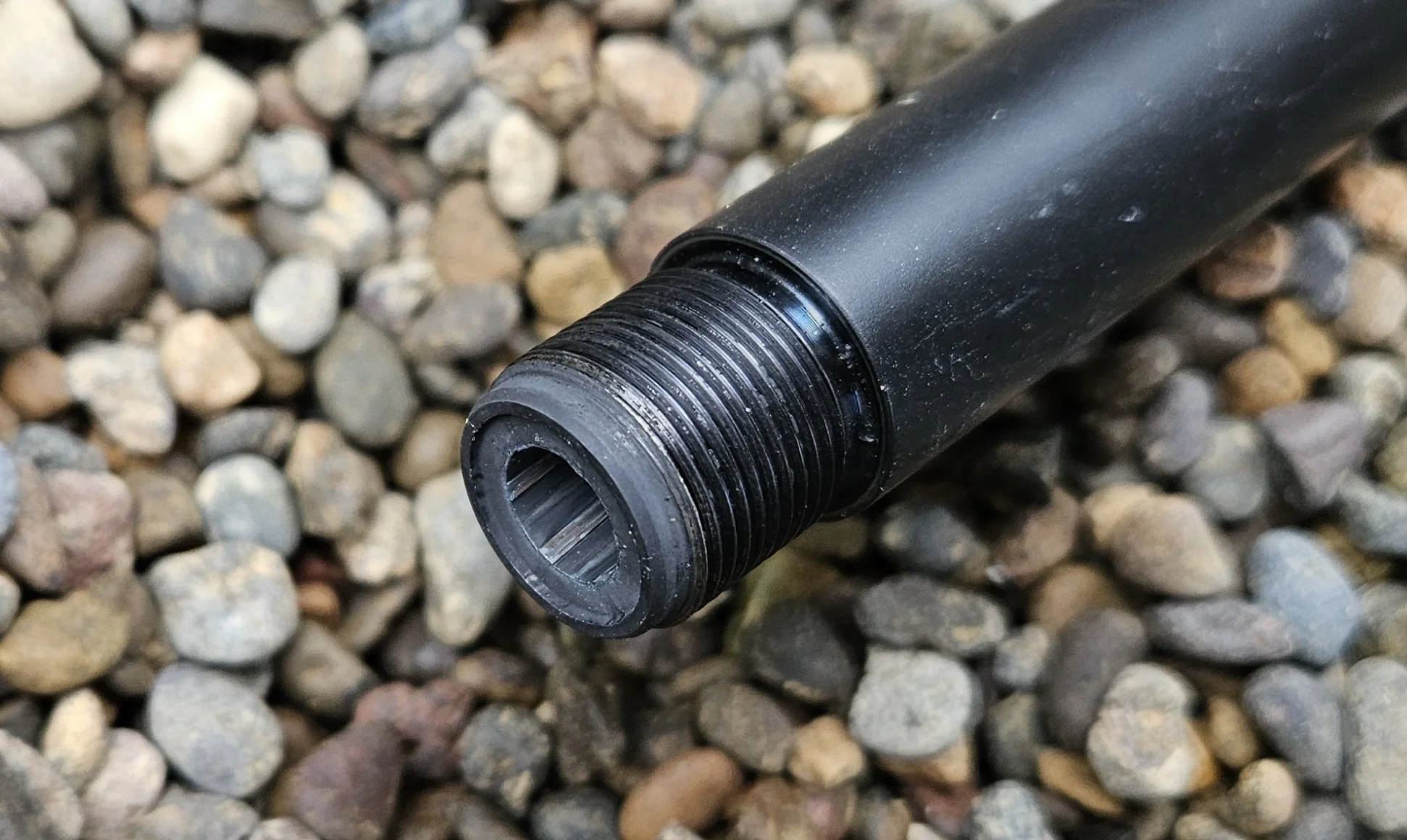

  A barrel should be threaded and it should not matter if it is factory or aftermarket. The Shaw Titanium barrel comes threaded with a thread protector. In today's world of suppressors and muzzle brakes, it just makes sense. The thread protector is nicely knurled and the same outer diameter as the barrel. The threads on the barrel are nicely done. They are ½-28 by 0.400 inch deep. This is a pretty standard thread pitch and depth for 22 long rifle barrels. Even though it is a shorter thread depth than an AR15, .223 and 5.56 muzzle devices will screw on and work.

  Shaw uses a Bentz style chamber in their titanium 10/22 barrel. The Bentz chamber is what I call the Wylde chamber of 22lr. It is somewhere between a true match chamber and a standard one. As Shaw Barrels says: “The Bentz chamber is a match-type chamber for semi-autos.  It is not as tight as a true, minimum-spec match chamber, but is much tighter than a sporter chamber.” I found the Titanium barrel to shoot well. It didn’t give me any feeding issues with cheap ammunition, and it shot that ammo well. I was able to shoot a 1”, 10 shot group, off hand, at 25 yards with some bulk box ammo and a red dot. The CCI mini-mags shot about a 1.25” group with those same parameters. I then installed a 1-10x LPVO so I could get a better idea of how accurate the barrel was. Then I took it out and shot 5 shot groups at 50 yards. I was able to get a 0.80 inch group with standard velocity CCI mini-mags. All the other cheap ammo I had grouped between 1.3 - 1.7 inches. If one were to use match ammo, I would expect even better results.

  The timing on receiving the Shaw Titanium barrel couldn’t have been any more perfect. Near the same time, SRU sent me a 10/22 bullpup chassis for review. So guess where the Titanium barrel went? You got it, in the SRUNA chassis. Since the Shaw Titanium barrel is a 10/22 barrel, installation is super easy. Just remove the 10/22’s barrel clamp, slide the old barrel out, and slide the Titanium one in. The only flaw with this chassis/barrel combination is that you can’t see the barrel very well through the chassis. Since the Shaw barrel is pretty nice looking, it might look better in a more normal style stock or chassis.

  Performance on the Shaw Titanium barrel was good. I was pleased with the accuracy I got out of it. Especially since I was mainly using cheap bulk box ammo. Being lightweight makes for a fairly light 10/22. It would work really nice in one of those 10/22’s that are meant to weigh under 3 lbs for competitions. In fact I was debating on installing it in my CP Firearms Dragonfly kit. I would also like to mention that the workmanship on the Shaw barrel is fantastic. If you look down the rifling, it is clean and smooth. Plus having that dull grey titanium color just makes it look good.

  If you are in the market for a great 10/22 barrel, give the Shaw Titanium one a look. It is super lightweight. Yes, it is a little pricey. But remember you are getting lightweight, titanium, and a precision tension barrel. It is also threaded for adding muzzle devices. I don’t think you could go wrong with the Shaw Titanium 10/22 barrel. It would be fantastic in a lightweight steel challenge rifle. Shaw offers more than just 10/22 barrels, so head on over to Shaw Custom Barrels and check them out.

Firearms Insider Reviews - Key Points

Claim to Fame:

Match type accuracy out of a lightweight barrel

Target Market:

Those wanting a lightweight, more accurate 10/22 barrel

Features, Benefits, and Specifications of this product:

  • 0.875" Diameter Bull Barrel

  • Spiral fluted titanium

  • 416R stainless core

  • Length: 16.5”

  • Weight: 1.35 pounds

  • Bentz chamber for 22 long rifle

  • 1:16 twist rifling

  • Threaded ½-28

What other aesthetic options or finishes are available?

Polished and 18” lengths

What others are saying?:

Nothing found as of publishing.

Link to other reviews:

I couldn't find anything worth your time.

Price point:

MSRP = $350.00

Retail = $315.00

I need it now! Availability:

Shaw Barrels or Midway USA

Our Rating:

Pros:

  • Lightweight

  • Accurate

  • Threaded for muzzle devices

  • Includes thread protector

  • Bull barrel style profile

Cons:

  • Price

Score: 8.00 Great

Favorite Link:  CP Firearms Dragonfly review

,

MDT LSS Gen 3 Chassis

,

MDT LSS Gen 3

Chassis Review

  I am not a super precision rifle type of guy, but I do see the benefits of having a chassis system. That is why I was excited when MDT recently brought out their LSS Gen 3 chassis system. I had recently picked up a Bergara for review and knew the MDT chassis would be a great fit. I opted for “The Tactical” pre-configured LSS Gen 3.

  MDT has been updating chassis as the years go on. In fact, I have a LSS-XL Gen 1. Now they are on Gen 3 of the LSS chassis. What makes the LSS Gen 3 standout is its adjustability. Now you can purchase just the baseline chassis, with no buttstock and a small forend. Or, you can go all out and purchase different forends, different stocks, as well as pistol grip options. If you don’t want a stock, you don’t have to get one. The LSS Gen 3 is super customizable.

  MDT also thought of something else with the LSS Gen 3. They have 3 pre-configured option packages: The Worker, The Tactical, and The Competitor. The Worker is the stripped down, lightweight version. The Competitor is the chassis you might want for shooting precision rifle competitions. Then there is the Tactical. I chose the Tactical for MDT to send out. It fits what I was looking for to install on the Bergara. So I will mainly focus on it, with some other stuff thrown in.

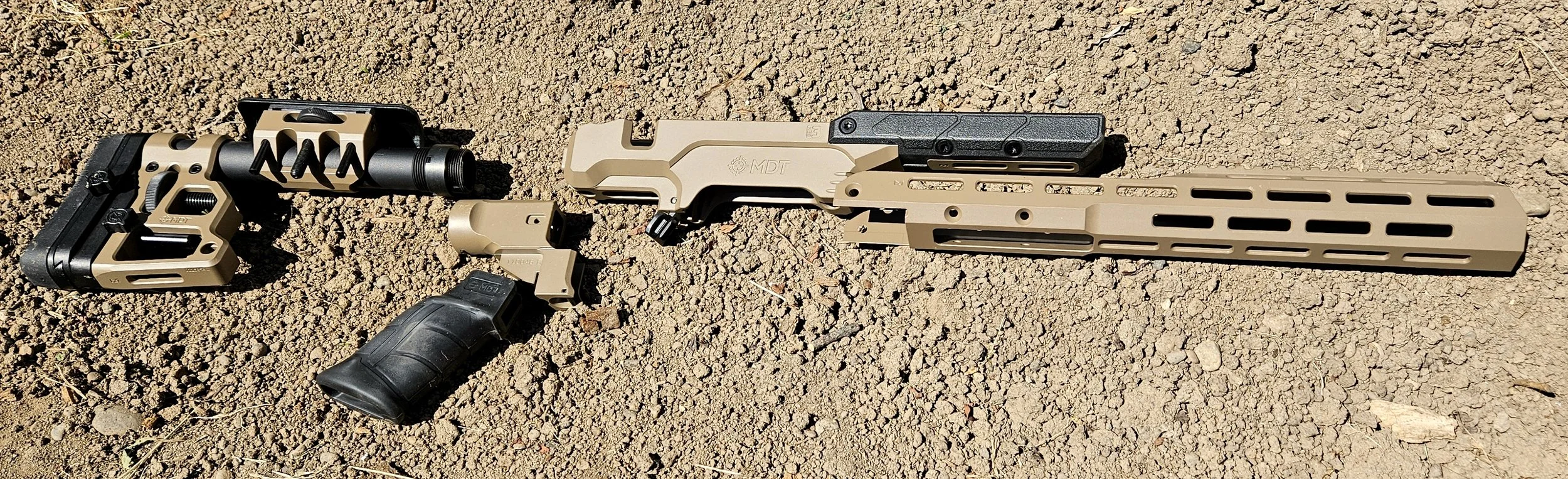

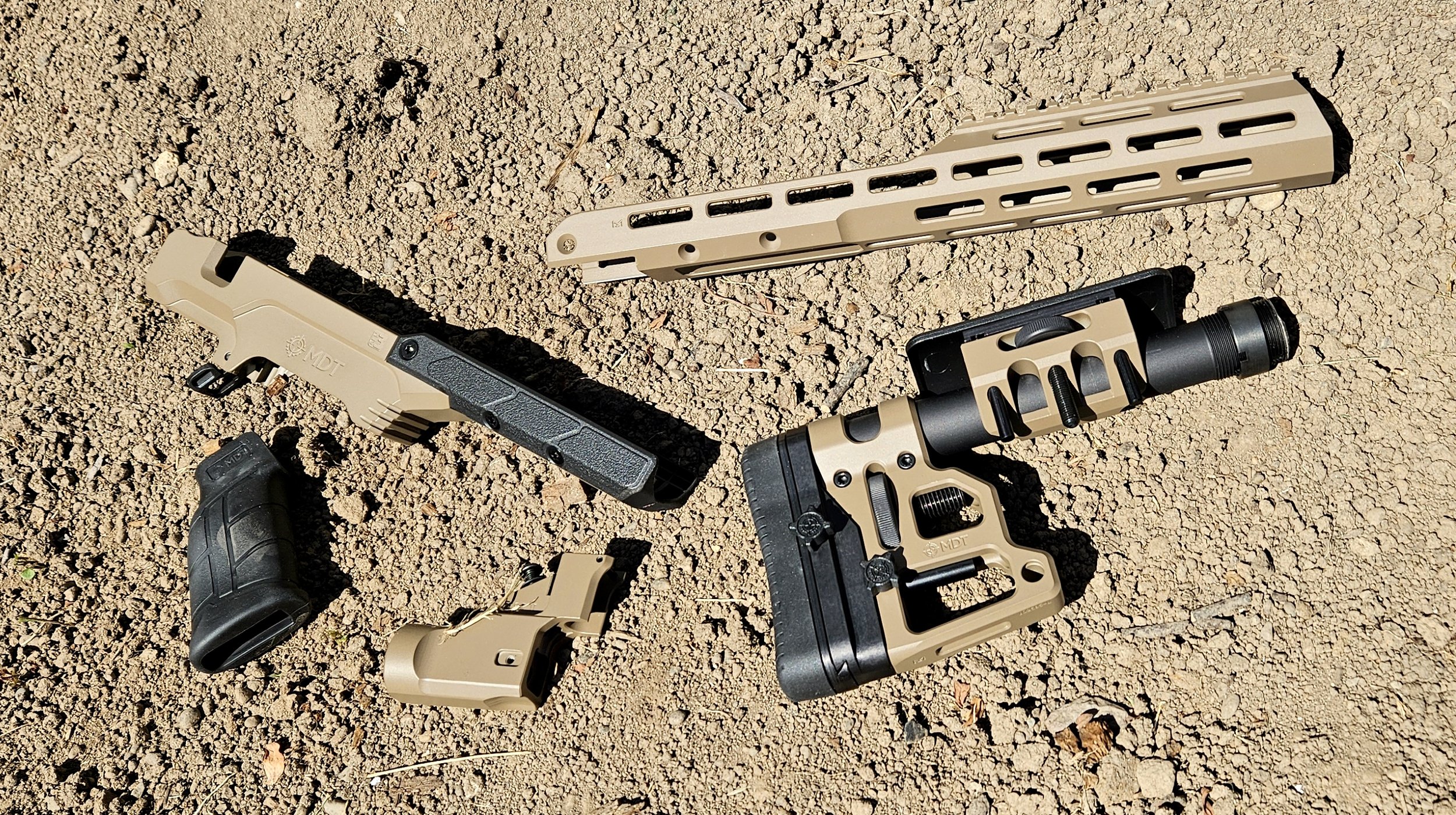

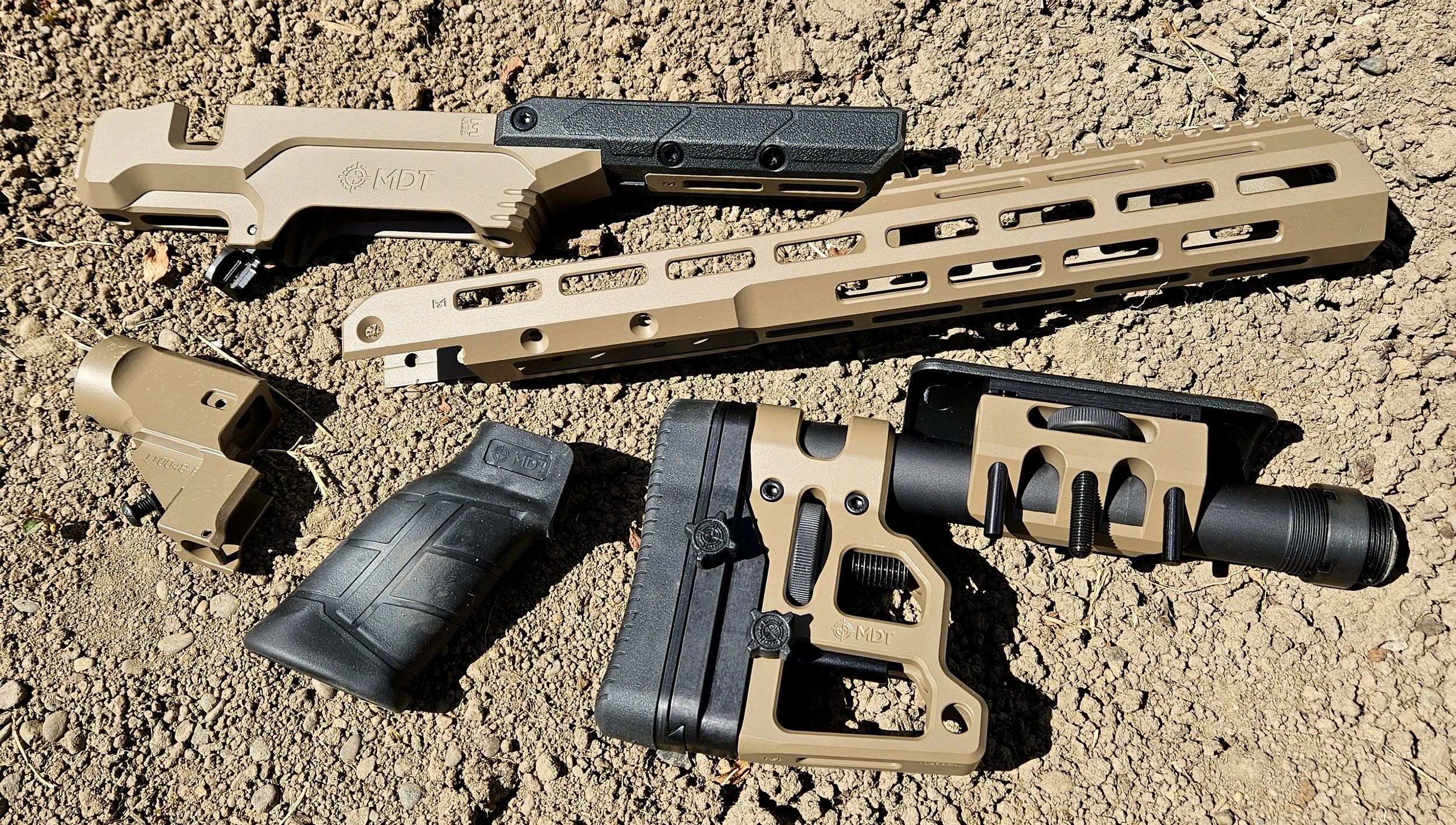

  Before I start on the Tactical, let me intrigue you with all the options one can choose on the LSS Gen 3. As of now, you get two color options, Black or FDE. You then choose your rifle’s action, there are plenty to choose from. Next you get to decide your stock interface. This is the only option that you need to choose if just buying the chassis by itself. There are three options: XTN (essentially MDT’s interface), Pic Rail (for folding stocks), and Carbine (Standard AR buffer tube). Then you can choose your stock, if applicable. If MDT doesn’t have a stock option you like, the LSS Gen 3 can accept just about any stock on the market. After you decide if you want a stock or not, you can choose what forend you want. As of now there are only two, the tactical and the competition. Lastly you can choose a pistol grip. Again, if you don’t like the options, any AR style pistol grip without a beavertail will work.

  Now let’s get into the MDT LSS Gen 3 Tactical. The Tactical version comes pre configured with certain parts that make it feel more like an AR than a competition rifle. These include the forend, stock, and pistol grip, more on those later. The main Gen 3 chassis is the same across the board. It comes with some small polymer handguards attached to it. These can be used by themselves or removed to attach one of the other forends. This main chassis also has a built-in barricade stop on the front of the magwell. The Gen 3 chassis uses standard AICS pattern magazines. If you have a rifle that uses a blind or hinged magazine, it will convert it to use those AICS compatible magazines. To remove those magazines, MDT installed an ambidextrous mag release. Just push it forward with your trigger finger and the mags drop free. The Tactical model also uses the Carbine buttstock adapter so you can mount any AR buffer tube style stock to the chassis. MDT uses their Elite pistol grip for the Tactical version. This is an angled AR style grip with a soft overmold.

  The forend on the Tactical version has some great features. First up, it has M-Lok slots at every 45 degrees. It also has a top picatinny rail out at the end of the handguard. This rail can be used to attach extra optics like night vision or thermal. This handguard has a long cut out toward the receiver. I believe this is so that larger optics will not interfere with the handguard. At 13.7” long, the tactical handguard gives plenty of room for attaching accessories like a bag plate or bipod. Since the Bergara I attached the Gen 3 LSS to only has an 18” barrel, it compliments the rifles “tactical” looks.

  Since the Tactical LSS Gen 3 uses a buffer tube style adapter, MDT supplies their top of the line carbine stock. The supplied stock is MDT’s SCS, or Skeleton Carbine Stock. This thing has more adjustments then I probably need, but they are sweet. On the SCS is an adjustable cheek piece that can quickly be adjusted with a thumb screw. The angle and location can also be changed by loosening some screws and re-tightening them. The actual buttpad interface has adjustments for the location on the buffer tube, as well as the angle, by also loosening screws. The buttpad interface is somewhat foot shaped with a flat bottom. It has an M-Lok slot at the bottom for attaching stuff. There is also a QD hole built into this foot for attaching a sling. Then there is a big thumb screw for quickly adjusting the length of pull on the buttpad. Along with the quick adjust screw, there are little thumb screws to lock this adjustment down. Then the buttpad itself can be adjusted up or down by loosening another little thumb screw. Even though there are a lot of adjustments with the SCS stock, it makes for a real nice interface between you and the rifle.

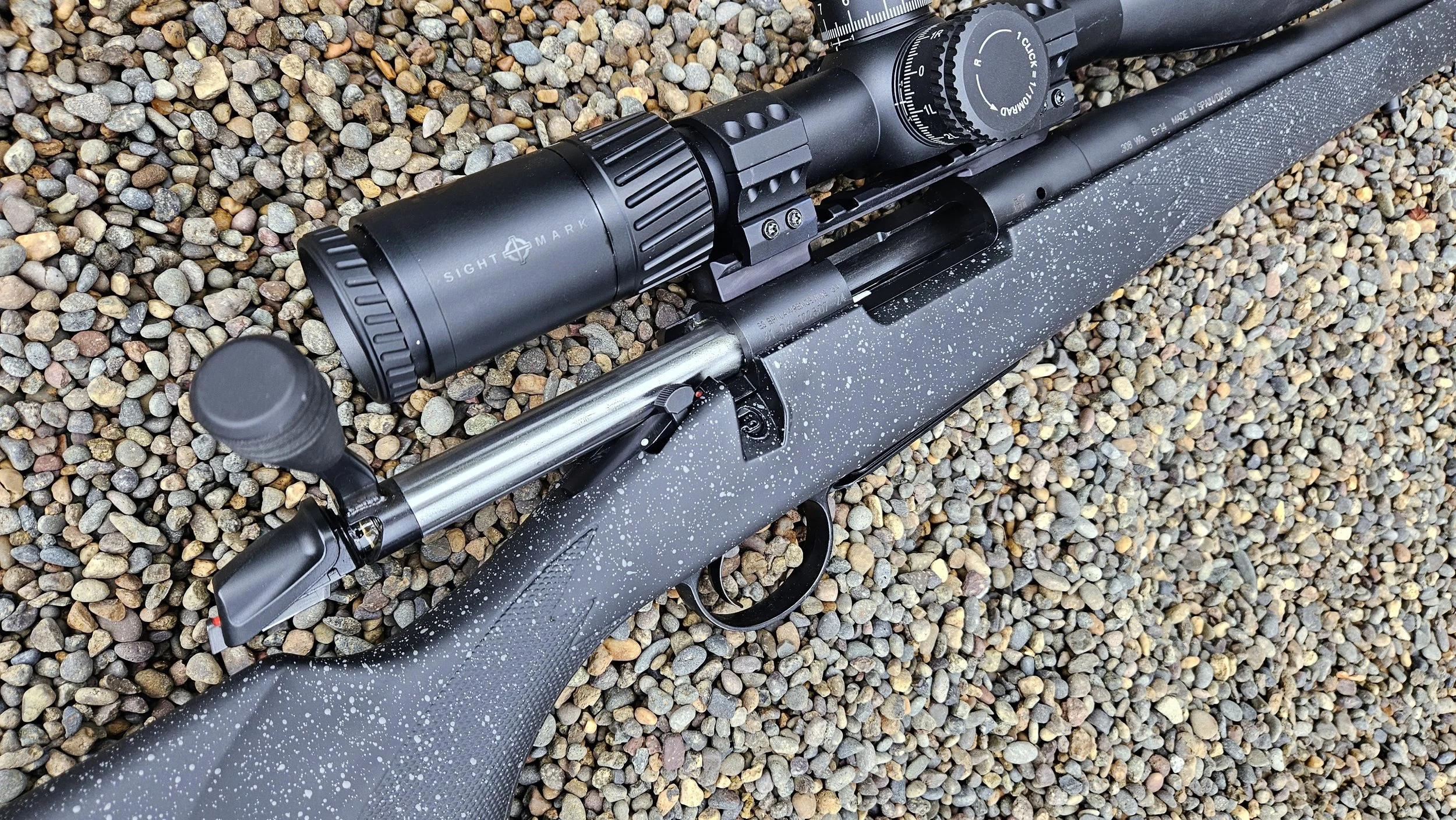

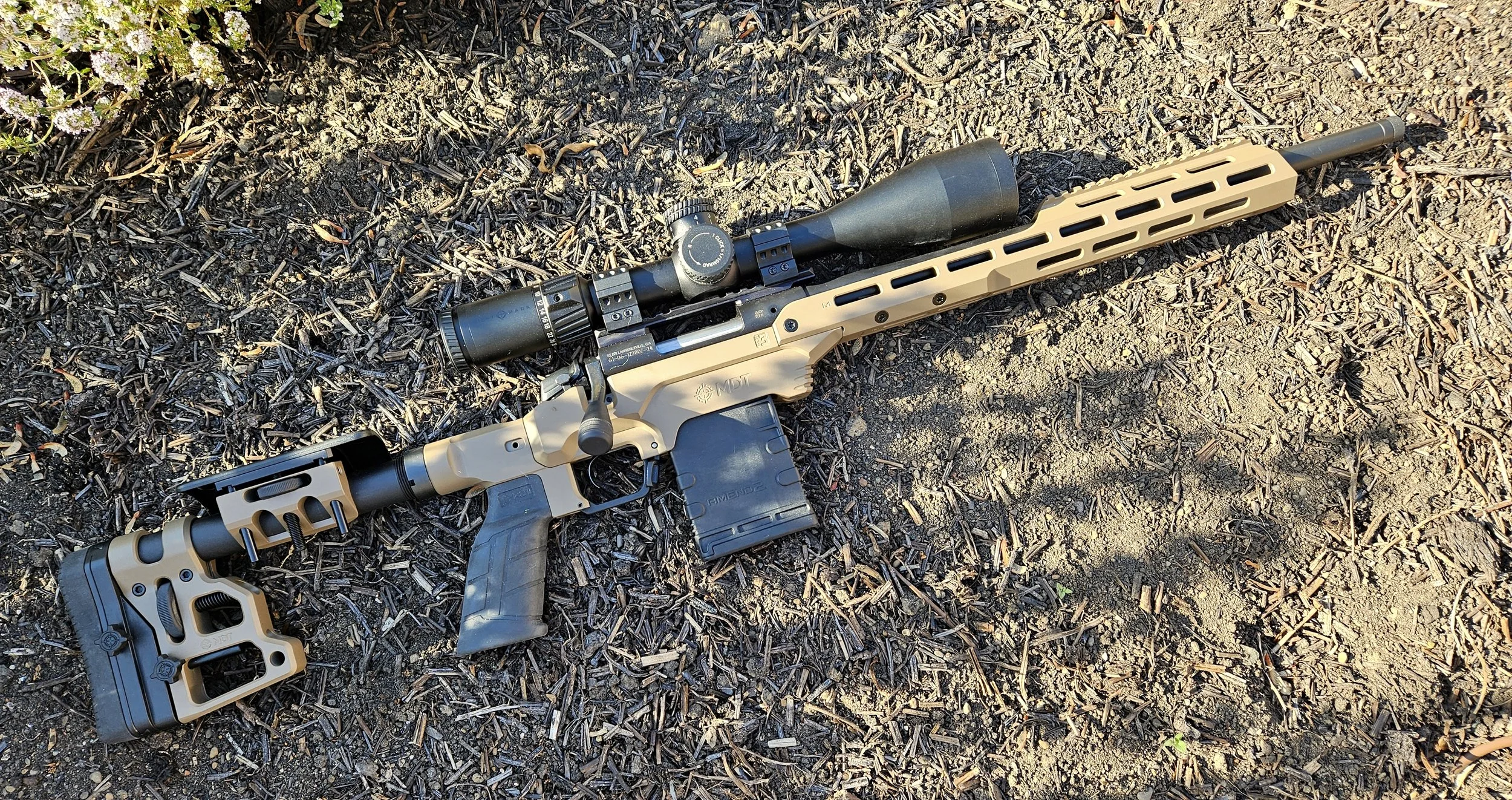

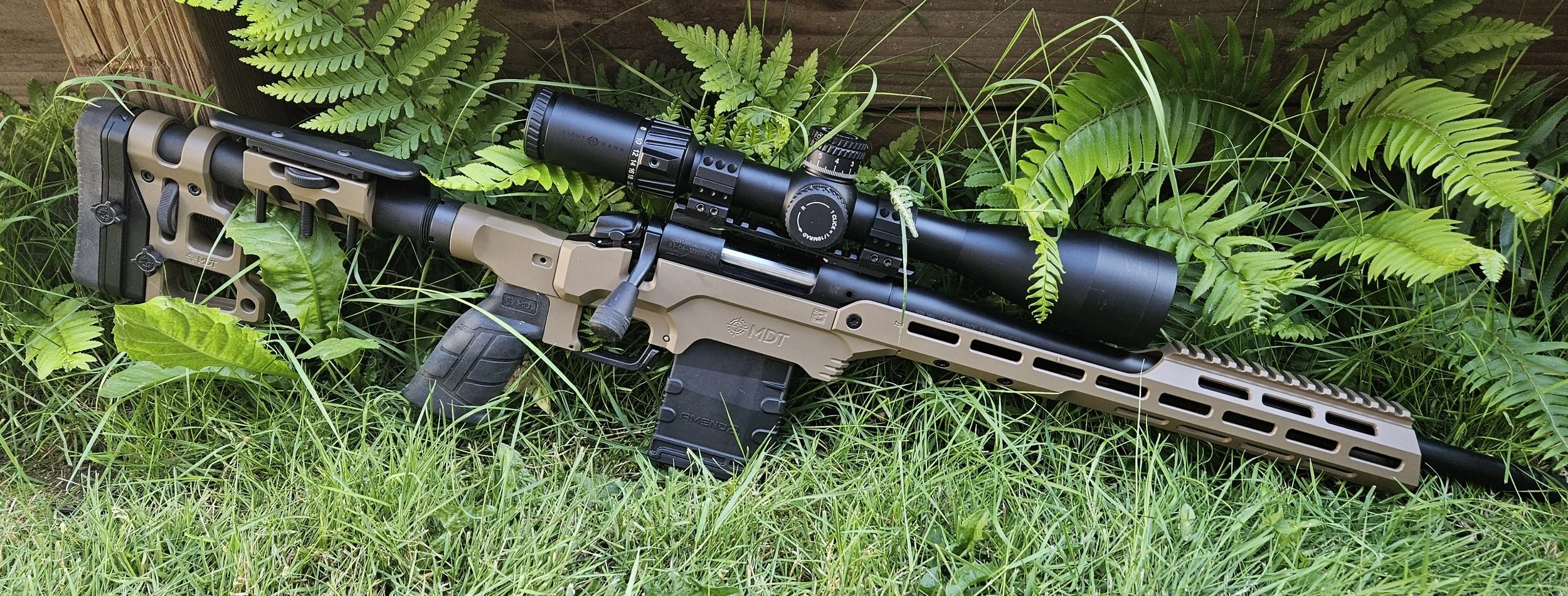

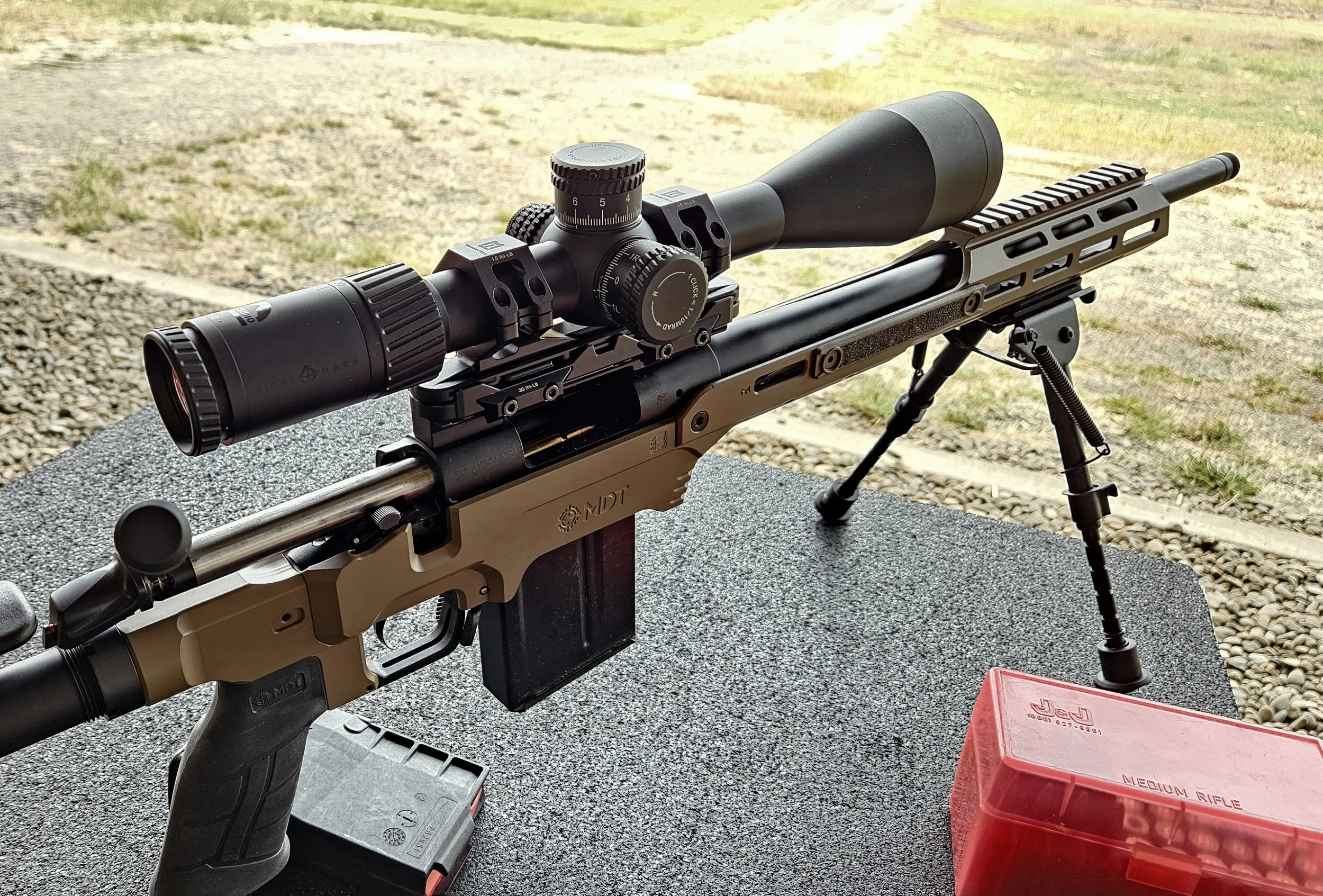

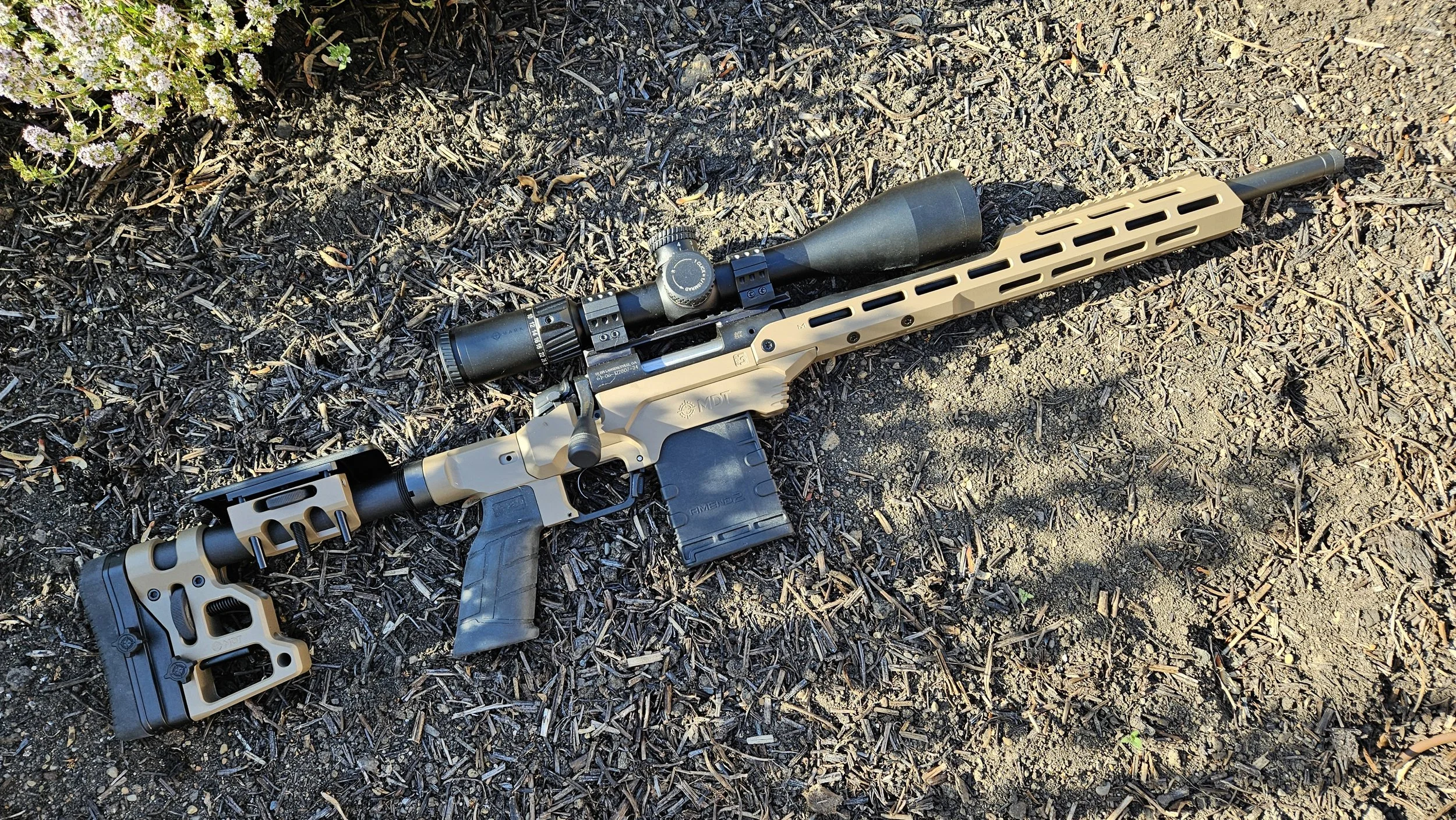

  I proceeded to mount up the MDT LSS Gen 3 Tactical to my Bergara Ridge SP in 308. I knew this would be the perfect platform. The Ridge only has a 18” barrel which makes it the perfect length for the Tactical chassis. Installation was pretty easy, just follow MDT’s instructions and use a torque wrench. Once installed I proceeded to take it to the range. Does the rifle shoot better because of the chassis? I couldn’t tell as this rifle shoots sub MOA with match ammo. But I do know that having the action sitting in a stable platform, like this chassis, will help with consistency. One advantage of the Tactical chassis, over the Bergara’s stock, is that the chassis won’t flex. I noticed this when trying out the built in barricade stop. The stock rifle didn’t even have one, but the MDT’s built in stop seemed to work pretty good. I also stuck on a bipod using one of the bottom M-Lok slots. The M-Lok slots are very useful, as is the top pic rail. To round out the handguard I installed some FDE Nile grip panels from Walker Defense. They match well, but more importantly is that they give a great grip to the smooth handguard of the Tactical chassis. My only complaint about the chassis is its weight. This could be a plus or minus in your mind. Heavy is better for a precision rifle, but light is better for a tactical rifle, at least in my opinion. Since this is labelled as “Tactical”, I was hoping for a pound or two less. However, If I were to just put a standard AR stock on it, it would lighten it up a bit. But then you would lose all the adjustability in the great SCS stock. So choose for yourself what you want, which is really the best feature about the LSS Gen 3.

  If you are thinking about getting a chassis for your rifle, MDT makes some of the best out there. The LSS Gen 3 makes it possible to get just what you want, or don’t want. You get to choose. Or if you just want a pre configured chassis, like The Tactical, they have that too. I have been very pleased with the MDT LSS Gen 3 Tactical chassis. It makes the rifle look and shoot great. Go take a look at it over at MDT.

Firearms Insider Reviews - Key Points

Claim to Fame:

Configurable chassis

Target Market:

Those wanting a precision chassis that gives them options

Features, Benefits, and Specifications of this product:

  • 5.74 pounds complete for “Tactical” version

  • 2.2 pounds chassis only

  • Interchangeable Forends

  • Customizable Buttstock Interface

  • Interchangeable buttstocks

  • AICS Magazine Compatibility

  • Ambidextrous Magazine Latch

  • V-block bedding

  • Barricade stop

  • Compatible with AR-15 style grips

  • Compatible with M-LOK thumb shelf

  • Action stays in chassis when changing forend & stock, maintaining zero

  • 6061 aluminum construction

  • Cerakoted Black or FDE

  • 1.25” barrel channel

What other aesthetic options or finishes are available?

Also can be had in basic black, but the options are too many to list

What others are saying?:

Nothing found as of publishing

Link to other reviews:

Tactical Gear Guy

Price point:

MSRP = $459.90 - $1509.75

Retail = $1059.75 as shown in Tactical Kit

I need it now! Availability:

MDT, MidwayUSA, or OpticsPlanet

Our Rating:

Pros:

  • Configurable aluminum rifle chassis

  • Ways to mount just about any buttstock

  • Interchangeable forends

  • Uses AR pistol grips

Tactical Kit Pros:

  • Multiple M-Lok slots

  • Multi-adjustable stock

  • AR style buffer tube adapter

Cons:

  • Can be heavy (Good or Bad depending on set up)

Score: 8.50 Great

,

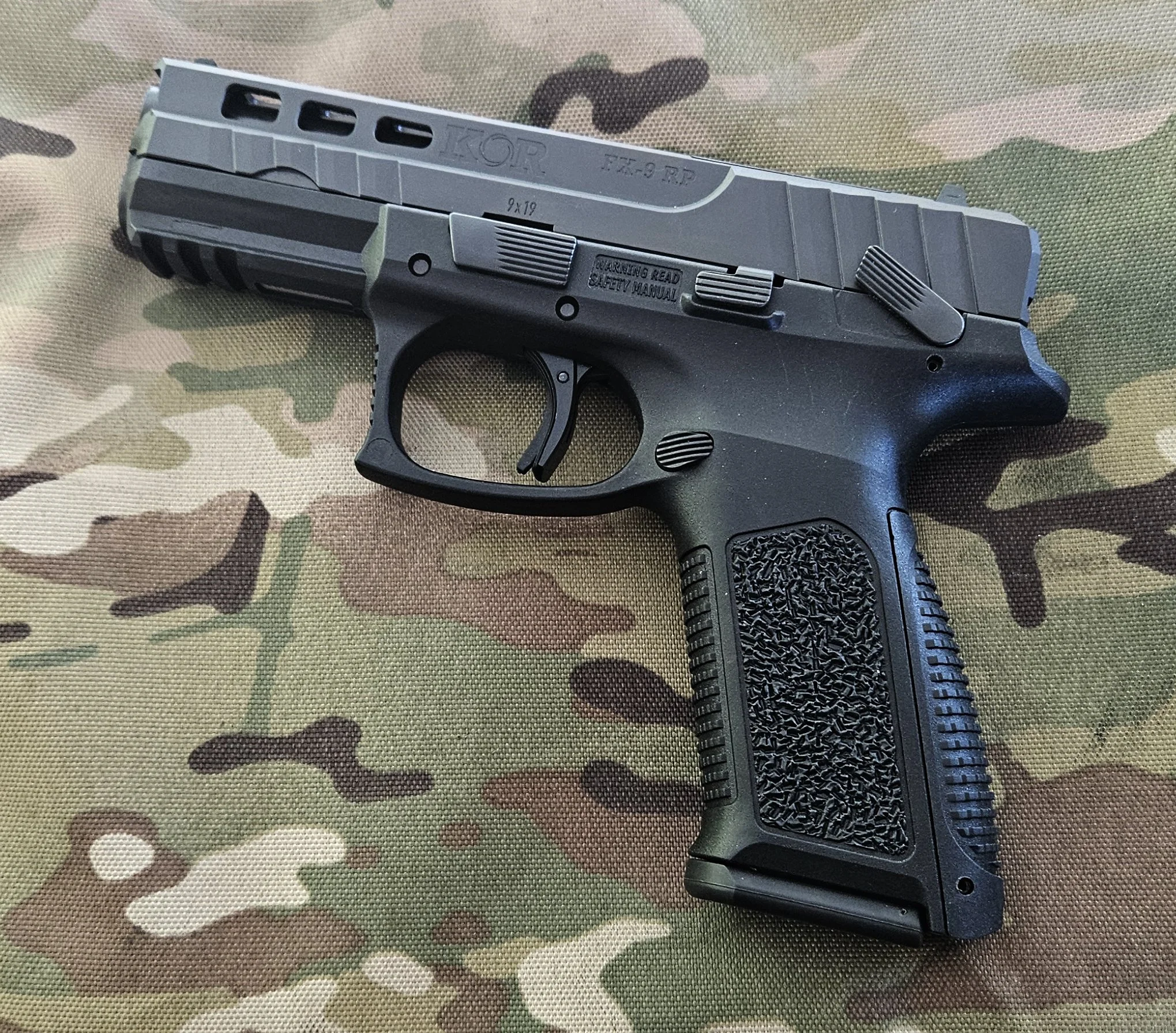

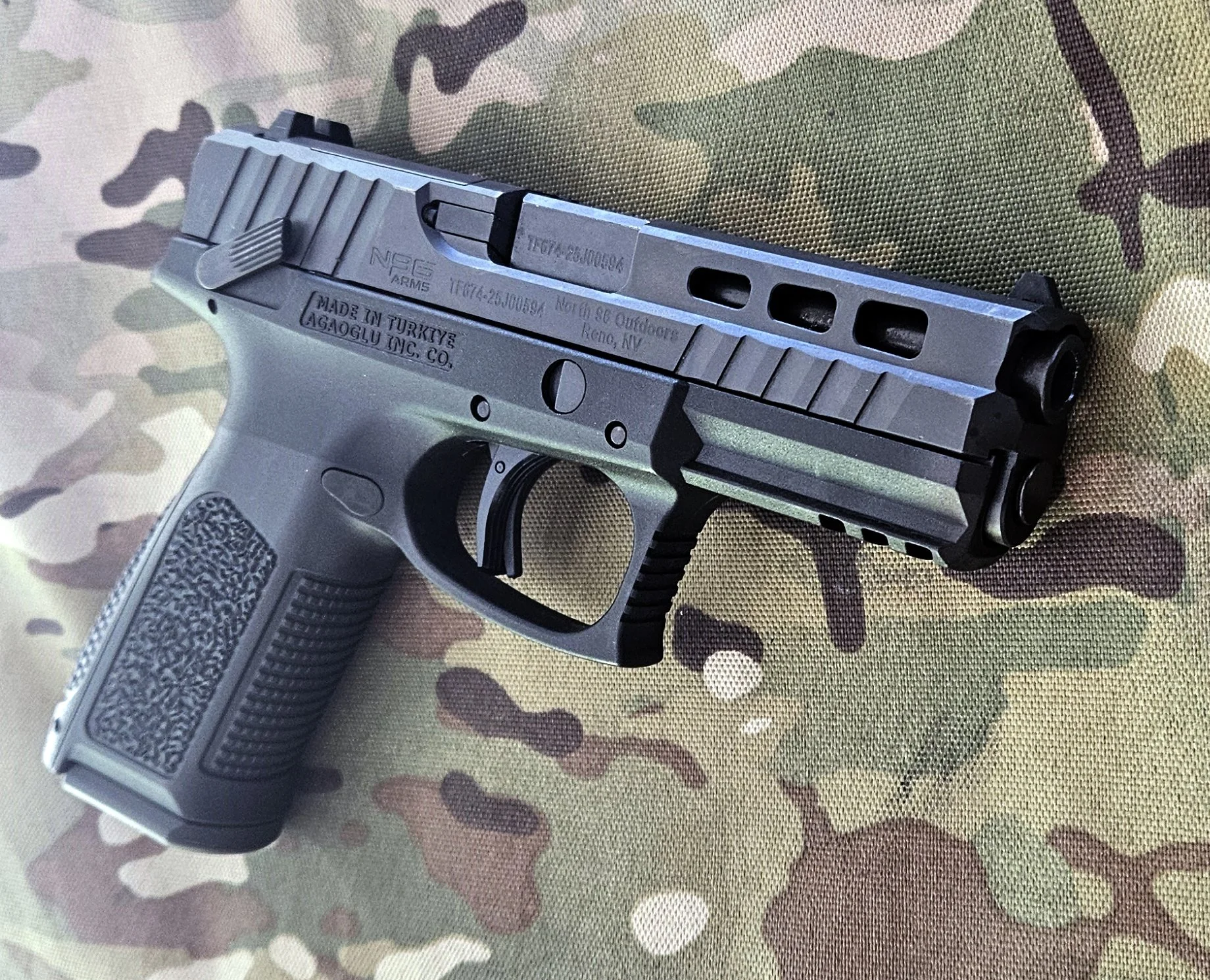

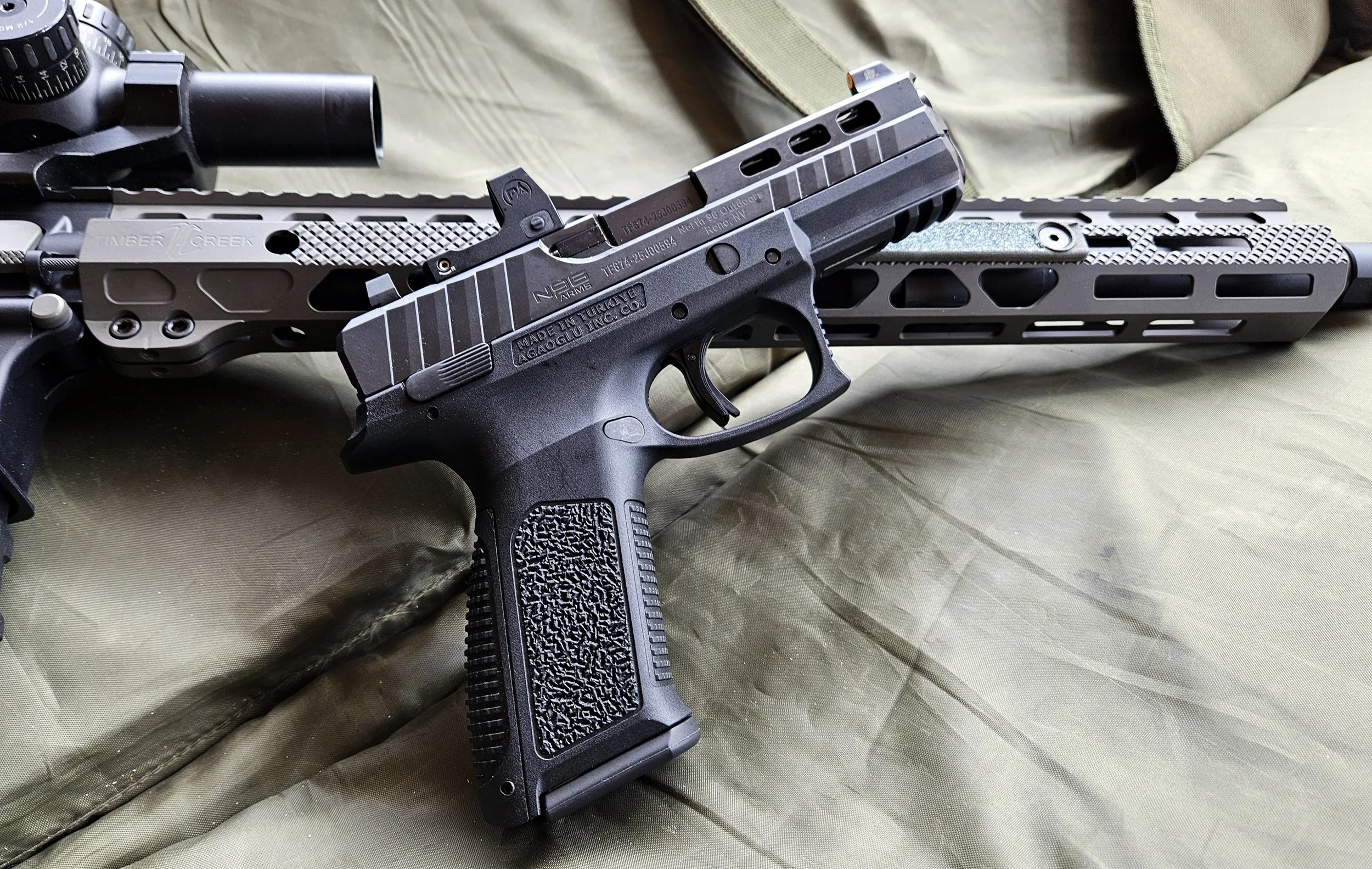

N96 Arms FX-9 RP

,

N96 Arms FX-9 RP

Review

  There are tons of good handguns on the market today. What someone chooses is really up to them. Fit and features should be high on that list when choosing a handgun. N96 Arms has brought out their FX-9 RP. This imported pistol has a ton of great features, both for the beginner and the professional.

  To start with, the FX-9 RP is a duty sized handgun. So it has a full size grip frame and a 4.1 inch barrel. It comes with decent iron sights and three different backstraps. These backstraps help to make the pistol fit small to large hands. The FX-9 also has an ambidextrous safety. It also is cut for an RMSc footprint optic. Along with that, it comes with 2 - 17 round magazines, a mag loader, paddle holster, a cleaning kit, and an okay carrying case. You really get a lot of stuff for that $379.00 MSRP.

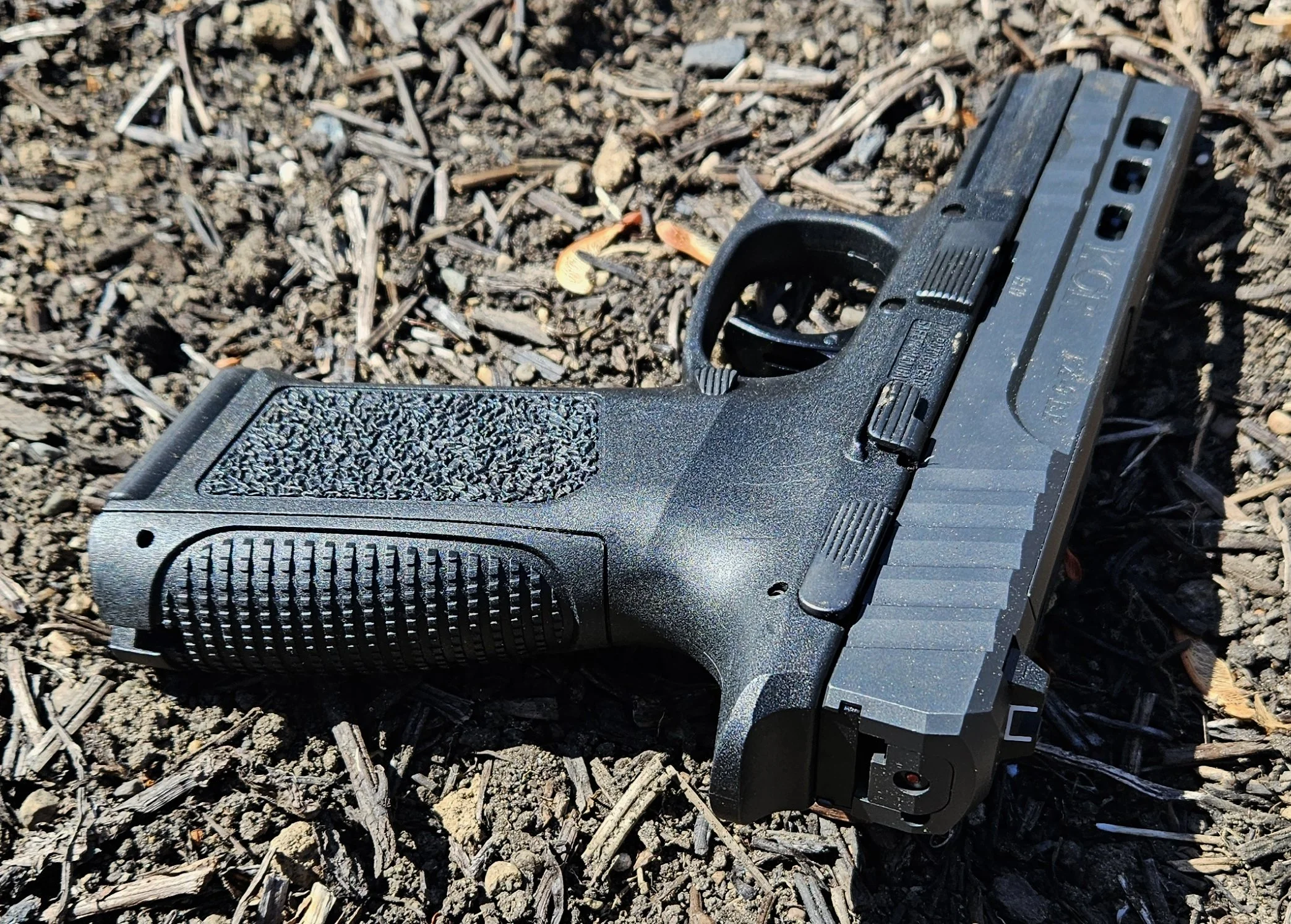

  When describing a pistol, I always try to do the frame first. Mainly because it is the interface between you and your shooting experience. The frame is made from polymer, so all the features are “molded” into it. The grip frame on the N96 Arms FX-9 RP starts with a really good grip texture. On the sides it has a rough stipple like texture. On the front and back are lines with little squares cut into them. Think of a small “frag” pattern, but not quit. The mag release form fits the frame very well and is easy to get to. It is also reversible if you are lefty. Moving to the trigger guard, it is large and has lines on the very front. It is large enough that gloved hands should not have any problems. It is fairly undercut at the rear so you can also get your hand up high on the grip to support recoil. Moving to the front is a 3 slot rail. The rail is a cross between a pic rail and a glock rail. The spacing between the rails is smaller than a pic rails spacing, more like a Glock. When I mounted a light, I had to use the smaller Glock lug, which is how I found out about the spacing. At the rear of the FX-( is a really nice beavertail to keep you from getting any slide bite.

  It is now trigger time. The trigger on the N96 Arms FX-9 RP is really good. It is a curved style with a safety flipper. The flipper is barely noticeable when pulling the trigger. The curve on the trigger is very shallow, somewhere between a standard curved and a flat faced. Total movement is around 0.400 inch. So a little shorter pull length than a Glock trigger. The first 0.300 inch is take up. The next 0.075 - 0.100 inch is the actual break. The break is pretty clean. Total trigger pull weight comes in at 4.5 pounds on my trigger gauge. Reset is also decent. Overall it is a nice trigger for a striker fired pistol. Along with the trigger comes a manual safety. The safety lever is ambidextrous. It is located near the rear of the frame, where it should be. Flip it up for safe and down for fire. The FX-9 RP’s safety has a decent detent, so you shouldn’t accidentally put it on. It also flips off decently easy with your thumb. It is very slim shaped, but I didn’t have any problems releasing it. To go along with the safeties, the FX-9 RP also has a striker indicator. When the pistol is ready to fire, you can see a red painted dot in the middle of the backplate.

  The slide on the N96 Arms FX-9 RP is nice looking. The machining on it is top notch, which actually surprised me. At the front and rear are angled slide serrations. They work well, but I would like them cut just a little deeper. Most people probably won’t even notice since they work fine. At the front of the slide are 3 holes on each side, and the top. This lightens the slide but also makes it possible for a ported barrel. Or more so, porting the barrel in it. A set of sights, with a white dot front, sit on top. The sights are Glock compatible, so you can upgrade them to any of the various Glock sights out there. I stuck on a set of XS Sights tall big dots. I did this because the FX-9 RP is also cut for a RMSc footprint optic. Be careful when you pull the optic cover plate off, there is a small spring under it that the pistol needs to function properly. Primary Arms sent me one of their Classic Series red dots to use on the N96 Arms.

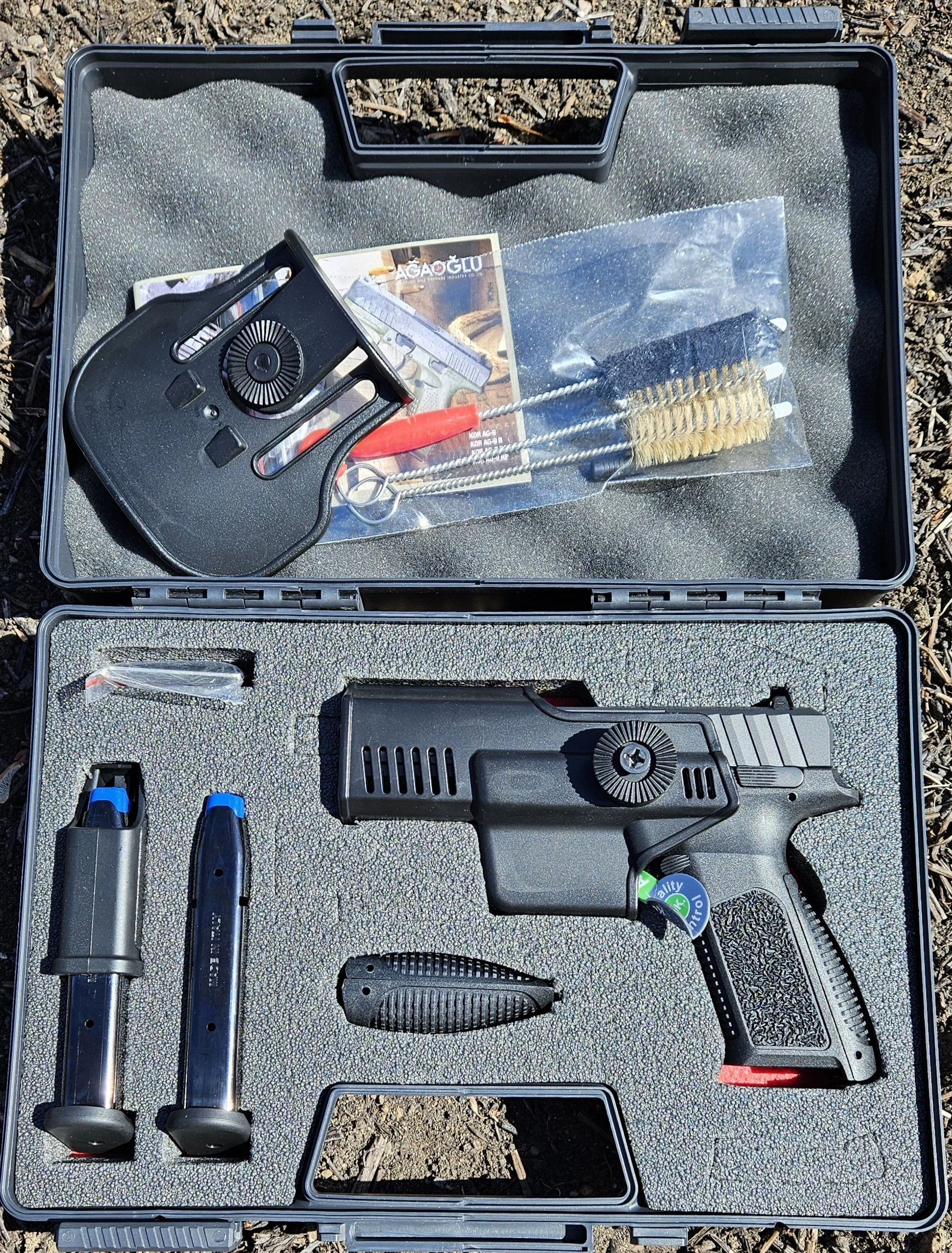

  The extras that come with the FX-9 RP are a nice touch. As kind of mentioned earlier, it comes with 3 cleaning brushes. Who doesn’t need extra cleaning brushes? It also comes with a little metal punch for removing pins. Mainly for use when changing the backstraps, as they have a roll pin holding them in. Then comes the paddle holster. It is a level 2 retention holster. So it has a button that must be pressed to release the pistol. Kind of nice, especially for those worried about their pistol staying in the holster. The paddle is adjustable for cant. I did run into a problem, though minor, with the holster. It will not work with the taller sights that I installed. Anyone using this holster probably isn’t putting tall sights on it anyhow, so take it for what it is. The last nice addition is a magazine loader. It is just the “push down over the mag” style, but it works great.

  Now for my experience with the N96 Arms FX-9 RP. The FX-9 RP can rival some US made firearms. Build quality is great. The sights are good from the factory and being able to use Glock replacement sights is a nice touch. As previously mentioned, the trigger is great and lets you shoot fast and accurately. Accuracy is comparable with any other duty pistol. I really like how the grip is short front to back, it gives more versatility for those with smaller hands. Using common CZ75 magazines, that are not very expensive, is also great. I used some of my small frame EAA Witness magazines in the FX-9 RP and they worked fine. Not being able to use common holsters is kind of a bummer, but there is a way around that. Just put a light on it and use a light bearing holster, that’s what I ended up doing with it. Yes, it comes with an OWB holster, but it’s really only good for range use. Actually shooting the FX-9 is nice. I was able to flip the safety off without even thinking about it, thanks to thousands of reps with a 1911 in a past era. I think the FX-9 RP would be a great pistol for someone who is just starting out. Or someone that has just one gun. It could be carried, but I see it more as a bedside gun. Mainly for someone that wants a fullish size pistol, with the extra added peace of mind that a manual safety gives them. Add in night sights and an optic and you have a really good, easy shooting pistol.

  If you are looking for a decently priced pistol, that has a lot of features, go take a look at the N96 Arms FX-9 RP. Don’t let the fact that it is imported shy you away, it is a very good pistol. It has great features and can take aftermarket sights and optics. N96 Arms did a nice job with the FX-9 RP. Check one out over at North 96 Outdoors.

Firearms Insider Reviews - Key Points

Claim to Fame:

Value priced pistol with a ton of features

Target Market:

Anyone wanting a pistol for home defense, range, or carry

Features, Benefits, and Specifications of this product:

  • Style:  Single Action Semi Auto

  • Manufacturer:  Agaoglu Aviation and Defence Industry

  • Caliber:  9mm Luger

  • Weight:  25.2 oz without magazine

  • Barrel Length: 4.1”

  • Overall Length: 7.3”

  • Height:  5.6”

  • Width:  1.38”

  • Mag Capacity:  17+1  Compatible with CZ 75 mags

  • Sights: Adjustable HiViz

  • Material:  Steel Slide, Poly Body

  • Picatinny Rail

  • Manual Ambi Safety

  • Striker Indicator

  • Interchangeable Backstraps - S, M, & L included

  • 2 magazines included

  • Paddle holster included

  • Mag loader included

  • RMSc optics cut with plate

  • Uses Glock iron sights

  • Lifetime warranty

What other aesthetic options or finishes are available?

Gray, Sand, or Green

What others are saying?:

Nothing found as of publishing

Link to other reviews:

Nothing found, but GB Guns did a very similar review

Price point:

MSRP = $379.00

Retail = Same

I need it now! Availability:

North 96 Outdoors

Our Rating:

Pros:

  • Trigger pull

  • Adjustability due to Backstraps

  • Good grip texture

  • Uses Glock sights

  • Optic cut

  • Uses readily available magazines (CZ75)

  • Comes with extras

Cons:

  • Safety

  • Holster compatibility

Score: 8.00 Great

,

Strike Industries SMC Bravo Chassis

,

Strike Industries SMC Bravo

Chassis Review

  Today, we're taking a look at the Strike Industries Bravo Chassis designed for the Sig Sauer P320. I received this chassis from Strike Industries, and since I had a P320 Compact sitting around, unused—not due to reliability issues, but simply because I didn't like how it felt or shot. I decided to reach out to Strike Industries for a chassis to create an interesting range toy.

Upon receiving the Bravo chassis, I realized I needed a few additional parts to complete the build. So I headed back to Strike Industries to purchase their pistol brace, compensator, and blast shield. I also contacted the team at XS Sights for a set of tall tritium suppressor sights that illuminate brightly. Now, back to the chassis itself, everything necessary to complete the build was included in the box. Including the chassis and a new back plate with a charging handle for easier operation.

  I opted for the FDE version of the chassis and mixed in some black components to enhance its appearance. The SMC Bravo stands for Strike Modular Chassis, and it's a lighter alternative to the Alpha system. Made from Polymer Extreme, it’s both durable and lightweight. This chassis is designed to accommodate the fire control unit and offers ample rail space for accessories. From the grip upwards, it features a flared mag well for smoother reloads. The frame includes a built-in gas pedal for improved stability, quicker follow-up shots, and better control. The rear back strap is integrated with a 1913 rail for attaching your preferred brace. Additionally, there's a molded QD socket for a quick-detachable sling system, making this chassis a versatile platform for a PDW, SBR, or any creative setup you envision.

  I added a spare magazine holder to the front, which provides quick access to an extra magazine and offers a place to index your hand. The takedown lever is a standard OEM part, and installing the trigger package was straightforward, as it is designed to accommodate both OEM and aftermarket trigger units. The Strike Bravo chassis is compatible with all P320 slides, but if you plan to use a shorter compact slide, a threaded barrel and compensator will be necessary to manage the muzzle blast. You can utilize P320 17-round, 21-round, or larger magazines. While it’s claimed that the chassis fits a variety of holsters, I've chosen to carry mine in a sling bag without a round in the chamber, as I find it would be too bulky in a holster.

  At the range it was a pleasure to shoot. It was great having a third point of contact to stabilize the pistol. I was able to easily hit targets at 50 yards with iron sights. I had no issues with the reliability of the system. Everything on the system was either Strike Industries or OEM Sig parts.

  As with Strike Industries and their website, there is very little technical information or specs on the product. I would like for Strike Industries to add size and width, blah blah, to the product specs. Overall I like their system. I don’t think it is a viable option to a traditional pistol when being worn in a holster. I do think it is a viable option of being a truck gun, backpack, or sling bag firearm. Home defense would be a plus as well. Their Bravo chassis opens itself up to give you a platform to go from mild to wild. I think it was clearly made well, the price for the chassis is on point, but to add all the other accessories, it gets a bit pricey.

Firearms Insider Reviews - Key Points

Claim to Fame:

A chassis system to advance the P320 platform

Target Market:

Those who want a pistol braced pistol

Compact design

Those who want a truck or tractor firearm that’s compact

Features, Benefits, and Specifications of this product:

  • Uses Sig P320 FCU

  • Material: Polymer Extreme

  • Built in Magwell

  • Extended front picatinny rail

  • Rear QD socket

  • Lightweight

  • Durable

  • Open platform

  • Ergonomic

What other aesthetic options or finishes are available?

Three different colors available

Ambidextrous charging handle

Tons of different variations and configurations

What others are saying?:

Quick and smooth

Turning with the system is a breeze

Turns your firearm into a pistol with a brace.

Link to other reviews:

Gun Values Board

Price point:

MSRP = $129.95

Retail = Same

I need it now! Availability:

Strike Industries

Optics Planet

MidwayUSA

Our Rating:

Pros:

  • Built in features like QD pocket

  • Generous rail space

  • Modular design

Cons:

  • I’m concerned about the rail on the back to place a brace or stock. Only time will tell

  • Limited optic mounting options

Score: 7.00 Good

,

Strike Industries QD Rail Adapter & Riser

,

Strike Industries QD Rail

Adapter & Riser Review

  Quick disconnect, red dot style, optic mounts seem to be a little harder to find these days, or at least decent ones. Do not worry, Strike Industries recently released their Strike QD Rail Adapter. This little QD mount works with Strike Industries risers so that you can have a quick disconnect for your T1/T2 footprint optic.

  When I saw this QD Rail Adapter, I knew it would be perfect for me. Having the ability to quickly change an optic from rifle to rifle had me hooked. Especially since I review a bunch of stuff. This might not be your use case, but having a good picatinny QD mount can still be helpful.

  Since I was using the Strike QD rail adapter on AR style rifles, it needed a riser to go with it. The Strike QD will only work with Strike Industries risers. So I had them send one of those to me also. That adds another $50 to the already $75 cost of the QD. Just shy of $125 is still a good deal for everything. The Strike Industries Riser can be used as a standard co witness or a lower ⅓. It does this with a little spacer that adds a small amount to the top of the mount. I ended up using it without the spacer.

  The heart of the Strike QD Adapter is the throw lever. The throw lever is what locks and unlocks the rail to the picatinny. One can usually feel when the lever cams over. Then you know it is tight. Strike Industries QD adapter has this standard feature. But what really makes the Strike Industries QD adapter better is the extra spring loaded lock. Once the main lever is tight, this little lock springs down to keep the lever from moving. It is that little added extra so your optic won’t come off if bumped or accidentally hit. To unlock the QD mount, you must first push the safety lock upward, thus releasing the main lever to be moved. The safety lock has a little flat in it also. My guess is that if you can’t get it to move out of the way by hand, you can use a screwdriver or shell casing rim to push it up. The main lever is also spring loaded to help it pop back out when the safety lever is moved. There is a square headed screw on the main lever. This screw is used to adjust how tight the adapter fits to your picatinny rail. It is click adjustable and uses a regular bladed screwdriver. You can also use your fingers to adjust it, it’s just a little harder to do.

  I have an Atibal Solar prism that has a T1 base. This prism sight is specifically why I asked for the Strike QD Rail Adapter when it came out. Mounting it up was easy with the screws provided with the Strike Riser. After the initial adjustment, I put the QD on an AR. After about a month, I received something else to migrate the QD mount and optic over to. I have also taken the sight off and on a ton of times. Everytime I just push the lock upward and move the lever, then the whole package falls into my hand. The lever system works great. The little safety is probably my favorite thing about the QD mount. Using a T1/T2 footprint for this mount was a smart choice.

  If you are in the market for a QD red dot mount, the Strike Industries QD Rail Adapter has worked great for me. It is super easy to use and has the extra added security of a safety lock. Pair it with Strike Industries T1 Riser and you get a whole package that you can use on any rifle. Head over to Strike Industries and check out the QD Rail Adapter and Riser for yourself.

Firearms Insider Reviews - Key Points

Claim to Fame:

QD mount for T1/T2 style optics

Target Market:

Those wanting a throw lever style mount for their optic

Features, Benefits, and Specifications of this product:

QD:

  • Length: 2.09"

  • Width:   1.78"

  • Height:  0.54"

  • Weight: 1.60 oz

  • QD Mount For T1/T2 Optics

  • Dual locking mechanism

  • Durable, steel-lined polymer body

  • Easy adjustment w/ flat head

  • Large quick detach lever

  • Compatible with all Strike T1 optic mounts

  • Use with Any T1/T2 Footprint Optics

  • ONLY usable with Strike Industries' Riser Mounts

Riser:

  • Includes T1 Riser in Lower 1/3 or Absolute

  • 6061-T6 aluminum construction

  • Type 3 hard anodized

  • Dimensions: 23.6 mm x 25.6 mm x 53 mm

  • Weight: 2.3 oz

  • Includes mounting screws

What other aesthetic options or finishes are available?

None on QD base, some different colors on the riser

What others are saying?:

Nothing found as of publishing

Link to other reviews:

Nothing found as of publishing

Price point:

MSRP = QD - $74.95

               Riser - $49.95

Retail = Same

I need it now! Availability:

Strike Industries, Optics Planet, or Midway USA

Our Rating:

Pros:

  • Secondary lock holds secure

  • QD

  • Standard T1/T2 footprint

  • Lightweight

Cons:

  • Must use Strike Industries risers

Score: 7.50 Good

, ,

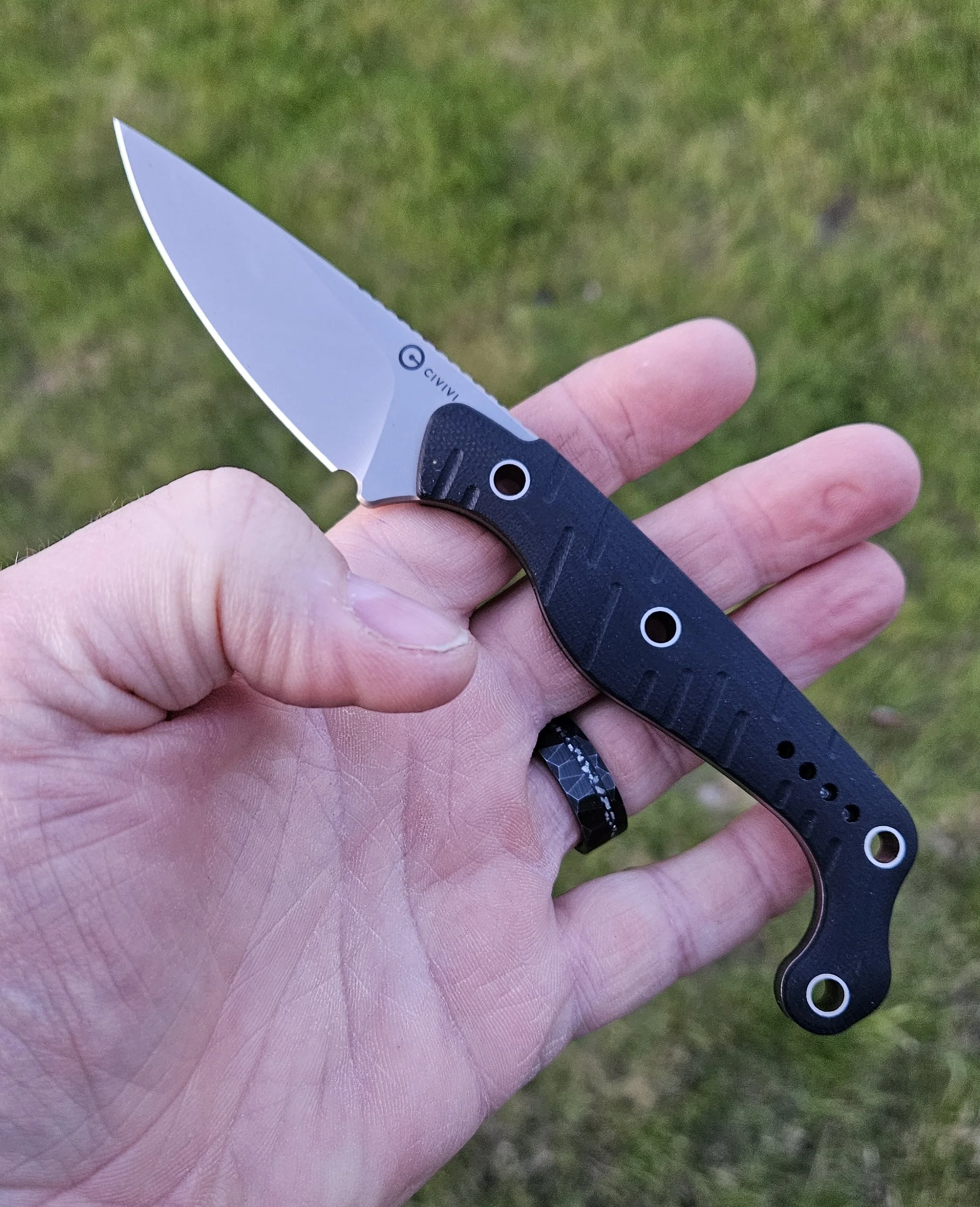

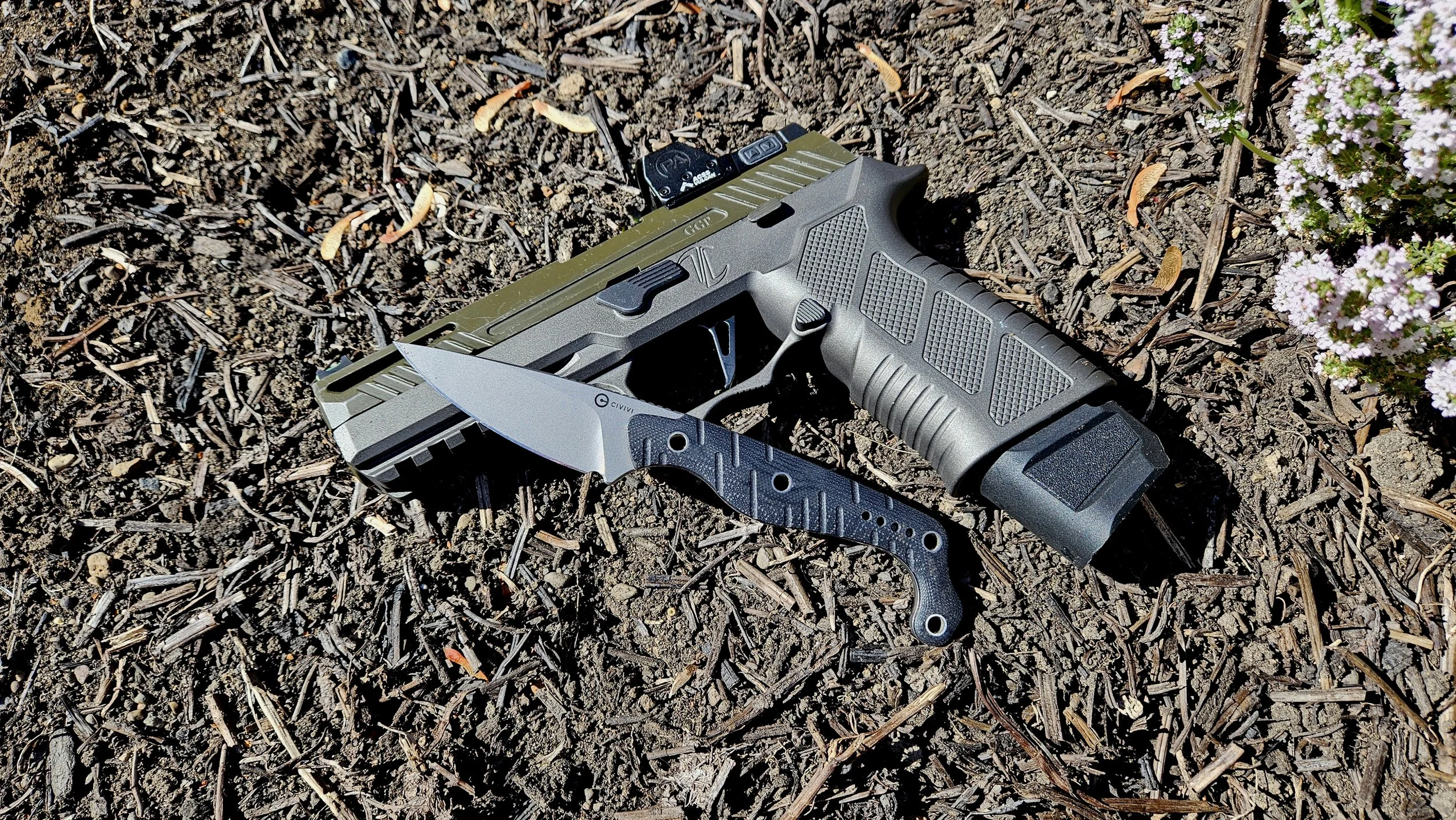

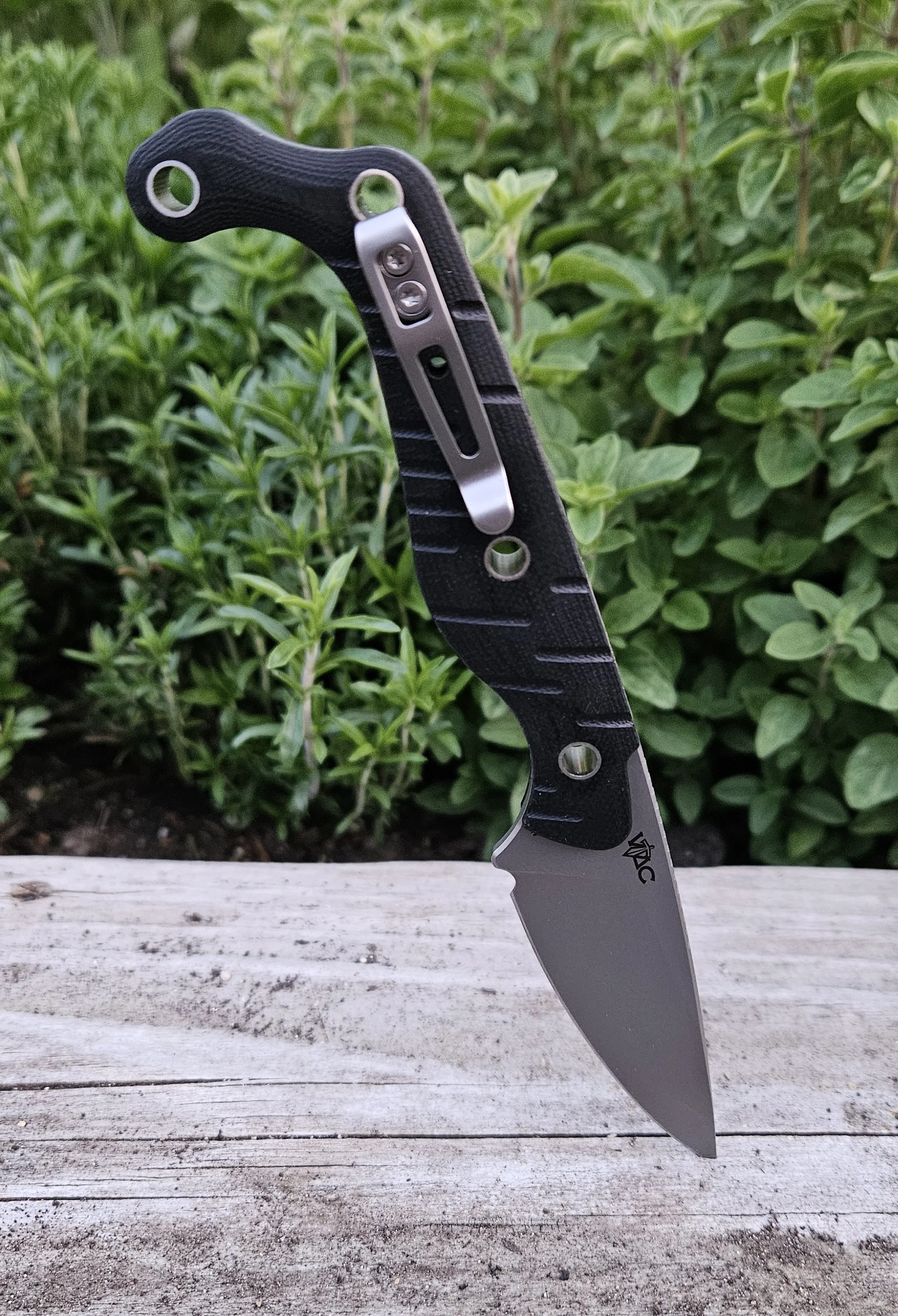

Civivi SOKN

, ,

Civivi SOKN

Review

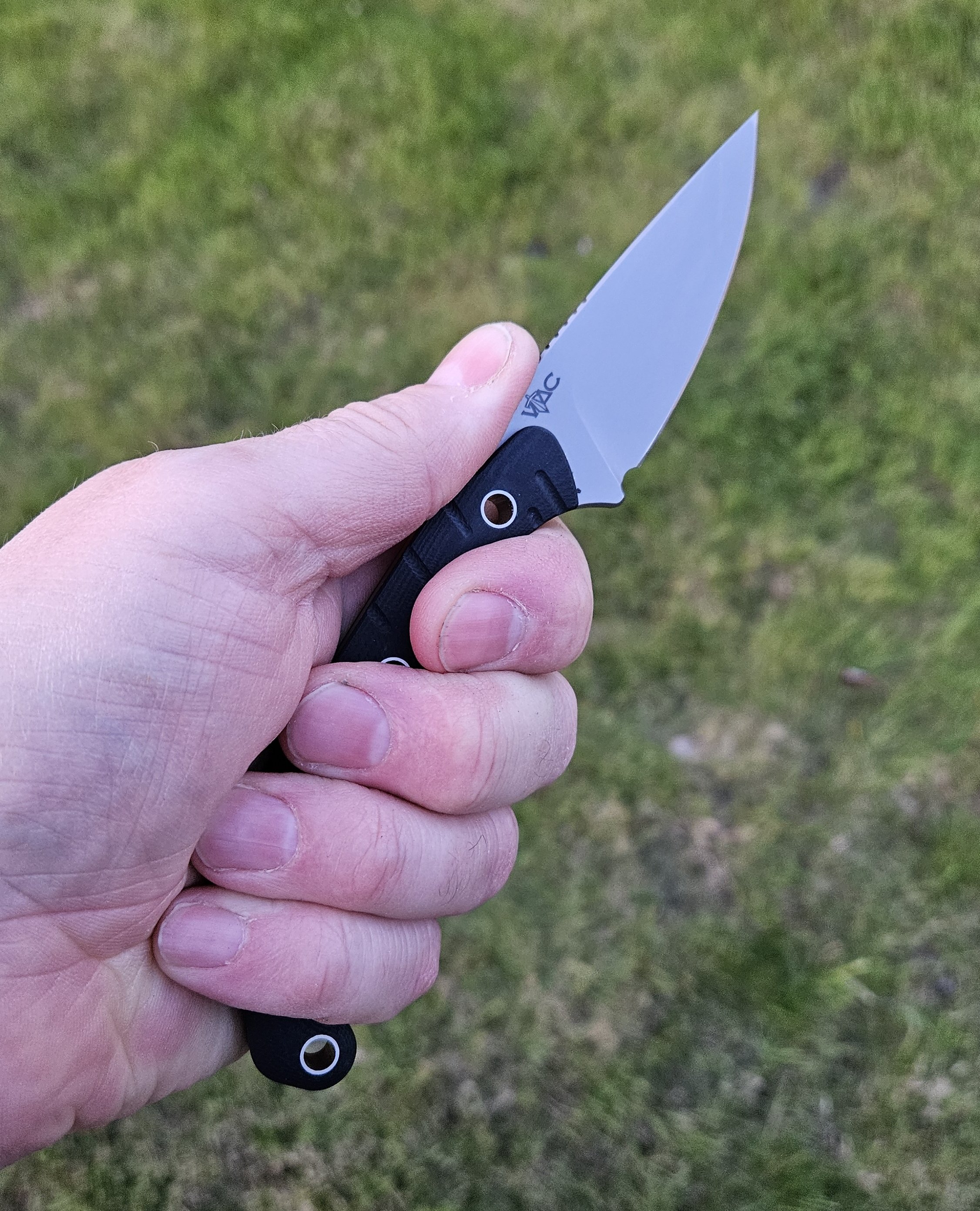

  Having a good little fixed blade knife can be very useful. If it is the right size, it can be used as a defensive knife or a good little hunting knife. Civivi and Kyle Lamb have brought out the SOKN fixed blade. The SOKN is targeted as a defensive tactical blade, but I found it to be very useful for other knife type things.

  SOKN is an old Norse word meaning fight or attack. This is a fitting name for this little fixed blade, especially since it is designed as a defensive fighting knife. I still want a gun in a knife fight, but that may not always be feasible. Since it is a fighting knife, the SOKN comes with a multi use sheath. This sheath has either adjustable belt loops or a hook. The hook is so the knife sheath can be caught on the pocket when drawing the knife.

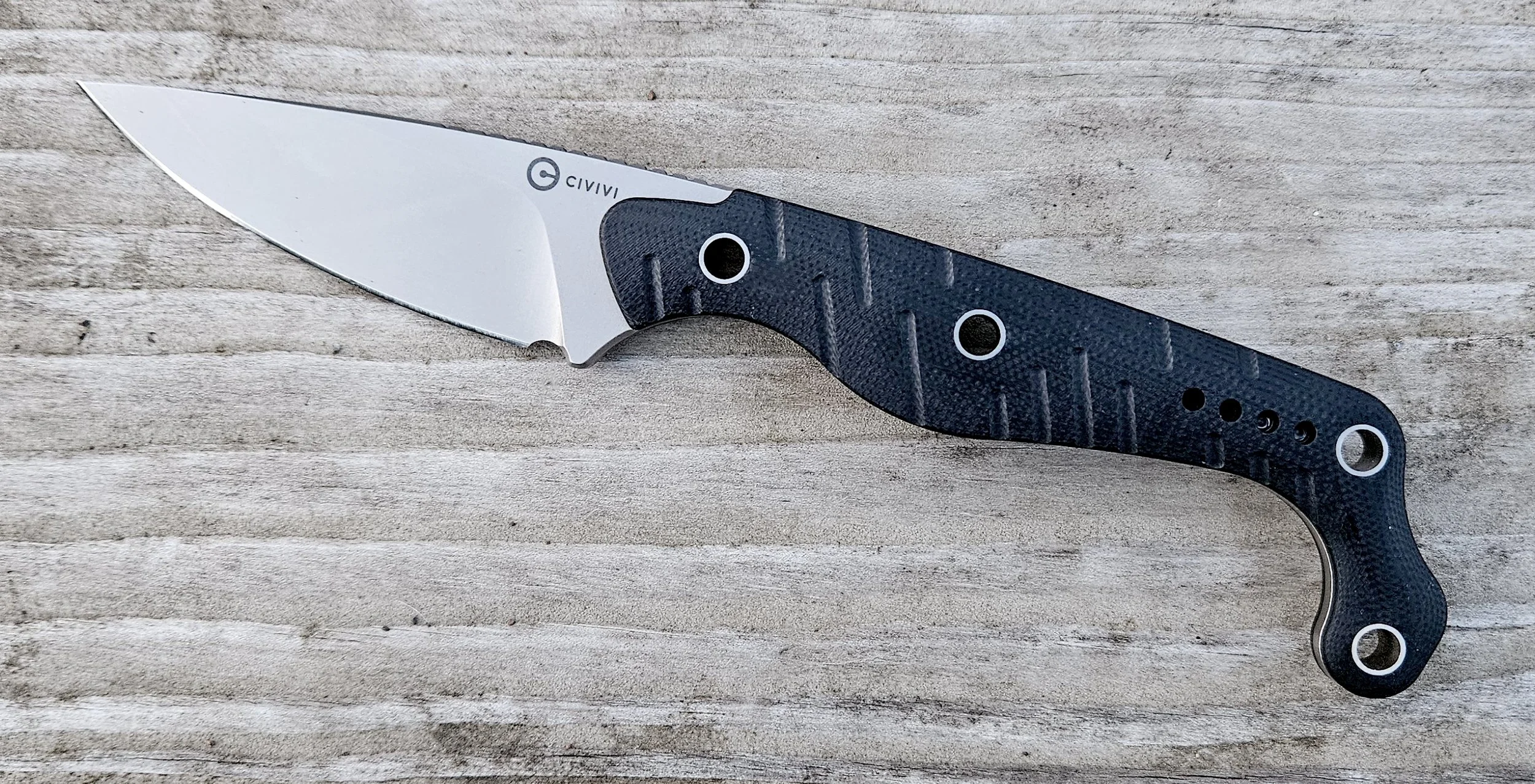

  The SOKN is a very well designed fixed blade. It starts with the full tang blade and G10 handle. The inverse grip handle helps make the knife useful for both types of grip. On the end of the handle, at the butt, is a little “foot”. This “foot” lets you rest your thumb on the handle when using an inverse grip. It basically gives you more stabbing leverage. When using the SOKN with a normal grip, the little “foot” keeps your hand from sliding off the end. Another advantage to the “foot” is that it gives your hand something to catch while drawing the SOKN from its sheath. For as small as the handle is, I was able to get a good comfortable grip on it.

  Blade design and steel are always important, no matter what style of knife you are using. The SOKN uses a 2.82 inch Nitro-V stainless steel blade. It is a drop point style and flat ground. Civivi also put decent jimping on the spine of the blade. I like drop point style blades. The shape of the SOKN makes it good for just about any task, including stabbing things. Because of the blade shape, the SOKN would also make a decent skinning knife. You can also use the SOKN as a replacement for a folder, when a folder just won’t work.

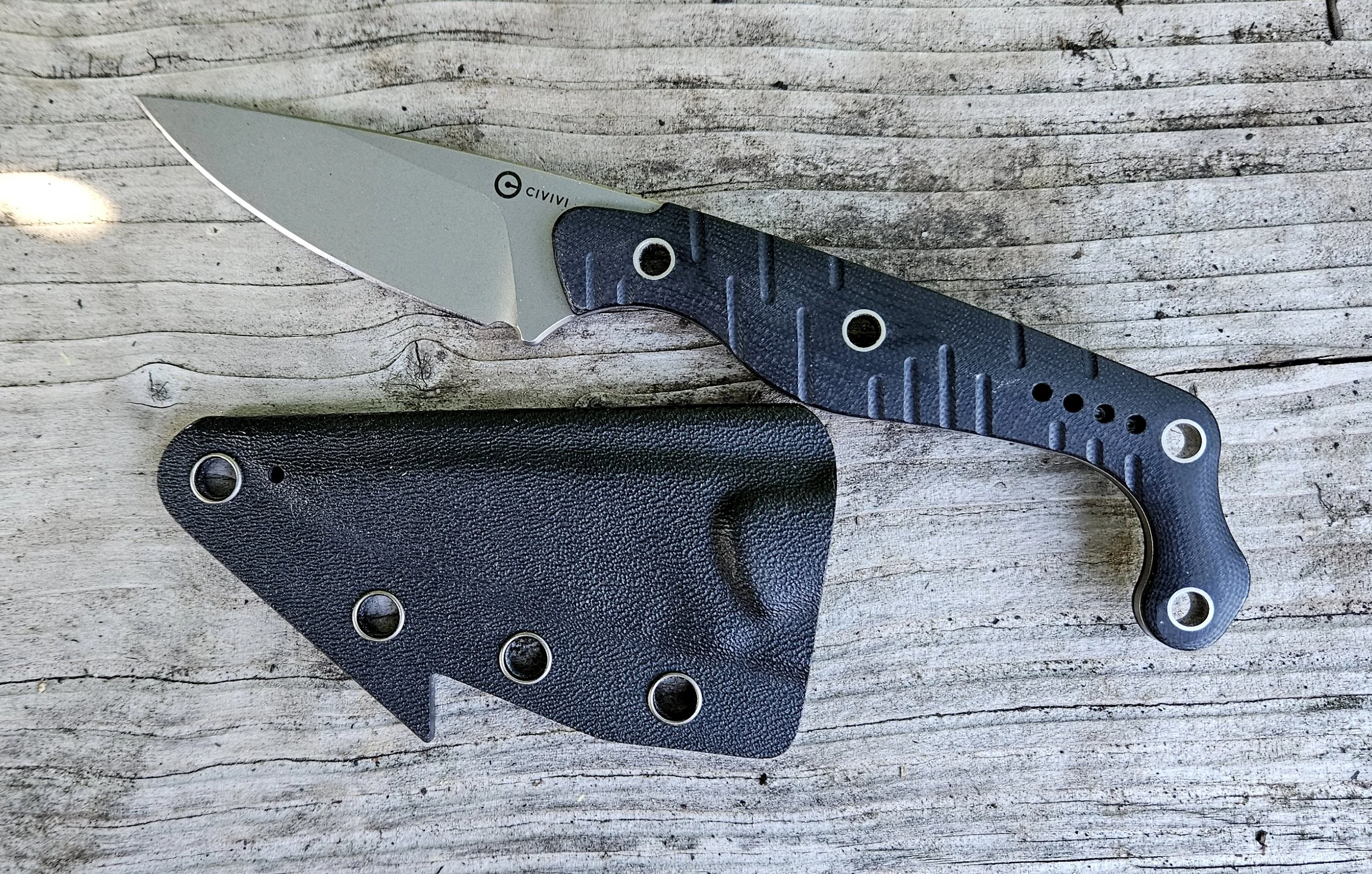

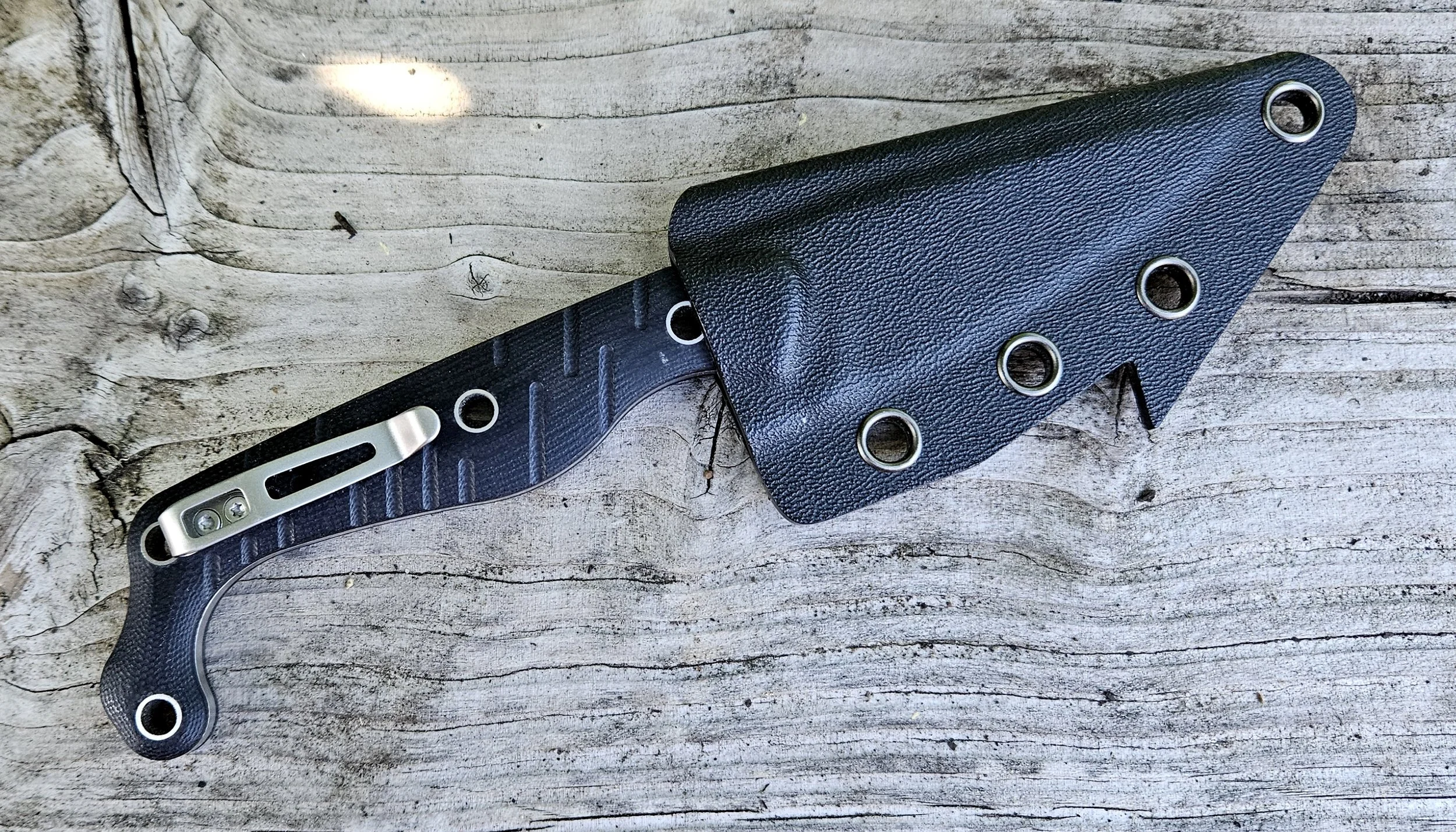

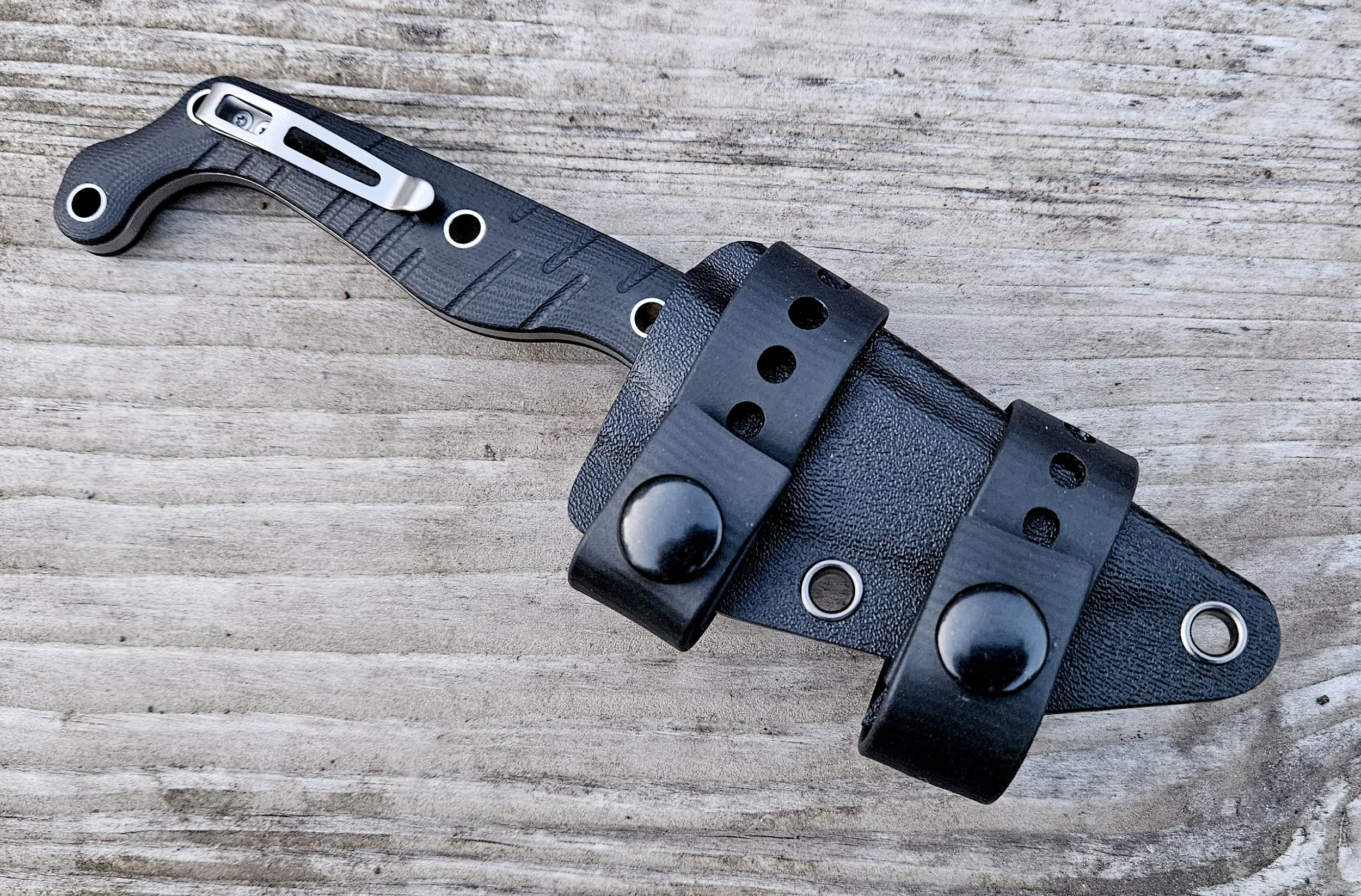

  Back to the sheath that comes with the SOKN. The kydex sheath really helps to make the SOKN so useful. First, the belt loops are adjustable and have some pretty great snaps on them. These belt loops are designed to carry the SOKN horizontally on a belt. I carried the SOKN for a little bit this way and it worked fine for me. Where the belt loops mount on the sheath, there are 4 riveted style holes. Since the sheath kind of curves up, you can change how the knife carries. The end hole can also be used for a chain, so that you can use the system as a large neck knife. The sheath also has a sharpish hook on it. This hook is intended for pocket carry. When you draw the SOKN out, this hook catches on the inside of your pocket, keeping the sheath in your pocket and allowing the knife to be ready to go. The SOKN also has a removable, and reversible pocket clip so the knife and sheath don’t just float around inside your pocket. Pocket carry is how I carry this little knife and it works extremely well.

 The SOKN is my first fixed blade defensive knife that I actually use. I absolutely love the sheath system. I am a big fan of drop point blade styles because they just work for everything I do with a knife. Nitro-V steel has proven to be a good knife steel. It is hard and holds an edge well. With a weight of just under 3 ounces, you can carry this knife anywhere and not know its there. I have two minor complaints with the SOKN. One, I would like the blade length to be a little longer. Somewhere in the 3-3.25 inch range would be just a tad bit better. Lastly, I would like a better way to mount it vertically on something like a vest. Overall, I really think the SOKN is a great little knife.

  If you are looking at getting a good little defensive knife, the Civivi SOKN might be a great pick. It isn’t just a defensive knife, it can be used for all types of “knife” things. I can see keeping one with your hunting equipment, or just in your car. It really has that many uses. I prefer to call the SOKN an everyday, all around, knife. Go check the SOKN out and see if it makes sense for you.

Firearms Insider Reviews - Key Points

Claim to Fame:

Small fixed blade defensive knife

Target Market:

Anyone wanting a small fixed blade

Features, Benefits, and Specifications of this product:

  • Overall Length: 7.17" / 182.1mm

  • Width: 1.46" / 37.1mm

  • Overall Height (Includes Clip): 0.56" / 14.2mm

  • Blade Length: 2.82" / 71.6mm

  • Cutting Edge Length: 2.58" / 65.6mm

  • Handle Length: 4.35" / 110.5mm

  • Blade Thickness: 0.12" / 3mm

  • Handle Thickness: 0.35" / 9mm

  • Knife Weight: 2.93oz / 83g

  • Blade Material: Nitro-V

  • Blade Hardness: 59-61HRC

  • Blade Grind: Flat

  • Blade Finish: Stonewashed

  • Blade Type: Drop Point

  • Handle Material: G10

  • Handle Color/Finish: Black

  • Pocket Clip: Tip-Down, L/R

  • Clip Material: Stainless Steel

  • Clip Screws / Tubes Material: Stainless Steel

  • Sheath: Black Kydex Sheath With 2PCS Black Straps

What other aesthetic options or finishes are available?

Gray Handles

What others are saying?:

5 out 5 stars on Amazon

I bought this knife to have a lightweight cutting tool that would replace my folding knife. I have been impressed with the sharpness and ergonomics of the handle. The sheath allows for several choices of carry. When I carry this knife I often forget that it’s there. Excellent blade for hiking, self defense, and utility chores. The Nitro V steel lends itself to operate in a multitude of environments. Worth every penny.

Link to other reviews:

Gear Patrol

Price point:

MSRP = $105.00

Retail = $89.25

I need it now! Availability:

Civivi, Amazon, or your local dealer

Our Rating:

Pros:

  • Great size

  • Full tang

  • Sheath with multiple mounting options

  • Multi purpose blade

  • Reverse grip works well both ways

  • Nitro-V steel

Cons:

  • Blade could be a little longer

Score: 8.50

Favorite Link:  Traser P99A review

, ,

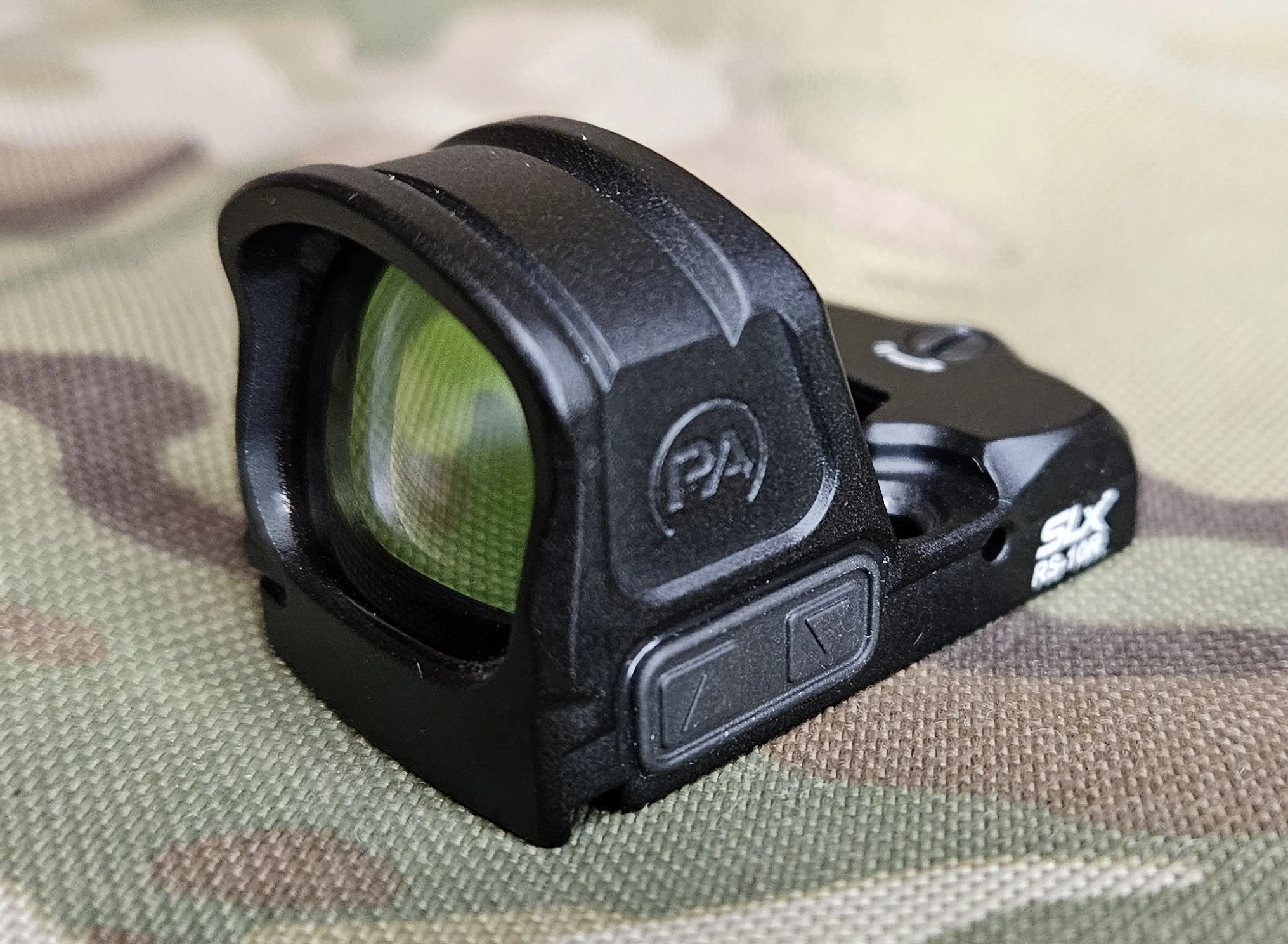

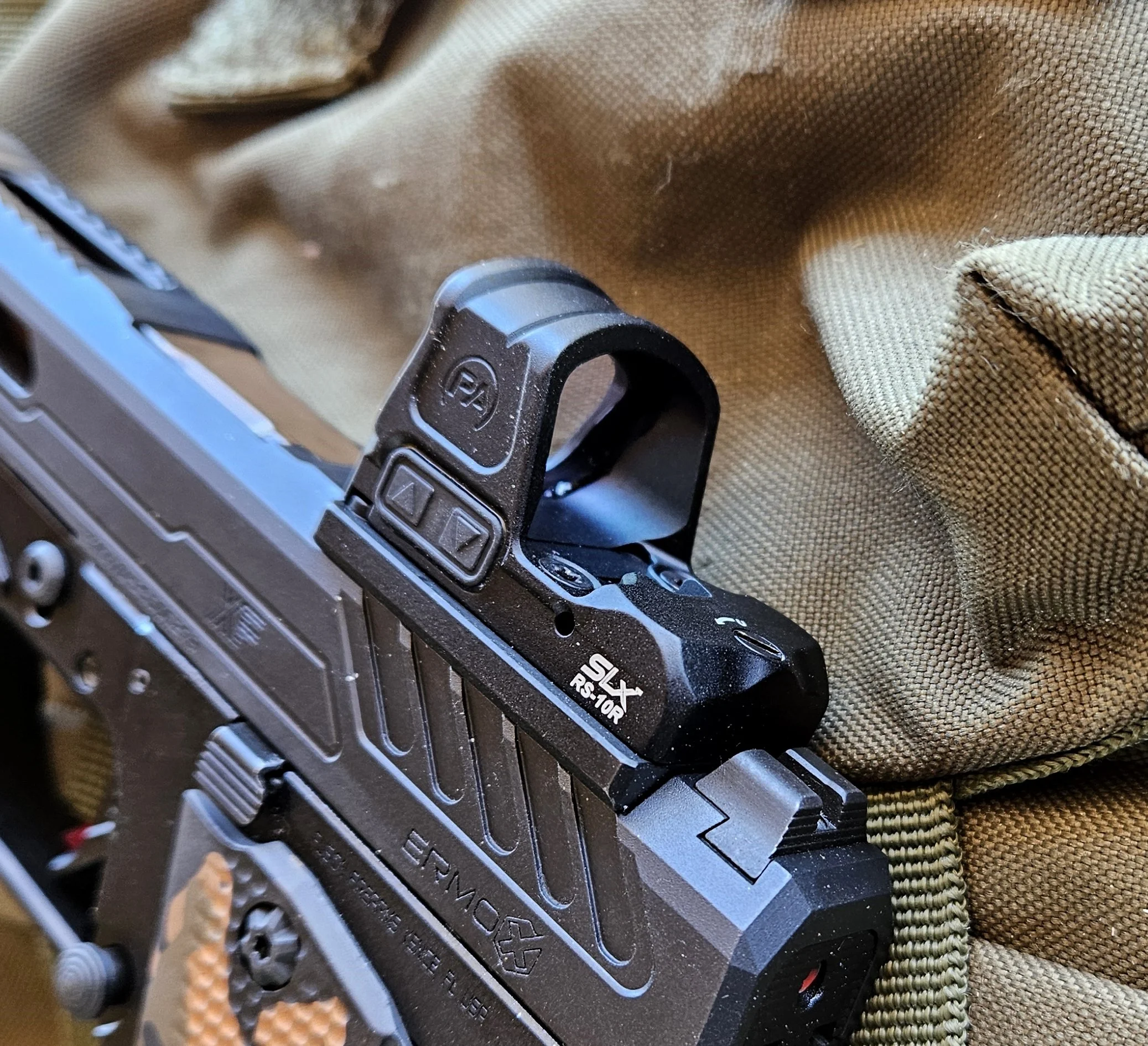

Primary Arms SLx RS-10R

, ,

Primary Arms

SLx RS-10R Review

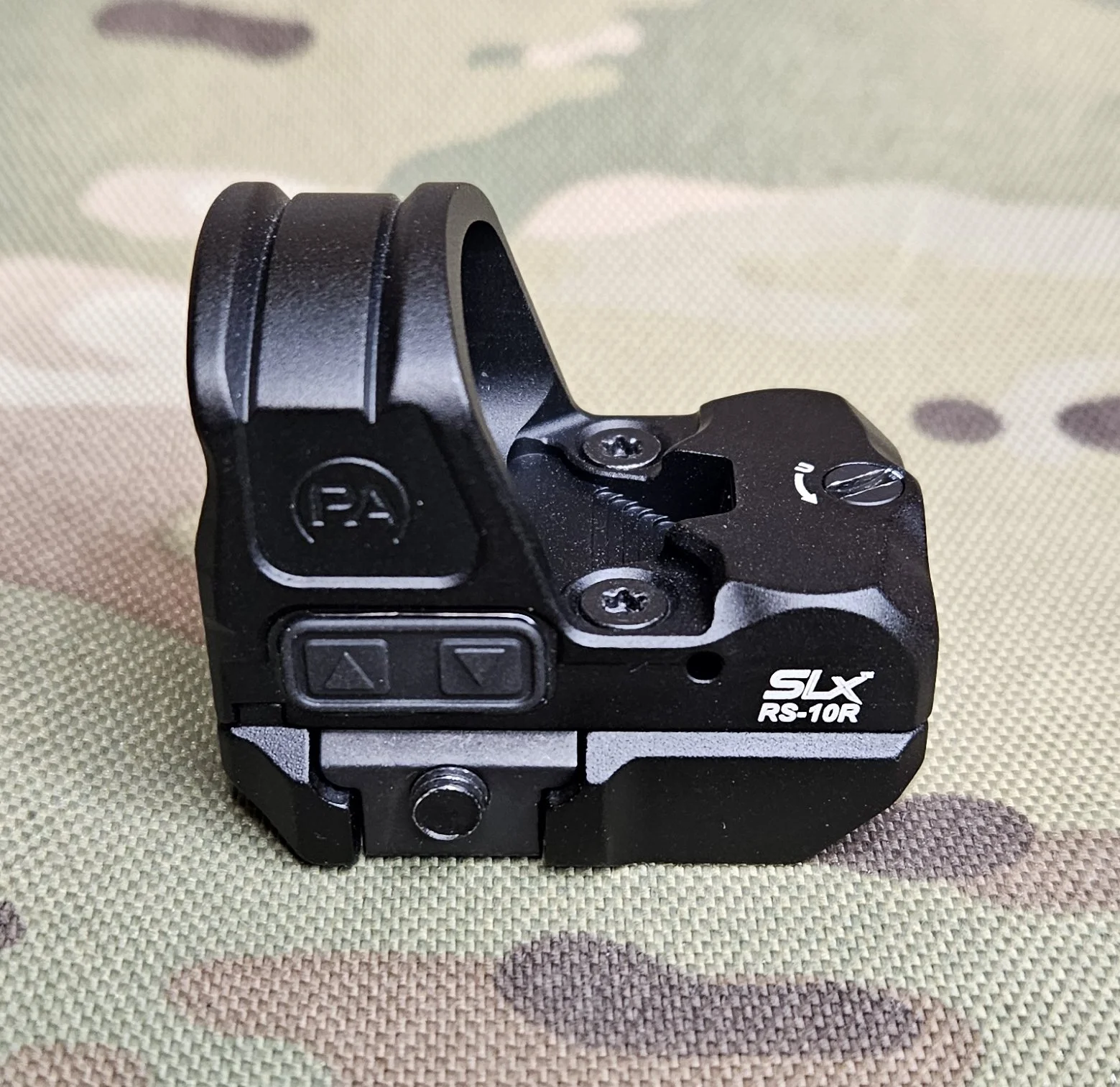

  Primary Arms has come out with their new SLx RS-10R. This is an updated version of the original RS-10 reflex style red dot. One of the big complaints about the original was the mounting footprint it used. Well, the SLx RS-10R has fixed that issue.

  As with the original, the SLx RS-10R is packed with features. More important than all of those is the “R” designation at the end of the model number. That “R” stands for RMR. I don't think Primary Arms can say it, but we can. What that means for you is that the RS-10R now uses a RMR footprint. Or a Holosun 407C/507C footprint since they are essentially the same. The only drawback to using the RMR footprint is that the RS-10R now uses the smaller cr1632 battery instead of a cr2032. But through some magic, you still get 25k-50k hours of battery life.

  Now back to the rest of the specifications. The RS-10R runs a 3 moa dot. I find the dot size to be a good compromise, no matter if you mount it on a pistol or rifle. It has 11 brightness settings. Of which, the bottom 2 are night vision compatible. To adjust the brightness, the RS-10R has soft touch buttons on the left side. When you reach the highest brightness setting, the dot will flash so you know when the limit has been reached. You also don't have to worry about turning the RS-10R on or off. It uses Primary Arms’ “Autolive” technology. This tech automatically turns the optic off when it is stationary and then on when it senses movement. Worth noting is the RS-10R has 1 moa click adjustments that uses a flathead to adjust. One can even use the rim of a spent case to adjust it, which I have done before. No trying to find the correct allen wrench. These clicks are tiny, but way better than no clicks at all.

  Window size in these small red dots can be hard to understand sometimes. Manufactures spec the window size out, but it doesn't take into account if it is rounded or squared. Or where it is rounded and squared. I recommended looking through them to see if you like the window shape. Even though the RS-10R doesn't have a huge window, it is very well shaped to pick up the dot easily. Primary Arms specifies it as 23x19mm. I really like the shape. It is easy for me to see. Other people who I asked about it said the same thing, it's easy to find the dot. Primary Arms also fixed the refresh problem on the RS-10R. The original RS-10 would “galaxy” out because the refresh rate was too slow. The RS-10R does not have this problem. The dot stays consistent when moved and doesn't flash.

  The SLx RS-10R uses an aluminum housing. They use 7075 aluminum which is a little stronger than the commonly used 6061. I like how the housing sticks out farther than the lens, giving it a little more protection from drops. One drawback to the RS-10R's construction is the higher deck height of the mounting surface. It sits higher up than some red dots. This doesn't hurt anything, but you do notice it when installing taller iron sights.

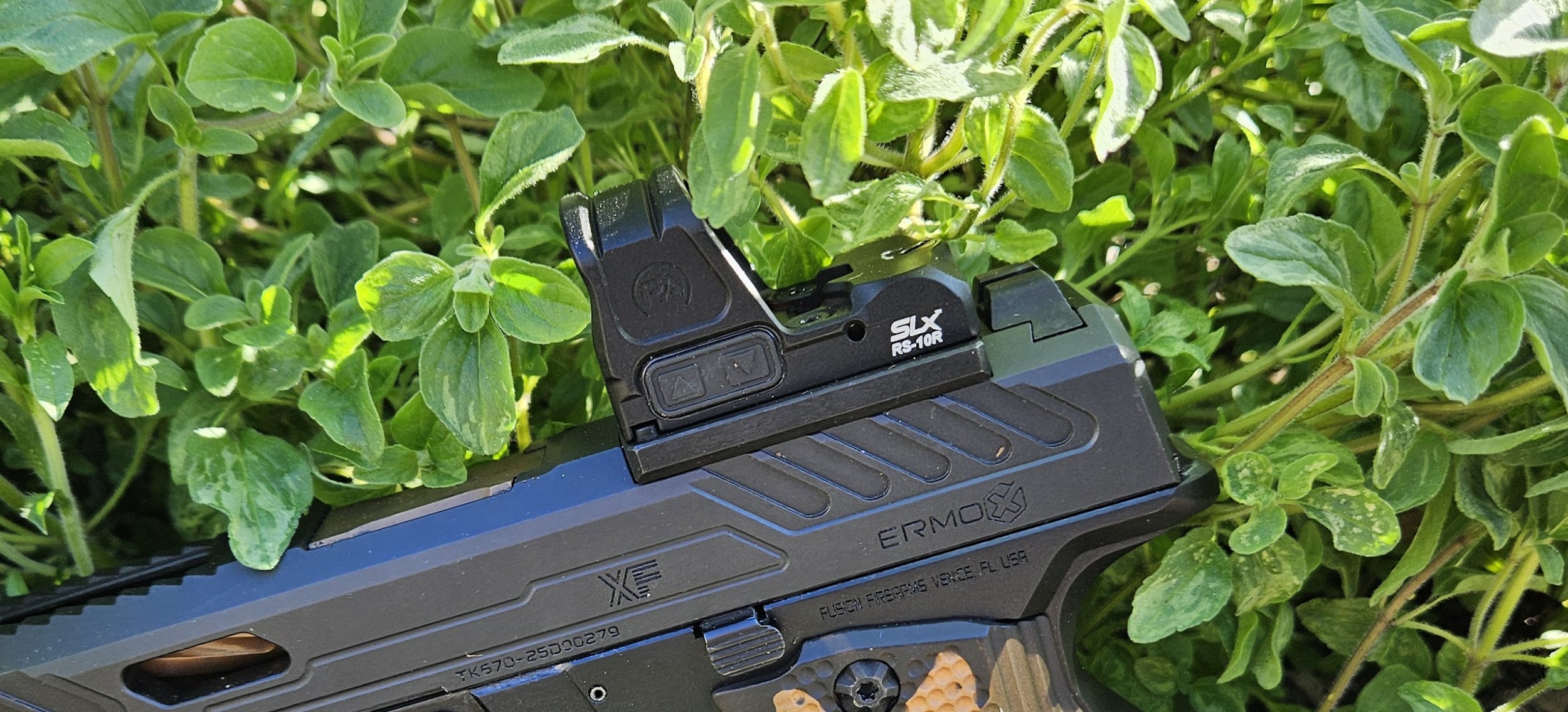

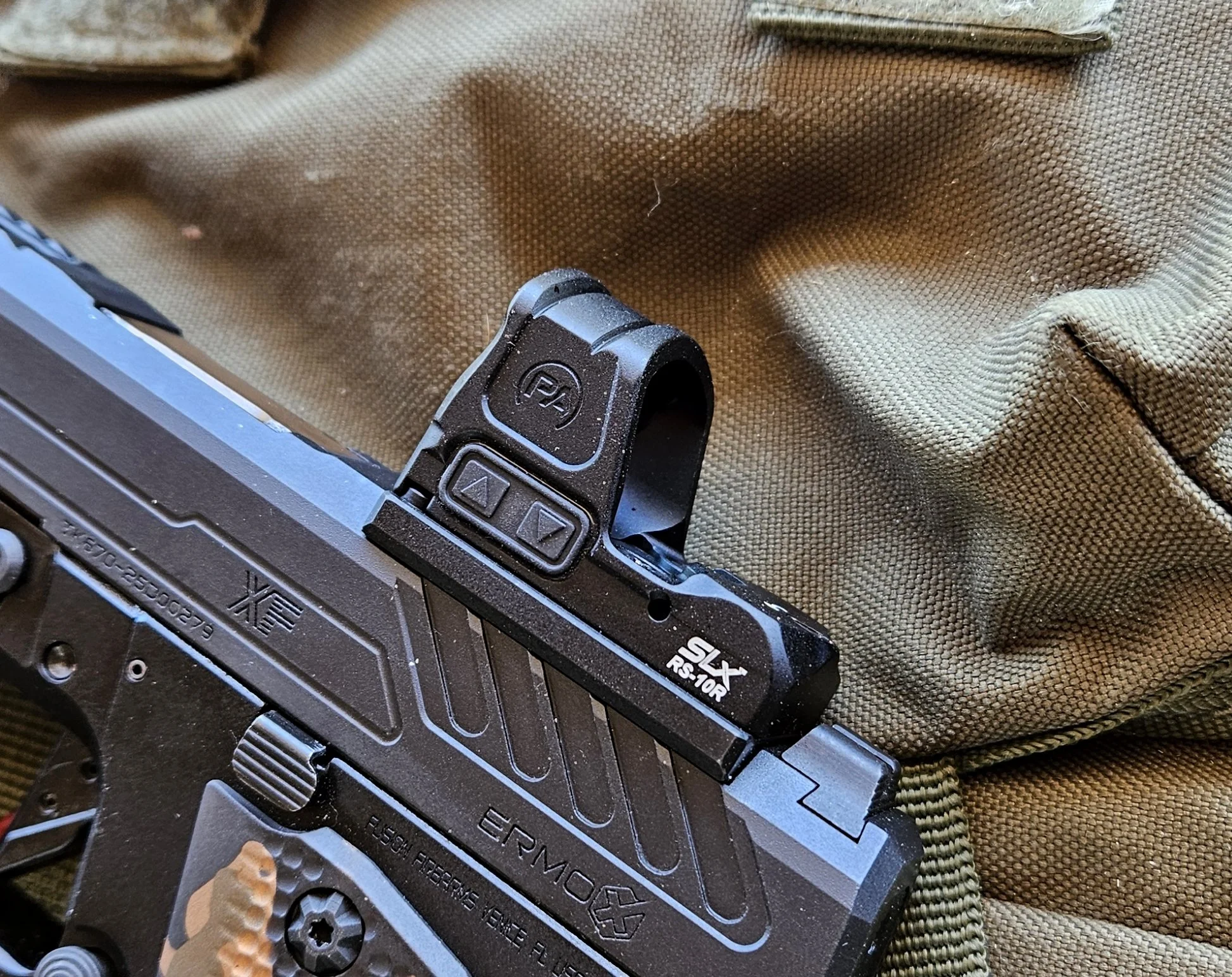

  I ended up mounting the RS-10R on the Fusion XF-Pro. The XF-Pro uses a mounting plate system. This leads to you noticing the RS-10R’s deck height even more. It didn’t bother anything and I can pick up the dot easily. The dot on the RS-10R is pretty clear, even with my astigmatism. What I really like about the RS-10R, besides being an RMR footprint, is the window. For some reason I just pick the dot up quickly with the way the window is shaped. I am glad Primary Arms updated the RS-10 to an RMR footprint and fixed the refresh problems. It performs great.

  I know there are a million reflex pistol red dots on the market now, but the Primary Arms SLx RS-10R is a great option. You get a lifetime warranty. It has a side-loading battery with their “Autolive” on/off function. Plus it now features that RMR footprint everyone was asking for. If you are in the market for a pistol red dot, definitely go check out the new SLx RS-10R.

Firearms Insider Reviews - Key Points

Claim to Fame:

RMR footprint red dot

Target Market:

Anyone wanting a pistol style red dot with a RMR footprint

Features, Benefits, and Specifications of this product:

  • Battery Life: 25,001 - 50,000 Hours

  • Battery TypeCR1632 3V Lithium Coin

  • Side-loading CR1632 battery

  • Click Value: 1 MOA

  • Open Emitter

  • Finish: Hardcoat Anodized

  • 7075 Aluminum construction

  • Mount Compatibility: Holosun 407C/507C, RMR

  • Night Vision Compatible

  • 11 Brightness settings

  • 23 x 19mm window

  • 3 MOA Dot

  • Lifetime Warranty

  • Weight: 1.1 oz.

What other aesthetic options or finishes are available?

Original SLx RS-10

What others are saying?:

Nothing found as of publishing

Link to other reviews:

Beyond Seclusion on YouTube

Price point:

MSRP = $209.00

Retail = Same

I need it now! Availability:

Primary Arms, Midway USA, or your local gun store

Our Rating:

Pros:

  • RMR / Holosun 507c footprint

  • Click adjustments

  • Side loading battery

  • Autolive

  • Lifetime warranty

Cons:

  • Deck height

Score: 8.50 Great

Favorite Link:  Fusion XF-Pro Review

, ,

Sightmark Presidio 5-30x56

, ,

Sightmark Presidio

5-30x56 LR2 Review

  When it comes to magnified optics, prices and quality can range drastically. Sightmark is not new to these magnified optics and has various different product lines. Sightmark's Presidio line is somewhere in the middle of what they have to offer, which fits with what I was going to do with it.

  I was looking for a fairly high power magnified optic. That is where Sightmark came in. They have a first focal plane Presidio in 5-30x56. It has a mil style Christmas tree reticle called the LR2. It was perfect for the Bergara I was reviewing. This much magnification makes it easier for my eyes to see targets at distance. So testing accuracy on the Bergara was easy thanks to the Presidio 5-30.

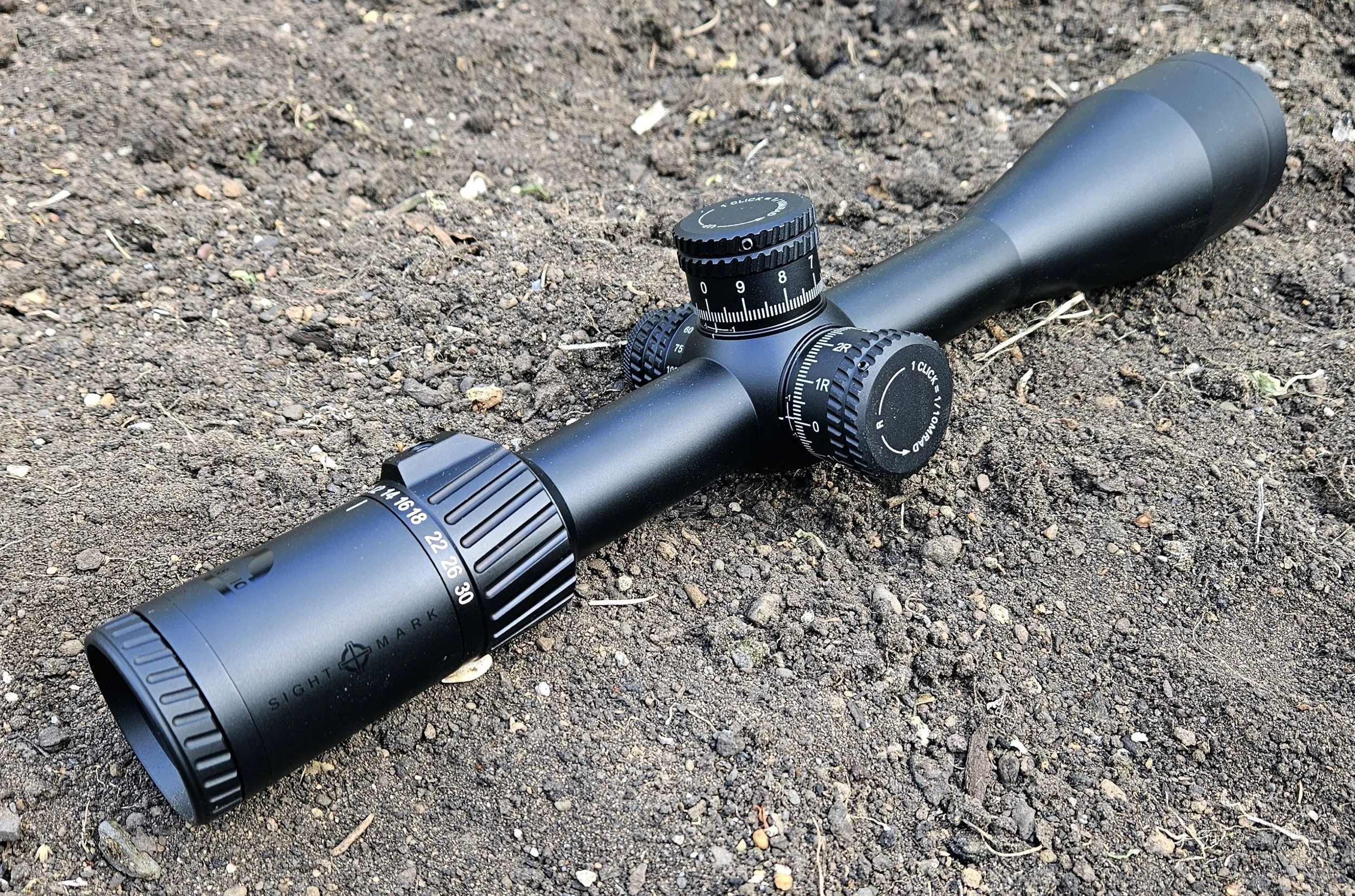

  The specifications of the Presidio 5-30 are really what make it a great optic. That 6x zoom makes it possible to see fairly close up and still reach out. Its large 56mm objective lens allows good light transmission so you can see your target, even at dusk on high magnification. The 30mm one piece body makes it easy to find scope mounts. The parallax adjustment is adjustable from 20 yds to infinity, so the Presidio can still work well on a PCP style airgun or even a 22 long rifle. It has an illuminated red reticle so you can see it better at dusk or dawn. Plus, if you want it, Sightmark throws in a throw lever. All the other details are down below in the Features and Benefit section.

  Sightmark uses their LR2 Mil reticle in the Presidio. This reticle is a pretty standard First Focal Plane Christmas tree style reticle (see picture). Since it is a first focal plane, the stadia marks of the reticle stay the same size throughout the magnification range. The LR2 reticle has windage and elevation marks at 0.5 mil increments, with mil numbers at 2, 4, 6, 8, and 10 mils. Out at the outer left, right, and top are 0.1 mil marks. They are intended to give a more accurate range estimation, when using the reticle for determining the range to a target. The Christmas tree dots can be used to combine wind and elevation holds, giving you a precise reference on where to aim. Lastly, the stadia line thickness is 0.03 mils, so you get a super precise aiming point. If you want the full hash marked reticle in view, you can only adjust the scope’s power up to 18x. After that the reticle starts to get cut off in the window. At 30x, you get about 2⁄3 's of the reticle’s marked stadia.

  When looking at optics in this price range, optic clarity is huge. The Presidio 5-30 pleasantly surprised me for a $500 optic. When looking through the optic, it is very clear and has very little chromatic abrasion throughout the magnification range. Eye relief is decent. However, I did notice a slight difference between 5x and 30x. The weird part is that 30x seemed more forgiving than 5x, Usually it is the other way around and the lower magnification is more forgiving on eye relief. The field of view, or the width of what you see looking through the scope, is a little narrower than some optics. So finding a target at the higher magnifications can be a little more difficult. I wouldn’t call this a deal breaker for sure, just something to note for some shooters.

  Having an illuminated reticle on the Presidio is nice. It is not daylight bright, but it is not intended to be. If you are shooting in lower light, or even cloud cover, it works nicely. There are 6 brightness adjustments on the left turret. In between each level is an “off” resting spot. I really like having an off position between brightness levels. That way I don’t have to try and remember to turn the knob all the way to the off position. Sightmark says the battery life on the Presidio has a 150 hour average. So at lower levels you can get up to 500 hours. This may not sound like a lot, but that's basically a week of being turned on all the time, or more.

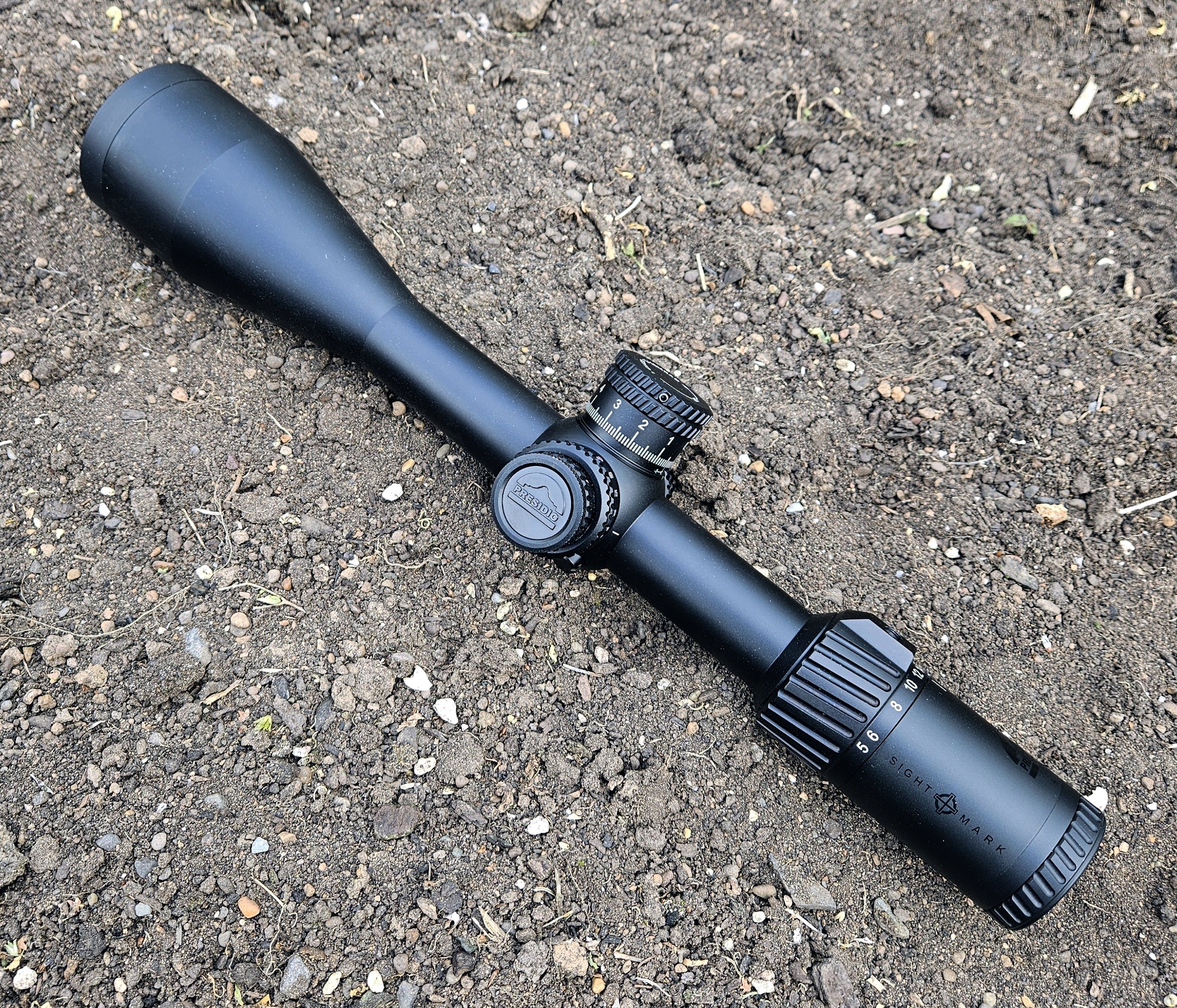

  The Presidio 5-30 uses target style turrets. I think these style turrets were a good option for the Presidio. They don’t stick up too far and are large enough to get a good grip on. The turrets produce a decent click when adjusting them and it can be felt. Each click adjusts the scope by 0.1 mil. The elevation turret has numbers 0-9, with 10 hash marks between the numbers. Each number is 1 mil and each hash mark is 0.1 mil. The windage knob has a zero position, then it is marked either 1R, 2R, etc, or 1L, 2L, etc. Each number is also 1 mil with 0.1 mil hash marks between them. For example, if the bullet needs to go left, just move the dial toward 1L. Both the windage and elevation knobs can be set to zero once you are sighted in. On the left side of the Presidio is the parallax knob and the brightness knob. These are pretty self explanatory. A win for the Presidio is that it also comes with a zero stop. This is very uncommon for optics in the Presidio’s price range. The zero stop is also easy to install.

Radio tower lamp is approximately 300 yds away

  As mentioned previously, I mounted up the Sightmark Presidio on a Bergara bolt action rifle. The rifle is a 308 win. I found the Presidio to perform well enough on that platform. The eye relief made it harder to get the scope forward enough with normal picatinny rings. If I had an extended pic rail mounted on the Bergara, that would have helped. One disadvantage of the Presidio is its 30 mm tube. Because of this, you only get 18 mils of travel out of it. With the Bergara’s 20 moa base, I still only get 12.5 mils of up adjustment in the Presidio. That means that I can only dial the optic out to a range of around 1100 yards with the 308 cartridge. I don’t expect to ever shoot this past that, but it is something that I feel needed mentioning. The Presidio 5-30 is heavy, like 2 pounds worth. I know it isn’t a small optic, and other optics in this price range weigh about the same, but I was hoping for a little lighter. Other than that, I have been happy with the Presidio. I just can’t get over how clear the optic is.

  If you are looking at a decent optic to get into longer range shooting, the Sightmark Presidio 5-30x56 may be it. It has great glass for an optic in this price range. The nice turrets and zero stop make it a great choice for whatever you are doing. Yes it has some performance limitations, but in this price range, that can be expected. If you are looking for that decent, entry level, long range optic, the Sightmark Presidio might be a good choice for you.

Firearms Insider Reviews - Key Points

Claim to Fame:

Variable power, budget friendly, high magnification first focal plane optic

Target Market:

Anyone looking for a quality higher powered first focal plane optic

Features, Benefits, and Specifications of this product:

  • Reticle brightness settings: 6

  • Magnification (x): 5-30

  • Objective lens diameter (mm): 56

  • Eyepiece diameter (in/mm): 1.74 / 44.1

  • Exit pupil diameter (mm): 36.6

  • Eye relief (in/mm): 3.7 / 95

  • Field of view (ft @100yd): 22ft - 3.7ft

  • Tube diameter (mm/in): 30 / 1.18

  • Parallax setting (yds): 20 - ∞

  • Mil adjustment (one click =): 1/10

  • Windage adjustment range (MRAD): 18

  • Elevation adjustment range (MRAD): 18

  • Zero stop included

  • Throw lever included

  • Maximum caliber: .338

  • Battery type: CR2032

  • Battery life (hours): 150 - 500 hrs

  • Shockproof, Fog proof

  • 1st Focal plane

  • IP67 - waterproof and dustproof

  • Body material: Aluminum

  • Fully multi-coated lenses

  • Operating temperature (°F/°C): -20 to 160 / -29 to 71 F/C

  • Length (in/mm): 15.67 / 398.02

  • Width (in/mm): 3.79 / 96.25

  • Height (in/mm): 3.02 / 76.71

  • Weight (oz): 33 oz

What other aesthetic options or finishes are available?

3-18x50

What others are saying?:

5 out of 5 stars from Randy on Optics Planet

I was skeptical at first, decided to take a chance because it had a lifetime warranty and I watched a video on it from one the head tech/designer at Sightmark. I was impressed so I bought it. I wasn’t disappointed when I got it. This scope feels like a much more expensive scope. Turrets are solid, audible and precise. Has an elevation stop and removable turret caps to set back to zero when you’re done sighting. The throw lever on the magnification works really well. Clarity is very good, high and low. It weighs as much or more than scopes costing twice as much. I have it on an AR 50 A1 - .50 BMG and have put 12 rounds on it with no issues so far. As solid as it is and the few rounds I’ll shoot a lot of .50 BMG I don’t see any issues forthcoming.

Link to other reviews:

The Gun Zone

Price point:

MSRP = $539.97

Retail = $449.97 on Amazon

I need it now! Availability:

Amazon, SightMark, MidwayUSA, or your local dealer

Our Rating:

Pros:

  • Great clarity

  • LR2 mil reticle

  • First Focal Plane

  • Illuminated reticle

  • Target turrets

  • Zero Stop

Cons:

  • Long

  • Heavy

  • Long eye relief

  • Small elevation adjustment range

Score: 7.50 Good

Favorite Link:  Bergara B-14 Ridge SP Review

,

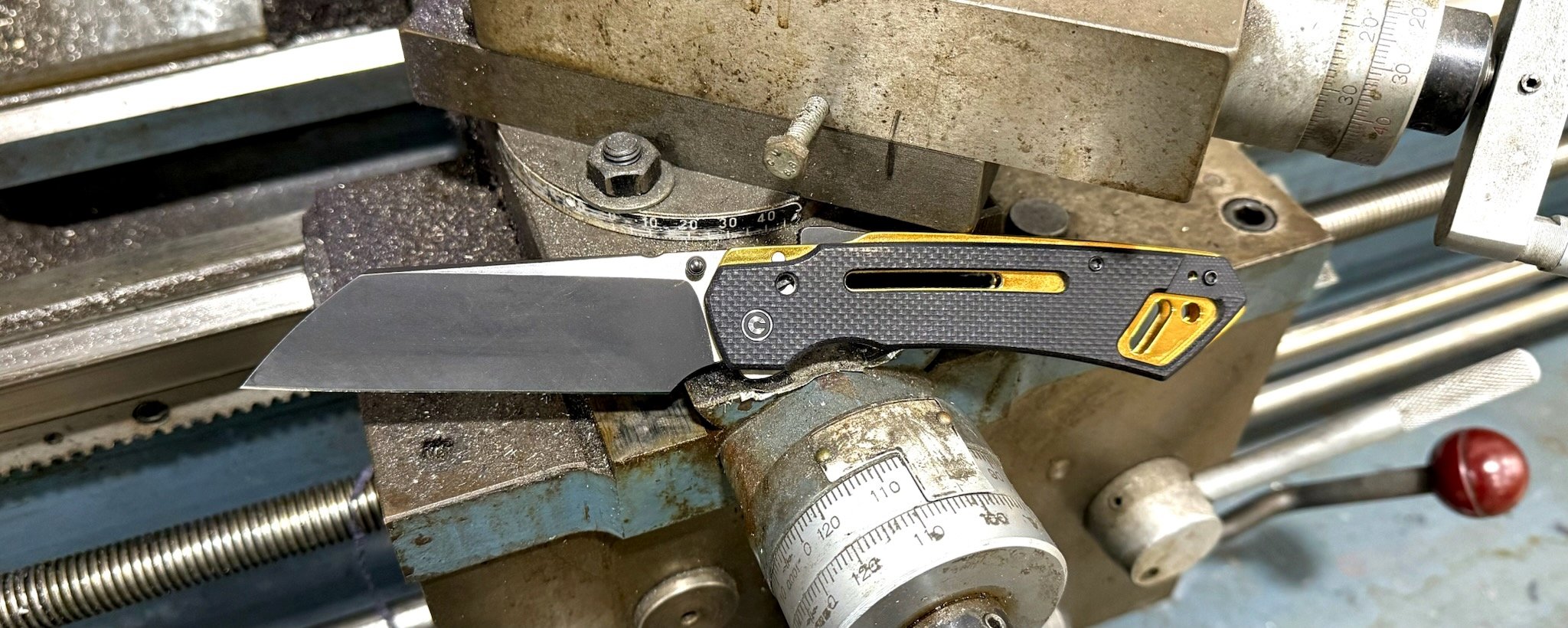

Civivi Buster FG

,

Civivi Buster FG

Review

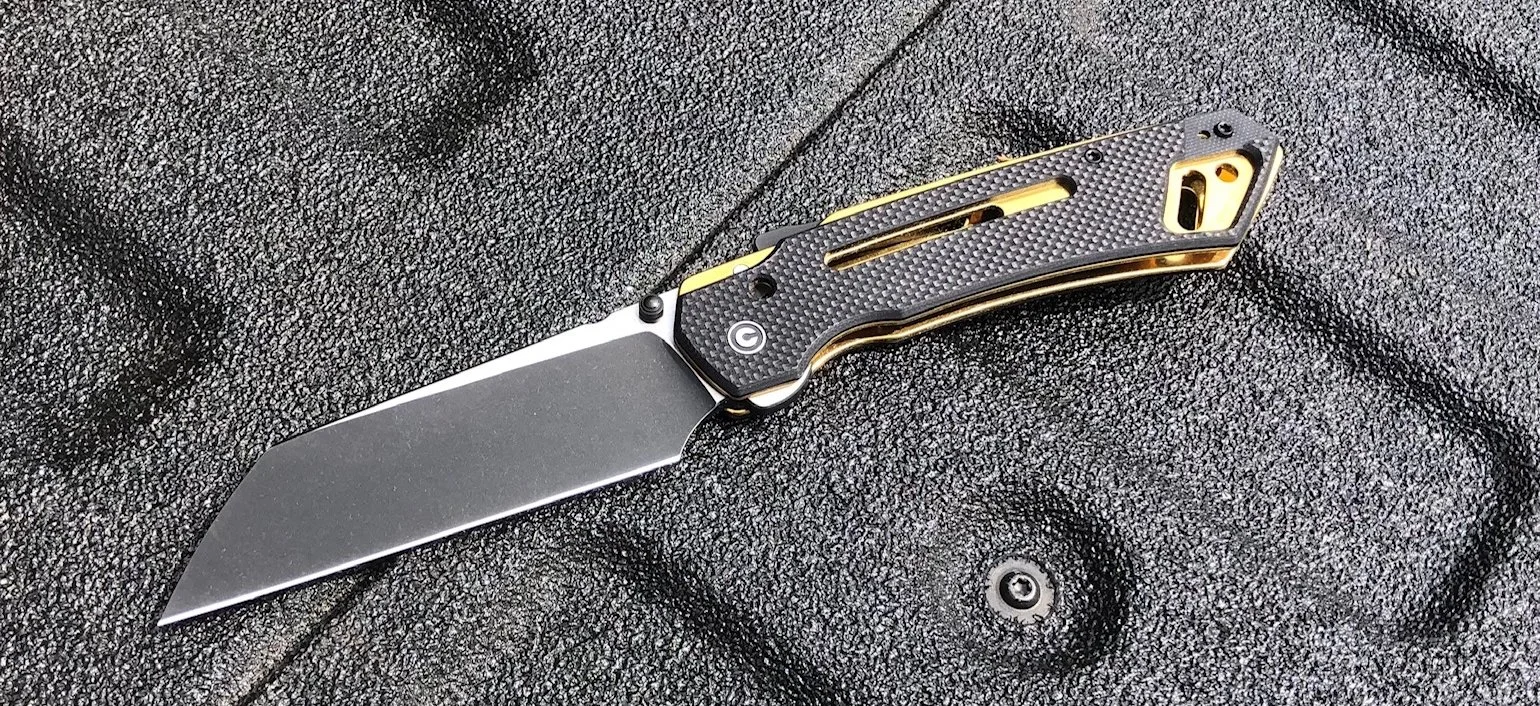

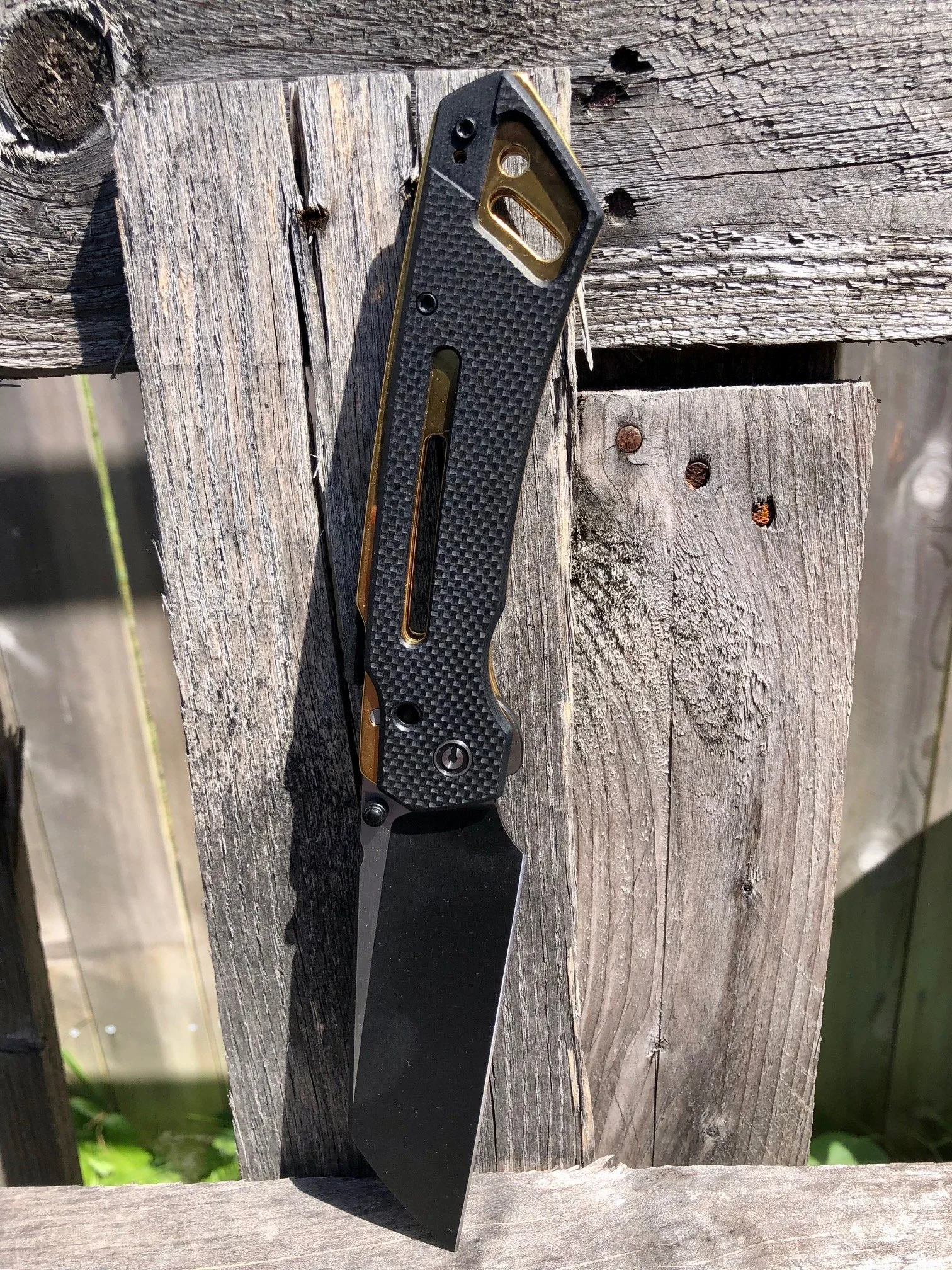

Over the last few years I’ve really come to enjoy collecting knives. They are so fascinating and the designs that people come up with are really interesting. One brand that I have found myself loving and trusting with an excellent build quality is Civivi. As I’ve collected knives I’ve noticed that I like larger folding knives. So when I saw the Buster FG, I just had to get one.  From the massive size of the knife to the new locking style, we’ve got a lot of great stuff to talk about. So let’s see what makes this knife my new favorite Civivi.

Handle:

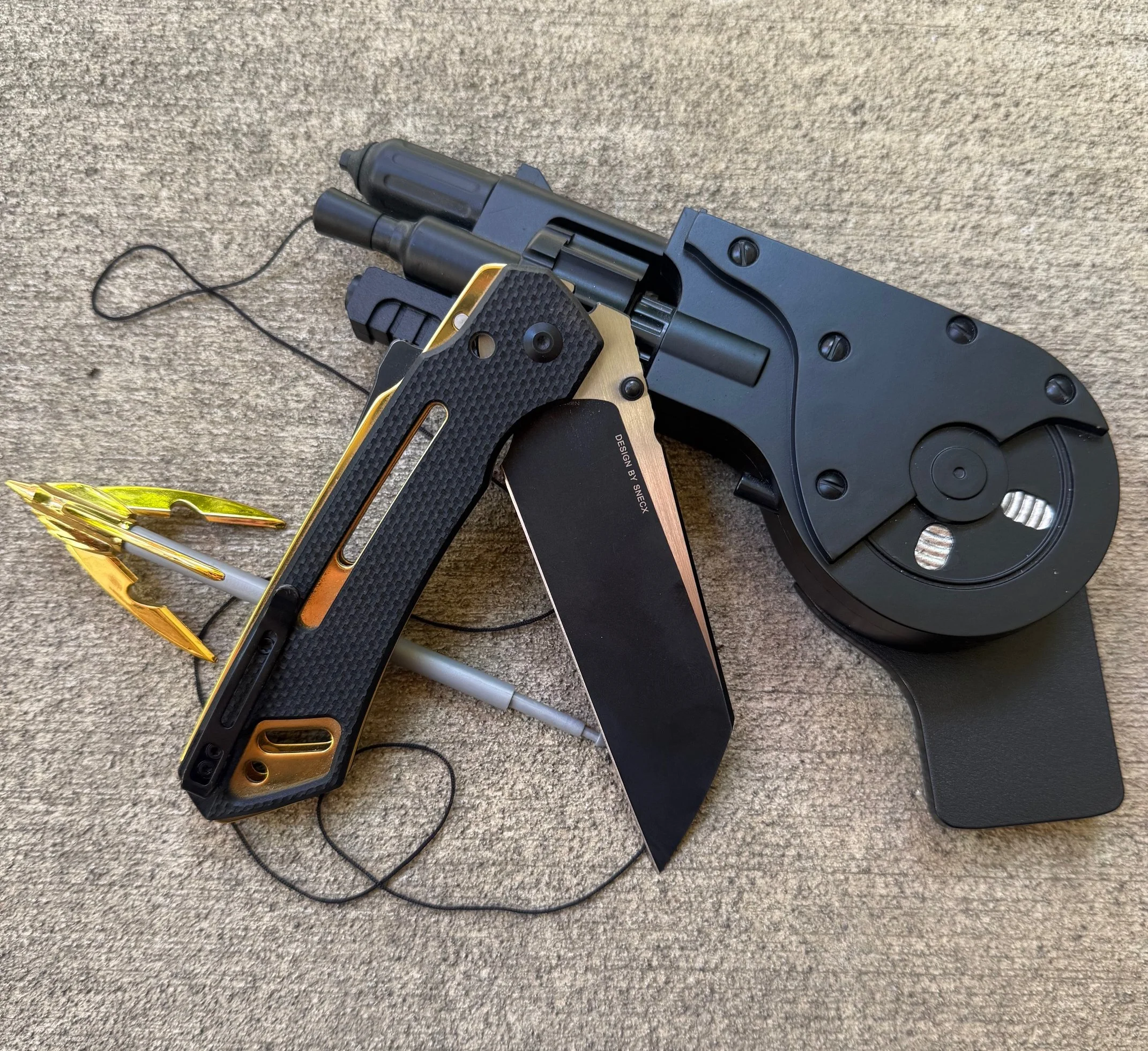

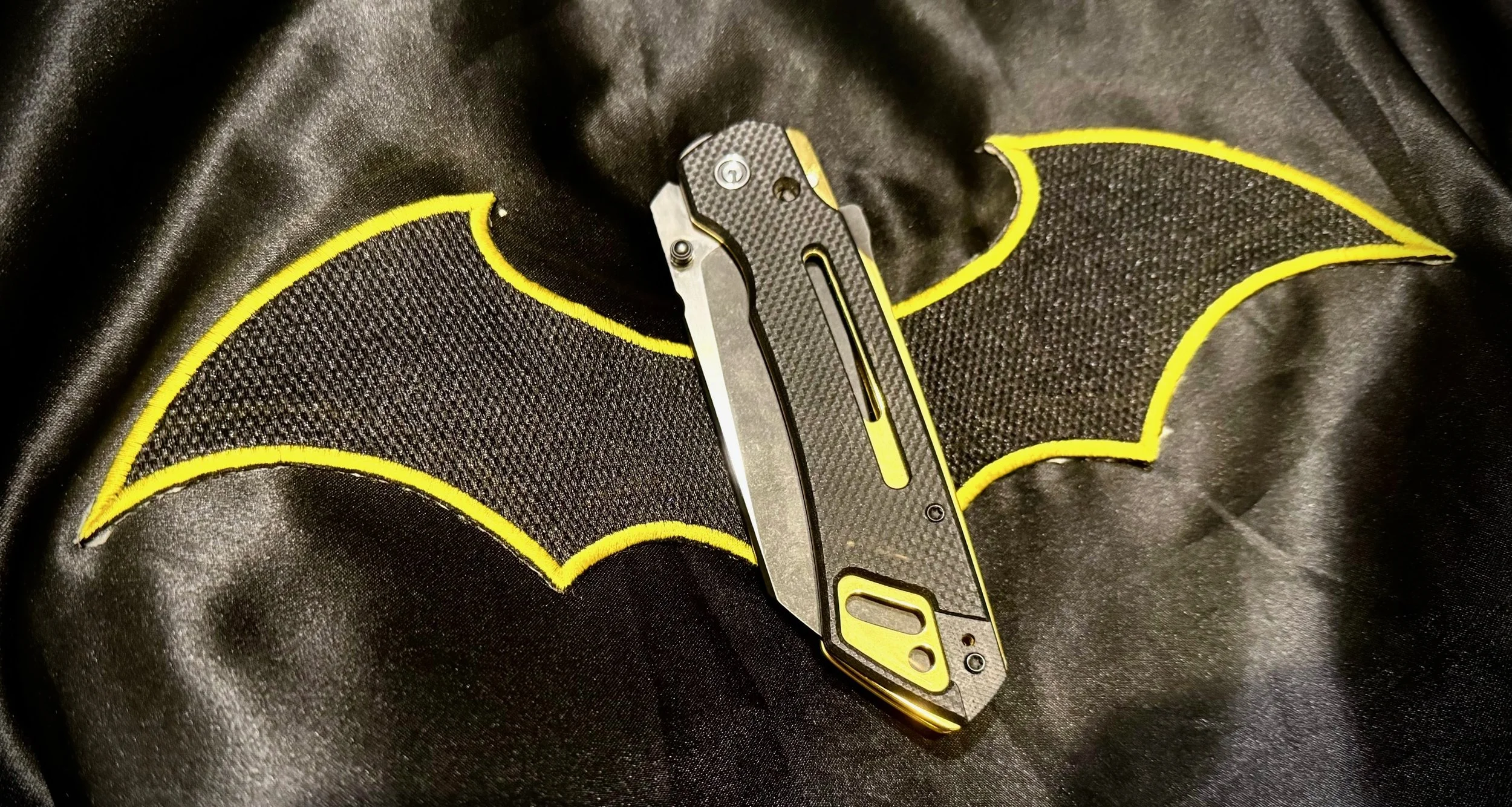

The Buster FG features a coarse black G10 handle over a golden stainless steel frame to give it a great two tone look. I personally really wanted this color option because it reminds me of my favorite comic book crime fighter who dresses like a bat. The coarse G10 scales on the handle have a rough finish on them to give you the ability to get a really good grip on it. And with the handle being roughly 5 inches long, you can definitely get a great grip on this knife!  Plus it has a reversible pocket clip. Because of the handle material, it stays in my pocket really well. One of my only gripes about it, which is to be expected by a knife of this size, is when it's closed… it’s massive in your pocket. But again, when opened it's almost 10” long. So it’s a big one!

Blade:

One thing that makes the Buster FG different from a lot of Civivi’s knives is its size. This is one of the largest folding knives they have released. The blade on this knife is a sheepsfoot style that measures in at a whopping 4.2” / 106.8mm. To top that off, the blade material is Nitro V. Which is a really great steel for an everyday carry, particularly in corrosion resistance and edge retention. Nitro V is also a steel that can be sharpened very easily. I was helping a friend build some furniture and got the task of cutting down all the cardboard and styrofoam sheets. After slicing up multiple 5 foot sheets of cardboard and styrofoam, this blade is still wicked sharp! Like most folding knives, it has jimping on the back of the blade. When I first got the knife, I wasn’t crazy about it. It just didn’t feel rugged enough or like it had enough grip. But as I used it and really cut stuff, I noticed that it was actually a really great amount and helped me get good control of the blade.

Opening:

The opening on the Buster FG is quite smooth. I was very curious as to how Civivi’s new Super Lock would affect the opening. And just like every Civivi knife I own or have used, it opens really nicely and like I said… smooth. And that’s thanks to the caged ceramic ball bearings they use. For opening styles on the knife you get two thumb studs or you can pull back on the Super Lock and flick the blade out. That is something else about this knife, I wish it had a flipper for opening. But, with this new lock style, that just wouldn’t work because the flipper would get in the way of the lock.

The Lock:

For the Buster FG, Civivi used their new Super Lock. The lock works similar to a crossbar lock. On the backside of the handle there is a spring loaded bar with a finger tab sticking out. On the inside of the blade, near the bearing, there is a cut out slot. So when you open the knife, that slot lines up with the lock bar, then the spring pushes the lock bar into place, locking the blade. It’s a really great locking system that I have really come to enjoy and trust. It feels similar to a back lock, which is very common on Buck style knives. Once it clicks into place, it feels very solid like a fixed blade. I really like how easy it is to unlock. But it’s not easy to accidentally unlock it while using it. I would definitely like to see this lock more on other knives!

Summary:

Civivi has a lot of knives to offer ranging from big to small and in many different styles. The Buster FG has definitely become my favorite Civivi knife I own. It fits very comfortably in my hand and I really dig the new Super Lock. Plus, I love how massive it is (that’s what she said). If you are looking for a big folding knife to use as your everyday carry, I would highly recommend the Civivi Buster FG!

Firearms Insider Reviews - Key Points

Claim to Fame:

A large folding knife with a unique, stylish design and a very convenient lock.

Target Market:

Anyone who is wanting a large and tough everyday carry knife that has a unique look.

Features, Benefits, and Specifications of this product:


  • Overall Length: 9.65" / 245mm

  • Width: 1.72" / 43.6mm

  • Overall Height(Include Clip): 0.68" / 17.2mm

  • Blade Length: 4.2" / 106.8mm

  • Closed Length: 5.47" / 139mm

  • Blade Thickness: 0.16" / 4mm

  • Handle Thickness: 0.51" / 13mm

  • Knife Weight: 6.46oz / 183.1g

  • Blade Material: Nitro-V

  • Blade Hardness: 58-60HRC

  • Blade Grind: Flat

  • Blade Finish: Black Stonewashed, Satin Flat

  • Blade Type: Sheepsfoot

  • Handle Material: Coarse G10

  • Handle Color/Finish: Black

  • Back Spacer Material: Stainless Steel

  • Back Spacer Color/Finish: Black

  • Liner Material: Stainless Steel

  • Liner Color/Finish: Golden

  • Pocket Clip: Tip-Up, L/R

  • Clip Material: Stainless Steel

  • Screws / Thumb Stud Material: Stainless Steel

  • Pivot Assembly: Caged Ceramic Ball Bearing

  • Locking Mechanism: Superlock

  • Opener: Manual Thumb

What other aesthetic options or finishes are available?

Neutral blue course G10 handle / Satin finished Nitro-V

Green canvas micarta / Black Stonewashed Nitro-V

What others are saying?:

Exceeded High Expectations

I was excited about this knife when I preordered it. You never really know how nice it is until you get it in your hand. This is the smoothest, sharpest knife (out of the box) in my collection. Flicking this knife open the first time was how I imagine every knife I order will be. Very few blow me an away like this one did. Especially in this price range. I haven’t seen any mark on the choil from the stop pin. Specx did an amazing job putting my mind at ease about that. Hair splitting sharp out of the box you really can’t go wrong. It was even bigger than it looks in the pictures. Same length as a Kizer Momo.

Link to other reviews:

Sharp Ends on YouTube

Price point:

MSRP - $115.00

Retail - $97.75 on Amazon

I need it now! Availability:

Civivi or Amazon

Our Rating:

Pros:

  • Great and secure locking system.

  • Fantastic grip on the handle

  • Very large, allowing you to get a good grip on it.

  • Awesome blade steel that has stayed sharp.

Cons:

  • When it’s closed and in your pocket. It’s almost a little too big.

  • I wish it had a flipper on it. But I understand why it doesn’t.

Score: 9.00 Amazing

,

Streamlight ProTac Rail Mount HP-X

,


Streamlight Protac HP-X

Weaponlight Review

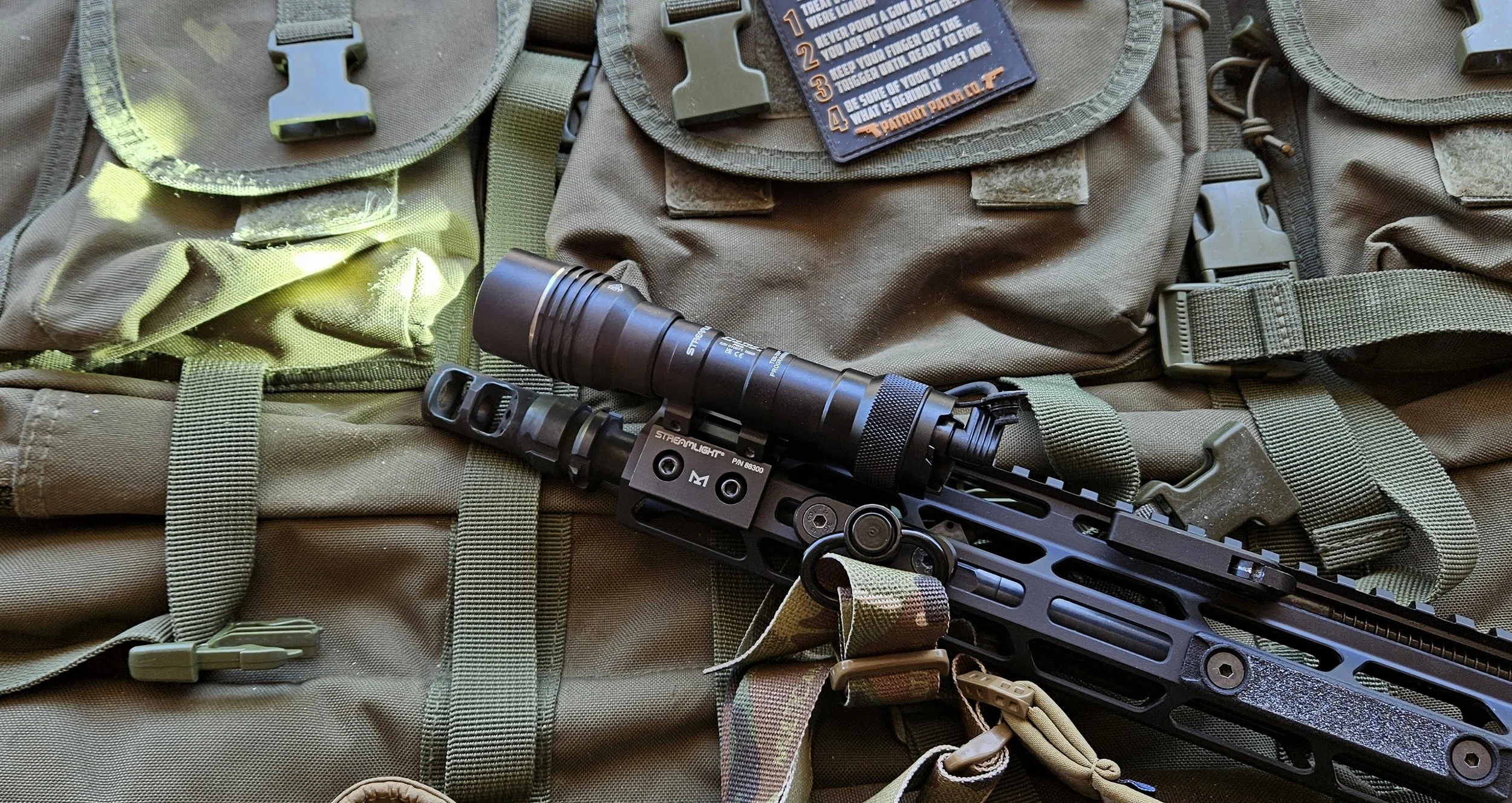

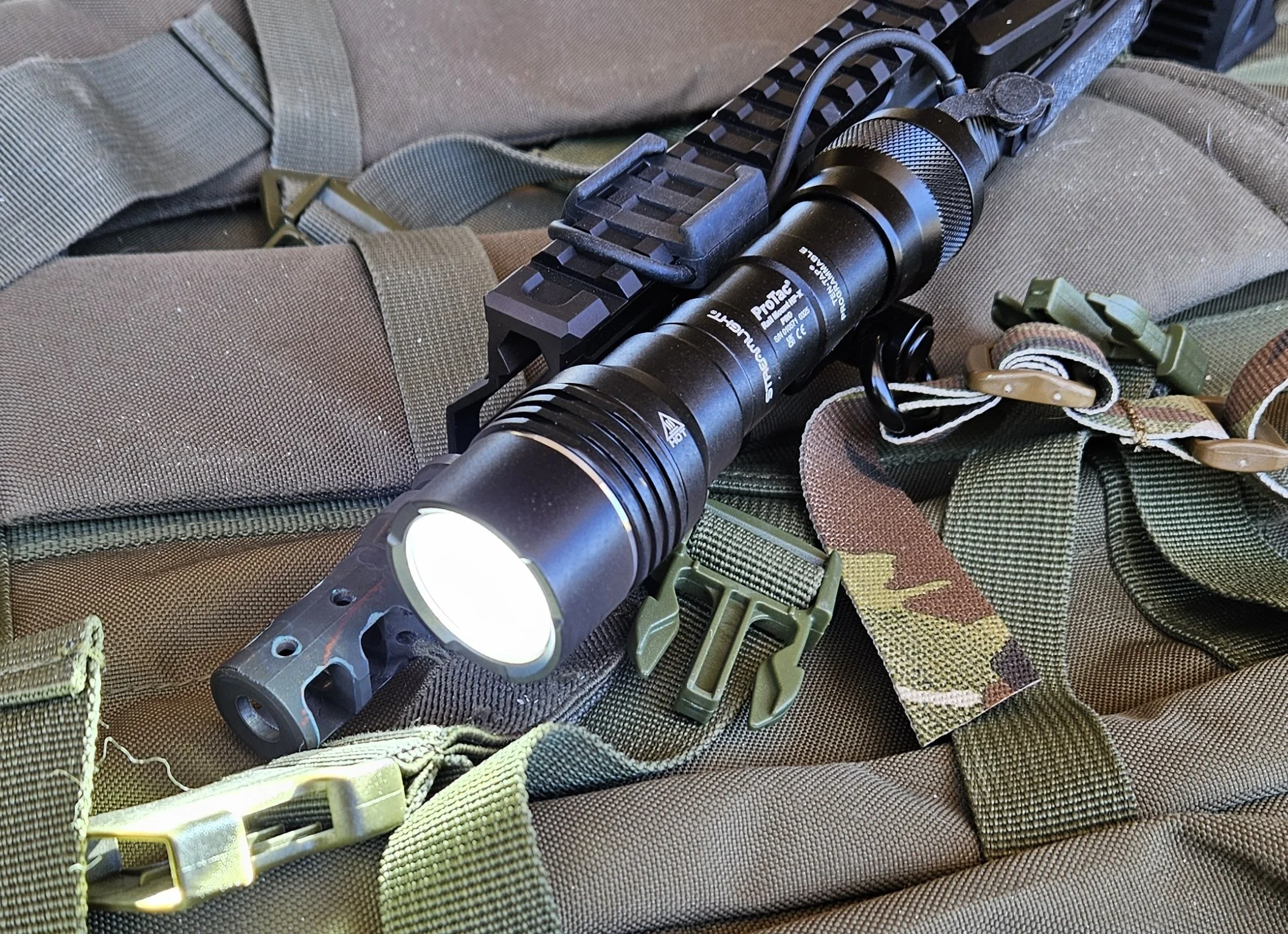

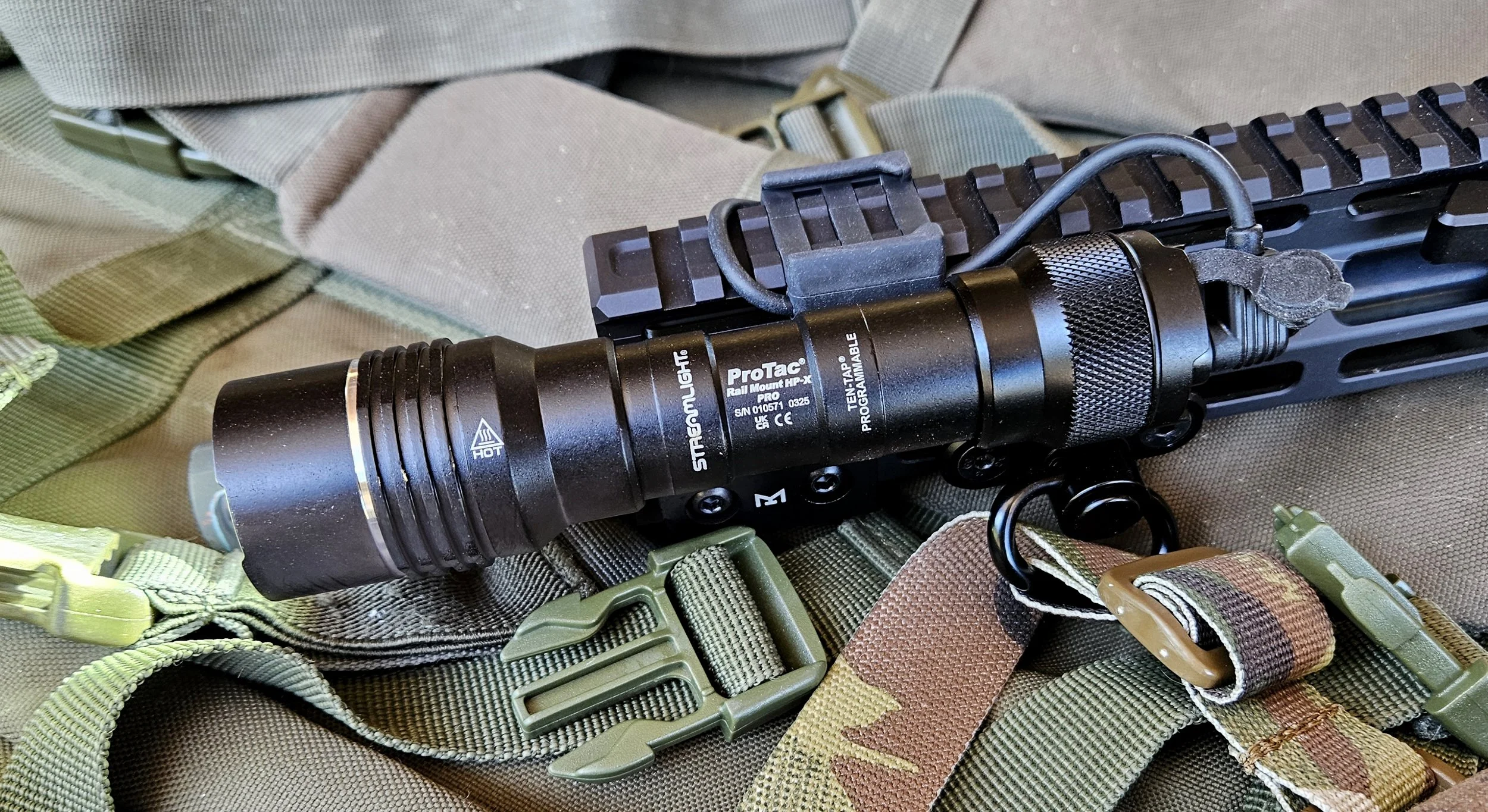

  Weapon lights are something that I believe everyone should have on a long gun. There are various types and styles on the market today. They range from high lumen - low candela to high candela - low lumen. They all have different purposes. Streamlight has come out with a higher candela weapon light with a slightly lower lumen. That light is the ProTac Rail Mount HP-X Pro.

  Streamlight’s new HP-X is designed as a high lumen light. On High, Streamilight specs out a candela of 105,000 and a lumen rating of 800. This gives you, the user, a light that projects a narrower beam farther. However, having that lower lumen number makes the spill smaller. A smaller spill gives you less light close up. The HP-X still lights up stuff close and it does it well, it is just made primarily for distance. With the HP-X’s beam pattern, you can light up and identify targets at a much longer distance. The beam distance specification is stated as 648 meters. I could easily make out objects at 300 yards.

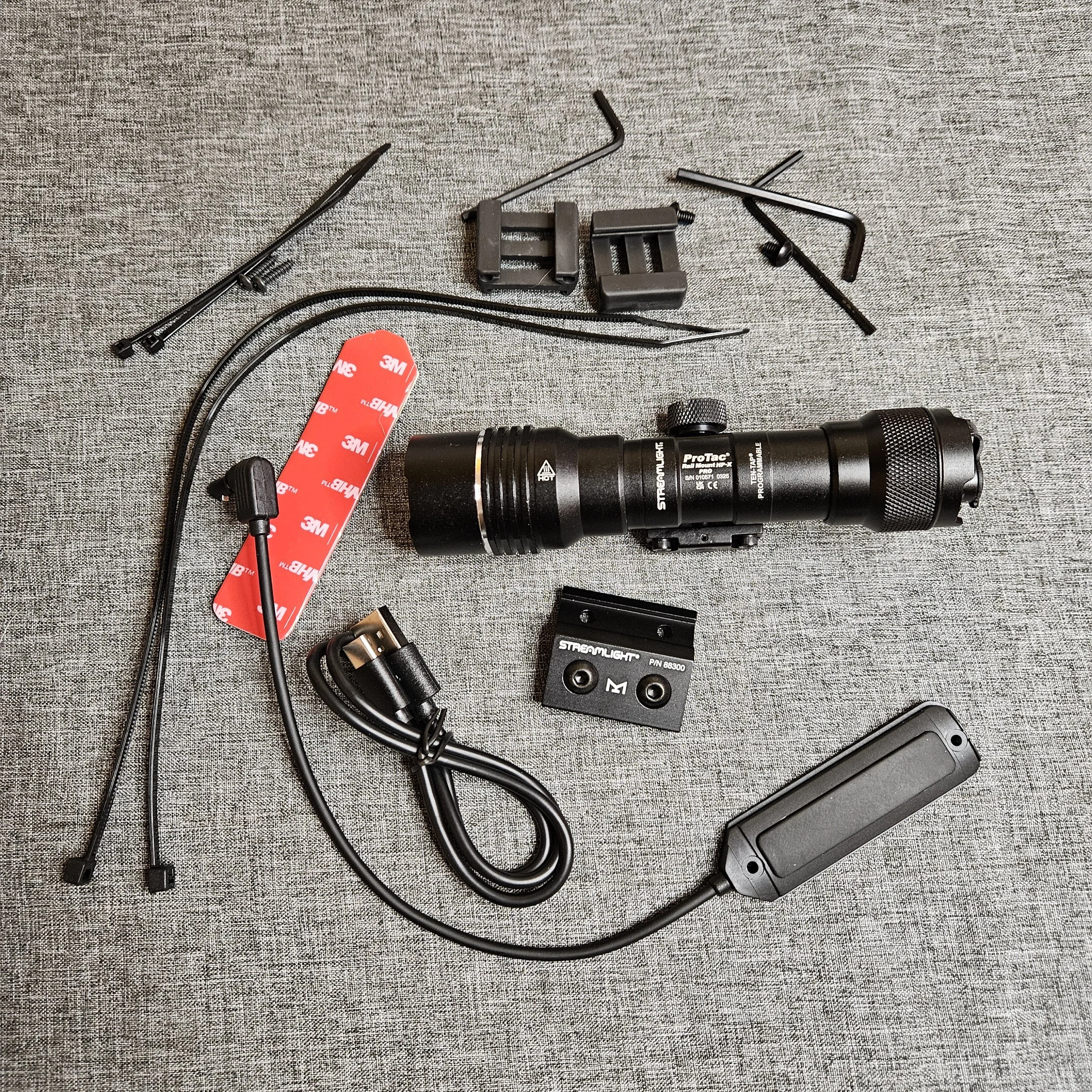

  When you buy the ProTac Rail Mount HP-X kit, you get all the stuff needed to run the light. This is a real bonus in my opinion. The kit includes a 45 degree M-Lok mount, a pressure switch, wire management, zip ties, mounting tape, and a usb cord. The pressure switch is a momentary “on” style. It does not have a switch to keep the light on. However, the HP-X uses Streamlight’s “Jack-Cap” tailcap on the light. This tailcap lets you plug in the pressure pad and still have a button for use. So essentially, you get the best of both worlds. The tail cap button can be used in the momentary or click configurations. All this included stuff makes the HP-X a great deal.

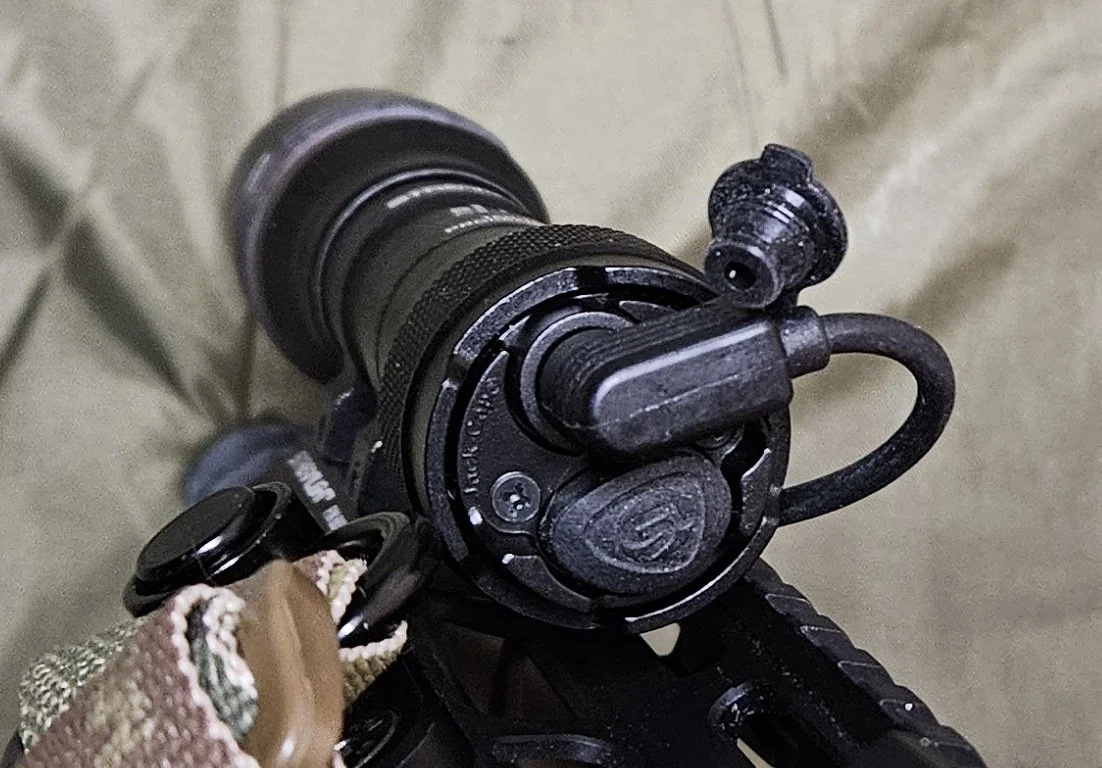

  Since the HP-X is made by Streamlight, it features their ten tap programming. Essentially, you tap the tailcap ten times and then it takes you to the programming mode. The HP-X has 3 different modes available: High/Strobe, High only, and Low/High. When operating the weapon light on the High/Strobe, tap the tailcap (or click) it once for high and then quickly again for strobe. The Low/High also works the same way. This extends over to the pressure pad too, press it twice quickly for Strobe, or High, depending on which mode you have the light in.

  One feature, that I think is a must in any weapon light, is having the ability to use different types of batteries. The HP-X is Multi-Fuel. This means it can use the supplied SL-B26 USB rechargeable battery or 2 CR123 batteries. I also found that the HP-X will work with a 18650 style battery, even if Streamlight doesn’t mention it. Run times with the CR123’s is a little less, but I expect that. Run times on the HP-X with the SL-B26 battery are: High - 2 hours, Low - 26 hours, and Strobe - 2.5 hours. These are pretty standard for these types of weapon lights.

Light at Dusk

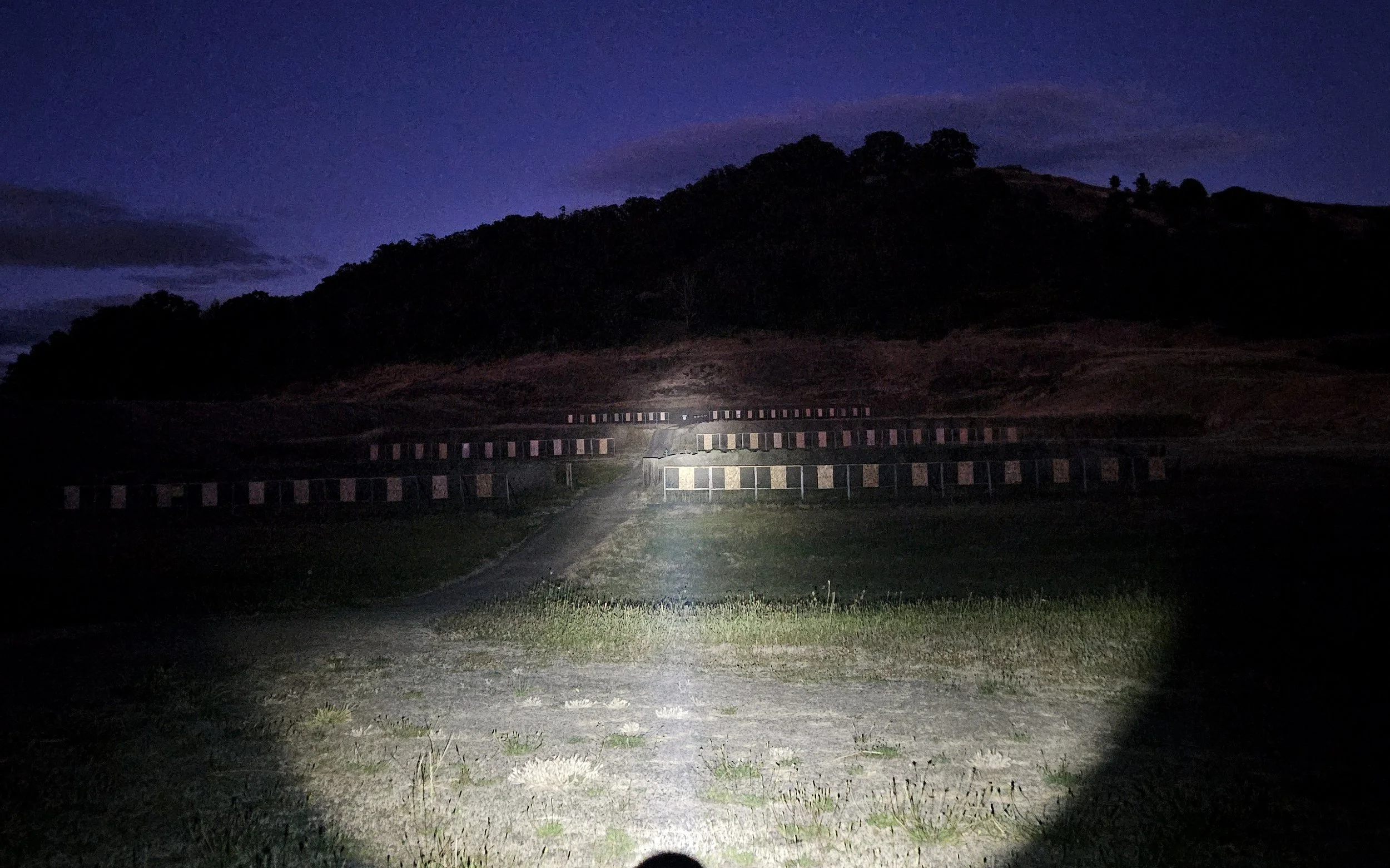

Night, Target stands at 50, 100, & 200 yds

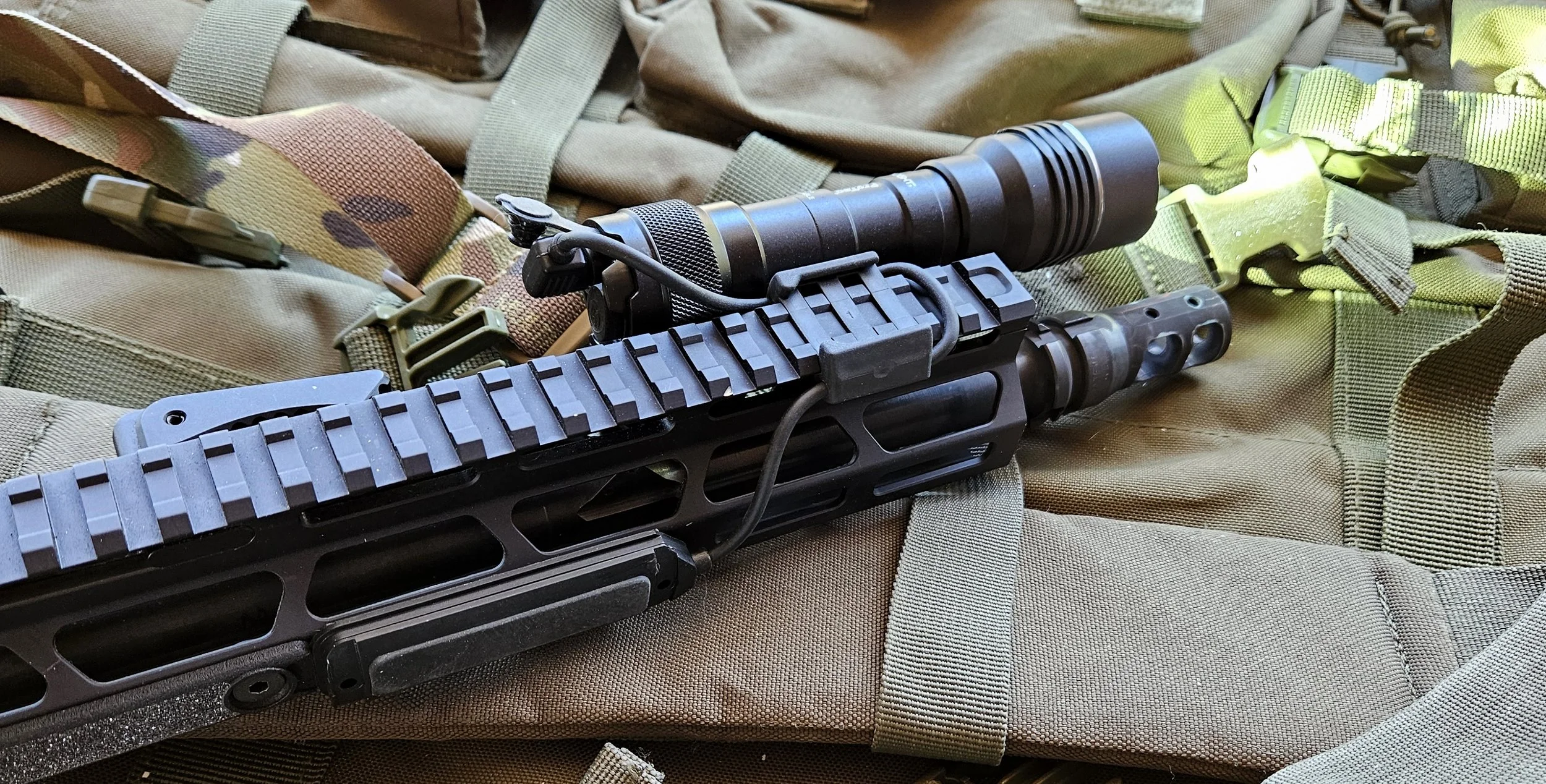

  Everyone needs a good mounting platform, aka rifle, for their weapon light. I didn’t hesitate to mount the Streamlight HP-X on the Global Monolith so I could put it through testing. The HP-X mounted up smoothly with the supplied M-Lok mount. If you don’t like the supplied mount, any “scout mount” can be used. I really like that the HP-X uses a readily available mount. Then the pressure pad went on with the zip ties. Followed by one of the rail management pieces. The system looks smooth. I used this light a bunch around the house to see how I liked it inside. Even though the HP-X is a long throw light, it still lit up rooms pretty good. If you have a place to reflect the light off of, like a light colored wall, it works a little better. The strength of the HP-X is the high candela. Outside the light shines for some distance. I could identify targets at 200 yards with ease. Another advantage to high lumens is the ability for the weapon light to punch through photonic barriers. Those barriers would include things like smoke, fog, or even other lights. I found the pressure switch to work nicely. The button on the rear tailcap works nice too, at least if the pressure switch is not plugged in. The plug for the pressure switch can get in the way of using the button. This is really my only fault with the light. This problem was really noticeable when running some drills with the light. Otherwise, I was happy with how the light itself performed

  The Streamlight ProTac HP-X Pro is a nice weapon light. Especially if you want a light with more distance or need something to punch through some photonic barriers. At a street price of around $160 you really can’t go wrong with the HP-X. If you need that do everything type of light, the Streamlight ProTac HP-X Pro just might be it.

Firearms Insider Reviews - Key Points

Claim to Fame:

High Candela, long throw weapon light

Target Market:

Anyone wanting a higher candela weapon mounted light

Features, Benefits, and Specifications of this product:

  • Multi-Fuel: Uses (1) Streamlight SL-B26 protected Li-Ion USB rechargeable battery pack or 18650; also accepts (2) CR123A lithium batteries

  • TEN-TAP Programming allows for selection of three different operating programs:

  • 1) high/strobe  2) high only  3) low/high

  • High: 800 lumens; 105,000 candela; 648m beam distance; runs 2 hours (SL-B26); runs 1.5 hours (CR123A)

  • Low: 55 lumens; 7,600 candela; 174m beam distance; runs 26 hours (SL-B26); runs 18 hours (CR123A)

  • Strobe: runs 3.5 hours (SL-B26); runs 2.5 hours (CR123A)

  • High Lumens: 800

  • Beam Distance: 648 meters

  • Max Candela: 105,000

  • Battery Type: SL-B26 Rechargeable Battery Pack, CR123A Lithium, or standard 18650

  • Length: 5.63 inches (14.30 centimeters)

  • Weight: 6.40 ounces (181.44 grams) - 7.00 ounces (198.45 grams)

  • Includes remote switch, picatinny and M-Lok mounts, cable management, and mounting hardware

What other aesthetic options or finishes are available?

Light only

What others are saying?:

Optics Planet

Bright light

Wow this is a handy little tactical light with a beam that cuts through the dark, smoke, fog etc. Nice beam that has a strong column of center light and provides a wide peripheral viewing that allows you to light up a whole room when performing tactical maneuvers.

Link to other reviews:

Tiberious Gib YouTube

Price point:

MSRP = $266.00

Retail = Around $160.00

I need it now! Availability:

Primary Arms, Brownells, or Optics Planet

Our Rating:

Pros:

  • Good light throw

  • Decent light spill

  • 10 tap programming

  • Comes with everything needed

  • Dual fuel - SL-26B or 2x CR123’s

  • Can use standard 18650 batteries

Cons:

  • Tail switch is hard to get to when pressure switch is plugged in

  • Doesn’t use standard plugs for pressure switch

Score:  8.00 Great

Favorite Link:  Global Ordnance Monolith Review

SEARCH
