Lucid Optics "Litl Mo"

Chad Wallace

April 22, 2020

Lucid Optics has released their Micro Red Dot. It is designated the “Litl Mo”. Having used some of Lucid Optics' other products, I was excited to get one for review. Once received, I mounted it up on my slide with an adapter plate. This little red dot is getting to be a favorite for range use and competition.

Lucid’s Litl Mo has a lot of features packed in it’s small package. It has a 3 MOA dot. A good compromise for either pistol or rifle use. The Litl Mo uses a Venom/Viper/Doctor footprint. This gives it the capability to be used on a lot of different mounts. It is NOT an RMR footprint, which I personally would have liked, and is, in my opinion, the other industry standard. It also includes a picatinny rail mount for even more mounting options. One fantastic feature of the Lucid, is its side battery tray. It uses a CR1632 battery, which just rests in the little tray, and slides in. There are no screws to hold it in, just some friction magic. I could not get the tray to open on its own, and trust me, I tried. This side battery tray allows the user to change the battery without removing the optic, thus leaving your zero alone. The physical size is 45mm Long x 25mm Wide x 30mm high. Of course, the Litl Mo is also shockproof and waterproof.

There are a few more features of the Litl Mo too. Using it’s 19mm x 28 mm window allows for a great sight picture. This larger sized window really makes the Litl Mo shine. It is so easy to find the red dot. This, of course, allows for fast first shots on target and faster follow up shots. There is a 2 hour auto off on this optic. This would be fine if it had an auto on feature, but it doesn’t. Not to worry, the next generation will not have the auto off. Instead, it will be on, when you turn it on, and off, when you turn it off. Along those lines, the Litl Mo has 8 brightness settings. To turn it on, off, or adjust brightness, just hit either the “+” or “-” button on the left side of the optic. To turn it off, just hold one of the buttons down for around 3 seconds. Because of the auto off function, this optic lends itself to range use only. Which disappoints me, since I would like to use it on a carry gun. The Litl Mo uses a slotted type screw adjustment for windage and elevation, but has no “clicks”. I had no problem zeroing the red dot. Plus, it never lost zero for me.

Micro red dots are becoming the new normal for handgun sights. I mounted the Litl Mo on a Glockish Polymer 80 build. So the Litl Mo got banged around pretty good. I was just about ready to write my review, and the red dot started having problems. The dot would disappear when the slide went forward. I will say it was after around 1200 rounds. I contacted Lucid, they sent a call tag and a new Litl Mo. Of course, I was the first to have a problem. After they looked at it, it was a battery terminal problem. I was informed that they “tweaked” the design a little to prevent it in the future. Customer service was awesome, so no complaints there. Since this is not a “life on the line” optic, it didn’t bother me too much. I have not had any problems with the replacement Litl Mo.

The Lucid Optics Litl Mo is a good micro red dot. I was expecting a little more from a $350 micro red dot. It is built well, has good useability, and good functionality. The lack of staying on, or “waking” up, doesn’t lend itself to the price range it is in. On the plus side, the Litl Mo is a quality built product.

Firearms Insider Reviews - 8 Key Points

Claim to Fame:

Micro Red dot

Target Market:

Those wanting a quality micro red dot

FNBs (Features & Benefits of this product):

3 MOA dot
Side battery tray
Uses a CR1632 battery
Vortex Venom/Viper, Docter optic mounting footprint
Picatinny rail mount included
Shockproof up to .458 SOCOM
½ MOA adjustments, no clicks
IPX7 waterproof
2 hour auto off - next version will not have this
19mm x 28mm window
8 brightness settings
45mm Length x 25mm Width x 30mm height
Weight - 1 ounce

What other aesthetic options or finishes are available?

None

What others are saying?:

Too New - nothing found

Our Rating:

Pros:

Good Window size
Side battery tray
Dot size
Lifetime warranty

Cons:

No shake awake or stay awake mode
2 hr Auto off
Not an RMR footprint
Price

Score: 6.00 Okay

Favorite Link: Gun & Gear Cult

Chad Wallace

July 25, 2016

3 Gun, Lucid

Lucid L7 1-6x24 Rifle Scope

Chad Wallace

July 25, 2016

3 Gun, Lucid

Now that the review of the Lucid L5 4-16x44 is done. It is time to move on to the L7 1-6x24. The L7 is Lucid's quick adjustable, True 1x to 6x power optic. Lucid was kind enough to send me the L7 when they sent me the L5.

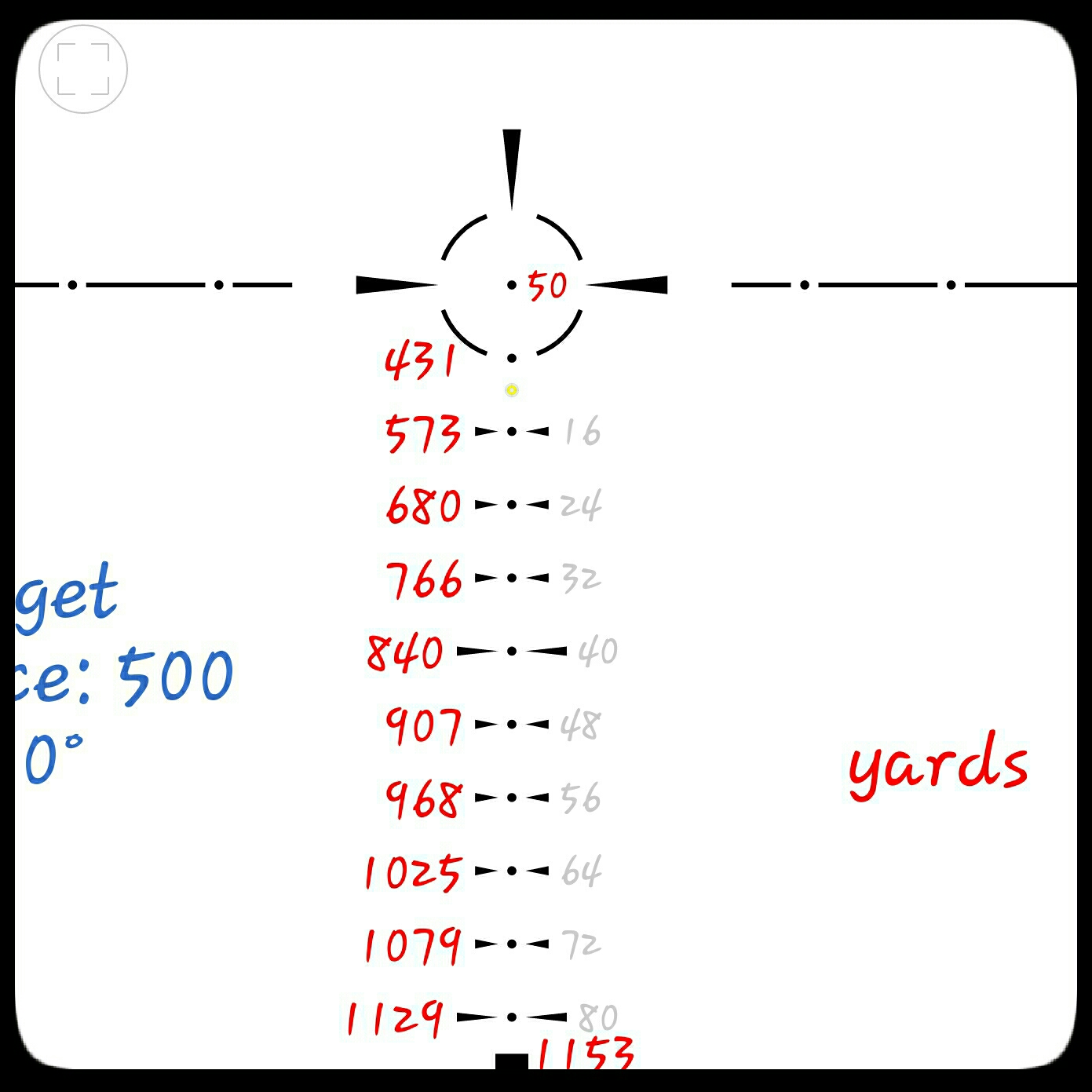

Lucid's new L7 optic comes with some pretty nice features. First up, it has a one piece 30mm tube that allows plenty of light through the 24mm objective lens. Second up, the variable power adjusts from a true 1x to a usable 6x. The L7 also comes supplied with an optional throw lever to adjust zoom. If you opt for the throw lever, just install it with the supplied allen wrench. The L7 uses Lucid's P7 reticle set on the second focal plane. At 1x, one can use the scope as a pseudo red dot. Except the L7 has an illuminated blue inner reticle, yes Blue. I found the blue to be an excellent choice. I was able to pick the reticle up on all different color backgrounds. When it's not illuminated, you will see the full MOA etched reticle, so even if you happen to have a blue target, it will still be noticeable. The marks on the reticle are spaced at 8 moa apart. If using on a 5.56/.223, they really don't allow for bullet drop. But if using something big and slow, like the 300blk subsonic, they work quite well. The throw between 1x and 6x is about 180 degrees. The MOA reticle is calibrated to the 6x magnification setting.

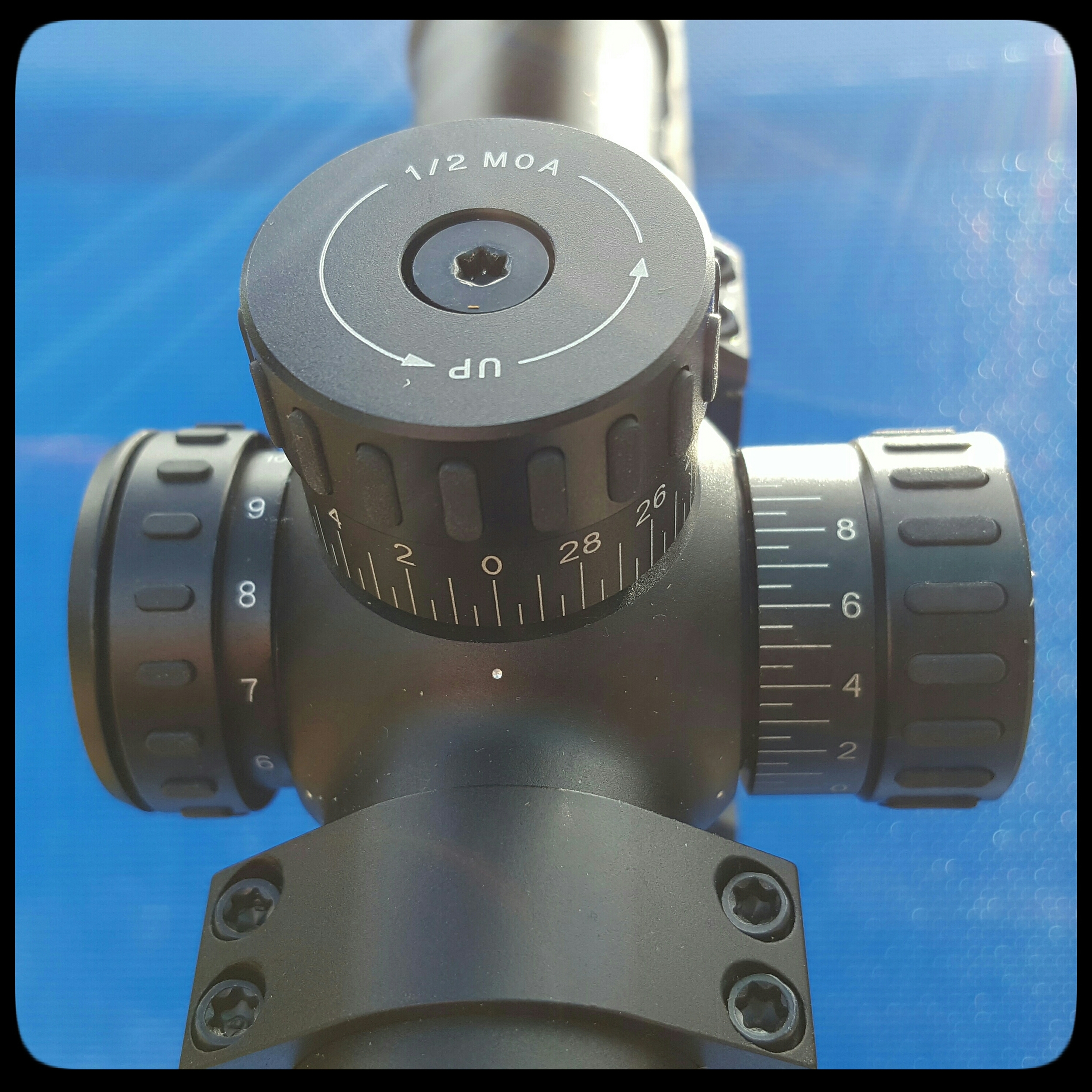

Now, my favorite thing about Lucid scopes is the adjustment knobs. To adjust the reticle up/down or left/right, one must first pull up on the adjustment knob. Then turn it, and push it back down. This locks the turret from moving. The turrets have a very nice tactile click to them. On the L7, each click is 0.5 or 1/2 MOA. To set the turrets to zero, just loosen the screw with the supplied allen wrench, pull up even farther, turn to zero, push back down, and tighten the screw. Next to the turrets, on the left side, is the brightness knob. It also holds the CR2032 battery. There are 11 brightness adjustments. I would have liked the reticle to be brighter, because in daylight it is hard to see the illumination.

I mounted the Lucid L7 1-6x on a 16" AR. Which is really what the L7 was primarily designed for. The first thing I noticed was how clear the optic was. I have seen 1-4x optics in the same price range that aren't this clear! The scope also comes with flip covers. A nice touch, but the covers are pretty flimsy.

Lucid has done a reasonably good job with the L7 1-6x24. It is very clear, has Lucid's excellent knobs, has blue illumination, and is a true 1x. They only thing I would change, is the MOA hash marks. Maybe make them 2 or 4 MOA apart to better work with the 5.56/.223 cartridge. Give Lucid Optics a look, they may have something worth sighting through.

Firearms Insider Reviews - 8 Key Points

Claim to Fame:

Quick adjust 1-6 power optic with blue center illumination

Target Market:

3-gunners, hunters, Law enforcement, or anyone wanting a quick adjustable low power optic.

FNBs (Features & Benefits of this product):

True 1-6 power
30mm tube
10.75" long
20.4 ounces
Waterproof
Fogproof
Shockproof up to .458 SOCOM
Multi coated optics
Illuminated P7 etched reticle
1/2 moa adjustments
Lockable turrets
60 moa adjustment range (Each side of center)
Comes with Flip caps
Lifetime Warranty

What other aesthetic options or finishes are available?

None available

What others are saying?:

Kurt at Optics Planet. 5/5 stars

Outstanding Optic

I wanted a 1-6x optic that wouldn't break the bank but also wouldn't be something that I knew was "cheap". A friend suggested the L7 and even after reviewing the website I still had some questions. A quick call to Lucid...and a chat with the president of the company, answered them. When the optic arrived, I was glad to see that it felt solid and rugged and wasn't something that would fall apart if it got a few dings and scratches. The glass is clear and the reticle is crisp. A word about the reticle...I like how the various steps on the "ladder" are a fixed distance so not only does it operate as a BDC, it also will function as an ersatz range finder.
