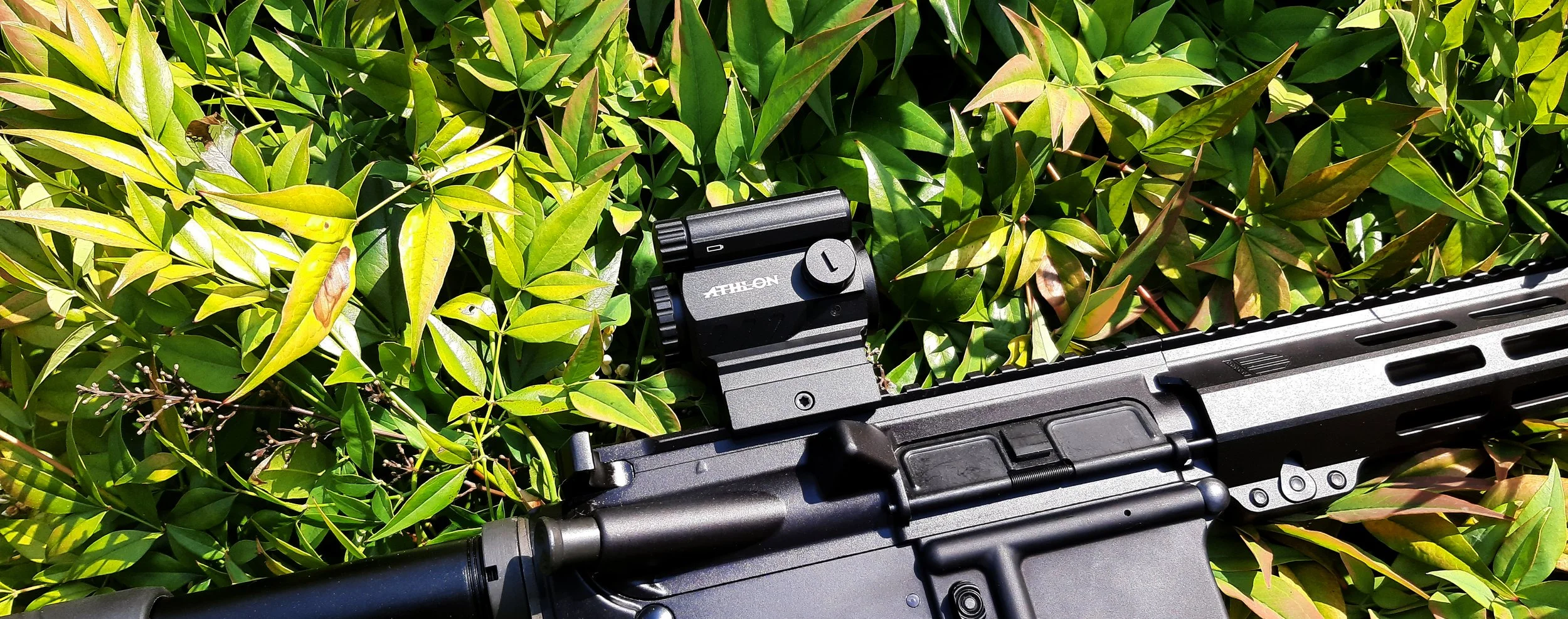

Athlon Midas TSP1 Prism

  I’m starting to convert some rifles over to 1x prism sights from red dots. This is because they offer a reticle without the need for a battery. Thus, the Athlon Midas TSP1 prism sight was right up my alley. Prism sights usually have an illuminated reticle option. As does the Athlon TSP1. The Athlon Optics Midas TSP1 prism sight has been out for some time now, I just finally have one I’ve been using, for about 3 months, with good results.

  Let’s start by why I am converting over to prisms. The main reason for this is that, if for some reason the battery happens to die, prism sights have an etched in reticle. Similar to your typical scope. Some prism sights, as with the TSP1, have a non-magnified option, or 1x. This makes them an ideal replacement for your everyday red dot optic. Prism sights are also usually pretty compact.

  The Midas TSP1 comes feature packed. Like any good scope these days, it has all the fancy lens coatings, is nitrogen purged, fog proof, shock proof, and waterproof. The TSP1 has a 21mm objective lens that gives good light transmission. It even comes with both hi and low mounts. Zeroing adjustments are made in 1 MOA click increments by using the top side of the turret caps. Just unscrew the cap, flip it over, and the flathead built into the cap fits perfectly into the adjustment screw slot. Lastly, it uses a single AAA battery for the reticle illumination.

  Most prism sights aren’t as small as a comparable red dot. However, the Midas TSP1 is not much larger than your current, tube style, red dots. For one, the TSP1 is only 2.7” long. Height is always determined by what mounting base you have on it. But with the high base, it measures 2.5” to the top of the battery compartment, from the mounting rail. I measured the width to be about 1.9”, this is from the battery compartment to the outside of the adjustment buttons. As you can see, it’s not very big at all. It also isn’t very heavy, weighing in at 6.25 oz’s.

  Now for the most important part, the reticle. The Midas TSP1’s reticle is top notch. It is mainly calibrated for 223/5.56, but should work reasonably well with other calibers. For reference, I mounted it on a 5.56 AR15. The reticle design works really well. It is a horseshoe style with a few usable differences. The outer ring is 66 MOA, or the equivalent of an average size human at 100 yds. In the middle of the ring is a 3 MOA dot. Sight the 3 MOA dot in at 50/200 yds for the rest of the holdovers to work properly. Below the 3 MOA dot, is a 2 MOA dot. This is your 300 yd aiming point. Having a smaller dot below the main dot may seem odd, but it isn’t. The smaller dot actually makes it easier to see your 300 yd target because it doesn't obscure it as much. Below that dot, is a vertical line with a couple of hash mark lines. The top of the line is your 500 yd aiming point. It is also your human height range estimation for 300 yds. The wings on the edges of the reticle really just let you know how level the gun is, or where the center point is for range estimation. The actual MOA numbers for all the dots and lines are in the Midas TSP1 manual, or online, if you are curious. The TSP1 also has a fast focus eyepiece to get that reticle crystal clear.

  The Athlon TSP1’s reticle is also illuminated. But not just your normal red illumination, the TSP1 also has green illumination. Most other prism sights only give you the option of one color. One can switch between the two colors by pressing both the up and down brightness buttons at the same time. I really like the options of green or red. I usually leave the TSP1 on green, as the reticle is clearer for me in that color. Not to be misunderstood, the red illumination is also clear, but I prefer the green in this case. To initially turn the illumination on, just push the brightness up button. To turn it off, hold the brightness up button for 3 seconds. Once it’s on, just use the +/- buttons to increase or decrease the reticle brightness. There are 10 brightness settings to choose from. Both colors are daylight bright and neither washed out for me in direct, bright, sunlight. The Athlon TSP1 also has a 6 hour auto off function. So if you haven’t pressed any buttons in that time frame, it will turn off. The TSP1 does not have an auto on function. Remember, it has an etched reticle, so you will still have an aiming point. Of course, once you turn the TSP1 back on, the brightness is where it was last left. The soft touch brightness buttons are large enough that I don’t have trouble using them, something I can’t say about some of the other optics I have used.

  I am really enjoying the Athlon Midas TSP1. It is super clear. The etched, illuminated reticle also doesn’t affect my astigmatism like red dots do, so no “starburst”. Which is another reason I am switching over to prism optics. The somewhat limited eye relief didn’t seem to be a problem. When I say somewhat, the reticle is still visible at 12” of eye relief, it is just harder to locate because the window size gets smaller. The TSP1 also performed very well for me when I used it in a big local shooting match. Athlon doesn’t state battery life, but the initial AAA battery is still going strong. After all, the AAA batteries are super easy to find, even at a tiny store in the middle of nowhere.

  Athlon Optics did a pretty good job with the Midas TSP1. The MSRP may seem a little high, but street price is right on par for a 1x prism sight. Plus you get multi-colored reticles and it uses that AAA battery. If you are like me and want a good 1x prism sight, check out the Athlon Midas TSP1. It’s a good all around prism to replace that fully battery powered red dot.

Firearms Insider Reviews - 8 Key Points

Claim to Fame:

1 power prism scope with green or red illuminated reticle

Target Market:

Those wanting a non magnified optic with the benefits of having an etched reticle

FNBs (Features & Benefits of this product):

  • Obj. Lens - 21mm

  • FoV ft @100Y - 66ft

  • Red or Green illuminated etched reticle

  • 1-10 illumination settings

  • Center Height - 0.88” Low mount / 1.50” High mount

  • 1 MOA windage/Elevation adjustment

  • AAA battery

  • Weight - 6.25 ounces - 7.8 ounces with high mount

  • Length - 2.7”

  • 6hr auto off

  • Multi-coated lenses

  • Has Aimpoint T1 mounting footprint

What other aesthetic options or finishes are available?

3 and 4 power

What others are saying?:

5/5 stars at Athlon Optics

Really nice optic. It needs more information,

A representative told me the mount is proprietary. It however does in fact work on Industry standard T1 Micro Style mounts. Fits good in an ADM Mount, RS Regulate for AKs, or even a low mount for Shotguns or PCCs like the Scorpion/Stribog.

Athlon if you were open about this tidbit, you'd sell a lot more! It's a prism scope with a similar size to other micro red dots and it takes T1 mounts. Almost perfect for what it is.

Link to other reviews:

Nothing worthwhile found

Price point:

MSRP = $337.49

Retail = $269.99 at Brownells

I need it now! Availability:

Athlon Optics or Brownells

Our Rating:

Pros:

  • Etched ranging reticle

  • AAA battery

  • Green or Red Illumination

  • T1 compatible mount

Cons:

  • Eye Relief

  • No auto on

Score: 7.50 Good
